Dallmeier Smatrix DMX 800 Leitfaden

Dallmeier

DMX 800

DMX 1600

Commissioning

000795 / Rev. 1.0.3 / 2014-03-13

English

2 www.dallmeier.com

Contents

Validity .........................................................................................................................................................................................................................2

Safety Instructions....................................................................................................................................................................................................3

HDD Mounting...........................................................................................................................................................................................................4

Mounting.....................................................................................................................................................................................................................5

Connections............................................................................................................................................................................................................... 6

Login ..........................................................................................................................................................................................................................8

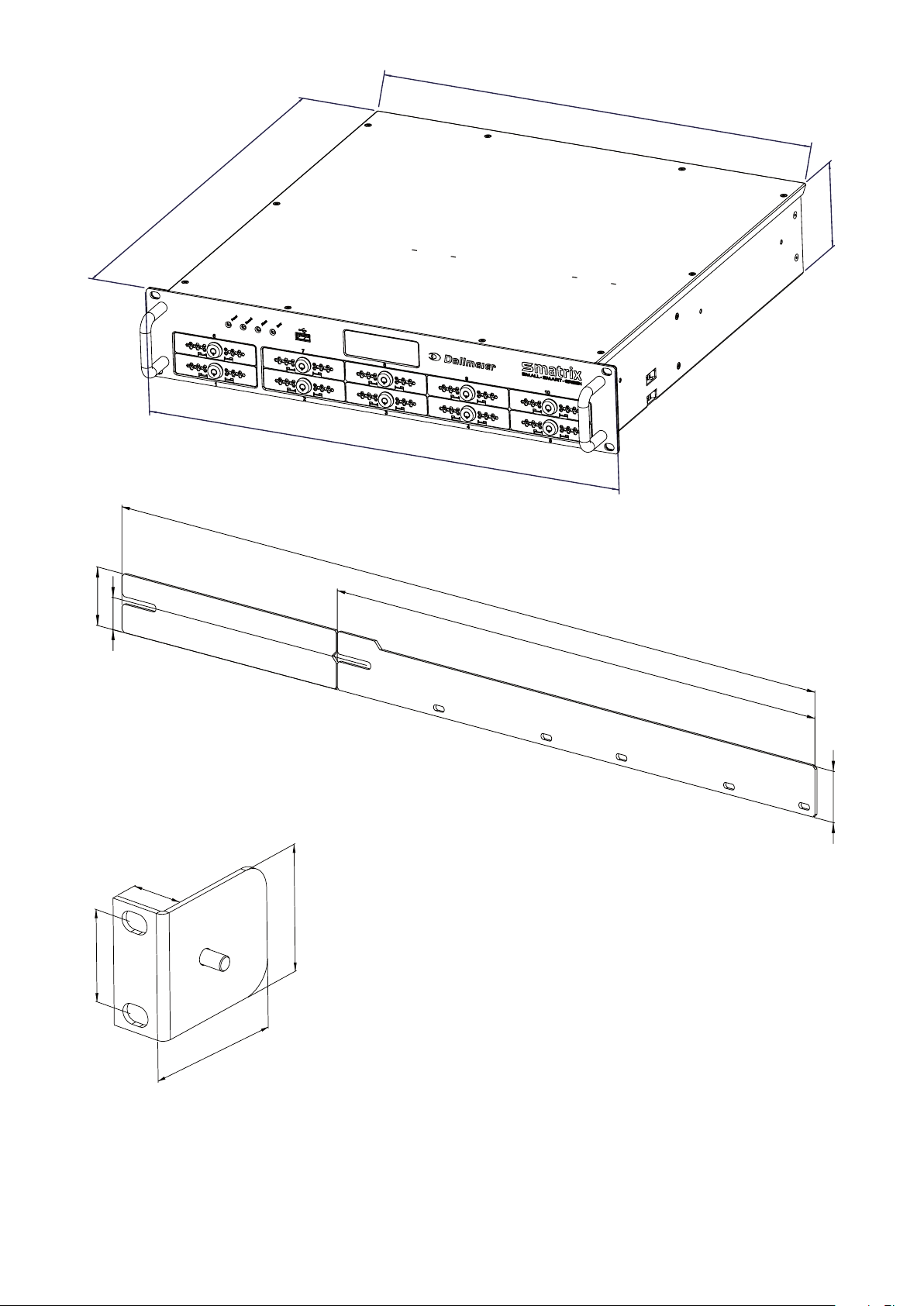

Dimensions...............................................................................................................................................................................................................10

Validity

This documentation applies to the audio and video recorder DMX 800 / DMX 1600. It has been produced on basis of software

version 7.3.3.

Contents

Only use this unit if it is technically in proper working order, to the intended purpose and while keeping safety and potential dan-

gers in mind.

Qualified Personnel

Installation, mounting, connection, commissioning and configuration of the unit may only be carried out by qualified person-

nel. This also applies to the maintenance, testing and repair, whereat the regulations of the DIN VDE 0701 series of standards

(repair, modification and inspection of electrical appliances) must be followed.

Regulations

The use of video and audio surveillance systems in general is strictly regulated. Inform yourself about the applicable laws and

regulations regarding data, working and environmental protection before using the unit and ensure compliance with them.

System Components

Only use internal components that have been tested and approved by Dallmeier. Inappropriate internal components can

cause malfunctions, damages and data loss and can result in loss of warranty.

RAID System

Devices that are configured with a RAID system for redundant recording always must be supplied with power via an uninter-

ruptible power supply (UPS). A sudden voltage drop can damage the RAID system.

Modifications

Do not make any modifications to the hardware or software that has not been tested and approved by Dallmeier. Inappropri-

ate modifications can cause malfunctions, damages and data loss and can result in loss of warranty.

Documentation

Carefully and completely read the documents included in delivery. Always observe the contained instructions, notes and

warnings.

Condensation Water

If the unit is brought from a cold to a warm environment, resulting condensation water can cause malfunctions and damages.

In this case wait (up to 8 hours) until the unit has reached room temperature before commissioning.

Operating Conditions

Unfavourable operating conditions can shorten the life of the unit and can cause malfunctions, damages and data loss and

can result in loss of warranty. Observe the specifications given in the technical data, the operating condition requirements

and the maintenance instructions.

Shocks

Shocks can cause malfunctions and damages. The unit may not be moved while in operation.

Foreign Objects

If objects or liquids get into the unit, immediately disconnect it from the power supply (pull out the power plug). Contact the

sales partner responsible for your area.

Burnt Smell

If you notice burnt smell or formation of smoke from the unit, immediately disconnect it from the power supply (pull out the

power plug). Contact the sales partner responsible for your area.

Opening

The housing of the unit may only be opened by qualified personnel for inspection, maintenance and repair.

Disposal

Disconnect the unit from the power supply. Remove all connected devices. Return the unit to your respective sales partner.

Safety Instructions

Safety HDD-Mounting Mounting Login

Connections Dimensions

HDD Mounting

4 www.dallmeier.com

 ► Ensure that the HDD drawer unit and housing are flush.

 ► Lock the HDD drawer unit with the key.

► For the mounting of further HDDs proceed as described.

The mounted hard disk drives will be initilized and commissioned

with the start of the recorder.

► Insert the HDD into the HDD holder.

► Ensure that the HDD connections are positioned at the rear

side of the HDD drawer unit.

►Mount the HDD with 4 screws.

►Ensure that the recorder is disconnected from the

power supply.

► Unlock the HDD drawer unit with the key.

► Pull the HDD drawer unit carefully out of the housing.

► Remove the cover which is mounted in the HDD drawer unit.

 ► Insert the HDD drawer unit into the guide rails.

►Slide the HDD drawer unit carefully and completely into

the housing.

► Please pay attention that you do not cant.

►Do not use force.

Requirements

Recorders that have been ordered with hard disk drive can directly be mounted, connected and commissioned.

Recorders that have been ordered without hard disk drive must be equipped with five 2.5" hard disk drives (Raid 5) at least.

Note that all mounted hard disk drives

must be tested and released for mounting by Dallmeier (HDD whitelist in the Partner Forum)!

may not be formatted or partitioned!

Depending on the number and the properties (capacity, new or used) of the mounted hard disk drives, various messages and

dialogues are displayed during the first start and the initialization.

► Confirm the messages, if required.

► Observe the instructions given in the dialogues.

► Note the appropriate Configuration documentation.

► Load the Default System Parameters as first step of the configuration.

IMPORTANT ADVICE

Mounting

The hard disks should be mounted in a row , starting with the slot for HDD1 (left, lower).

Mounting

Ambient Conditions

Unfavourable ambient conditions can shorten the life of the unit and cause malfunctions or damages. Do not mount the

recorder at places with:

large scale of dust and dirt

steam or oil vapours (e.g. kitchen)

unsuitable ambient temperatures

insufficient ventilation (e.g. closed cabinet)

direct sunlight

sources of strong heat dissipation (e.g. radiator)

sources of strong radiation (e.g. radio transmitter, magnetic field)

corrosive surrounding (e.g. gas, salt water)

►Align the installation rails according to the depth of

the rack.

►Please attend to a correct alignment of the

installation rails (guidance on rear side).

►Fasten the installation rails.

► Mount the 19’’ holders each with 2 screws at the

rear side of the rack.

► Ensure that the guidances show to the internal side.

 ► Ensure proper ambient conditions.

 ► Exclusively use the 19’’ installation rails provided by

Dallmeier.

►Shorten the installation guidances (predetermined

breaking point) according to the depth of the 19’’

rack if necessary.

Mounting

The recorder is designed for mounting and commissioning in a 19’’standard rack (2 HU). With the adjustment and connection

of the provided installation rails it is suitable for 19’’ racks with a depth of 60 up to 120 cm.

Safety HDD Mounting Mounting Login

Connections Dimensions

► Insert the recorder with the installation rails into

the guidances.

► Insert the recorder completely into the rack.

► Ensure 10 cm of free space at the front and rear

side.

► Mount the recorder with 4 screws at the front side

of the rack.

► Connect the recorder as described on the following pages.

 ► Commission the recorder as described on the following pages.

The number of the connections can differ depending on the ordered equipment or device variant. The following description

refers to a device with full equipment and optional connectors.

Connections

6 www.dallmeier.com

Technical Data

Voltage Supply 110/230 V AC +/-10%, 50/60Hz

Power Consumption Max. 80 W

Heat Power Max. 273 BTU/h

Ambient Temperature 5° – 40° C, 20° – 25° C recommended

Humidity 5 – 70 % RH, not condensing

Atmospheric Load Dust-free

Weight Approx. 12 kg (with 10 hard disk drives)

A Power Supply Unit 1 L Not Active

IEC C14 socket, 110/ 230V AC + /– 10 %, 50/60 Hz Weidmüller, 2 pins

B Power Supply Unit 2 M Contact IN Cameras (1-16)

IEC C14 socket, 110/ 230V AC + /– 10 %, 50/60 Hz Weidmüller, 18 pins, only for switch / push button (dry contact)

C Video IN (1-16) N Relay OUT (1-5)

BNC, 75 Ohm, 1 Vpp, with loop-through, CVBS 11 pins on Weidmüller, 18 pins, max. 12 V DC / 24 V AC / 0,5 A, 150 mOhm

DVideo OUT VGA O Serial Interface COM 3 - COM 6

Mini-D-SUB, 15 pole, VGA, 1024 x 768 (only configuration, no video) Weidmüller, 20 pins, RS232

E Ethernet Interface 1 P Contact IN global (1-6)

RJ45, 10/100/1000 Mbps 7 pins on Weidmüller, 18 pins, only for switch / push button (dry contact)

F Ethernet Interface 2 Q Audio IN (1-8)

RJ45, 10/100/1000 Mbps D-SUB, 15 pole, 1 kOhm, 2.828 Vpp (for D-SUB/Cinch adapter cable)

G USB Interface R Audio IN (9-16)

2x USB 2.0, type A D-SUB, 15 pole 1 kOhm, 2.828 Vpp (for D-SUB/Cinch adapter cable)

H AUX / Line IN S Serial Interface COM 1

3.5 mm phone jack, 16 kOhm, 2.828 Vpp (for intercom) Weidmüller, 2 pins, RS485 (only for Dallmeier PTZ Dome cameras)

I Audio OUT

3.5 mm phone jack, 1 kOhm, 2.828 Vpp

J Microphone IN

3.5 mm phone jack, red, 4.3 kOhm, 2.828 Vpp (for intercom)

K Serial Interface COM 2

D-SUB, 9 pins, RS232

C D E GH I J L M N PO Q R S

F K

Serial Interface COM 2 (K) 6

Pin Assignment

1 DCD (Data Carrier Detect)

2 RxD (Receive Data)

3 TxD (Transmit Data)

Pin Assignment

4 DTR (Data Terminal Ready)

5 GND

6 DSR (Data Set Ready)

Pin Assignment

7 RTS (Request to Send)

8 CTS (Clear to Send)

9 RI (Ring Indicator)

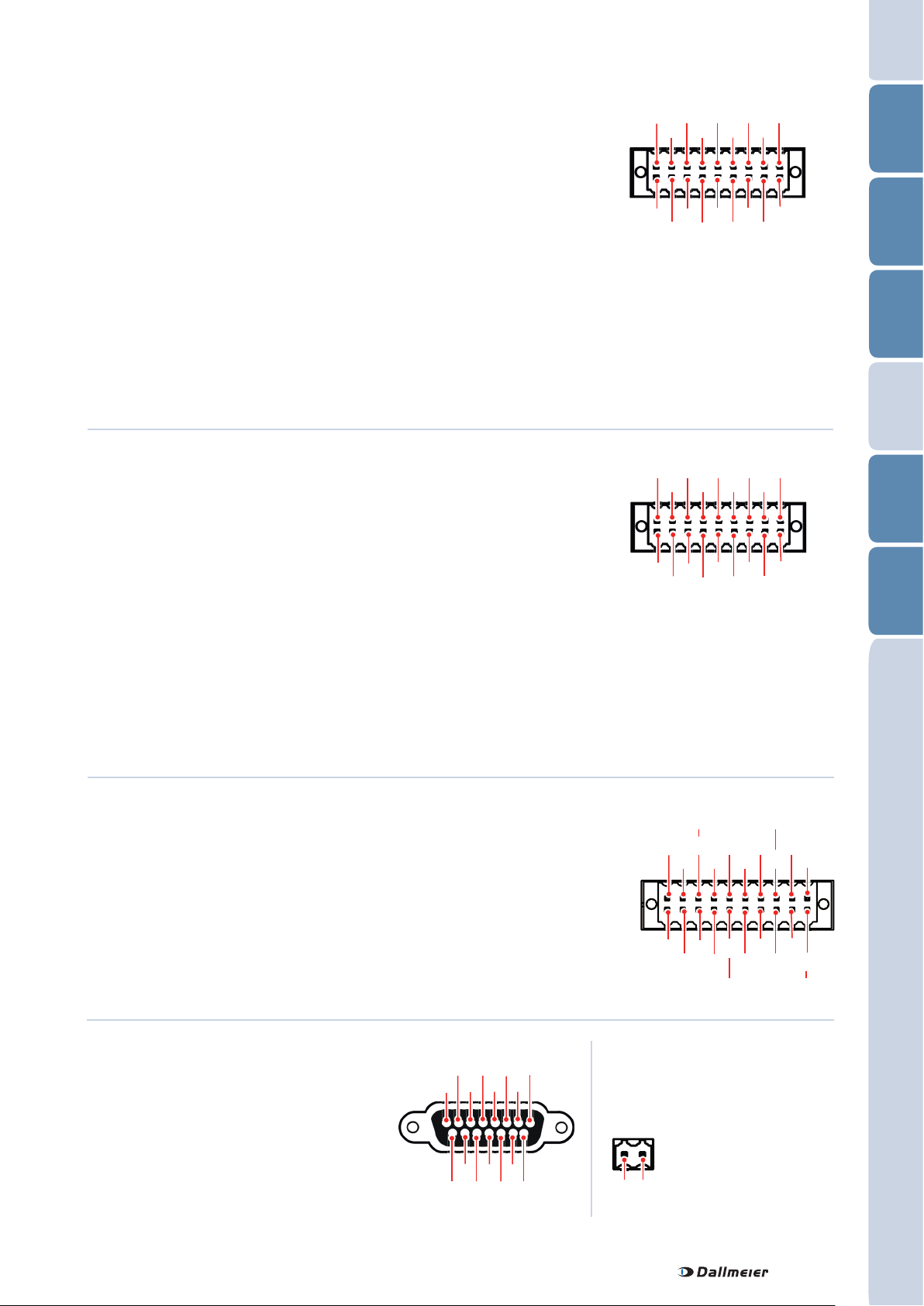

Assignment of the Sockets

A B

2 (GND) 46810 12 14 16 18

357911 13 15 17 (GND)

Contact IN Cameras (M)

Pin Assignment Standard Function

1 Contact 1 Camera 1 - Start recording

3 Contact 3 Camera 3 - Start recording

4 Contact 2 Camera 2 - Start recording

5 Contact 5 Camera 5 - Start recording

6 Contact 4 Camera 4 - Start recording

7 Contact 7 Camera 7 - Start recording

8 Contact 6 Camera 6 - Start recording

9 Contact 9 Camera 9 - Start recording

10 Contact 8 Camera 8 - Start recording

11 Contact 11 Camera 11 - Start recording

12 Contact 10 Camera 10 - Start recording

13 Contact 13 Camera 13 - Start recording

14 Contact 12 Camera 12 - Start recording

15 Contact 15 Camera 15 - Start recording

16 Contact 14 Camera 14 - Start recording

18 Contact 16 Camera 16 - Start recording

Relais OUT (N)

Pin Assignment Triggering Event Type

1 + 4 Relay 1 Recorder in alarm state Normally closed

3 + 6 Relay 2 None Normally closed

5 + 8 Relay 3 System error Normally openr

7 + 10 Relay 4 None Normally closed

9 + 12 Relay 5 Mehr than 80 % of the hold-up

tracks occupied Normally closed

Contact IN Global (P)

2 (GND) 46810 12 14 16 18

357911 13 15 17 (GND)

Pin Assignment Standard Function

11 Contact 17 Global 1 - Shutdown recorder

13 Contact 19 Global 3

14 Contact 18 Global 2

15 Contact 21 Global 5

16 Contact 20 Global 4

18 Contact 22 Global 6

Serial Interface COM 3- COM 6 (O)

Serial Interface COM 1 (S)

Audio IN (Q / R)

246810 12 14 16 18

357911 13 15 17

(GND)

Pin Assignment Function

1COM 3 RxD (Receive Data)

2COM 3 RTS (Request to Send)

3COM 3 TxD (Transmit Data)

4COM 3 CTS (Clear to Send)

6COM 4 RxD (Receive Data)

7COM 4 RTS (Request to Send)

8COM 4 TxD (Transmit Data)

9COM 4 CTS (Clear to Send)

Pin Assignment Function

11 COM 5 RxD (Receive Data)

12 COM 5 RTS (Request to Send)

13 COM 5 TxD (Transmit Data)

14 COM 5 CTS (Clear to Send)

16 COM 6 RxD (Receive Data)

17 COM 6 RTS (Request to Send)

18 COM 6 TxD (Transmit Data)

19 COM 6 CTS (Clear to Send)

Pin Assignment

1 Audio 1 / 9

2 Audio 2 / 10

3 Audio 3 / 11

4 Audio 4 / 12

5 Audio 5 / 13

6 Audio 6 / 14

7 Audio 7 / 15

8 Audio 8 / 16

Pin Assignment

9 GND 1 / 9

10 GND 2 / 10

11 GND 3 / 11

12 GND 4 / 12

13 GND 5 / 13

14 GND 6 / 14

15 GND 7+8 / 15+16

Pin Assignment Function

1COM 1 RX-

2COM 1 RX+

2 1

(GND)

Connections

Safety HDD Mounting Mounting Login

Connections Dimensions

8 www.dallmeier.com

Local Login

►Observe the appropriate Configuration documentation.

►Click Later to login without changing a password.

The graphical configuration interface of the recorder is displayed.

In the initial state it is possible to login without password. The rights of the Administrator group are valid.

Note that the definition of the passwords and of the network parameters is necessary for remote access (e. g. Dallmeier

PView 7).

►Left-click the background.

The Recorder login dialogue is displayed.

Commissioning

► Connect the recorder and relevant peripherals to the voltage supply.

► Ensure that the VGA monitor and a mouse are connected to the recorder.

► Switch on the VGA monitor, the peripherals and the recorder.

The recorder is available for local configuration after the start (up to approx. 5 minutes). The background image of the

graphical configuration interface is displayed.

Remote Login

Commissioning

►Connect the recorder to the network.

►Connect the recorder and relevant peripherals to the voltage supply..

►Switch on the peripherals and the recorder.

The recorder is available for remote configuration with the software NetConfig2 via Ethernet after the start (up to approx. 5

minutes). Use the following access data:

Mode Group login

IP address 192.168.2.230 (can be changed with the software IP-Finder without login)

Password Serial number (e.g. DAX2-12345)

Note that the definition of the passwords and of the network parameters is necessary for remote access (e. g. Dallmeier

PView7).

►Note the documentation Installation and Commissioning NetConfig2.

►Start the software NetConfig2.

The Login dialogue is displayed.

►Observe the appropriate Configuration documentation.

►Set Group login as Mode.

►Enter 192.168.2.230 as IP address.

►Enter the Serial number as Password.

►Confirm with Login.

The connection to the recorder is established. The graphical configuration interface of the recorder is displayed.

Safety HDD Mounting Mounting Login

Connections Dimensions

Dimensions

10 www.dallmeier.com

440

436

483

Measures in millimetre (mm).

645

445

Housing

19 " Rail

19 " Holder

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere dallmeier Aufnahmegeräte Handbücher

dallmeier

dallmeier DMS 180 III Bedienungs- und Wartungsanleitung

Beliebte Aufnahmegeräte Handbücher anderer Marken

KV2 Audio

KV2 Audio 500 Series Bedienungsanleitung

Robotics Technologies

Robotics Technologies microBus-Cam II Bedienungsanleitung

Seca

Seca 460 Bedienungsanleitung

Cognex

Cognex MVS-8000 Series Bedienungsanleitung

Mect

Mect MPNC006 Series Bedienungsanleitung

Bad Caf

Bad Caf THE LEASH Bedienungsanleitung

Strymon

Strymon NIGHTSKY Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Bedienungsanleitung

Tews Technologies

Tews Technologies TPMC465 Bedienungsanleitung

Honeywell

Honeywell Excel 50 Bedienungsanleitung

SeaLevel

SeaLevel COMM+8.LPCI Bedienungsanleitung

Arturia

Arturia AUDIOFUSE STUDIO Bedienungsanleitung

Rukra

Rukra RK-1240 Bedienungsanleitung

Samson

Samson SCOM Bedienungsanleitung

Dynacord

Dynacord DPS260 Bedienungsanleitung

Nice

Nice Core Bedienungsanleitung

Pyle Pro

Pyle Pro PSS8 Bedienungsanleitung

RF-System

RF-System TinyGate Gebrauchs- und Pflegehandbuch

dallmeier Smatrix DMX 800 Leitfaden

Beliebte Aufnahmegeräte Handbücher anderer Marken
