dallmeier SMAVIA DMS 2400 II Bedienungsanleitung
005992 / 1.0.0 / 2016-04-27
DMS 2400 II
Commissioning
English
Copyright © 2016 Dallmeier electronic GmbH & Co.KG
The reproducon, distribuon and ulizaon of this document as well as the communicaon of its
contents to others without express authorizaon is prohibited. Oenders will be held liable for the
payment of damages. All rights reserved in the event of the grant of a patent, ulity model or design.
We reserve the right to make technical modicaons.
The manufacturer accepts no liability for damage to property or pecuniary damages arising due to
minor defects of the product or documentaon, e.g. print or spelling errors, and for those not caused
by intenon or gross negligence of the manufacturer.
Dallmeier electronic GmbH & Co.KG
Cranachweg 1
93051 Regensburg, Germany
www.dallmeier.com
info@dallmeier.com
All trademarks idened by ® are registered trademarks of Dallmeier electronic.
Third-party trademarks are named for informaon purposes only.
Dallmeier electronic respects the intellectual property of third pares and always aempts to ensure
the complete idencaon of third-party trademarks and indicaon of the respecve holder of rights.
In case that protected rights are not indicated separately, this circumstance is no reason to assume that
the respecve trademark is unprotected.

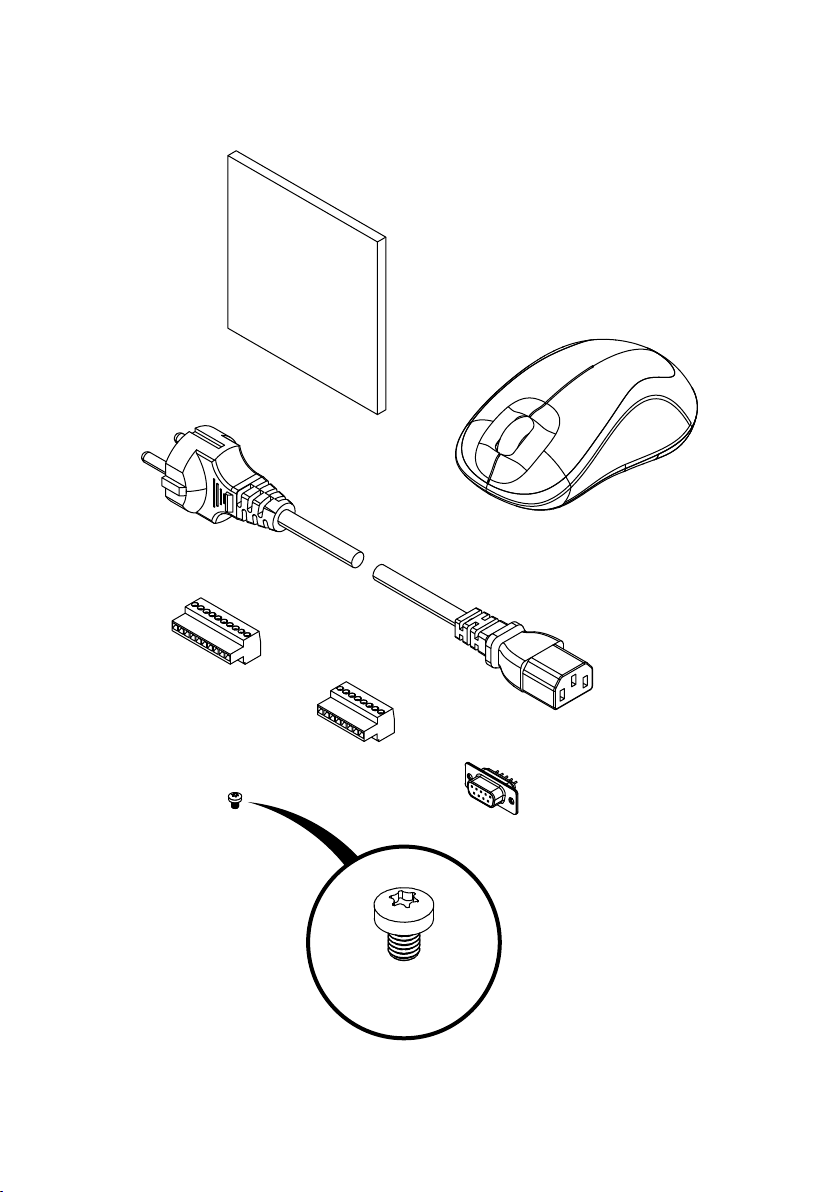

8×
1×
1×
5×
2×
5×
1×
DMS 2400 II
www.dallmeier.com 5
Inhalt
1 Validity 6
2 Documents 6
This Document 7
Other Applicable Documents 7
3 TypographicalConvenons 8
4 SafetyInstrucons 10
5 General Notes 13
Scope of Delivery 13
Transportaon and Packaging 14
Warranty 14
Appropriate Use 14
Approvals/Cercaons 15
Note (USA) 15
6 Requirements 16
7 Installaon 18
8 HDDMounng 19
9 Indicators 22
10 Connecons 24
11 Commissioning and Local Login 26
Commissioning 26
Login 26
12 CommissioningandRemoteLogin 28
Commissioning 28
Login 28
13 Specicaons 30
14 Maintenance 32
DMS 2400 II
6www.dallmeier.com
1 Validity
This document applies to the SMAVIA Appliance DMS 2400 II.
Figures in this document may dier from the actual product.
2 Documents
The product documentaon contains several documents which are
included in the scope of delivery in a printed form and/or on a digital
medium.
Read all documents included in the scope of delivery carefully and thor-
oughly before using the device.
Always follow the contained instrucons, notes and warnings and ob-
serve the technical specicaons.
Keep all documents in legible condion and in a suitable locaon for
future reference.
Regularly check the website www.dallmeier.com for the latest updates on
product documentaon.
DMS 2400 II
www.dallmeier.com 7
This Document
Commissioning
The document “Commissioning” (this document) contains detailed de-
scripons on installaon, connecon and commissioning of the device as
well as safety instrucons and general notes.
The target audience of this document is trained system integrators.
Other Applicable Documents
Data Sheet
The document “Data Sheet” contains detailed technical specicaons,
features and characteriscs of the device.
The target audience of the document is trained system integrators.
Conguraon
The document “Conguraon” contains detailed descripons on the con-
guraon of the device.
The target audience of the document is trained system integrators.
DMS 2400 II
8www.dallmeier.com
3 TypographicalConvenons
This document may contain various warning words and symbols that
indicate potenal sources of danger:
DANGER
DANGER indicates a hazardous situaon which, if not avoided, will
result in death or serious injury.
WARNING
WARNING indicates a hazardous situaon which, if not avoided, could
result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situaon which, if not avoided, could
result in minor or moderate injury.
NOTICE
NOTICE is used to address pracces not related to physical injury.
DMS 2400 II
www.dallmeier.com 9
For reasons of clarity and readability, various text formang elements
and types of emphasis are used in this documentaon:
Instrucons are indicated by arrows (➡).
Expressions in bold and italic marks generally indicate a control element
on the device (switches or labels) or on its user interface (buons, menu
items).
Paragraphs in italics provide informaon on basic principles, special
features and ecient procedures as well as general recommenda-
ons.
DMS 2400 II
10 www.dallmeier.com
4 SafetyInstrucons
Only use the device if it is technically in proper working condion and for
the intended purpose while keeping safety and potenal dangers in mind.
QualiedPersonnel
The installaon, mounng, connecon, commissioning and conguraon
of the device may only be carried out by qualied personnel.
This also applies to the maintenance, tesng and repair, whereat the reg-
ulaons of the DIN VDE 0701 series of standards (repair, modicaon and
inspecon of electrical appliances) must be followed.
Regulaons
The use of video and audio surveillance systems is, in general, strictly
regulated.
Inform yourself about the currently valid laws and regulaons regarding
data, worker and environmental protecon before using the device and
ensure compliance with them.
System Components
Only use internal components that have been tested and approved by
Dallmeier.
Inappropriate internal components may cause malfuncons, damages
and data loss and may result in the loss of warranty.
Modicaons
Do not make any modicaons to the hardware or soware that have not
been tested and approved by Dallmeier.
Inappropriate modicaons may cause malfuncons, damages and data
loss and may result in the loss of warranty.
