Dancover 2m Series Bedienungsanleitung
20-03-2018
for
Greenhouse
DUO
Manual
any length multipple to 2m min 4m
height 2,2 m
wight 2,0 m
2
Content Dimensions, mm
Weight max
Greenhouse frame (base length 2m)
1 package - straight parts and assembly manual 55х50х1260 8,0
2 package - parts of arches 230х50х1180 3,0
3 package - straight parts for butt ends 95х50х1260 15,6
4 package - fasteners and parts 180х130х80 2,0
5* package - 350х300 1,5
Insert (base elongation for 2m)
1 package
-
beams, straight parts, fasteners and parts
75х50х1260 10,5
2 package - parts of arches 230х50х1180 2,0
Perform assembling and operation of the greenhouse in strict accordance with
Packages contents
Greenhouse DUO is designed for creation microclimate favorable for growing garden crops
on cottage and household plots.
Greenhouse might have variable length depending on customers’ desire. Required length
of greenhouse is provided by purchasing of packages with extending inserts. Each insert
add 2m to base length. Base length is 4m. Height of installed frame is 2.1 m
The frame of the greenhouse is made of galvanized iron and is to be assembled with
fundament using angles. Complete set includes all that is needed for fastening of coverage.
Greenhouse may be completed with coverage on buyer’s request. Greenhouse has two
door openings and two small windows in opposite ends.
Packages complectation
greenhouse length packages
№ 1 № 2 № 3 № 4 № 5*Insert
№ 1 № 2
2 м
+ + + + +
4 м
+ +
+ +
+ + +
6 м
+ +
+ +
+
+
+
+
+
Chart 1
Description
Chart 2
*
5 package is not included in Greenhouse DUO complectation, it is supplied following the customer’s
request. Information about complectation and installing 5 packages are on page 22
3
Detailed complectation of Greenhouse DUO
Marking
Name Quantity
1 package
1stand 6
2к End balk 12
2кк Ridge balk 2
2с Edge balk 4
3supports 10
24 base stand 10
2 package
4вк top end arc 2
4в top arc 1
4н bottom arc 6
3 package
8bottom end strainer 8
9-1л top door opening stand 2
9-1п top door opening stand 2
9-2л top door opening stand 2
9-2п top door opening stand 2
9-3 Bottom strap door opening 4
9-4 Top strap door opening 4
10 door opening strainer 4
12фл small window vertical 2
12фп small window vertical 2
12дл door vertical 2
12дп door vertical 2
13м
door and small window horizontal
10
14м small door diagonal 12
Long clamp 10
Short clamp 6
22 Screed horizontal 1
23 Brace details 4
25 Screed radial 2
26 angled bevel 2
Hook for door and small windows 4
Chart 3
4
Detailed complectation of Greenhouse DUO
Marking
Name Quantity
4 package
Door and small window loop 8
Hook bracket 8
Screw M4*8 354
Screw M4*14 32
Screw M4*25 68
Screw M4*35 32
Screw M4*40 26
Nut M4 516
Nut M6 6
washer 60
Washer M6 12
Bolt M6*60 6
Special wrench 1
Adhesive tape 1
rotator
4
Bending tube 1
Top bandage 3
Bottom bandage 6
4
Two-side Adhesive tape 4.2m 1
5
8,5 m
3,6 m
12 m
Detailed complectation of Insert
Marking
Name Quantity
Package 1 Insert
1stand 4
2Main balk 12
2кк Ridge balk 2
2с Edge balk 4
3supports 4
22 Horizontal screed 2
23 Brace detail 8
24 base stand 4
25 Radial screed 4
26 angled bevel 4
Screw M4*8 138
Screw M4*14 16
Screw M4*25 16
Screw M4*35 8
Nut M4 178
Nut M6 4
washer 16
Washer M6 8
Bolt M6*60 4
Top bandage 2
Bottom bandage 4
2
Two-side Adhesive tape 4.2m 1
2 package INSERT
4в top arc 2
4н bottom arc 4
Chart 4
5
Before use of greenhouse, assemble and install it in accordance with the
manual.
When installing the greenhouse by third
parties, buyer should supervise
compliance of assembling with the
manual.
1.
2.
Operating rules
otesolcesuohneergllatsnitonoD
buildings and trees from which snow
or ice can fall down. 2 m or more
distance is recommended.
Cleaning and washing of polycarbonate sheets
1. Rinse sheet with warm water.
2. To remove dirt, wash it with mild soap solution or domestic detergent using a soft
cloth or sponge.
3. To remove water, rinse the sheet with cold water and wipe with a soft cloth.
Do not use sulphur cartridges for disinfecting greenhouse against
fungal and bacterial agents in order to prevent corrosion (darkening)
of frame
Never use abrasives or high-alkali detergents for cleaning polycarbonate
sheets. Dry wiping damages protective layer of the coverage and shortens
its service life. Never rub surface of polycarbonate sheets with a brush,
metalized fabric or other abrasive materials.
Technical certificate
If snow load index is over 5, snow load control is required (removing snow coat
periodically) in order to eliminate snow pressure on side walls of the greenhouse.
In winter, coverage of greenhouse should not be removed provided that snow
load is limited. In winter Greenhouse DUO doesn’t need any control in the majority
of the areas of Russia, including Moscow, Tver, St.Petersburg Ekaterinburg,
Novosibyrsk and other regions with snow load index under 5 (according to
SNIP 2.01.07-85). Under purchase clarify snow region where greenhouse is
installed.
6
Warranty
1. Manufacturer is responsible for full completing frame elements of
greenhouse.
2. Manufacturer is responsible for assemblability of the greenhouse in
accordance with the manual.
values of weather impact.
4. Warranty period – 12 months from date of purchase.
Warranty conditions
The warranty does not cover cases of:
1. Installation of greenhouse with violation of manual’s requirements.
2. Violation of operating rules.
3. Unintended use of greenhouse.
4. Floods, hurricanes, other natural disasters.
Manufacturer reserves right to change design of greenhouse
Warranty
7
Assembling manual
General view of the frame is given in Picture 1. Parts should be installed in such
a way that side selves of the prole are facing the surface cover. The frame is
assembled of numbered parts, some of which made prefabricated from multiple
parts with the same number, but different indexes.
indexes:
к- last (over the length of the greenhouse);
кк - ridged
н- bottom;
в- top;
п- right;
л- left;
c- edge balk;
- arrow shows the direction of installation as per schemes in the manual.
Terminology:
Left side - on the left, while outside the greenhouse, in front of the door.
Right side -
on the right, while outside the greenhouse, in front of the door
Parts are fastened by putting proles together and fastening them with screws
and nuts through the holes. When joining parts in “prole-to-prole” way it does
not matter which of the joined parts is above.
When assembling be careful not to damage the parts as they do not have
sufcient endurance before the whole structure is assembled.
1.
2.
3.
4.
5.
Some parts may have
spare holes which are
there due to uniformity of
parts.
Assembling manual
Introduction
Be careful when assembling the greenhouse! Parts have sharp edges. Beware
of cuts! Perform all works in protective gloves.
When assembling the frame parts should be joined through all holes as
prescribed. A simplied fastening of parts with only one or two screws is the
violation of assembly rules and the ground to relieve the manufacturer of the
warranty responsibility.
8
Assembling manual
А
(view from inside)
Б
(view from outside)
В
(view from outside)
2к
25
1
4вк
9-2
2к

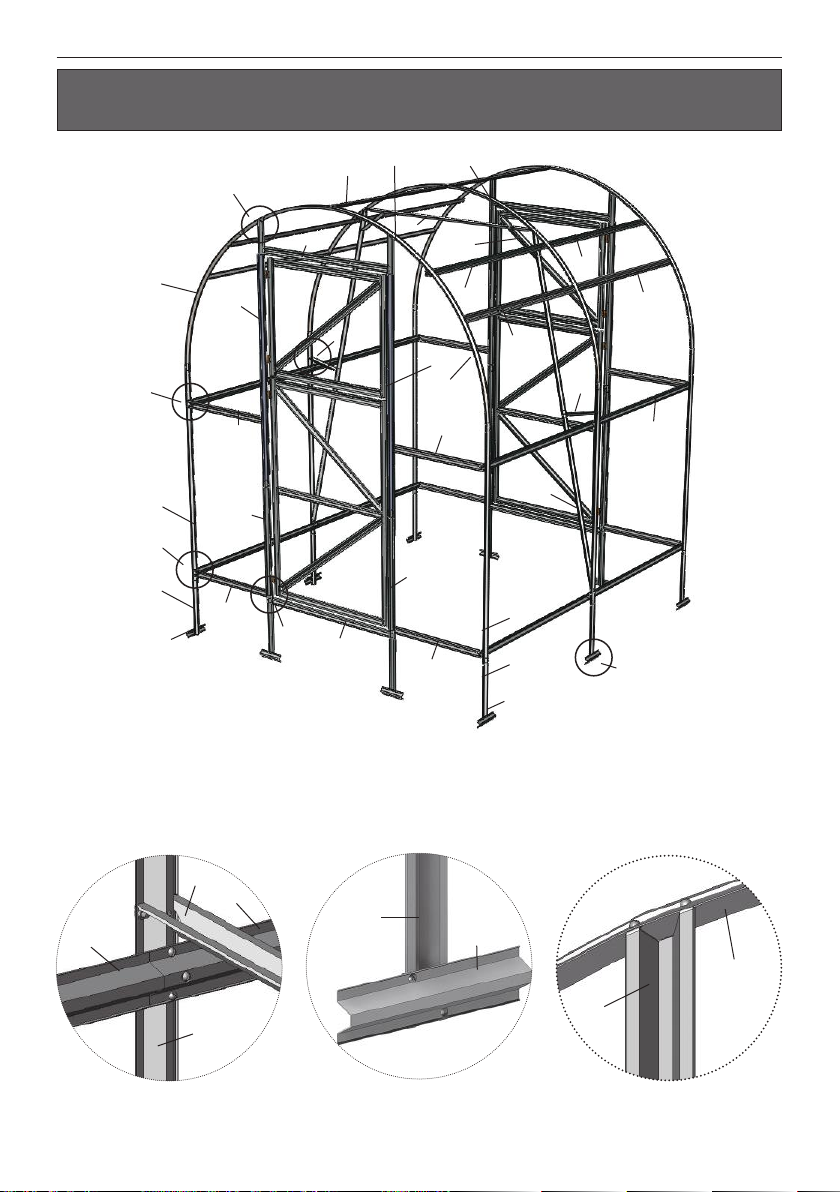

General view of the frame of Greenhouse DUO
Elements 4 - Fig.4
Elements 2- Fig.5
Elements 12...14(door and window) - Fig.13,14
А
Г
Д
Е
В
Б
Fig. 1
4н
4н
1
1
2к
2к
2к
2с
2с
26
22
25
2кк 4вк 4в
23
3
3
8
88
8
24
24
10
9-1л
9-1л
9-2п
9-2л
10
3
24
9
Г
(view from outside)
Д
(view from outside)
Е
(view from outside)
Assembling manual
General view of the frame of the greenhouse, extendable inserts
2к
24 24
9-1
8
8
2к
11
Fig. 2
2
General view of the insert
for Greenhouse DUO.
Each inset extends the
greenhouse length by 2 m.
«Greenhouse DUO»,
extended by any number of
inserts.
