Dancover ARROW 2,6 Bedienungsanleitung

20-03-2018

for

Greenhouse

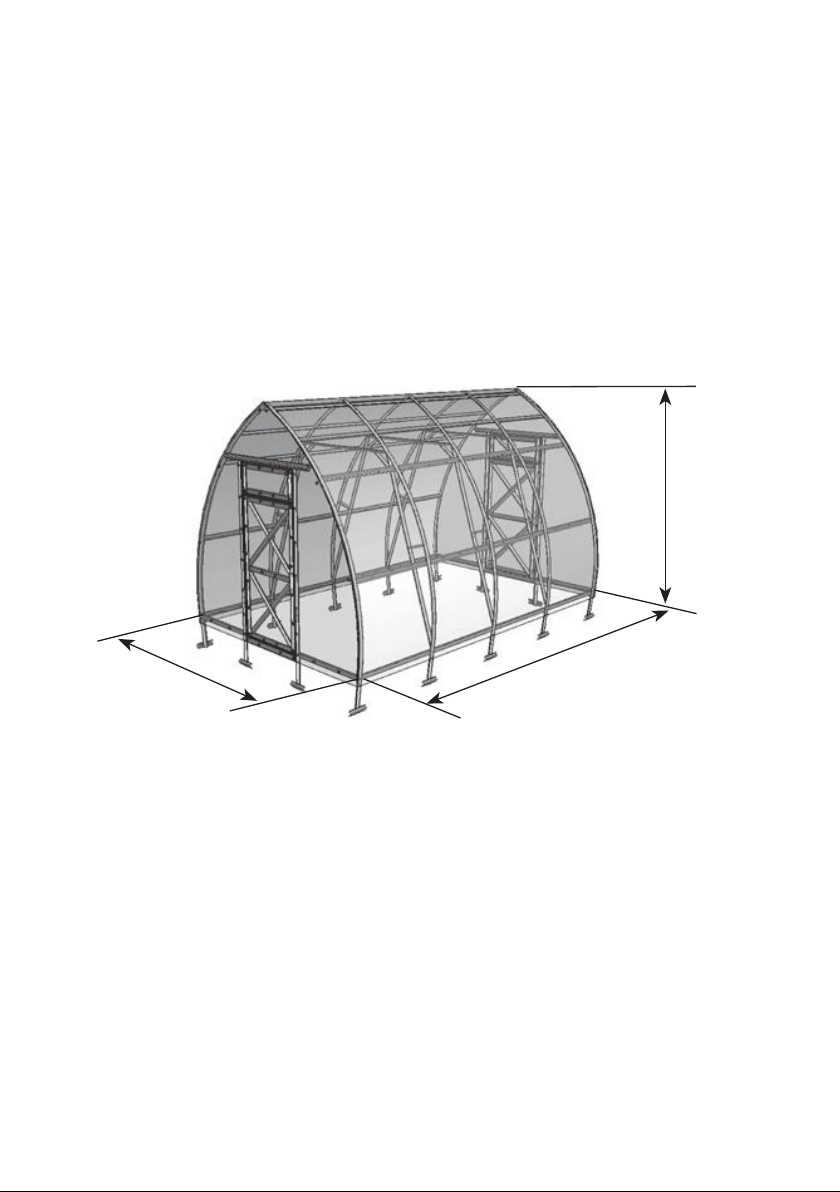

ARROW 2,6

Manual

Length – any divisible by 2 m

Height 2,47 m

width 2,6 m

Contents

Weight

max, kg

Frame (base length 2 m)

Package 1 – beams, straight parts and assembly manual 105х980х65 19,1

Package 2 – parts of arches and butt ends 170х1500х65 18,53

Package 3 – straight parts for butt ends, arch reinforcements

100х1290х65 18,4

Package 4

40х1100х750 1,42

Package 5

- weather strips 85х270х200 1,45

Package 6

- fasteners and parts 350x300 3,8

Package 7

* - side ventilating window 5

Inset (extending the frame by 2 m)

Package 1

- beams 80х980х65 12,5

Package 2

- parts of arches and straight parts 135х1480х65 17,5

Package 3

40х1100х750 1,42

Package 4

- fasteners and parts 85х200х200 1,1

5,2

10,4

15,6

20,8

The greenhouse frame is made of zinc-coated iron and assembled with screws and nuts. The

greenhouse is fixed to the ground by digging special supports into the soil or by joining it to

a foundation slab with fastening hooks. The supply package includes everything you need

for fastening the cover surfaces. Cover surface sheets are supplied following the customer’s

request. The greenhouse has two door openings and two ventilating windows in the opposite

ends. Side ventilating windows are supplied following the customer’s request.

Assembly and operation of the greenhouse should be performed in strict

compliance with the assembly manual and operation rules as specified

in the technical certificate. The technical certificate must be preserved.

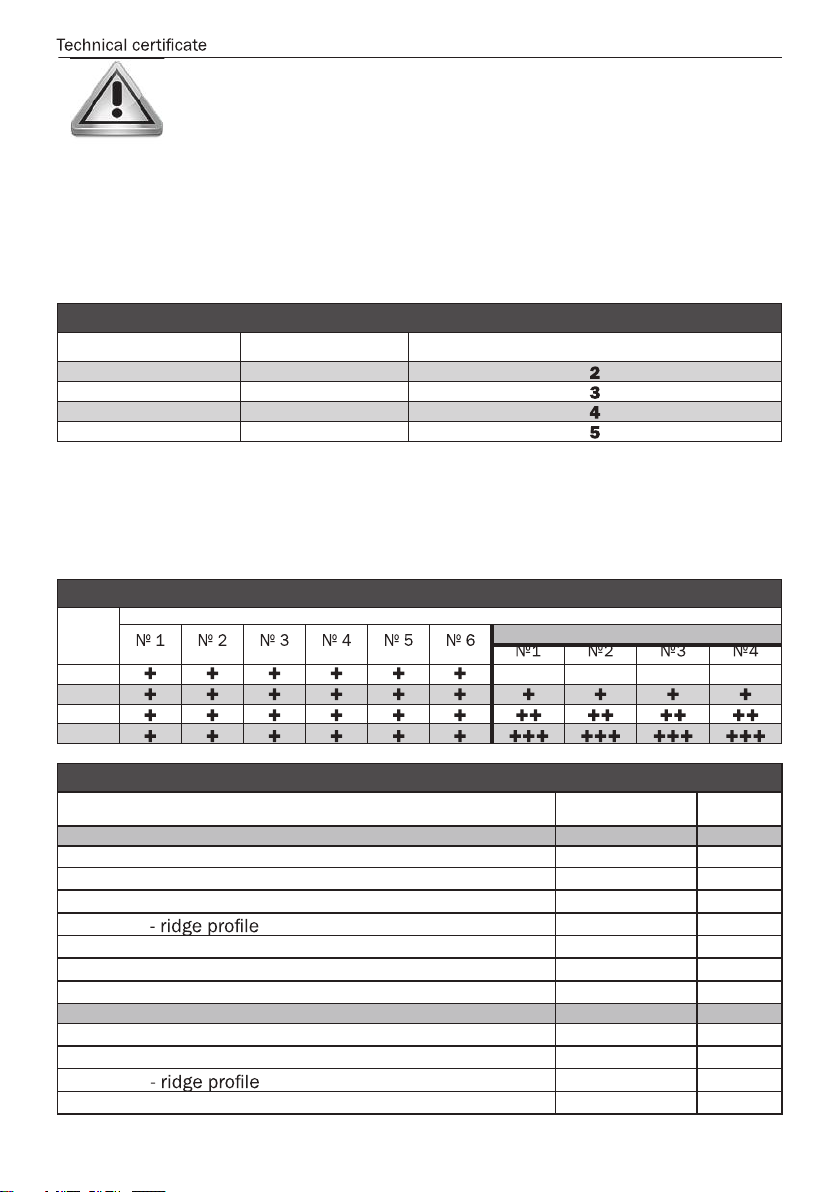

Description

Greehouse specifcations

Chart 1

Length (m)

Covered area, sqm Number of polycarbonate sheets, 2100x6000 (pcs)

Chart 2

Chart 3

Packages supplied

Package contents

Inset

package numbersGreen-

house

length

Dimensions, mm

*-additional packages supplied following the customer’s request.

Greenhouse ARROW is intended to create the microclimate favorable for growing garden and

allotment crops in gardens and household plots. The area of covered ground depends on the length

of the greenhouse (Chart 1). The high of the installed greenhouse frame is 2,5 m, and

the width of 2,6 m is optimal for two garden beds inside. The greenhouse may be of different length

depending on the customer’s wish. The required length of the greenhouse can be attained by

purchasing additional “Inset” packages each adding 2 m to the base length 2 m (Chart 2).

Detailed list of parts for Greenhouse ARROW

Marking

Name Quantity (pcs)

Package 1 (beams and straight parts)

2Beam 20

14 Door diagonal part 4

15 Door diagonal strap 4

19 Ventilating window horizontal part 4

20 Ventilating window vertical part 4

Hooks 4

Package 2 (arch parts)

4н Lower arch 6

4в Upper arch 6

8Upper door opening stand 4

12 Door vertical part 4

Package 3 (straight parts for butt ends, arch reinforcements)

1stand 10

3support 10

5Butt end upper strainer 2

6Butt end lower strainer 6

7Lower door opening stand 4

9Horizontal strainer 1

10 Side brace 4

11 Brace spreader 2

13 Door horizontal part 6

16 Butt end strap 2

17 Door strap for the latch 4

18 Reinforcement nogging piece 2

Left tubular reinforcement 2

Right tubular reinforcement 2

Package 4 (ridge profile)

Ridge profile 2

Package 5 (weather strips)

Hinge strip (m) 3,6

Door strip (m) 10

Butt end strip (m) 12

Package 6 (fasteners and parts)

Angle 20

Ridge strap 3

Support hook 8

Screw М5х10 378

Screw М5х14 22

Screw М5х35 108

Screw М4х8 6

Screw М4х10 4

Screw М4х35 8

Self-tapping screw 8

Nut М5 526

Nut М4 18

Nut М6 6

Washer 124

Washer М6 12

Upper wire bandage 3

Lower wire bandage 6

Hinges 8

Semi-finished rotator (with 2 elastic headers)

Pipe for bending 1

Scotch tape 1

Handle 8

Stud pin 4

Bolt М6х60 6

Bolt М5х50 18

Two-side adhesive tape 4,2

Profile 1.05m 4

Technical certificate

Chart 4

Detailed list of parts for Side ventilating window Package 7

Name

Quantity, pcs

Package 1

ф1

Long plank

ф2

Short plank

ф3

Long diagonal part

ф4

Short diagonal part

Wire stop 1

Wire extender 1

Package 2

Angle

Polycarbonate

0,95x0,43

Weather strip

0,95 m

Divisible hinge

Screw М5х10

Screw М5х35

Washer 32х5

Nut

М5

Clamper 2

Technical certicate

Detailed list of parts for Inset

Package 1

2Beam 20

Package 2

Support

Stand

4н Lower arch 4

4в Upper arch 4

9Horizontal strainer 2

10 Side brace 8

11 Brace spreader 4

18 Reinforcement nogging piece 4

Package 3

Ridge profile 2

Package 4

Lower wire bandage 4

Upper wire bandage 2

Ridge strap

Screw М5х10 172

Screw М5х35 16

Screw М5х14 4

винт М5х50 4

Screw М4х35 8

Screw М4х8 4

Nut М4 12

Nut М5 196

Nut М6 4

Washer 16

Washer М6 8

Screw М6х60 4

Angle 8

Two-side adhesive tape (m) 4

Profile L=1.0m 4

Chart 5

Chart 6

Technical certi cate

Before the start of operation, the

greenhouse should be assembled and

installed as prescribed in the manual.

When the greenhouse is assembled

by a third party the customer should

supervise the quality of works to ensure

compliance with the present manual.

The greenhouse cover surface should

not be removed for the winter period if

snow load is limited. If the greenhouse

is left unattended for the entire winter

the customer should either remove the

cover surface or estimate the possible

snow load. For the frame assembled

with all parts including strainers and

braces, the maximal snow load begins

when the layer of snow weight is 450

kg per 1 sqm of horizontal surface,

which corresponds to 2.25 m of fresh

snow and 1.1 m of settled snow.

The recommended thickness of the

When the greenhouse is assembled

Operation rules

Cleaning and washing sheets of polycarbonate.

1. Rinse the sheet with warm water.

2. Wash the sheet with a solution of soft soap or with a domestic detergent and

warm water, using a soft rag or a sponge to take away the dirt.

3. Rinse with cold water and dry with a soft rage to take away the water.

By disinfection of the greenhouse from fungus and biological diseases

pathogens do not use “sulphuric sticks”

When cleaning polycarbonate sheets never use abrasives or high-alkali

cleaning compositions. Dry wiping of the surface can damage the protective

layer and reduce its life cycle. Never use brushes, gauze fabric or other

abrasive materials to wipe the surface of polycarbonate sheets.

honeycomb polycarbonate (4 mm) is

sufficient for midland Russia conditions.

However, for areas where snow layer

exceeds 0.6 m the upper part of the

greenhouse should be covered by thicker

polycarbonate in accordance with local

weather conditions.

Do not install the greenhouse too close

to buildings or trees where masses of

snow/ice can fall on it. Recommended

distance is at least 1 m.

The greenhouse is designed to withstand

wind at the speed below 24 m/sec

Warranty responsibility

1. The manufacturer shall be responsible for the complete set of parts for

the greenhouse frame.

2. The manufacturer shall be responsible for assemblability of the

greenhouse in accordance with the manual.

3. The manufacturer shall be responsible for the greenhouse endurance in

the specified weather conditions.

4. Time period for making claims is 24 months after the day of purchase.

Warranty provisions

Warranty responsibility shall not cover the following cases:

1. Installation of the greenhouse in violation of the manual provisions.

2. Violation of operation rules.

3. Unintended use of the greenhouse.

4. Deformation of the greenhouse due to soil movement.

5. Floods, hurricanes and other natural disasters.

The manufacturer shall retain the right

to make changes to the greenhouse design.

Warranty responsibility

Manual

Installation manual for Greenhouse ARROW

General view of the frame is given in Picture 1 .Parts should be installed in

such a way that side selves of the profile are facing the surface cover. The

frame is assembled of numbered parts.

Symbols:

-arrow shows the direction of

installation as per schemes in the

manual.

Parts are fastened by putting profiles together and fastening them with

screws and nuts through the holes. When joining parts in “profile-to-

profile” way it does not matter which of the joined parts is above.

When assembling be careful not to damage the parts as they do not

have sufficient endurance before the whole structure is assembled. Use

supports (e.g. chairs) at interim stages of assembly to make sure the frame

is lifted steadily and evenly. To make sure holes coincide when assembling

complicated joints, use a 5 mm thick nail or a cone-shaped hand-punch.

Some parts may have spare

holes which are there due to

uniformity of parts.

introduction

Be careful when assembling the greenhouse! Parts have sharp edges.

Beware of cuts! Perform all works in protective gloves.

When assembling the frame parts should be joined through all holes

as prescribed. A simplified fastening of parts with only one or two

screws is the violation of assembly rules and the ground to relieve the

manufacturer of the warranty responsibility.

Manual

General view of the frame (Greenhouse ARROW)

(view from outside)

4В

Ridge strap

Angle

4В

4Н

Support hook

4Н

(view from outside)

4В

Support hook

(view from outside)

Angle

4Н

4В

Pic. 1

(view from outside) (view from inside)

Г EД

Б В

Angle

(view from inside)

Manual

General view of the frame, Greenhouse ARROW

Greenhouse ARROW

extended by any number

of insets.

Pic. 2

Pic. 3

General view of the inset for

Greenhouse ARROW.

Each inset extends the

greenhouse length by 2 m.

858

4060

1000100010001000

2577

Plan of greenhouse stands

resting on the foundation

Pic. 4

Andere Dancover Gewächshaus-Bausatz Handbücher

Dancover

Dancover gh21200 Bedienungsanleitung

Dancover

Dancover Mini Greenhouse GH152170 Bedienungsanleitung

Dancover

Dancover GH152180 Bedienungsanleitung

Dancover

Dancover TITAN Arch 280 Bedienungsanleitung

Dancover

Dancover DUO Bedienungsanleitung

Dancover

Dancover 2m Series Bedienungsanleitung

Dancover

Dancover GH152190 Bedienungsanleitung

Dancover

Dancover ARROW 3m Series Bedienungsanleitung

Dancover

Dancover TITAN Peak 240 5,0 Bedienungsanleitung

Dancover

Dancover GH82121 Bedienungsanleitung

Dancover

Dancover GH152200 Bedienungsanleitung

Dancover

Dancover Orangery GH152005 Bedienungsanleitung

Dancover

Dancover TITAN Arch 196 Bedienungsanleitung

Dancover

Dancover TITAN Arch 130 Bedienungsanleitung

Dancover

Dancover ARROW GH120025 Bedienungsanleitung

Dancover

Dancover GH152200 Bedienungsanleitung

Dancover

Dancover Polytunnel Greenhouse 4m Series Bedienungsanleitung

Dancover

Dancover LOTOS Bedienungsanleitung

Dancover

Dancover GH158011 Bedienungsanleitung

Dancover

Dancover STRONG 3x4 m Bedienungsanleitung

Dancover

Dancover TITAN Arch+ 320 Bedienungsanleitung

Dancover

Dancover GH152100 Bedienungsanleitung

Dancover

Dancover GH82020 Bedienungsanleitung

Dancover

Dancover Polytunnel Greenhouse 3x8m Bedienungsanleitung

Beliebte Gewächshaus-Bausatz Handbücher anderer Marken

ACD PRESTIGE

ACD PRESTIGE MR3 H Bedienungsanleitung

Vitavia

Vitavia VA0040-TRP Bedienungsanleitung

VegTrug

VegTrug Nursery Bedienungsanleitung

Riverstone Networks

Riverstone Networks Monticello 041315V Bedienungsanleitung

STC

STC Easy Grow 6x12 Greenhouse Bedienungsanleitung

CLIMA POD

CLIMA POD Spirit V7 Series Bedienungsanleitung

Vitavia

Vitavia GAIA JUMBO Bedienungsanleitung

Palram

Palram Harmony 6'x4' Bedienungsanleitung

ClearSpan

ClearSpan Storage Master 104598 Bedienungsanleitung

Sproutwell

Sproutwell GRANGE - 5 Bedienungsanleitung

ACD

ACD Piccolo 03 Bedienungsanleitung

Growhouse

Growhouse Lean To 6 x 8 Bedienungsanleitung

Riverstone Networks

Riverstone Networks Grower's 181010V Bedienungsanleitung

GrowSpan

GrowSpan 500 Series Bedienungsanleitung

Robinsons

Robinsons 5ft Wide LEAN-TO Bedienungsanleitung

Botanica

Botanica E Bedienungsanleitung

PNI

PNI SP6000 Bedienungsanleitung

Hortus

Hortus 211-203 Programmierhandbuch
