DANE-ELEC MINIPLAYER Bedienungsanleitung

SL Version

Portable Media Player

Dane-Elec_MiniPlayer SL_manual

donderdag 29 november 2007 12:13:04

Welcome

Thank you for purchasing the product.

Please read the manual carefully before use.

We recommend you to keep it for future reference.

Getting Started

Welcome to DaneDigital website!

The DaneDigital home page provides the overview of company and products,

other related information, and answers to common questions.

Firmware and software updates are also available as well as the most recent

information about your Meizu by Dane-Elec product.

www.danedigital.com

Dane-Elec_MiniPlayer SL_manual

donderdag 29 november 2007 12:13:06

TableofContents

10-11

14-16

17-19

22-23

Important Cautions

Product Features

Package Contents / Parts and Names

Protection Film on the Player

Touch Keypad

LCD Display

1. Getting Started

2. Basic Operation

Connecting Mini Player

Using for the First Time

Installation CD

Downloading from the PC

Saving Files & Disconnecting to Your PC

25-27

28-29

30-31

32-33

34-35

36-37

38-39

40-43

44-45

Using Buttons / Menu Controls

Using Browser / Listening to Music

Update the Music Library / Sorting the Music Library

Playback Mode / Sound Effect

Spatializer Sound Effect / Equalizer

Volume Restriction/ Displaying Lyrics

Photo Library / Slideshow Settings

Converting Video Files

Play Video / Video Settings

3. Quick Start

Getting Started

Dane-Elec_MiniPlayer SL_manual

donderdag 29 november 2007 12:13:06

Important Cautions

TableofContents

52-53

56-57

58-66

67-69

70-72

Voice Recorder

Play Recorded Files

E-book

Games & Tools

4. Menu

5. Guide to Firmware Upgrade

6. Additional Information

Detailed Features by Menu

Upgrade Firmware

Format

Handling Instructions

Precautions for Using the Product

Trouble Shooting

Product Specifications

Getting Started

Initialize OS to the Original Factory Settings

When it is not able to turn on and disable connecting the player to your PC after resets,

please click and hold the Next key ( ) and Power On/OFF button for about 8 seconds to

initialize the OS to the original factory settings. All data will be deleted in the player.

Turn On / Auto Power Off

To power on the player, make sure it has enough power, press the Power

On/Off button for over 3 seconds. Click it again to start play.

When there is no button operation for about 3 minutes while the player is

stopped, it is automatically turned of.To power off the player, press and

hold the Power On/OFF button until it finishes with shutting down procedure.

Reset Mini Player

When it is dead caused by improper operation, you have to reset your

mini player. Disconnect it to a USB cable or AC Adapter, press and hold

on the Enter key for over 12 seconds to reboot.

Update Music Library

After finish copying the music, using Main Menu-Music-Update Music Library on the player

before your listening music so that you can organize and assort them by artist, album or

genre. Otherwise, you can only browse the new copied songs from All Songs on the player.

Long Click

Dane-Elec_MiniPlayer SL_manual

donderdag 29 november 2007 12:13:06

Product Features

This product is the registered trademark of Meizu Technology Co., Ltd.

Meizu Technology Co., Ltd, has the exclusive copyright for this User Manual.

It is prohibited to distribute this User Manual in part or in whole without permission.

The various examples, drawings and pictures and included in this User Manual

are subject to change without prior notice when new product enhancements

become available.

Do not change or modify the product without permission or authority of manufacturer.

It may cause undesirable operations, permanent damages or harmful interferences.

Windows 2000, Windows XP and Windows Media Player are the registered

trademarks of Microsoft Corp.

CE, FCC, CCC

Meizu Limited, Has the copyright for the product software.

It is prohibited to distribute or commercially use them without written

permission from Meizu Limited.

Stylish and Luxurious Design with High Portability

Mini Player has a Super mini size with High Portability, and Boasts a Stylish and

Luxurious Design with Stainless Steel Surface.

ble Disk

Built-in Microphone Supports High Quality Recording

Synchronized Song Lyrics Display and ID3 Supported

Text Reader (TXT)

Multiple Language Supported

Resume Function

Power Saving Function: Auto Power OFF and Sleep Timer

Hold key Function

Firmware Upgradable

arge & Vibrant LCD with Dynamic GUI; Human User Sliding-touch Keypads

2.41 Inch 260,000 Color QVGA 320*240 TFT-LCD

Professional Spatializer Sound Effects, Various and Adjustable EQ Modes

Including: User adjustable POP, Classical, Rock, Jazz, Live, Bass Booster, User.

Supports WMA, WMA VBR, WMA Lossless, WAV, OGG, Flac, APE Playback

Movie Player(AVI video files), Game, Calculator, Calendar and Stopwatch

Real-time Clock Setting

Photo Album + Slide Show: JPG, BMP, GIF Formats

Music library, Playlist Setting, MTP and MSC mode, Easier and Faster to search music

Support DRM10

Plays Up to 26 Hours for Music Playback (Based on our company's test)

High Speed USB2.0 Ultra Fast Data Transfer

High Capacity USB Flash Storage for Remova

Getting Started

General

Copyrights/Trademarks

Certifications

Dane-Elec_MiniPlayer SL_manual

donderdag 29 november 2007 12:13:06

PackageContents

Earphones

Mini Player Main Body

USB Cable

Installation CD

PartsandNames

2. Front Side

LCD Window

Earphone

POWER/PLAY/STOP

USB Port

HOLD

3. Right Side

1. Top

Strap

Note: Design and specifications are subject to change without notice.

Sliding-touch

Keypad

ENTER

MIC

Getting Started

Q CK S RT

UI TA

Quick start

Dane-Elec_MiniPlayer SL_manual

donderdag 29 november 2007 12:13:06

1. While HOLD is locked, any operation will be invalid.

2. Too fast operation will be easy to cause error.

3. Slide your finger on the touch keypad up and down to reach the desired operation.

4. Click Enter key or the center keypad to enter the sub menu interface or excute an operation.

5. Clicking Menu key to go back to the previous menu interface or cancel an operation.

6. Click Next key to enter the sub menu interface.

Touch Keypad

Touch keypad is an important part of the player, including sliding touch control and key

operations, which used for controlling operations of all kinds of functions of the player.

Protection Film on the Front Panel

ProtectionFilmonthePlayer Touch Keypad

Getting Started

Sliding touch keypad:

Touch keypad Lay your finger on one Sliding lightly on keypad

end of keypad

Clicking Key:

Key positions Lay your finger on key Press lightly

positions of keypad

The surface of player is easy to be contacted with other objects during use. To protect

the player from scratches, the front and rear plate surfaces of the player are attached

the transparent protection films. The films are featuring high light transmittance, anti-

reflection and abrasion-resistance. Please keep the film on the front panel of the player.

The surfaces of the player are

attached with the protection films

before leaving factory.

Please do not peel off the Mask!

Dane-Elec_MiniPlayer SL_manual

donderdag 29 november 2007 12:13:06

LCDDisplay

1. Play Music

Video Name

Play Status

Elapsed Time

2. Video Playback

5 6

LCD Display

Play Status

Track Number

Song Total

Song Info

Elapsed Time

Remaining Battery

Power

Volume

Playback Progress

/Status Bar

Remaining Playing

Time

HOLD Repeat Playback

Radom Playback

Playback Progress

/Status Bar

Remaining

Playing Time

3. Photo View

Photo File Info

Current Number

Browsing Progress/

Status Bar

Total Numbers

LCD Display

Getting Started

In the playback mode, the playback progress bar shows the elapsed and

remaining time of current song. Slide your finger on touch keypad up and down

to adjust the volume.Click Enter key, the sliding bar will display a diamond

object in the bar. It shows the current playback position. Slide your finger on

touch keypad up and down to move playback position forward or backward.

Click Enter key again, it shows the song's detailed information. Click the key

once again, it displays dynamic frequency spectru

to normal playback mode.

m (it does not support for

FLAC/WMA lossless/APE file). Click Enter, return

Song info or lyrics

Dane-Elec_MiniPlayer SL_manual

donderdag 29 november 2007 12:13:07

Click

Long Click

5. MIC Record

Remain Battery

Power

RecordTime

Record Status

File Content

Record File

Total Available Time

Record Progress

/Status Bar

HOLD Bit Rate Sampling Rate

Connecting Mini Player

USB Cable

USB port on the PC

USB port on the player

* Large End

* Small End

Connecting to a Computer

Connect the small end to player, large end to PC.

1. During Power Off

Connect it to the computer using the USB cable supplied in the package during the player

powered off. It will be charged using the power supply from the PC.

Installation CD

Connecting to a computer during it power off,

it will charge its built-in battery and appears as

the left figure.

LCDDisplay Connecting Mini Player

Elapsed Time

Channel

Basic Operation

Dane-Elec_MiniPlayer SL_manual

donderdag 29 november 2007 12:13:07

Using for the First Time

ChargingtheBattery

* Charging the Battery before using your player.

* While the player is connected to the computer via USB cable, it will charge its built-in

battery. The battery is fully charged in about 3 hours.

* Check if the player is connected to a high-power USB2.0 port. Some low-power USB

ports available in keyboards and other USB hubs may not provide enough power to

charge or sync the player.

* If the computer is in sleep mode, the player may not be charged.

The Remaining Battery Charge icon indicates the remaining time the battery can be

used. The more the battery is used, the fewer the number of segments in the icon.

2. During Power On

Connect it to the computer using the USB cable supplied in the package during

the player powered on. It will charge its built-in battery and appears as the figure.

In the normal Windows environment, as soon as the

cable or simple USB jack is connected, the message

"Searching for new device" appears and USB driver is

installed automatically. For Windows 98SE, put the

included CD-ROM in your disk drive, then follow the

instructions on your PC screen to install the USB drive.

ConnectingMiniPlayer

Note: While connecting to PC, tracks and operations cannot be applied. Pulling out the

PC connection cable from the player before your listening to music / viewing a picture

and so on.

This page was intentionnaly left blank

Dane-Elec_MiniPlayer SL_manual

donderdag 29 november 2007 12:13:07

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere DANE-ELEC Medienplayer Handbücher

DANE-ELEC

DANE-ELEC Meizu MiniPlayer Bedienungsanleitung

DANE-ELEC

DANE-ELEC SO SMART Bedienungsanleitung

DANE-ELEC

DANE-ELEC SO Easy HDMI + Bedienungsanleitung

DANE-ELEC

DANE-ELEC SO Easy HDMI + Bedienungsanleitung

DANE-ELEC

DANE-ELEC SO XSTREAM FULL HD - Bedienungsanleitung

DANE-ELEC

DANE-ELEC SO SMART Bedienungsanleitung

DANE-ELEC

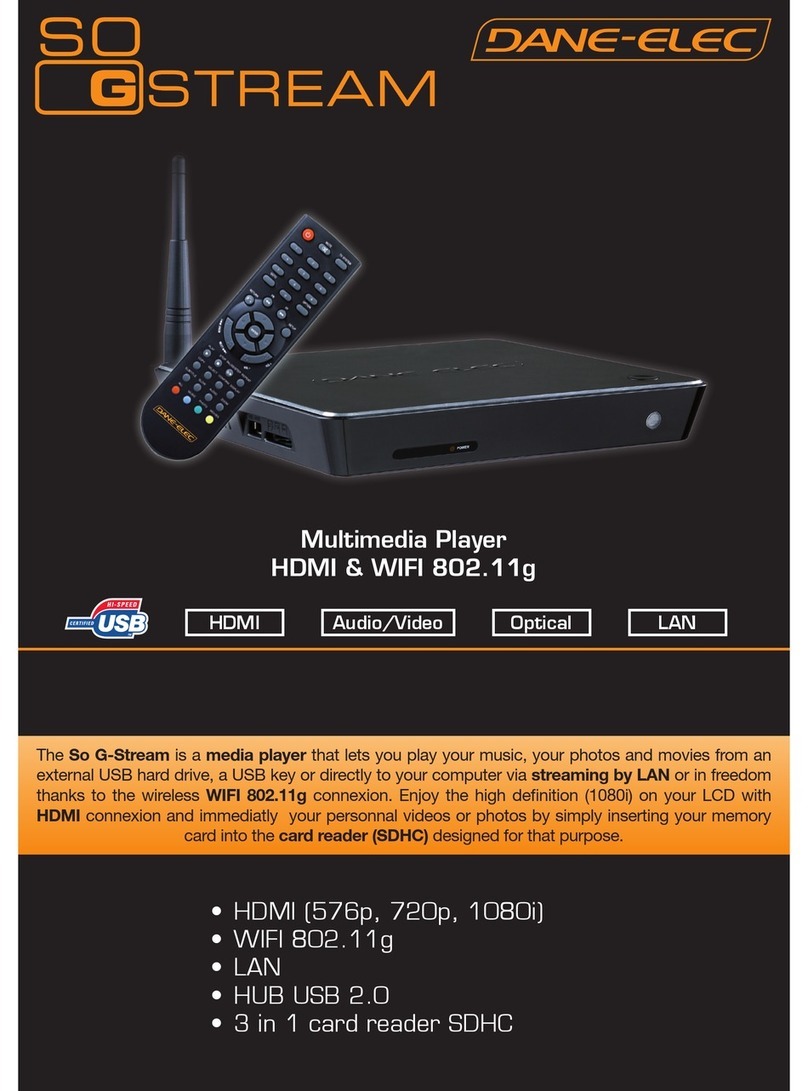

DANE-ELEC SO G-STREAM - Bedienungsanleitung

DANE-ELEC

DANE-ELEC SO G-STREAM - Bedienungsanleitung

DANE-ELEC

DANE-ELEC MUSICCARD Bedienungsanleitung

DANE-ELEC

DANE-ELEC SO WORLD TV - Bedienungsanleitung

DANE-ELEC

DANE-ELEC SO SPEAKY HDMI Bedienungsanleitung

DANE-ELEC

DANE-ELEC SO SPEAKY HDMI PLUS Bedienungsanleitung

DANE-ELEC

DANE-ELEC SO SPEAKY PVR Bedienungsanleitung

DANE-ELEC

DANE-ELEC SO SPEAKY HDMI PLUS Bedienungsanleitung

DANE-ELEC

DANE-ELEC SO SMART Bedienungsanleitung

DANE-ELEC

DANE-ELEC SO SPEAKY - Bedienungsanleitung

DANE-ELEC

DANE-ELEC SO ROAD MOVIE CAR PACK Bedienungsanleitung

DANE-ELEC

DANE-ELEC SO SMART Bedienungsanleitung

DANE-ELEC

DANE-ELEC SO SPEAKY - Bedienungsanleitung

DANE-ELEC

DANE-ELEC SO ROAD MOVIE Bedienungsanleitung

DANE-ELEC

DANE-ELEC SO SPEAKY BLACK DIAMOND Bedienungsanleitung

DANE-ELEC

DANE-ELEC SO SPEAKY HDMI+ SK5 Bedienungsanleitung

DANE-ELEC

DANE-ELEC SO SPEAKY BLACK DIAMOND Bedienungsanleitung

DANE-ELEC

DANE-ELEC SO SPEAKY HDMI Bedienungsanleitung

Beliebte Medienplayer Handbücher anderer Marken

Visual Land

Visual Land Impulse Bedienungsanleitung

limHD

limHD 200i Bedienungsanleitung

Transcend

Transcend DMP10 Bedienungsanleitung

Philips

Philips GoGear Muse SA2MUS08 Bedienungsanleitung

Fantec

Fantec MM-HDRL Bedienungsanleitung

Dune HD

Dune HD Duo 4K Bedienungsanleitung

IAdea

IAdea HMP-505S Bedienungsanleitung

Camos

Camos MMS-1000 Bedienungsanleitung

Energy

Energy 75 Series Bedienungsanleitung

Z3 Technology

Z3 Technology DME-03 Bedienungsanleitung

Sony

Sony SVR-2000 Benutzerhandbuch

Meicheng

Meicheng HD-1080K12 Bedienungsanleitung

DENAFRIPS

DENAFRIPS ARCE Bedienungsanleitung

Topaz

Topaz CMS Media Player Gebrauchsanweisung

InFocus

InFocus LightCast Bedienungsanleitung

IconBiT

IconBiT XDS1003D Bedienungsanleitung

Quanmax

Quanmax QDSP-2090 Series Bedienungsanleitung

Samsung

Samsung MP-80S Bedienungsanleitung
