User Guide

Superheat controller

Type EIM 365 (PV01)

For commercial air conditioning and refrigeration applications

Contents

Introduction 3

Portfolio overview 4

Installation 5

Applications 10

User Interface 11

Conguration 12

Alarms 21

Parameter list 23

Ordering 28

Certicates, declarations, and approvals 29

Online support 30

Superheat controller, type EIM 365 (PV01)

Introduction

EIM 365 is a superheat controller that can be used to control the superheat of the evaporator by adjusting the

opening degree of a valve. It is used in applications such as air conditioning, heat pumps and refrigeration. The

controller can also be used as stepper valve driver by setting the valve opening degree manually via communication

Bus.

Benets:

The evaporator is charged optimally for various load and suction pressure variations.Increase Energy Eciency by

ensuring optimum utilization of the Evaporator.It controls EEV in microsteps providing a smooth superheat curve

and less noise.

Features:

• Superheat regulation

• Maximum Operating Pressure function (MOP)

• Defrost

• Compressor protection functions

• Manual control via Modbus Communication

• Loss of Charge indication (LOC).

Superheat controller, type EIM 365 (PV01)

Portfolio overview

Table 1: Portfolio overview

Features

Specications

Supply voltage

24 V AC / DC (+ 15%), 50 / 60 Hz, 15 VA / 8 W, Class II isolation

Power Consumption

Idle: Max. 20 mA @ 24 V DC

Operating: Max. 900 mA RMS @ 24 V DC

Backup battery

Yes (EKE 2U recommended)

Number of temperature sensors

Temperature sensor inputs

• S2: PT1000

• S4: PT1000 or Digital input from external contact

Number of Pressure sensor

Pressure Transmitter types

Ratiometric 0.5 – 4.5 V

Sensor Signal Sharing via ModBus

Valve Support

ETS 12.5, 25, 50, 100, 250, 400; ETS 6, CCMT 16-42; CTR; ETS Colibri 12-100C and User dened

Superheat Reference Mode

• MSS

• LoadAp

Startup mode

• Fixed OD

• P-Control

Operation

• Standalone

• Modbus RS485 (not terminated internally)

User interface

Modbus to supervisor, Modbus to PC

PC suite

Koolprog

Gateway to PC suite

ICPCON RS485 to usb convertor

Display

None

Table 2: Related products

Pressure transducer

Temperature sensor

Electric Expansion valve

M12 Angle Cables

AKS 32R

AKS 21, AKS 11

ETS 6, ETS 12.5-400, ETS Colibri

Various lengths of standard M12 cable

are available for connecting stepper

motor valves.

Superheat controller, type EIM 365 (PV01)

Installation

Technical specication

Table 3: Technical specication

Features

Description

Supply voltage

24 V AC / DC (± 15%), 50 / 60 HZ Galvanically Isolated

Power consumption

Idle: Max. 20 mA @ 24 V DC

Operating: Max. 900 mA RMS @ 24 V DC

Input signals

AKS 32R (or similar Ratiometric pressure transmitter)

Measuring range: -60 – +120 °C / -76 – 248 °F

PT1000 or Digital input from external contact.

EEV Driver

Max. current 900mA RMS

Supported valves:

ETS 12.5, 25, 50, 100, 250, 400; ETS 6, CCMT 16-42; CTR; ETS Colibri 12-100C and User dened

Data communication

Type

RS485 – Modbus RTU (Not terminated internally)

Baud rate

19200

Address settings

Selectable via Software (default 164)

Connector

Pluggable

Internal Termination

Galvanic isolation

Environmental conditions

Storage

-34 °C to 71 °C / -30 °F to 160 °F

Operating

-25 °C to 60 °C / -13 °F to 140 °F

Humidity

<95% RH, non-condensing

Dimensions

25 × 50 × 80 mm / 0.98 × 1.97 × 3.15 inch

Battery backup

18 – 28 V DC, > 49 VmAh (Recommend using Danfoss EKE 2U)

Operation

Standalone or via MODBUS data communication

Connector type

4 way Mini t receptacle Molex 39-01-2040 or similar

2 way Mini t receptacle Molex 39-01-2020 or similar

Crimp: 24- 18 AWG Molex 39-020-0039 or similar.

Gateway

Standard RS485 to USB convertor. (eg; ADAM-4561, ICP DAS I-7561U-G)

Note: check compatibility of gateway tool with PC operating system

Display

None

PC suite

None (EIM 365 is to be connected and congured using supervisor systems).

Superheat controller, type EIM 365 (PV01)

PWR

COM

ADR

GnD

EEV

Danfoss

80G8361

Black

Red

Yellow

Orange

ETS 6 valve

Green

Red

Black

White

Yellow

Orange

Black

Brown

ETS / KVS

Colibri®

CCMT / CTR valve

GND

TxD– TxD+

ETS 5M

Power Supply 24 V AC or DC

Pressure transmitter

Ratiometric 0.5 – 4.5 V i.e. AKS

32R

Modbus to master controller

Battery backup

Temperature sensors PT 1000

i.e. AKS 11

Regulation control On/O

switch (enable parameter HW

Main Switch to 1)

ETS 12.5, 25, 50, 100, 250, 400;

ETS 6, CCMT 16-42; CTR; ETS

Colibri 12-100C and user

dened

Dimension and Mounting

Figure 1: Connection diagram

IMPORTANT:

• The supply voltage is not galvanically separated from the input and output signals, hence it is not recommended

to use shared power supply.

• No voltage should be supplied externally, if S4 terminal is setup as a Regulation on/o switch.

• Do not reverse the polarity of the power connection cables or Modbus signal cable else it could damage the

terminals.

• EIM should be grounded and measures must be taken during installation to connect the board to a grounding

point.

Figure 2: Modbus one to one connection

Danfoss

80G166.10

PWR

COM

RS485 (-) A

RS485 (+)

Superheat controller, type EIM 365 (PV01)

Figure 3: Modbus in Daisy Chain

A B

RS485 (-)

RS485 (+)

RS485 (-)

RS485 (+)

Danfoss

80G165.10

PWR

COM

PWR

COM

Master controller

EIM slave 1

EIM slave 2

120 Ohm min. 0.25 Watt termination

NOTE:

• Modbus transmission lines usually require termination resistors, especially for longer cable lengths.

• If two EIMs are connected remember to remove the addressing jumper on one of the EIMs. This will change the

address of EIM or else change the address of second unit using Modbus.

Mating connectors for EIM Controller Type Molex Mini-Fit Jr.™

80G159.10

11.6 mm

0.46 in

10.7 mm

0.42 in

8.5 mm

0.33 in

6.3 mm

0.25 in

80G160.10

80G161.10

10.6 mm

0.42 in

RECEPT CONTACT

24-18AWG Molex

39-00-0039 or similar

2 WAY MINI-FIT RECEPTACLE

Molex 39-01-2020 or similar

4 WAY MINI-FIT RECEPTACLE

Molex 39-01-2040 or similar

Connector kit for 5x EIM controller 080G1601

80G162.10

80G163.10

Connecting Modbus

• For the Modbus cable, it is best to use 24AWG shielded twisted-pair cable with a shunt capacitance of 16 pF/ft and

100Ω impedance.

• The max. permissible number of devices simultaneously connected to RS485 output is 32. The RS485 cable is of

impedance 120 Ω with maximum length of 1000 m.

• Terminal resistors 120 Ω for terminal devices are recommended for length > 1 m

Not in use

Ground

WARNING:

• Accidental damage, poor installation, or site conditions, can give rise to malfunctions of the control system, and

ultimately lead to a plant breakdown.

• Every possible safeguard is incorporated into our products to prevent this. However, a wrong installation, for

example could still present problems. Electronic controls are no substitute for normal, good engineering practice.

• Danfoss will not be responsible for any goods, or plant components, damaged because of the above defects. It is

the installer’s responsibility to check the installation thoroughly, and to t the necessary safety devices.

Superheat controller, type EIM 365 (PV01)

Mounting temperature sensor

• Mount sensor on a clean surface without any paints.

• Remember to put on heat conducting paste and insulate the sensor.

• Sensor mounting max. 5 cm from the outlet of the evaporator to get the precise measurements.

Evaporator

Temperature sensor mounted close to the evaporator

Pressure sensor

Mounting pressure transmitter

Installation of the pressure transmitter is less critical but mounting of pressure transmitter should be closer to the

temperature sensor, right after the evaporator and with its head in upright position. Power supply

NOTE:

• Separate the sensor and digital input cables as much as possible (at least 3 cm) from the power cables to the loads

to avoid possible electromagnetic disturbance.

• Never lay power cables and probe cables in the same conduits (including those in the electrical panels).

Mounting EIM

• Grounding of secondary (output) of transformer is not recommended.

• Do not reverse the polarity of the power connection cables and avoid ground loops (i.e. avoid connecting one

eld device to several controllers as this may result in short circuits and can damage your device).

• Use individual transformers for EIM 365 controller to avoid possible interference or grounding problems in the

power supply.

• Use metal fasteners to place EIM board as this is important to reduce EMC and facilitate grounding.

Valve Stepper Motor Output

• All valves are driven with a 24 V supply chopped to control the current (Current driver).

• The stepper motor is connected to the “Stepper Valve” terminals (see terminal assignment) with Danfoss M12

connection cable.

• To congure stepper motor valves other than Danfoss stepper motor valves, the correct valve parameters must be

set as described in the Valve conguration section (see the conguration section for details).

• The correct valve must be dened in “Valve Type”, i.e., parameter 3002.

Superheat controller, type EIM 365 (PV01)

Valve Cable Connection

Table 4: ETS Colibri / KVS Colibri/ ETS / KVS / CCM / CCMT / CTR

EIM terminals

Danfoss M12 Cable

White

Black

Red

Green

ETS Colibri® / KVS Colibri / CCMT / CTR / CCM Pin

number

ETS 6

Orange

Yellow

Red

Black

To be used with 4 pole terminal block.

Figure 4: ETS Colibri

NOTE:

For ETS 6 do not connect gray cable while using terminal block connection. If using JST 5pin its plug and play.

Guideline for long M12 cables on Danfoss stepper motor valves.

Long cables will lead to degradation of performance.

You can overcome this degradation by changing the settings for the valve driver.

This guideline is based on the cable type being the same type as the standard Danfoss stepper motor cable

Table 5: Recommended wire size and cable distance (twisted pair) between EIM controller and stepper motor valve

Cable length

1 m – 15 m

15 m – 30 m

Wire diameter for valve connection

0.52 / 0.33 mm2 20 / 22 AWG

Min. 0.52 mm2 20 AWG

Superheat controller, type EIM 365 (PV01)

Applications

Superheat control

For superheat control, EIM implements a PI controller. The actual superheat is calculated based on temperature

sensor S2 and pressure sensor Pe values, and the controller will adjust the OD of the valve to bring the superheat to

the desired reference. If superheat is too low the ow in the expansion is decreased and superheat will be higher

and vice versa.

The EIM 365 controller is designed to be operated via Modbus and to rely on a constant connection to the master

controller of the system it is located within. In this conguration the master controller reads the readout registers

from the EIM 365 and uses the parameters to change the control behavior of the EIM 365 (see parameter list).

Figure 5: Superheat control

Evaporator temperature (Te) control for de-humidifying

For applications with a need to de-humidify the evaporator, it is possible to control on the saturated evaporator

temperature instead of the normal control signal.

Manual control (Stepper driver via Modbus)

In this application the EIM 365 is a stepper motor driver, where the valve can be controlled manually by setting the

desired opening degree via Modbus.

Superheat controller, type EIM 365 (PV01)

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Danfoss Controller Handbücher

Danfoss

Danfoss AME 55QM Bedienungsanleitung

Danfoss

Danfoss VLT HVAC Drive FC 102 Leitfaden

Danfoss

Danfoss VLT 6000 HVAC Bedienungsanleitung

Danfoss

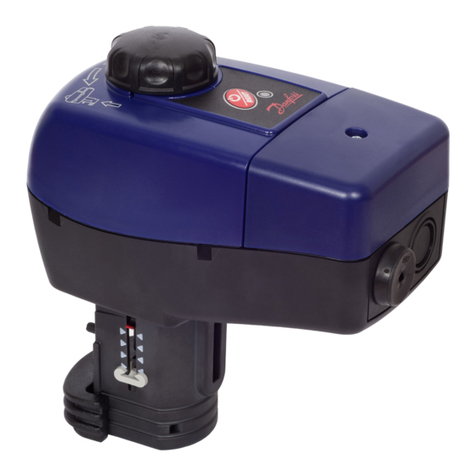

Danfoss AME 335 Bedienungsanleitung

Danfoss

Danfoss CCR2 Bedienungsanleitung

Danfoss

Danfoss AK-CC 550 Bedienungsanleitung

Danfoss

Danfoss VTL MCD 203 Series Bedienungsanleitung

Danfoss

Danfoss AMV 150 Bedienungsanleitung

Danfoss

Danfoss PLUS+1 SC0XX-1 Series Handbuch

Danfoss

Danfoss AK-CC 550B Bedienungsanleitung

Danfoss

Danfoss ECL Comfort 110 Bedienungsanleitung

Danfoss

Danfoss VLT Micro Drive Bedienungsanleitung

Danfoss

Danfoss EKC 302D Bedienungsanleitung

Danfoss

Danfoss VLT 6000 series Bedienungsanleitung

Danfoss

Danfoss EKC 312 Bedienungsanleitung

Danfoss

Danfoss VLT Compact Starter MCD 201 Bedienungsanleitung

Danfoss

Danfoss AK-PC 772A Bedienungsanleitung

Danfoss

Danfoss Vacon NXP Series Bedienungsanleitung

Danfoss

Danfoss ECL Comfort 296 Bedienungsanleitung

Danfoss

Danfoss PK37 Bedienungsanleitung

Danfoss

Danfoss VLT HVAC Drive FC 102 Bedienungsanleitung

Danfoss

Danfoss SAF VFU21 Series Bedienungsanleitung

Danfoss

Danfoss AFP 2/VFG 22 (221) Bedienungsanleitung

Danfoss

Danfoss MCI 15BP Bedienungsanleitung

Beliebte Controller Handbücher anderer Marken

Digiplex

Digiplex DGP-848 Betriebsanleitung

YASKAWA

YASKAWA SGM series Bedienungsanleitung

Sinope

Sinope Calypso RM3500ZB Bedienungsanleitung

Isimet

Isimet DLA Series Style 2 Installationshandbuch

LSIS

LSIS sv-ip5a Bedienungsanleitung

Rockwell Automation

Rockwell Automation 1769-L31 Bedienungsanleitung

Airflow

Airflow Uno hab Bedienungsanleitung

ABB

ABB ACS580-01 drives Bedienungsanleitung

Panasonic

Panasonic GM1 Series Bedienungsanleitung

Emerson

Emerson SW93 Bedienungsanleitung

AutoAqua

AutoAqua Smart ATO micro SATO-120P Bedienungsanleitung

Panasonic

Panasonic FP? Positioning Unit RTEX Bedienungsanleitung

Samson

Samson Type 5824 Service-Handbuch

Alpha IP

Alpha IP MIOB 21001 Bedienungsanleitung

Siemens

Siemens OpenAir GMA 1 Series Bedienungsanleitung

Surecom

Surecom SR-629 Bedienungsanleitung

Fishman

Fishman TriplePlay Bedienungsanleitung

Regulus

Regulus SRS1 T Bedienungsanleitung
