1 Safety
1.1 Disclaimer
The examples and diagrams in this manual are included solely for illustrative purposes. The information contained in this manual is
subject to change at any time and without prior notice. Responsibility or liability is never accepted for direct, indirect, or consequen-
tial damage resulting from the use or application of this equipment.
1.2 Warnings
WARNING
SHOCK HAZARD
Attaching or removing accessories while the soft starter is connected to mains voltage may cause personal injury.
Before attaching or removing accessories, isolate the soft starter from mains voltage.
WARNING
RISK OF PERSONAL INJURY AND EQUIPMENT DAMAGE
Inserting foreign objects or touching the inside of the soft starter while the expansion port cover is open may endanger person-
nel and can damage the soft starter.
Do not insert foreign objects in the soft starter with the port cover open.
Do not touch the inside of the soft starter with the port cover open.
AN428735951761en-000101 / 175R1188 | 5Danfoss A/S © 2022.11
Safety
PROFINET Module
Installation Guide
•
•
•
-
•
-
-
2 Introduction
2.1 Product Design
The PROFINET Module allows the soft starter to connect to an Ethernet network and be controlled or monitored using an Ethernet
communication model.
Familiarity with Ethernet protocols and networks is required to operate the device successfully. For difficulties arising from using
this device with 3rd-party products, including PLCs, scanners, and commissioning tools, contact the relevant supplier.
2.2 Compatibility
The PROFINET Module is compatible with the following Danfoss soft starters:
MCD 200: 24 V AC/V DC and 110/240 V AC control voltage.
MCD 500: All models.
NOTICE
The PROFINET Module is not suitable for use with MCD 200 soft starters using 380/440 V AC control voltage.
2.3 Product Versions
The PROFINET Module is available in 2 different versions. The part number is printed on the label on the side of the module.
175G9905 MCD PROFINET Module
Monitor and control the soft starter over a PROFINET connection.
175G9915 MCD PROFINET Module
Monitor and control the soft starter over a PROFINET connection.
Monitor and control the soft starter over a TCP connection using VLT® Motion Control Tool MCT 10. Refer to the VLT® Motion
Control Tool MCT 10 Operating Guide.
This installation guide is suitable for use with 175G9915. For the manual for 175G9905, contact the local supplier.
2.4 Network Connection
Table 1: Supported Protocols
Protocols
PROFINET
Industrial Ethernet via PROFINET
TCP
Transmission control protocol to connect to port 4000 of a PC
MQTT
Message queue telemetry transport
OPC UA
Open platform communications unified architecture
AN428735951761en-000101 / 175R11886 | Danfoss A/S © 2022.11
Introduction
PROFINET Module
Installation Guide
4/T2
READY RUN TRIP LOCAL
Exit
Reset
Menu
Store
2/T1 6/T3
1/L1 3/L2
5/L3
VLT
®
Soft Starter
1
2
4
3
5
e77ha805.10
Illustration 1: Overview of Network Connections
1
Soft starter
2
Network switch
3
IoT connection (MQTT/OPC UA)
4
Industrial Ethernet connection to programmable
logic controller
5
TCP connection to VLT® Motion Control Tool MCT
10. Refer to the VLT® Motion Control Tool MCT 10
Operating Guide for connection details.
AN428735951761en-000101 / 175R1188 | 7Danfoss A/S © 2022.11
Introduction
PROFINET Module
Installation Guide
1.
2.
-
3 Installation
3.1 Installing the Communication Module
CAUTION
EQUIPMENT DAMAGE
If mains and control voltage are applied when installing or removing options/accessories, it may damage the equipment.
Remove mains and control voltage from the soft starter before installing or removing options/accessories.
Procedure
Remove control power and mains supply from the soft starter.
Fully pull the top and bottom retaining clips on the module.
e77ha833.10
AN428735951761en-000101 / 175R11888 | Danfoss A/S © 2022.11
Installation
PROFINET Module
Installation Guide
3.
4.
5.
6.
Line up the module with the comms port slot.
e77ha834.10
Push in the top and bottom retaining clips to secure the module to the soft starter.
e77ha835.10
Connect Ethernet Port 1 or Port 2 on the PROFINET Module to the network.
Apply control power to the soft starter.
AN428735951761en-000101 / 175R1188 | 9Danfoss A/S © 2022.11
Installation
PROFINET Module
Installation Guide
4 Connection
4.1 Soft Starter Connection
The PROFINET Module is powered from the soft starter.
NOTICE
The PROFINET Module is not suitable for use with MCD 200 soft starters using 380/440 V AC control voltage.
A1
N2
2
3
1

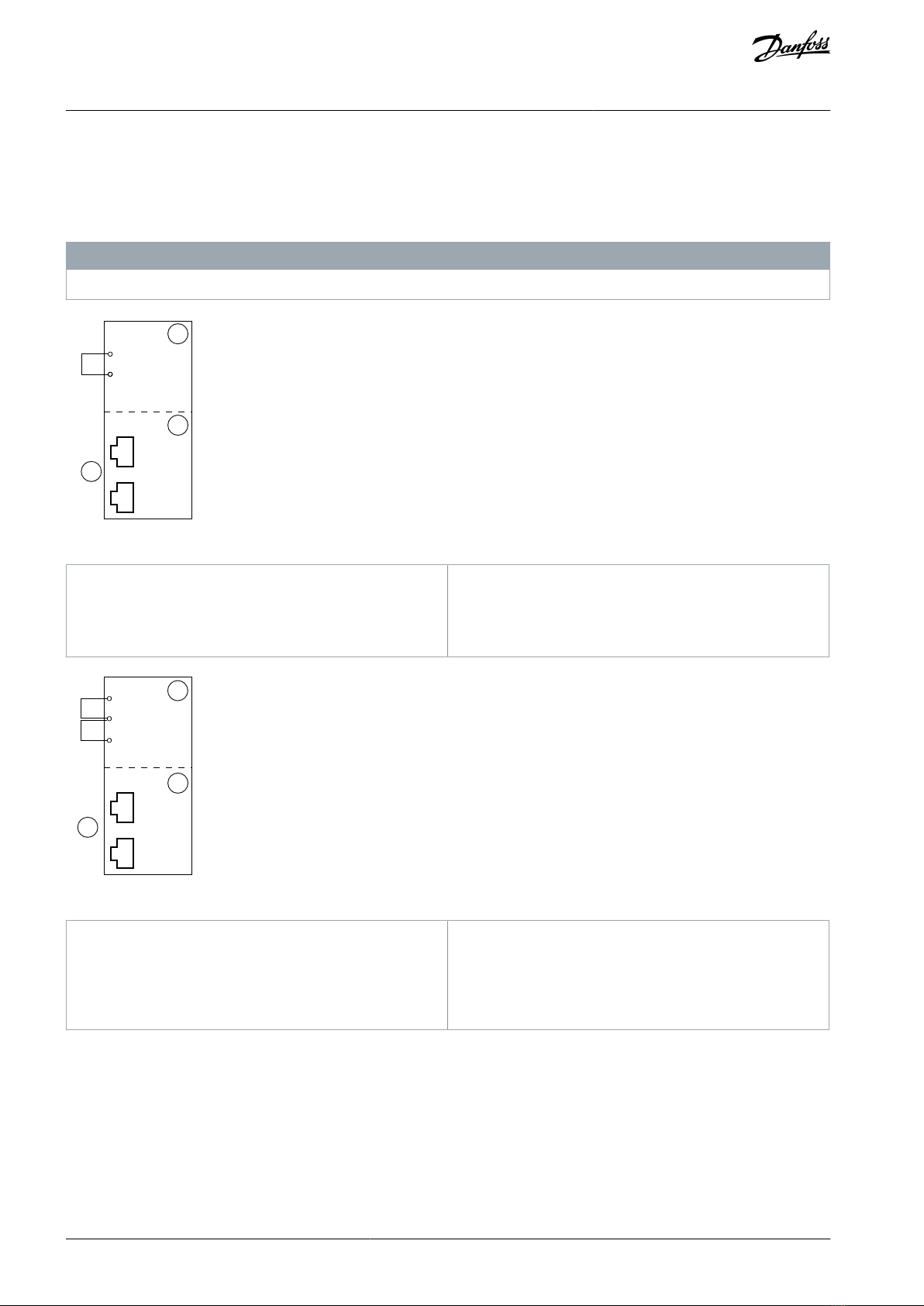

e77ha620.10
Illustration 2: Connecting MCD 200
1
Soft starter
A1, N2: Stop input
2
PROFINET Module
3
RJ45 Ethernet ports
25
17
18
2
3
1
e77ha621.10
Illustration 3: Connecting MCD 500
1
Soft starter (remote mode)
17, 18: Stop input
25, 18: Reset input
2
PROFINET Module
3
RJ45 Ethernet ports
4.2 Network Connection
4.2.1 Ethernet Ports
The device has 2 Ethernet ports. If only 1 connection is required, either port can be used.
4.2.2 Cables
When connecting to the device, make sure that the cables are of 1 of the following categories:
AN428735951761en-000101 / 175R118810 | Danfoss A/S © 2022.11
Connection
PROFINET Module
Installation Guide
