Heat pump control for heating and DHW

The shown diagram is a fundamental and simpliﬁed example and

does not contain all components that are necessary in a system.

If the system you are about to install diﬀers from the shown

diagram of a standard heating system, feel free to sketch an

outline for comparison. Adaptation of systems, see section 10.

Circuit

indicator

Circuit

selector

Shift

button

Adjust-

ment

Controller

mode

This guide is associated with ECL Card 087B4881

Installer:

By:

Date:

Controller mode

Manual operation (used only at maintenance

and service)

Scheduled operation

Constant comfort temperature

Constant setback temperature

Standby mode

Arrow buttons. Switch between the lines of the ECL

Card.

Shift button. Switches between temperatures,

changeover points etc.

Adjust temperatures and values etc.

Circuit selector for switching between the circuits.

Safety Note

To avoid injury of persons and damages to the device, it is absolutely

necessary to read and observe these instructions carefully.

Necessary assembly, start-up, and maintenance work must be performed by

qualiﬁed and authorized personnel only.

Display indications, controlled units, L05

A B C D E F

* **

A: C1 Blank = OFF ON = ON (*stage I, **stage II)

B: P1 Blank = OFF ON = ON

C: M1 = Opens = Closes

D: P2 Blank = OFF ON = ON

E: Mode = DHW = Heating

F: P3 Blank = OFF ON = ON

List of components:

ECL Comfort 301

S1 Outdoor temperature sensor

S2 DHW temperature sensor

S3 Flow temperature sensor, mixing circuit

S4 Return temperature sensor

S5 Flow temperature sensor

S6 Alarm input

P1 Circulation pump, heating, mixing circuit

P2 Circulation pump, heat pump

P3 Ground coil / brine pump

C1 Compressor I, heat pump

EH Electric heater

M1 Actuator, mixing valve

M2 Changeover valve

Table of Contents

Sections in the Installer’s Guide

The documentation for the ECL Comfort controller is

composed of numbered sections. Only sections relevant to

your ECL Comfort controller are included here.

Before you start

Installation

10 Identifying the system type

11 Mounting the ECL Comfort controller

12 Electrical connections 230 V a.c.

14 Connecting and placing the temperature sensors

15 Inserting the ECL Card

Basic Set-up

16 Adjusting the ECL Card settings

17 Setting the time and date - line A

18 Monitoring temperatures and system units - line B

19 Manual control - line B

20 Setting the heat curve - line C

21 Heating cut-out - line 1

22 Flow temperature limits - line 2

23 Room temperature inﬂuence - line 3

26 Control parameters - lines 4-7, circuit I

27 System information - circuit II

Control & Overviews

29 Check list

30 ECL Card settings

31 Service parameters

Extended Service

32 Adjusting the service parameters

Miscellaneous

34 Copying with the ECL Card

User's Guide (turn the guide over for sections 1-7)

1 Choose your favorite display

2 Select circuit mode

3 Set your room and DHW temperature

4 Set your personal schedule

5 Advantages of the ECL Card

6 Hot points

7 Deﬁnitions

VI.KP.K1.02

Card L05

2006.12

Sketch your application

The ECL Comfort controller series is designed for a wide range

of heating, domestic hot-water (DHW) and cooling systems

with diﬀerent conﬁgurations and capacities.

If your system diﬀers from the diagrams shown in section

10, you may want to make a sketch of the system about to

be installed. This makes it easier to use the Installer’s Guide,

which will guide you step-by-step from installation to ﬁnal

adjustments before the end-user takes over.

The controller is pre-programmed with factory settings that are

shown in the relevant sections of this guide.

However, you might come across some settings that are not listed

in this instruction. These settings could be related either to recent

updates or the use of optional modules (which are described in

the instructions in question).

How to use this guide

This guide is divided into two parts:

• User’s Guide: Yellow sections 1-7

• Installer's Guide: Grey sections 10 and onwards

The application L05 is very ﬂexible. These are the basic principles:

Heating:

Typically, the ﬂow temperature at S5 is adjusted according to

your requirements. The ﬂow temperature sensor (S5) is the most

important sensor. The desired ﬂow temperature at S5 is calculated

in the ECL controller, based on the outdoor temperature (S1).

The lower the outdoor temperature, the higher the desired

ﬂow temperature. The heat pump is switched ON when the

ﬂow temperature is lower than the desired ﬂow temperature.

A switching diﬀerence (line C) determines the action. The heat

pump is switched OFF when the ﬂow temperature is higher

than the desired ﬂow temperature or the max. limitation value

for the return temperature. If the measured room temperature

does not equal the desired room temperature, the desired ﬂow

temperature can be adjusted. The circulation pump, P1, is ON

when the desired ﬂow temperature is higher than 20 °C or the

outdoor temperature is lower than 2 °C.

The mixing circuit is used for a more eﬃcient distribution of the

heating: The ﬂow temperature sensor (S3) is the most important

sensor in the mixing circuit. The motorized control valve (M1) is

opened gradually when the ﬂow temperature at S3 is lower than

the desired ﬂow temperature and vice versa. The value of this

desired temperature inﬂuences the temperature in the heat pump

circuit.

DHW:

If the measured DHW temperature is lower than the desired DHW

temperature (a switching diﬀerence determines the action), the

change-over valve / DHW-pump is activated and the heat pump is

switched ON in order to heat the DHW. If the return temperature

rises above the accepted level, the heat pump is switched OFF and

stage 2 is switched ON.

Before you start

Installation

Identifying the system type

10a

The ECL Comfort controller is a universal controller that can

be used for various systems. Based on the shown standard

systems, it is possible to conﬁgure additional systems.

In this section you ﬁnd the most frequently used systems. If

your system is not quite as shown below, ﬁnd the diagram

which has the best resemblance with your system and make

your own combinations.

The functions can only be realized with ECL Comfort 301 and as of

controller version 2.00.

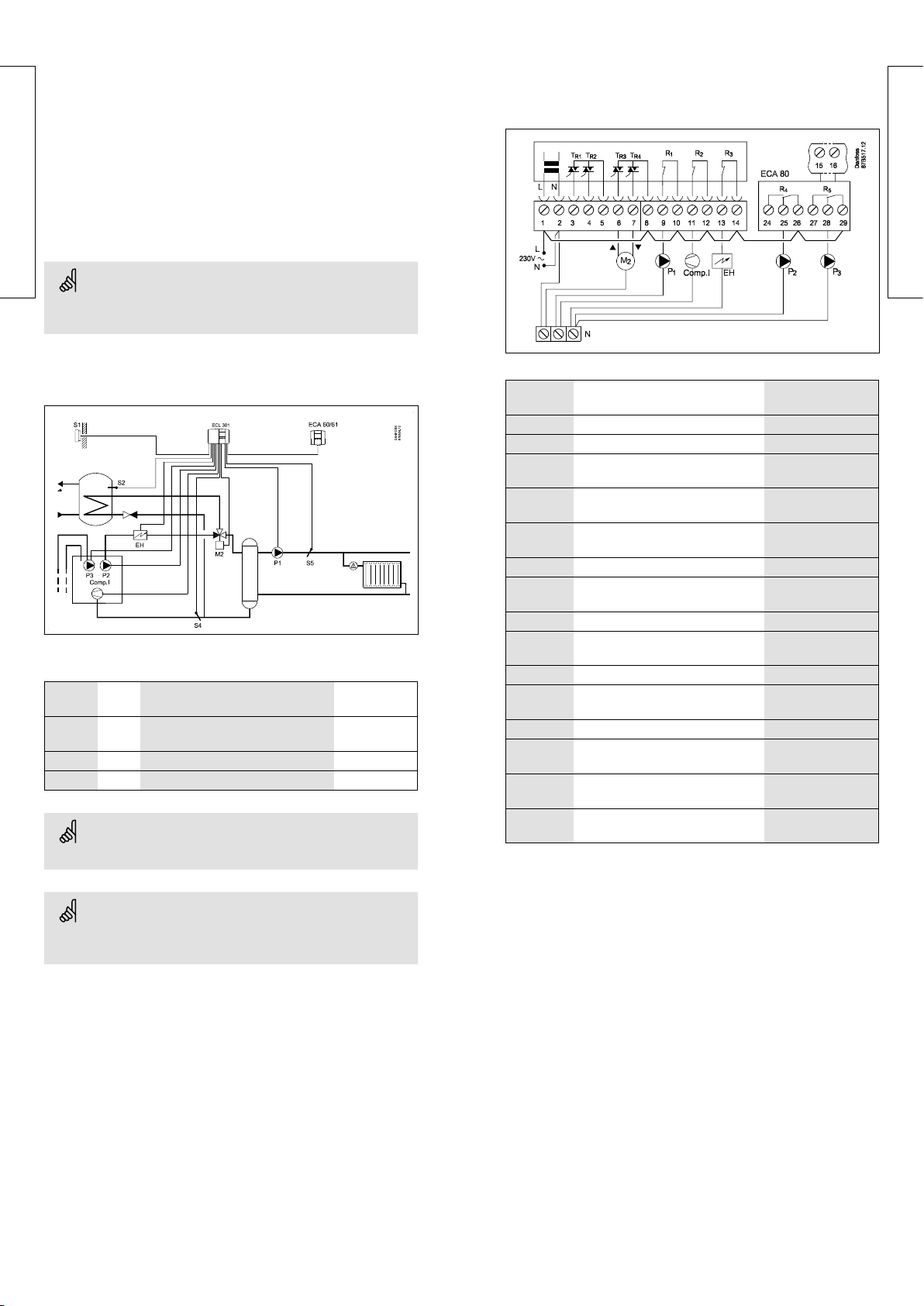

10.1 Weather compensated 1-stage heat pump with

additional electric heater for heating and DHW

circuits (DHW priority)

System settings

Circuit Line Description Recomm.

setting

I 52 Closed valve / normal

operation ON

II 85 Application selection 0

II 140 Alarm input selection 0

The controller will not be active unless line 140 is set to 0.

System diagrams in this instruction are principal drawings and do

not contain all components which are necessary in your systems.

Connections of controlled units

Terminal Description Max. load

1 (L) Voltage supply 230 V a.c.

2 (N) Voltage supply 230 V a.c.

6 M2 Changeover valve

- open (DHW) 0.2 A / 230 V a.c.

7 M2 Changeover valve

- close (heating) 0.2 A / 230 V a.c.

8 230 V a.c. voltage supply

for M2

9 P1 Circulation pump 4 (2) A / 230 V a.c.

10 230 V a.c. voltage supply for

pump relay R1

11 C1 Compressor I, heat pump 4 (2) A / 230 V a.c.

12 230 V a.c. voltage supply for

compressor relay R2

13 EH Electric heater 4 (2) A / 230 V a.c.

14 230 V a.c. voltage supply for

relay R3 for the electric heater

25 P2 Circulation pump, heat pump 4 (2) A / 230 V a.c.

26 230 V a.c. voltage supply for

pump relay R4

28 P3 Ground coil (brine) pump

for heat pump 4 (2) A / 230 V a.c.

29 230 V a.c. voltage supply for

pump relay R5

Temperature sensor connections, see section 14a.

10b

Installation

10c

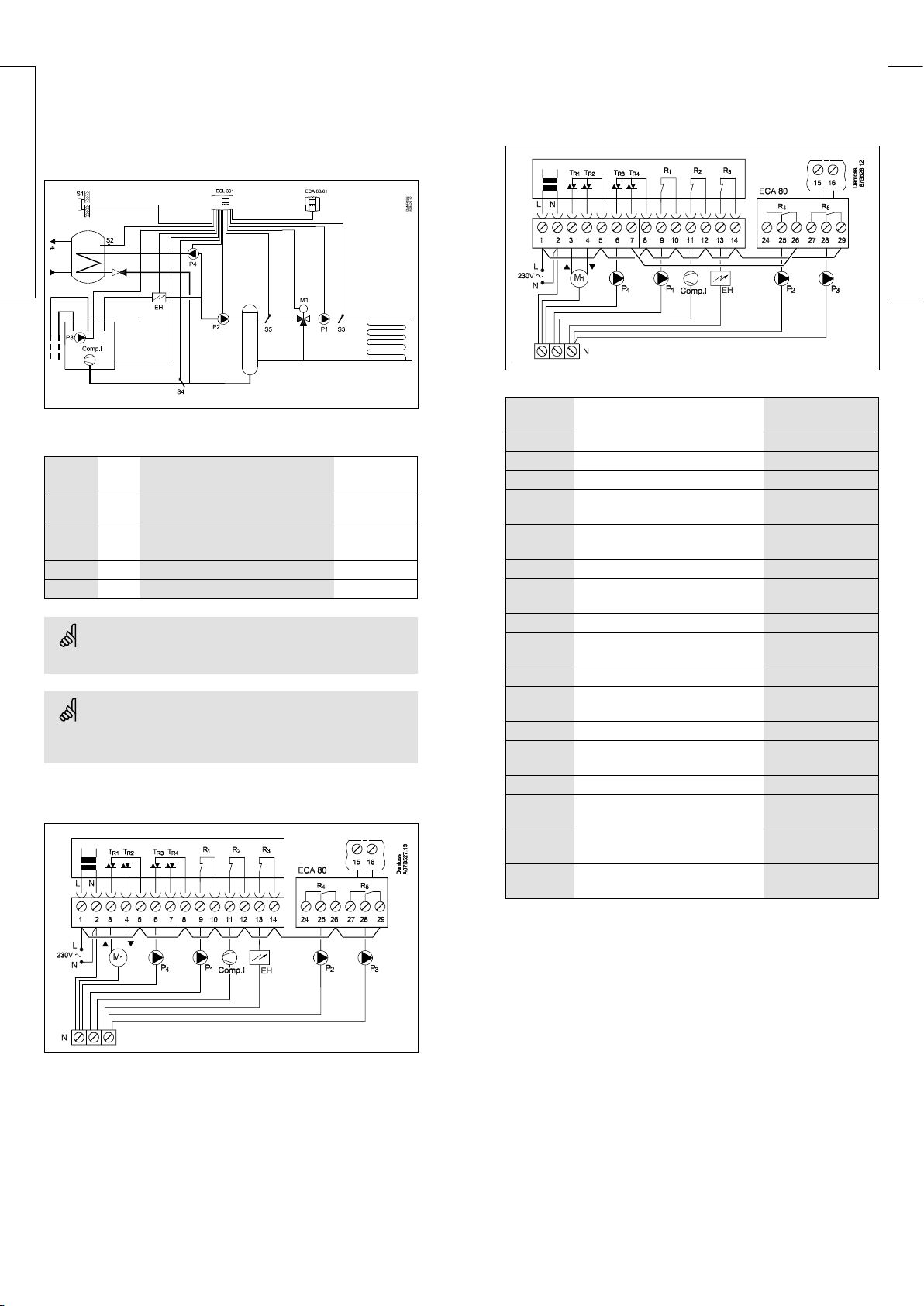

10.2 Weather compensated 2-stage heat pump for

heating and DHW circuits (DHW priority)

System settings

Circuit Line Description Recomm.

setting

I 52 Closed valve / normal

operation ON

II 85 Application selection 2

II 140 Alarm input selection 0

II 168 Cut-in delay, compressors I

and II 1-100

The controller will not be active unless line 140 is set to 0.

System diagrams in this instruction are principal drawings and do

not contain all components which are necessary in your systems.

Connections of controlled units

Terminal Description Max. load

1 (L) Voltage supply 230 V a.c.

2 (N) Voltage supply 230 V a.c.

6 M2 Changeover valve

- open (DHW) 0.2 A / 230 V a.c.

7 M2 Changeover valve

- close (heating) 0.2 A / 230 V a.c.

8 230 V a.c. voltage supply

for M2

9 P1 Circulation pump 4 (2) A / 230 V a.c.

10 230 V a.c. voltage supply for

pump relay R1

11 C1 Compressor I, heat pump 4 (2) A / 230 V a.c.

12 230 V a.c. voltage supply for

compressor relay R2

13 C2 Compressor II, heat pump 4 (2) A / 230 V a.c.

14 230 V a.c. voltage supply for

compressor relay R3

25 P2 Circulation pump, heat pump 4 (2) A / 230 V a.c.

26 230 V a.c. voltage supply for

pump relay R4

28 P3 Ground coil (brine) pump

for heat pump 4 (2) A / 230 V a.c.

29 230 V a.c. voltage supply for

pump relay R5

Temperature sensor connections, see section 14a.

10d

Installation

10e

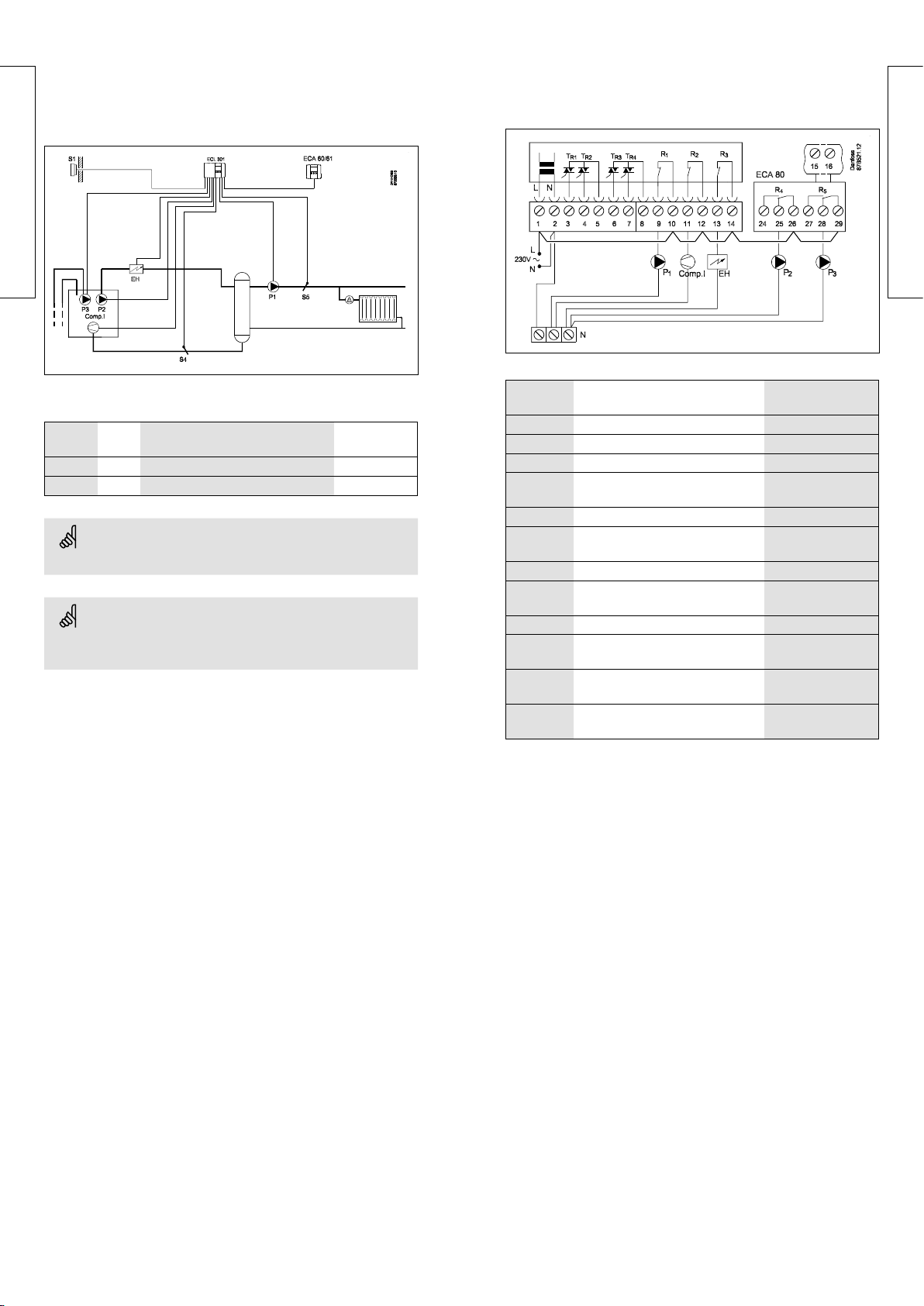

10.3 Weather compensated 1-stage heat pump with

additional electric heater for heating

System settings

Circuit Line Description Recomm.

setting

II 85 Application selection 0 (1)

II 140 Alarm input selection 0

The controller will not be active unless line 140 is set to 0.

System diagrams in this instruction are principal drawings and do

not contain all components which are necessary in your systems.

Connections of controlled units

Terminal Description Max. load

1 (L) Voltage supply 230 V a.c.

2 (N) Voltage supply 230 V a.c.

9 P1 Circulation pump 4 (2) A / 230 V a.c.

10 230 V a.c. voltage supply for

pump relay R1

11 C1 Compressor I, heat pump 4 (2) A / 230 V a.c.

12 230 V a.c. voltage supply for

compressor relay R2

13 EH Electric heater 4 (2) A / 230 V a.c.

14 230 V a.c. voltage supply for

relay R3 for the electric heater

25 P2 Circulation pump, heat pump 4 (2) A / 230 V a.c.

26 230 V a.c. voltage supply for

pump relay R4

28 P3 Ground coil (brine) pump

for heat pump 4 (2) A / 230 V a.c.

29 230 V a.c. voltage supply for

pump relay R5

Temperature sensor connections, see section 14a.

10f

Installation

10g

10.4 Weather compensated 2-stage heat pump for

heating

System settings

Circuit Line Description Recomm.

setting

II 85 Application selection 0 (1)

II 140 Alarm input selection 0

II 168 Cut-in delay, compressors I

and II 1-100

The controller will not be active unless line 140 is set to 0.

System diagrams in this instruction are principal drawings and do

not contain all components which are necessary in your systems.

Connections of controlled units

Terminal Description Max. load

1 (L) Voltage supply 230 V a.c.

2 (N) Voltage supply 230 V a.c.

9 P1 Circulation pump 4 (2) A / 230 V a.c.

10 230 V a.c. voltage supply for

pump relay R1

11 C1 Compressor I, heat pump 4 (2) A / 230 V a.c.

12 230 V a.c. voltage supply for

compressor relay R2

13 C2 Compressor II, heat pump 4 (2) A / 230 V a.c.

14 230 V a.c. voltage supply for

compressor relay R3

25 P2 Circulation pump, heat pump 4 (2) A / 230 V a.c.

26 230 V a.c. voltage supply for

pump relay R4

28 P3 Ground coil (brine) pump

for heat pump 4 (2) A / 230 V a.c.

29 230 V a.c. voltage supply for

pump relay R5

Temperature sensor connections, see section 14a.

10h

Installation

10i

10.5 Weather compensated 1-stage heat pump with

additional electric heater for mixing circuit and

DHW circuit (DHW priority operation)

System settings

Circuit Line Description Recomm.

setting

II 17 Inﬂuence on desired heat

pump temperature 3

I 52 Closed valve / normal

operation ON/OFF

II 85 Application selection 0

II 140 Alarm input selection 0

The controller will not be active unless line 140 is set to 0.

System diagrams in this instruction are principal drawings and do

not contain all components which are necessary in your systems.

Connections of controlled units

Terminal Description Max. load

1 (L) Voltage supply 230 V a.c.

2 (N) Voltage supply 230 V a.c.

3 M1 Actuator - open, circuit I 0.2 A / 230 V a.c.

4 M1 Actuator - close, circuit I

alt. thermo actuator 0.2 A / 230 V a.c.

5 230 V a.c. voltage supply for

6 M2 Changeover valve

- open (DHW) 0.2 A / 230 V a.c.

7 M2 Changeover valve

- close (heating) 0.2 A / 230 V a.c.

8 230 V a.c. voltage supply for

9 P1 Circulation pump 4 (2) A / 230 V a.c.

10 230 V a.c. voltage supply for

pump relay R1

11 C1 Compressor I, heat pump 4 (2) A / 230 V a.c.

12 230 V a.c. voltage supply for

compressor relay R2

13 EH Electric heater 4 (2) A / 230 V a.c.

14 230 V a.c. voltage supply for

electric heater relay R3

25 P2 Circulation pump, heat pump 4 (2) A / 230 V a.c.

26 230 V a.c. voltage supply for

pump relay R4

28 P3 Ground coil (brine) pump

for heat pump 4 (2) A / 230 V a.c.

29 230 V a.c. voltage supply for

pump relay R5

Temperature sensor connections, see section 14a.

10j

Installation

10k

10.6 Weather compensated 1-stage heat pump with

additional electric heater for mixing circuit

and DHW circuit (parallel operation or DHW

priority)

System settings

Circuit Line Description Recomm.

setting

II 17 Inﬂuence on desired heat

pump temperature 3

I 52 Closed valve / normal

operation ON/OFF

II 85 Application selection 0

II 140 Alarm input selection 0

The controller will not be active unless line 140 is set to 0.

System diagrams in this instruction are principal drawings and do

not contain all components which are necessary in your systems.

Connections of controlled units - parallel operation

Connections of controlled units

- DHW priority operation

Terminal Description Max. load

1 (L) Voltage supply 230 V a.c.

2 (N) Voltage supply 230 V a.c.

3 M1 Actuator - open, circuit I 0.2 A / 230 V a.c.

4 M1 Actuator - close, circuit I

alt. thermo actuator 0.2 A / 230 V a.c.

5 230 V a.c. voltage supply for

6 P4 Circulation pump, DHW 0.2 A / 230 V a.c.

8 230 V a.c. voltage supply for

P4 (P2)

9 P1 Circulation pump 4 (2) A / 230 V a.c.

10 230 V a.c. voltage supply for

pump relay R1

11 C1 Compressor I, heat pump 4 (2) A / 230 V a.c.

12 230 V a.c. voltage supply for

compressor relay R2

13 EH Electric heater 4 (2) A / 230 V a.c.

14 230 V a.c. voltage supply for

electric heater relay R3

25 P2 Circulation pump, heat pump 4 (2) A / 230 V a.c.

26 230 V a.c. voltage supply for

pump relay R4

28 P3 Ground coil (brine) pump

for heat pump 4 (2) A / 230 V a.c.

29 230 V a.c. voltage supply for

pump relay R5

Temperature sensor connections, see section 14a.

10l

Andere Handbücher für ECL Comfort 100M

Inhaltsverzeichnis

Andere Danfoss Wärmepumpe Handbücher

Danfoss

Danfoss OP-LSQM Series Bedienungsanleitung

Danfoss

Danfoss DHP-H Bedienungsanleitung

Danfoss

Danfoss DHP-H Bedienungsanleitung

Danfoss

Danfoss DHP-AQ Bedienungsanleitung

Danfoss

Danfoss OPTYMA Plus OP-LPQM Bedienungsanleitung

Danfoss

Danfoss Optyma Plus INVERTER Series Bedienungsanleitung

Danfoss

Danfoss OPTYMA Plus Series Bedienungsanleitung

Danfoss

Danfoss DHP-iQ Mini Benutzerhandbuch

Danfoss

Danfoss DHP-A Betriebsanleitung

Danfoss

Danfoss Optyma G & D HBP DSH140 Bedienungsanleitung

Danfoss

Danfoss OPTYMA PLUS OP-LPHM Bedienungsanleitung

Danfoss

Danfoss DHP-S&DP Bedienungsanleitung

Danfoss

Danfoss DHP-R 26 Bedienungsanleitung

Danfoss

Danfoss Optyma iCO2 Bedienungsanleitung

Danfoss

Danfoss Optyma Slim Pack OP-LPQE Series Bedienungsanleitung

Danfoss

Danfoss AR05 017 Series Handbuch

Danfoss

Danfoss OP-MPHM007NFP00G Bedienungsanleitung

Danfoss

Danfoss Optyma Plus Bedienungsanleitung

Danfoss

Danfoss DHP-A Bedienungsanleitung

Danfoss

Danfoss DHP-S Eco Bedienungsanleitung

Danfoss

Danfoss DHP-M Bedienungsanleitung

Danfoss

Danfoss Optyma OP-LPQE Series Bedienungsanleitung

Danfoss

Danfoss DHP-AQ Mini Betriebsanleitung

Danfoss

Danfoss DHP-R Eco Bedienungsanleitung

Beliebte Wärmepumpe Handbücher anderer Marken

MICROWELL

MICROWELL HP 1000 GREEN Bedienungsanleitung

Sanyo

Sanyo SAP120FCH Bedienungsanleitung

Daikin

Daikin EHYHBH05AA Bedienungsanleitung

Panasonic

Panasonic WH-SDF03E3E5 Leitfaden

Bryant

Bryant 544B Bedienungsanleitung

Airxcel

Airxcel 45000 Series Handbuch

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Bedienungsanleitung

Dimplex

Dimplex LI 16I-TUR Benutzerhandbuch

Carrier

Carrier WSHP Open v3 Kurzanleitung zur Einrichtung

TGM

TGM CTV14CN018A Bedienungsanleitung

Carrier

Carrier 38MGQ Series Bedienungsanleitung

Kokido

Kokido K2O K880BX/EU Fehlerbehebungshandbuch

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Kurzanleitung

Carrier

Carrier 48EZN Bedienungsanleitung

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Betriebsanleitung

Ariston

Ariston NIMBUS Bedienungsanleitung

Weishaupt

Weishaupt WWP L 7 Benutzerhandbuch

GE Zoneline AZ85H09EAC Bedienungsanleitung
