BH200
LED Patient Light
Operating & Installation Manual
QAM.BH200.0519.5
Page 1of 20
Page 2of 20
Table of Contents
1. Introduction................................................................. 3
1.1 Supported Lights ....................................................... 4
2. Technical Specifications .................................................. 5
2.1 Pre-Installation Responsibilities and component packing list ... 6
2.2 Pre-Start Checks ....................................................... 6
3. Operation ................................................................... 7
3.1 Range of Motion ........................................................ 7
3.2 Powering On & Variable Intensity ................................... 8
4. Installation .................................................................. 9
4.1 Wall mounted version (BH200LW) ................................... 9
4.1.1 Considerations..................................................... 9
4.1.2 Placement and Installation .....................................10
4.2 Rail mounted version (BH200LR)...................................12
5. Maintenance ...............................................................13
5.1 Maintenance schedule................................................13
5.2 Safety Precautions ....................................................13
5.3 Product cleaning & care guidelines ................................14
5.4 Adjustments ...........................................................15
5.4.2 Detaching Parts ..................................................15
6. Troubleshooting Guide & Spare Parts ..................................16
7. Warranty Information ....................................................18
7.1 Returns Policy .........................................................18
7.2 Warranty Details ......................................................19
Page 3of 20
1. Introduction
DARAY’s BH200 LED is a state-of-the-art, low-cost patient light. The light uses the
latest next-gen LED technology with no heat in the light beam.
The BH200 LED head swivels on a flexible arm to allow accurate and stable
positioning of the light patch. Its head and handles are coated with DARAY’s
BioProtect™, an antimicrobial protection against bacteria such as MRSA. Wall or rail
mountings are available.
The light comprises 3 parts: light head and flexible arm system, power-supply
module, and the mount of choice. The flexible arm allows the light patch to be
placed accurately and stably where it is needed. The arm is covered with a PVC
sleeve to prevent contamination and to allow easy cleaning.
The plug-in power-supply module contains an electronic transformer to provide a low
voltage to power the light from the electrical mains.
The wall-mounting bracket provides a simple method of fixing the light to the wall,
allowing the base of the arm to swivel in front of the wall; a screw prevents the arm
from accidentally being pulled out of the bracket.
The rail-mount version features a clamp to fasten the light to a medical equipment
rail which is optionally supplied in 1m lengths. The clamp can also be used to mount
the light to a bed or trolley rail.
All versions are delivered in special-to-type packaging which identifies on the ends of
the box the model type and serial number of the light within.
This user & installation guide contains all the information you need for installation,
operation and maintenance.
Restrictions and Liabilities
Information in this document is subject to change and does not represent a
commitment by DARAY. Changes made to the information in this document will be
incorporated in new editions of the publication. No responsibility is assumed by
DARAY for the use or reliability of software or equipment that is not supplied by
DARAY.
Page 4of 20
For further information on our product range and find out more about our Company
please visit www.daray.co.uk or call 0333 321 0971.
This product was designed & manufactured in Great Britain by:
Daray Ltd.
Edison House
Robian Way
Swadlincote
Derbyshire
DE11 9DH
1.1 Supported Lights
The Following Models are supported in this Manual
BH200LW
BH200 LED Wall Mounted Light
BH200LR
BH200 LED Rail Mounted Light
Page 5of 20
2. Technical Specifications
Light Source
LED
Light Intensity (Lux) @ 0.5m
5,800 Lux ±5%
Light Intensity Adjustment Range
10% - 100%
Colour Temperature (Kelvin)
4,300K ±500
Colour Rendering Index (CRI)
95
Colour Rendering (R9)
88
Light Field Diameter (D50)
@ 0.5m: 280mm
Light Field Diameter (D10)
@ 0.5m: 640mm
Number of LED’s
3
Power Consumption
12W 0.1A
Average Working Life
>50,000 Hours
Input Voltage
100 - 240V AC 50/60 Hz
Output Voltage
12V DC 2A
Temperature Rise on Patient/User
≤2°C
Warranty Period
5 Years
IP Rating
54
NHS E-Class Code
FBU, FKR
Commodity Code
9018 908400
GMDN Code
12276
Page 6of 20
2.1 Pre-Installation Responsibilities and component packing list
This document is a guide to the steps that need to be performed to correctly install
the BH200 Patient light. However, the work required to be performed is the
responsibility of the owner or designated contractor/s.
All fixings between DARAY lights and the building super-structure must be approved
by either the chief project engineer or an appropriate and competent structural
assessor.
The components supplied by DARAY for fitting / installation should be the following
items in the specified quantities.
BH200LR
Qty.
BH200LW
Qty.
12V Plug top transformer (1.8m)
1
12V Plug top transformer (1.8m)
1
Rail Clamp
1
Wall bracket + fixings
1
Thumb Screw for Rail Clamp
1
Thumb Screw for Wall Mount
Light head and flexible arm
1
Light head and flexible arm
1
Microfibre cloth
1
Microfibre cloth
1
User Manual
1
User Manual
1
2.2 Pre-Start Checks
Please check that the power cable is without visible damage, harsh folds, knots or
cuts in the rubberised coating.
When applicable, please check that the cable is fully inserted into the power socket,
before switching the power on.
Please check that the head and all parts of the base are without visible damage.
Page 7of 20
3. Operation
3.1 Range of Motion
This is an image depicting the range of motion on the BH200 light (all versions)
Page 8of 20
3.2 Powering On & Variable Intensity
The BH200 uses a single button on the back of the head to power the light on and
off, and to adjust the brightness (intensity).
-Press once to power ON.
-Press and hold to adjust the intensity. It takes approximately 4 seconds
to switch between the highest and lowest settings. Release the button
when at a comfortable setting for the user.
-Press once to power OFF.
Please Note: The variable intensity control has a memory function; whereby, if
the light is turned off at a dimmed level, it will remember that level the next
time it is turned on.
Push-button controller
Page 9of 20
4. Installation

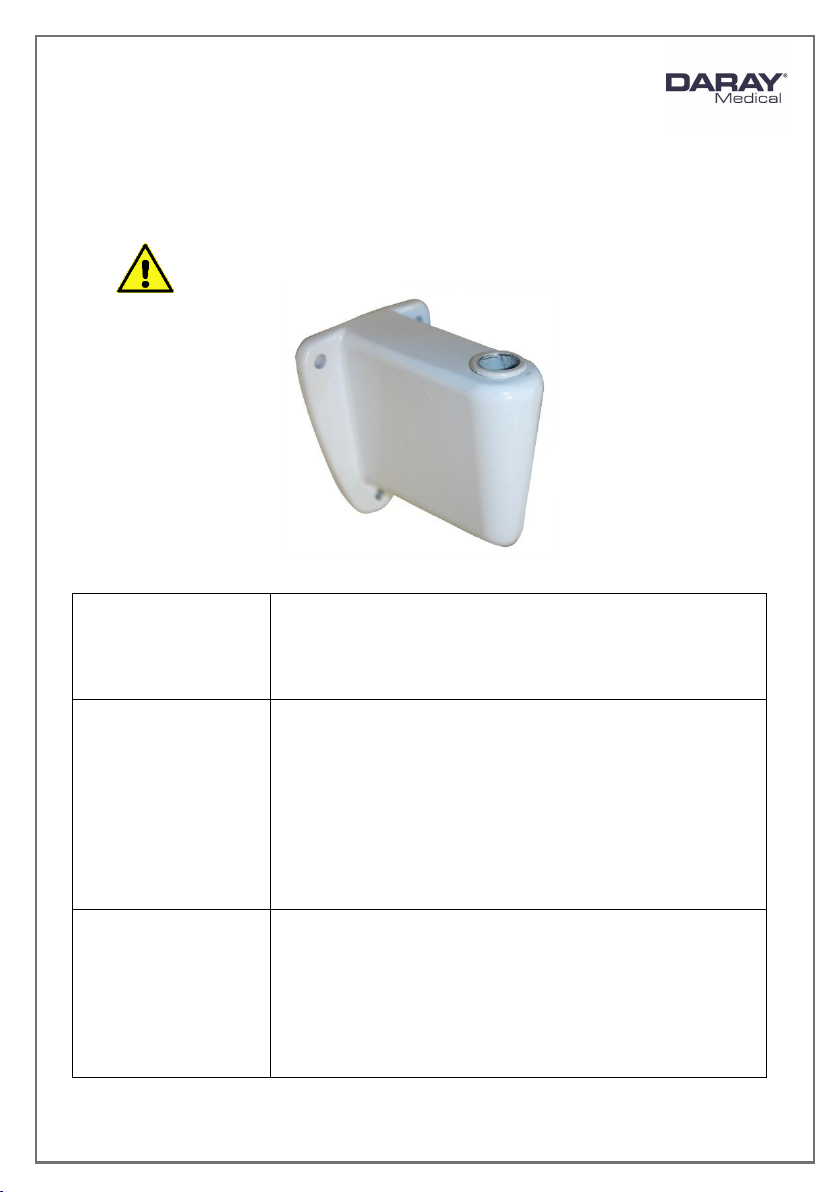

4.1 Wall mounted version (BH200LW)
The wall bracket needs to be true on the vertical plane.
4.1.1 Considerations
Wall Construction
Before fixing it is important to consider the strength of
the wall and the depth of the fixings used.
Use of a building engineer or structural drawings may be
required to decide on suitability.
Examinations to be
undertaken
We recommend the bracket be installed approximately
850-1100mm from the floor to the underside of the
bracket –dependent on couch height.
It may be necessary to adjust this height, if there are
specific medical procedures the light will be used for. If
in doubt consult the end user or DARAY. When installing
the bracket take consideration of where you want the
light head to sit when in its lowest position.
Locations of nearest
mains sockets
The BH200 wall mounted light uses a plug top transformer
with a DC jack connection.
Only the supplied certified power adapter should be used
with the light.
The length of this cable is approximately 1.8m so the wall
mounted light should be within 1.5m of a mains power
point
PIVOTW2 Wall bracket
