Darkglass MICROTUBES B3K Bedienungsanleitung

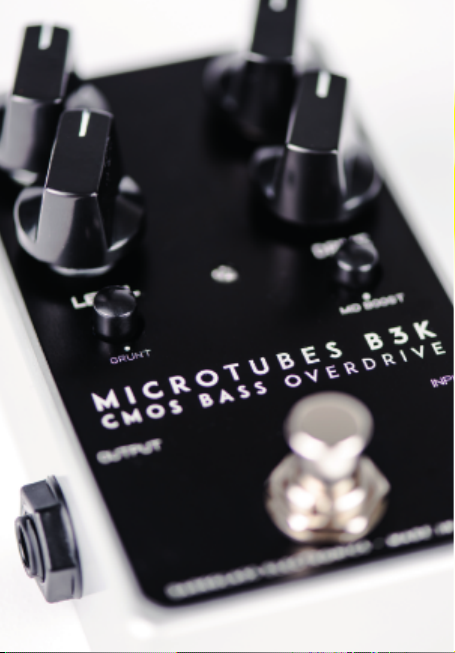

MICROTUBES B3K
CMOS BASS OVERDRIVE
An intuitive format that contains brutality and clarity at the
same time is what the B3K delivers. A defined and powerful
overdrive, with a simple layout gives no limits and set no rules
to unleash the desired tone.
Warning
The Microtubes B3K has a current draw of 20mA. Only use a
regulated 9V DC adapter with a center-negative plug. Due to
ecological reasons it does not accept batteries. Unregulated
power supplies and/or higher voltages may result in subopti-
mal noise performance and even damage your unit, voiding
the warranty.
Warranty
To activate the warranty, we encourage you to register your
product on: http://mypedal.darkglass.com and enter the serial
number on the back of your pedal.
shipping a product to us.
Little dude, Big attitude
Microtubes B3K
Controls
Blend: Mixes the clean input signal with the overdriven signal.
The clean signal remains at unity gain while the volume of the
overdriven signal is set by the Level knob, allowing for fine
control of the blend ratio.
Tone: Controls the high frequency content of the sound. A
variable low pass filter from 3kHz (ccw) to 8kHz (cw)
Level: Sets the volume of the overdriven signal.
Drive: Sets the amount of saturation in the overdriven signal.
Grunt: When engaged provides a massive low end boost to
really thicken your sound.
Mid Boost: Gives a subtle 6dB boost from 300 Hz to 1kHz to
help you cut through a bit more.
Technical Specifications
Input Impedance 500k
Output Impedance 1k
Current Consumption ~17mA
Voltage 9V DC (Center Negative)
Dimensions
Width 75 mm (2.95 in)
Height 111 mm (4.37 in)
Depth 45 mm (1,77 in)
Disclaimer
In the interest of continuous improvement, specifications are
subject to change without notice. If you have any questions,
please don’t hesitate to contact us at www.darkglass.com
The manufacturer claims that the above product fulfills the
requirements as set by EN55013, EN55020, EN60555-2,
EN60555-3, RoHS, WEEE.
EMC / EMI
This equipment has been tested and found to comply with the
limits for a Class B Digital device, pursuant to part 15 of the FCC
rules. These limits are designed to provide reasonable protection
against harmful interference in residential installations.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communica-
tions. There is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
· Reorient or relocate the receiving antenna.
· Increase the separation between the equipment and receiver.
· Connect the equipment to an outlet on a circuit different from
that to which the receiver is connected.
· Consult the dealer or an experienced radio/TV technician for help
