BMW - iDRIVE Professional Navigation CIC (7 buttons) –PLATFORM F
www.dasdvbt.com
Installation and User Manual ver.1.0
[to integrate with the user manual of DAS M32/M44]
Fiber Optic
Multiconn Srl
2
BMW –CIC system

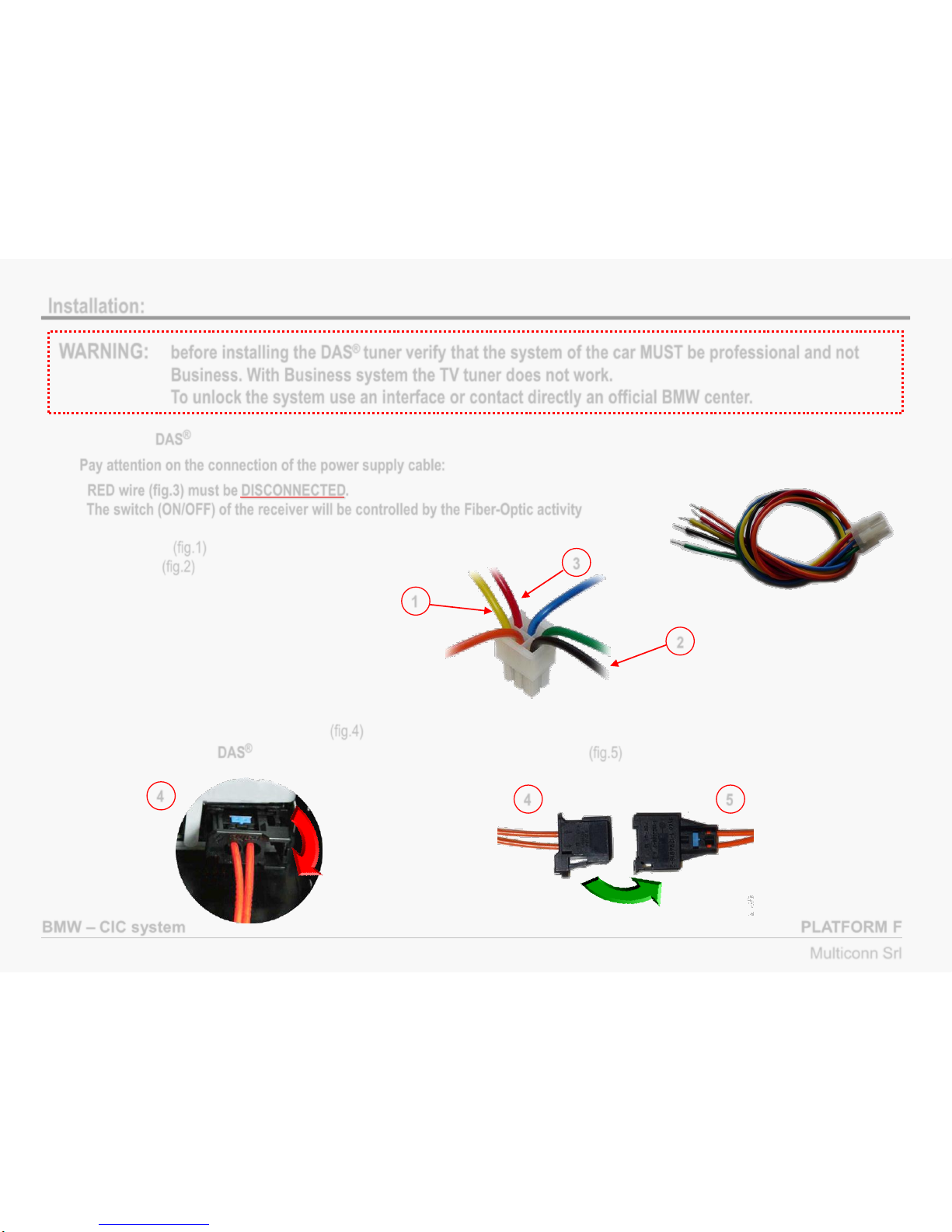

Installation:
WARNING: before installing the DAS®tuner verify that the system of the car MUST be professional and not
Business. With Business system the TV tuner does not work.
To unlock the system use an interface or contact directly an official BMW center.
1. To install the DAS®receiver, refer to the specific user manual;
Pay attention on the connection of the power supply cable:
- RED wire (fig.3) must be DISCONNECTED.
The switch (ON/OFF) of the receiver will be controlled by the Fiber-Optic activity
- YELLOW wire (fig.1) must be connected to the +12V permanent/battery
- BLACK wire (fig.2) must be connected to the GND.
Power supply cable
1
2
3
2. Disconnect the original Fiber Optical cable (fig.4) from one of the original multimedia accessories inside the car (DVD, GPS, Amplifier, etc…)
and match it directly to DAS®fiber optic female connector of the harness on equipment (fig.5).
4 4 5
PLATFORM F
3. Match the two other connectors of DAS®harness (fig.6) respectively inside the original accessory (fig.7) and the other one inside DAS®
receiver (fig.8).
Multiconn Srl
3
7
7 8
6
5
8
9
8
9
4. Connect one of the 3 DAS®Video-OUT (fig.8) trough the adapter cables on equipment (fig.9) and the needed accessory with white Fakra
connector (DCABMQS-RCA in fig.9.1) with the Video-IN on the CIC Unit (fig.10).
9.1
BMW –CIC system PLATFORM F
Video-IN
Multiconn Srl
4
The CIC unit rear side view (fig.10)
10
9.1
Insert the 2 female crimped pins of DAS cable (fig.9.1 DCABMQS-RCA) inside the
black 12P housing and then in white Fakra cover.
If the connectors are already available in the unit, just connect the pins in the pin-
out position recommended below.
Insert the wire with label +in pin 2 (positive signal).
Insert the wire with label -inside the pin 12 (negative signal).
If the pin 2 and 12 are already used by the rear camera, disconnect them and
connect to a yellow RCA to video-IN 1 on DAS receiver.
To shift automatically the signal from TV to REAR CAMERA, connect the green
wire of the power supply cable (refer to the DAS user manual) directly to the rear
camera installed inside the vehicle.
BMW –CIC system PLATFORM F
Multiconn Srl
5
To enter in DAS TV tuner with the iDrive press MENU, then CD/Multimedia and select TV (like the original TV Tuner).
WARNING: For the basic settings such as color, contrast, brightness and format, please refer to the menu of the
car and make sure that the format is congruent with the set menu on the DAS.
CIC iDrive controller
Right rotation = UP
on remote control (dropdown menu)
Left rotation = Down on remote control
(dropdown menu)
BMW –CIC system
User Manual:
PLATFORM F
Multiconn Srl
6
To view the TV in full screen mode push the iDrive and select Splitscreen mode.
Next Channel
(RIGHT)
Previous Channel
(LEFT)
BMW –CIC system PLATFORM F
Multiconn Srl
7
Remote Control Functions:
ON-OFF
TURNING ON/OFF
LEFT ARROW
MENU NAVIGATION - ZAPPING KEY
CONFIGURATION MENU/OK
FUNCTIONS SET UP
DAS MENU
TV/RADIO SELECTION
AND SEARCH SYSTEM
NUMBER KEYPAD
FOR CHANNEL PRE-SELECTION
VOLUME ADJUSTMENT
UP ARROW
MENU NAVIGATION - ZAPPING KEY
TV/AV1/AV2 SELECTION
RIGHT ARROW
MENU NAVIGATION - ZAPPING KEY
DOWN ARROW
MENU NAVIGATION - ZAPPING KEY
KEYPAD ON NAVIGATION SYSTEM
STEERING WHEEL CONTROL
BMW –CIC system PLATFORM F
Multiconn Srl
8
Steering Wheel Controls Right side
UP:
UP arrow
on remote control
DOWN:
DOWN arrow
on remote control
Push and Release:
MENU/OK
on remote control
BMW –CIC system PLATFORM F
4:
4 on RC
Multiconn Srl
9
Navigation System Controls
6:
Left arrow
on RC
7:
Right arrow
on RC
by TOUCH
6:
MENU/OK
on RC
7:
MENU/OK
on RC
by PRESS
1:
1 on RC
2:
2 on RC
3:
3 on RC
5:
5 on RC
4:
9 on RC
1:
6 on RC
2:
7 on RC
3:
8 on RC
5:
0 on RC
BMW –CIC system PLATFORM F
