Data Flow Systems Hyper SCADA HSS001 Bedienungsanleitung

HSS Serial Number HSM Serial Number

NIM Serial Number NSM Serial Number

PSM Serial Number

HSM IP Address: _________________________________________________

NIM IP Address: _________________________________________________

Backup Computer IP Address: _____________________________________

NOTICE

Data Flow Systems, Inc. assumes no responsibility for any errors that may

appear in this document, nor does it make any commitment to update the

information contained herein. However, questions regarding the information

contained in this document are welcomed.

Data Flow Systems also reserves the right to make changes to the specifications

of the Hyper SCADA Server, Hyper Server Module, Network Interface

Module, Fiber Interface Module, Network Fiber Module, Network Switch

Module, and the HT3 SCADA software and to the information contained in

this document at any time without notice.

605 N. John Rodes Blvd., Melbourne, FL 32934

Phone 321-259-5009

Fax 321-259-4006

www.dataflowsys.com

DFS-00387-011-01

This document last updated June 4, 2010

HSS001 Quick Start Guide

This document describes the basic procedures for cabling and configuring the

Hyper SCADA Server (HSS001). For detailed cabling and installation

information, see the Hyper SCADA Server Installation and Operation Manual,

available for download from DFS’ web site (www.dataflowsys.com). For

detailed information on configuring the HT3 SCADA software, see the HT3

User Guide (available from within the HT3 software and also available on the

DFS website).

Parts List

Hyper SCADA Server (HSS002-1 or HSS002-2), which includes the following

components:

One Hyper Server Module (HSM)

One 100 W Power Supply Module (PSM)

One on the following: Network Interface Module (NIM); Fiber Interface

Module (FIM); or Network Fiber Module (NFM)

One Network Switch Module (NSM)

One 3.0 AH battery

Two telephone line connectors

Two serial ports

One RCA mono jack

AC power cord (10 feet) (optional power cord plug is available)

4 (four) mounting brackets

4 (four) mounting screws

Hyper SCADA Server Quick Start Guide

What You'll Need

Two (2) static IP addresses - one for the HSM and one for the NIM

(Optional) One (1) static IP address for a Tunnel CTU

CAT5 cables terminated with RJ-45 connectors

Telephone cable terminated with RJ-11 connectors

Computer with Windows operating system installed

PS-2 keyboard and VGA monitor (for connecting to HSM when

configuring IP address)

HSS001 Quick Start Guide

Installation Checklist

Mount HSS001 to wall

Connect to network or primary workstation

Connect to serial device(s)

Configure NIM’s IP address

Connect telephone lines for dial in and dial out

Connect audio device (optional)

Connect external alarm light/horn (optional)

Connect power

Connect keyboard and monitor to HSM and configure HSM’s IP address

Configure hosts file on workstation

Connect to HT3 (modify browser settings; install plug-ins and java policy

file; start HT3)

Configure remote system backup location

WARNING

The HSS should only be installed and serviced by DFS personnel or other

qualified technicians.

The HSS must be installed in accordance with all national and local wiring

rules.

The rated voltage and current for the HSS001 are 120 VAC and 2 Amperes

Workstation Specifications

With the HT3 system, you can use Windows-based computers, or workstations,

to access the Hyper SCADA Server (HSS). The HSS is a Linux-based server that

runs the HT3 SCADA software and MySQL database. You can have multiple

Windows workstations connected to the HSS through a local area network. A

Windows-based workstation provides you with access to all HT3 functions.

We recommend that one computer be designated as a dedicated primary

workstation. This computer's main function would be to interface with the HSS

and would remain on at all times.

Minimum Requirements for a Workstation Computer*

Windows XP with SP2

Internet Explorer 8.0

Java 1.5

*Microphone required for recording voice alarm announcements

HSS001 Quick Start Guide

Protecting Against Electrostatic Discharge

Static electricity can harm delicate components inside the HSS. To prevent

static damage, put on an electrostatic discharge wrist strap before touching any

of the HSS' electronic components.

In addition to the preceding precautions, the following steps can be taken to

prevent damage from electrostatic discharge (ESD):

When unpacking a static-sensitive component from its shipping carton,

do not remove the component's antistatic packing material until ready to

install the component in the HSS. Be sure to put on an electrostatic

discharge wrist strap before unwrapping the antistatic packaging.

When transporting a sensitive component, first place it in an antistatic

container or packaging.

Handle all sensitive components in a static-safe area. Place the equipment

on a grounded surface. If possible, use antistatic floor pads and

workbench pads.

Note: Contact DFS if electrostatic discharge packaging is needed for return

shipments. See Return Authorization (RA) Procedure, p. 19 for more

information on returning equipment.

Unpack the HSS

IMPORTANT: When handling the HSS001's components, follow the

instructions in "Protecting Against Electrostatic Discharge" (previous section).

1. Carefully open the box in which the HSS001 was shipped and remove the

unit.

2. Your HSS001 is shipped with the modules preinstalled in their appropriate

slots with packing material placed between the modules to help prevent

shipping damage. Before mounting the HSS001, open the enclosure's door

and remove the packing material.

3. Visually inspect the enclosure and the modules. If any equipment appears

damaged, read the information in the Return Authorization (RA)

Procedure (p. 23) for instructions on having the equipment replaced or

repaired.

Mount the HSS

IMPORTANT: The HSS must be mounted to the wall in a vertical position to

ensure proper airflow through the vents in the enclosure. These vents are

used to help keep the unit and its components from overheating. Do not

HSS001 Quick Start Guide

install the unit in a horizontal position or lay the unit down on its front, top,

back, or sides.

The HSS is designed to operate in an air conditioned, moisture-free, office-type

environment [41-86°F (5-30°C)]. When selecting an installation site, make sure

that it provides an acceptable environment.

There are four mounting bosses on the back of the unit for attaching the

brackets to the enclosure. Attach the four (4) mounting brackets to the back of

the HSS’ enclosure using the supplied screws. Use all four brackets to ensure

that the unit will be securely mounted. The mounting brackets may be aligned

vertically or horizontally. After attaching the brackets to the enclosure, securely

fasten the HSS to the wall in the desired location.

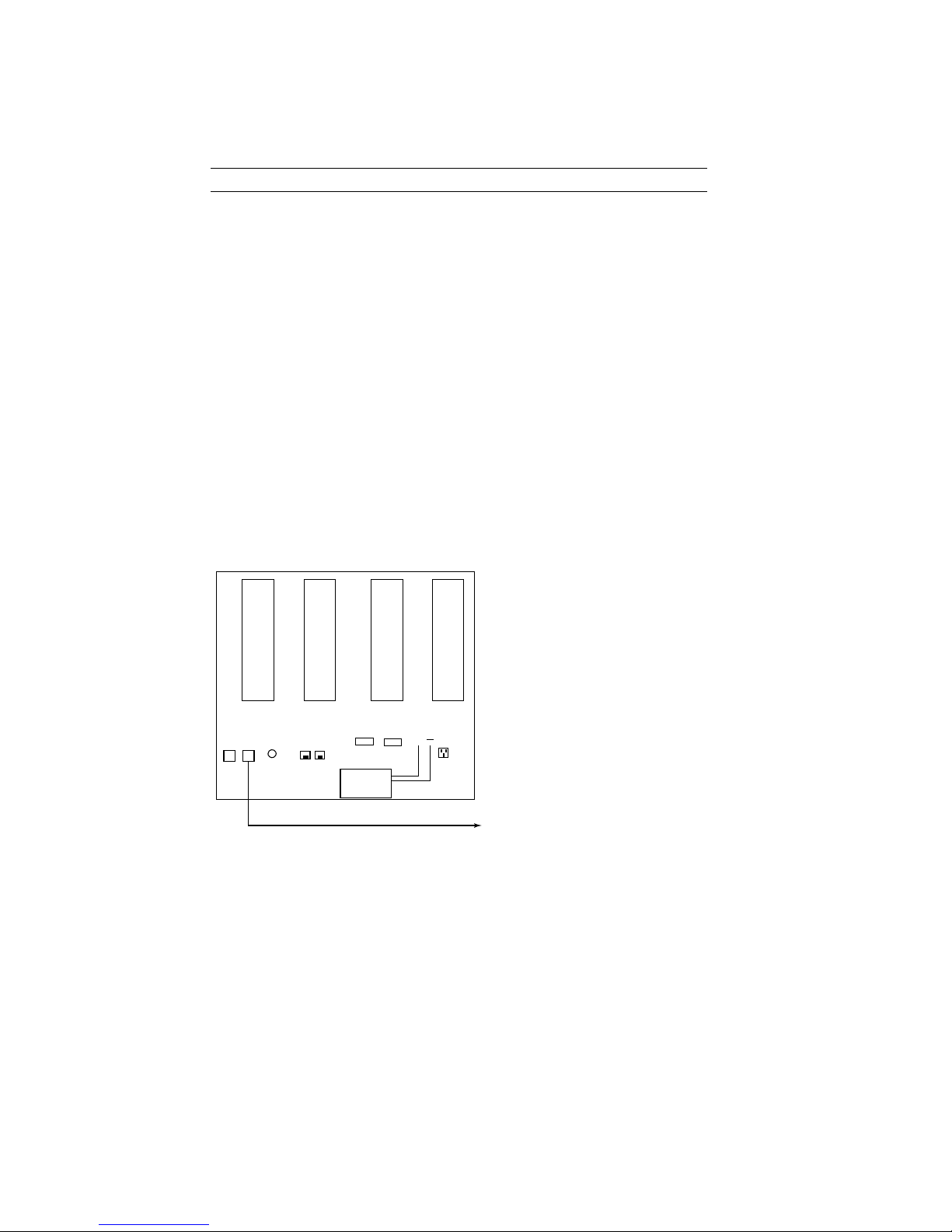

Connect HSS to LAN / Master Workstation

The HSS includes a NIM when using the unit’s COM ports to connect to serial-

type devices. A FIM/NFM is required in place of a NIM when the unit is

connected to a Tunnel CTU.

When connecting the HSS to a local area network through a device such as a

hub, switch, or router, or to a dedicated master workstation, connect any

unused port on the NSM to a port on the other device.

HSS with NIM

COM2 COM1

TELEPHONE

LINES AUDIO

OUT AC

POWER

To Local Area Network/

Dedicated Master Workstation

HSS001 Quick Start Guide

HSS with FIM/NFM

F/OCONV

To Tunnel CTU

CAT5

F/OCABLE

To Local Area Network/

Dedicated Master Workstation

COM2 COM1

TEL.

LINES AUDIO

OUT AC

POWER

Connect the HSS to a Serial Device

The Hyper SCADA Server (HSS001) features two ports (COM1 and COM2) for

connecting serial-type devices, including Modbus devices. These ports are

connected to the HSS' NIM, which allows the serial devices to pass their data to

network devices. This is accomplished through a process called serial

tunneling. In serial tunneling, the HSM bundles serial data into network

packets and forwards it to the NIM. When the NIM sees an incoming packet, it

switches

to serial tunnel mode, extracts the serial data, and sends the data out the

appropriate COM port. When a serial device sends data to one of the NIM’s

COM ports, the NIM bundles the data into network packets and forwards them

to the HSM.

COM1 and COM2 include RTS and CTS to support connections to equipment

(such as radios and modems) that require hardware handshaking. RTS and

CTS are optionally enabled via configuration of the driver in HT3.

Additionally, both COM1 and COM2 are used as stand-alone serial tunnels

only; there is no bus communication.

HSS001 Quick Start Guide

BATTERY

To Serial Device 1

To Serial Device 2

COM2 COM1

TEL.

LINES AUDIO

OUT AC

POWER

SOURCE

LOAD

COM1 and COM2:

Pin 2 = RXD

Pin 3 = TXD

Pin 5 = GND

Pin 7 = RTS

Pin 8 = CTS

Configure the NIM’s IP Address

The HSS' NIM acts as an interface between the serial devices connected to the

HSS and the network. The NIM is referred to as a "tunneling device," because

its function is to pass - or tunnel - serial data through a network. As such, the

NIM requires a valid IP address.

IMPORTANT: (1) The NIM cannot be addressed greater than 250. (2) The

ground (G) switch must remain in the ON position. (3) The BRAIN switch,

when set to the OFF position, allows an IP address to be configured when

using a NIM/FIM. Set the BRAIN switch to ON when using a NFM.

The NIM features automatic IP addressing. It

obtains the first three octets of its network

address from an HSM broadcast (a network

service called NIM Broadcast). The last octet

comes from the NIM Tunneling IP Address

block (located in the HSS to the left of the

NIM). The last octet is configured by placing

each of the DIP switches on the address block

either in the ON or OFF position. The address

is calculated by adding up the bits that are

OFF. The example at right shows the NIM

addressed at 208. The 128, 64, and 16 switches

have been placed in the OFF position (128 + 64

+16 = 208).

BRAIN

128

NIM TUNNELING

IP ADDRESS

HSS001 Quick Start Guide

When the NIM boots up, it receives a broadcast from the HSM that says, "This

is your subnet." The NIM reads its subnet, mates it with the tunnel address,

and begins to talk at that IP address.

Connect the HSS to a Telephone Line

Note: By default, HT3 software is configured for two phone lines. If only one

phone line is used for the call-in and call-out functions, HT3‘s configuration

must be changed. (See “Call In and Call Out: Configuring 911 & 411” in the

HT3 User Guide for more information.)

One Telephone Line Setup

This setup requires a configuration change in HT3.

Follow these instructions when using one telephone line for both the Call Out

and Call In functions.

Please note that if you are using only one line for both functions, call out (911)

takes precedence. Therefore, if you are calling in and an alarm occurs (one with

call out enabled), the system will disconnect your call in order to place the 911

call.

1. From your telephone room or telephone wall jack, locate the telephone

line's tip and ring wires and terminate them using an RJ11 modular plug.

2. Insert the plug into the LINE 2 jack. The LINE 2 jack is prewired to the

Line 2 termination points on the HSM’s card edge.

(See wiring diagram on next page.)

BATTERY

COM2 COM1

TEL.

LINES AUDIO

OUT

POWER

SOURCE

LOAD

ALARM

TERMINALS

To Wall Jack /

Telephone Room

CALL OUT (911) / CALL IN (411) LINE

HSS001 Quick Start Guide

Two Telephone Line Setup

Follow these instructions when using two separate telephone lines for the Call

Out and Call In functions.

1. From your telephone room or telephone wall jack, locate line 1's and line

2's tip and ring wires. Terminate each line's tip and ring wires using an

RJ11 modular telephone connector.

2. Plug the line that will handle call out (911 calls) in the LINE 1 jack. The

LINE 1 jack is prewired to the Line 1 termination points on the HSM’s card

edge.

3. Plug the line that will handle call in (411 calls) in the LINE 2 jack. The

LINE 2 jack is prewired to the Line 2 termination points on the HSM’s card

edge.

BATTERY

COM2 COM1

TEL.

LINES AUDIO

OUT

POWER

SOURCE

LOAD

ALARM

TERMINALS

To Wall Jack /

Telephone Room

CALL IN (411) LINE

CALL OUT (911) LINE

Connect HSS to Audio Device (optional)

The HSS' RCA mono jack (Audio Out) may be used to connect an audio device,

for example, a PA system, an amplifier-plus-speaker system, or amplified

speaker(s), to the HSS. With this type of set up, alarm announcements can be

heard remotely in addition to being heard at the workstations.

Before connecting the HSS to a sound system:

Ensure that the sound system has its own power source. Do not use the

HSS to power the sound system.

Turn off the sound system's power. This helps prevent damage to

speakers as well as to any connected equipment.

Inhaltsverzeichnis

Andere Data Flow Systems Server Handbücher

Data Flow Systems

Data Flow Systems TCU800 Bedienungsanleitung

Beliebte Server Handbücher anderer Marken

HP AlphaServer ES47 Bedienungsanleitung

Dell

Dell PowerEdge R410 Bedienungsanleitung

PowerNAS

PowerNAS CMA Bedienungsanleitung

Supero

Supero FatTwin F617R3-FT Bedienungsanleitung

MSI

MSI P1-109N-L70 Bedienungsanleitung

Dell

Dell PowerEdge XE9640 Handbuch

Dell

Dell PS4100 Montageanleitung

EtroVISION

EtroVISION EV3151 Bedienungsanleitung

NEC

NEC Express5800/T110j Bedienungsanleitung

HP ProLiant Gen9 Bedienungsanleitung

Compaq

Compaq ProLiant 3000 Handbuch

Dell

Dell PowerEdge 3YPMN Bedienungsanleitung

iRobo

iRobo IPC2U Bedienungsanleitung

Nortel

Nortel 1000 Con?guration guide Bedienungsanleitung

Asus

Asus AP7500 Bedienungs- und Wartungshandbuch

Avid Technology

Avid Technology AirSpeed 5000 Bedienungsanleitung

HP Integrity rx2600 Installationsanleitung

Milestone

Milestone Husky IVO 350T Bedienungsanleitung
