QUICK START GUIDE
INTRO
THANK YOU for choosing
our easyTOUCH STARTERKIT!
This kit provides you with all the necessary components to bring our touch-display solution to full
operation. The components can be assembled together in just a few steps using our guidelines!
The perfect combination of our in-house developed easyTOUCH Display and eMotion board enable
you to evaluate our PCAP and display performance. Further PCAP tuning and debugging is possible
using the easyANALYZER software developed by our engineers for our easyTOUCH solutions.
If you have any questions or challenges, do not hesitate to contact us!
Do you need more details or do you need support for a special project?
easyTOUCH Display
I2C-to-USB adaptor
Dispcon board
eMotion board*
OSD board
DVI/HDMI cable
LVDS cable
*Connector numberings (CN) can be found on the front of the eMotion board.
Connector descriptions can be found on the back of the eMotion board.
LED cable
OSD cable
USB cable
+12V power supply
Power cord (EU)
Power cord (US)
easyANALYZER software (USB stick)
SCOPE OF DELIVERY
Connect easyTOUCH Display PCAP flex tail
with I2C-to-USB adaptor board (CN X1).
Connect easyTOUCH Display LCD flex tail to
the Dispcon board (CN X300).
Connect Dispcon board (CN X100) to
eMotion board (CN105) using LVDS cable .
Connect Dispcon board (CN X200) to
eMotion board (CN108) using LED cable .
Connect OSB board
with eMotion board (CN112)
using OSD cable .
Connect USB cable with
I2C-to-USB adaptor board (CN X4).
INSTALLATION GUIDE

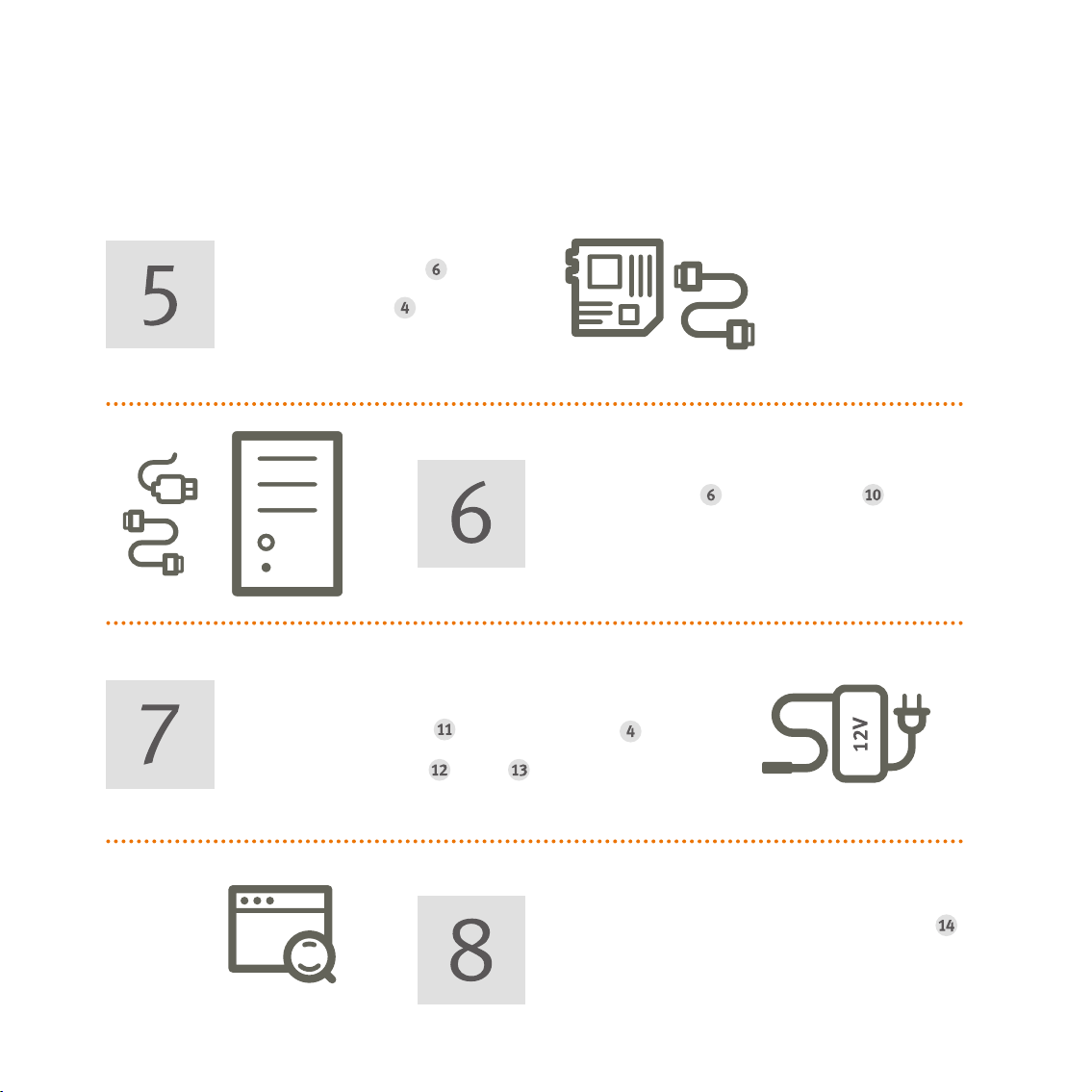

Connect DVI cable with
eMotion board (CN100).
Connect HDMI and USB cable
to your host system
After all other connections have been made,
supply +12V power to emotion board (CN103).
Plug in power cord (EU)/ (US)
Optional: Install easyANALYZER software
on your host system (for Windows and Linux)
DATA MODUL AG I www.data-modul.com
Landsberger Str. 322 I DE-80687 Munich I Phone: +49 89 56017 0
