Datalogic Formula F732 WIZARD Bedienungsanleitung
F732 WIZARD™
User’s Manual
F732 WIZARD™
User’s Manual
F732 WIZARD™
USER'S MANUAL
DATALOGIC S.p.A.
Via Candini 2
40012 - Lippo di Calderara di Reno
Bologna - Italy
Formula 732 Wizard™ - User's Manual
Ed.: 06/01
ALL RIGHTS RESERVED
Datalogic reserves the right to make modifications and improvements without
prior notification. Products names mentioned herein are for identification
purposes only and may be trademarks and or registered trademarks of their
respective companies.
© Datalogic S.p.A. 1997 - 2001
820042112 (Rev. B)
iii
CONTENTS
1 GENERAL INFORMATION................................... 1
1.1 F732 WIZARD™ Terminal Description................. 1
1.2 Downloading EasyGen™ Demo............................ 3
1.3 Application Development Programs...................... 3
1.4 Purpose of the Manual.......................................... 4
1.5 Contents of Packing.............................................. 5
1.6 Terminal Identification........................................... 6
2 SAFETY REGULATIONS..................................... 7
2.1 General Safety Rules............................................ 7
2.2 Laser Safety.......................................................... 8
2.3 FCC Compliance - Information for the User........ 13
3 CONNECTION.................................................... 14
3.1 Cradle.................................................................. 14
3.2 Connection to the Host Computer....................... 16
3.2.1 RS-232 Connection............................................. 16
3.3 Connection Cables.............................................. 18
4 USE AND OPERATION...................................... 19
4.1 Loading Application Programs............................ 20
4.2 Bar Code Scanning............................................. 20
4.3 Description of Keys............................................. 21
4.4 Downloading Data to Host .................................. 24
5 MAINTENANCE.................................................. 25
5.1 Charging the Batteries ........................................ 25
5.2 Replacing the Batteries....................................... 27
5.3 Cleaning the Terminal......................................... 28
6 TROUBLESHOOTING........................................ 29
7 TECHNICAL FEATURES ................................... 31
A F732 PRODUCTS AND ACCESSORIES ........... 34
iv
GENERAL INFORMATION 1
Ed.: 06/01 1
1 GENERAL INFORMATION
1.1 F732 WIZARD™ TERMINAL DESCRIPTION
For vast majority of small businesses and retailers, the
complete Formula Wizard™ package represents the
simplest and most cost-effective solution for entering the
world of bar code data acquisition.
The Formula 732 Wizard™ (abbreviated in this manual to
F732) portable terminal with its integrated laser scanner is
at the heart of the Formula Wizard™ solution. Fast and
reliable in reading the most common symbologies, it comes
equipped with a handy 25-key alphanumeric keyboard and
has a large display with icons. Data transfer to the PC takes
place by simply placing the terminal into the Formula 952
Transceiver/Charger, which is equipped with a RS232 serial
port, and using Systools™ 2001 - an effective software
utility for transferring data to standard ASCII files.
By using the EasyGen™ software package, developers can
quickly build personalized applications according to the
required contexts by easily creating programs of average
complexity in a Windows environment.
F732 WIZARD™
1
2Ed.: 06/01
The EasyGen™ Demo Version with five ready-to-use
example applications can be downloaded from the
Datalogic web site free of charge. They cover the most
common operating requirements in data collection, assisted
sales, inventory and goods picking, thus making the
Formula Wizard™ solution immediately productive.
The EasyGen™ package also includes Systools™ 2001
and OLE for Formula, the ActiveX software module that
allows data to be integrated into applications such as Visual
Basic, Excel, Access, Delphi, etc.
Furthermore, the Formula 732 terminals are fully
programmable in C language using DS for Formula, thus
solving even the most complex application needs.
A
B
C
D
EE
Key:
A) Laser beam output window
B) Two color LED
C) Reset key (shielded)
D) Cradle communications window
E) Contacts for battery recharging
GENERAL INFORMATION 1
Ed.: 06/01 3

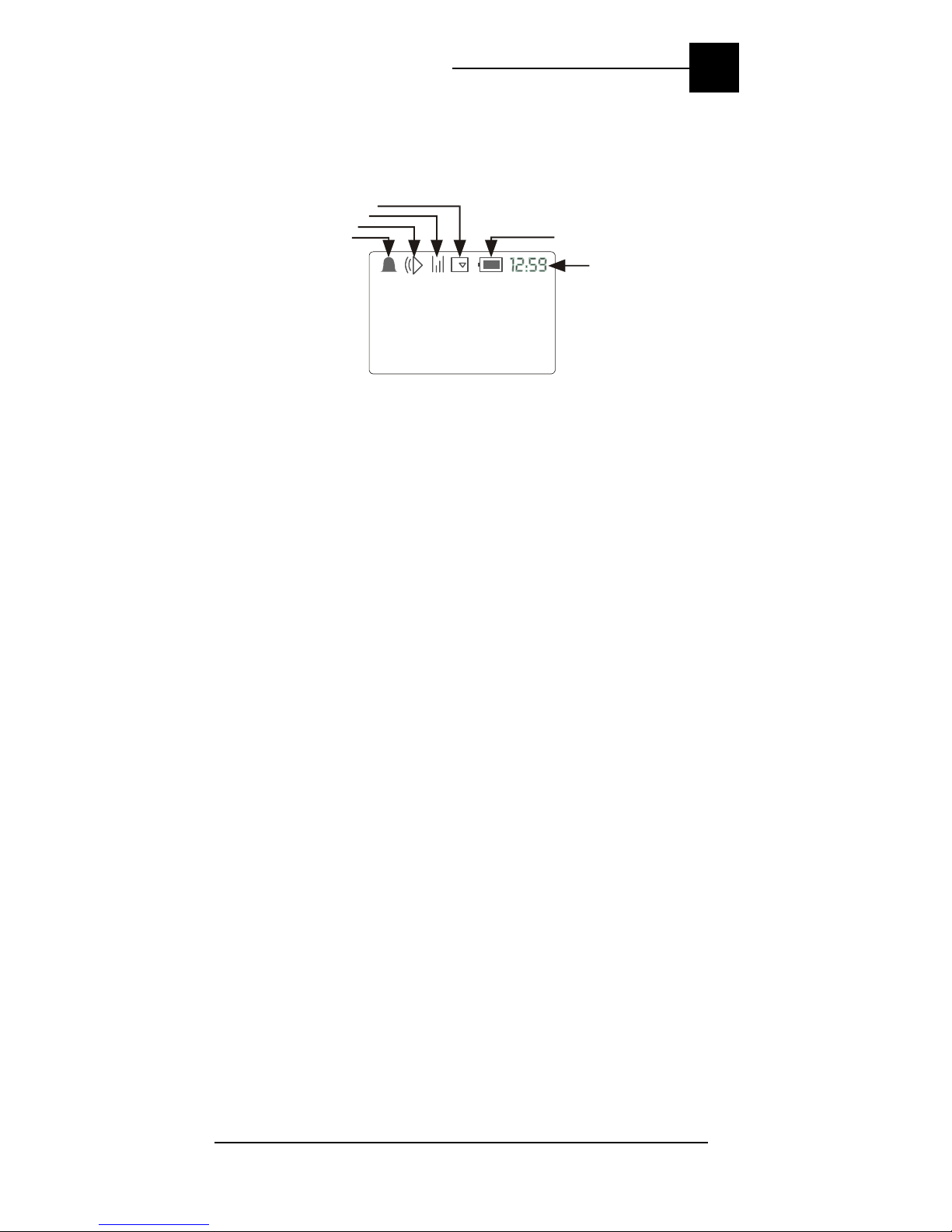

The F732 terminal has an LCD graphic display of 16
characters by 4 lines plus a line in the upper part of the
display for the programmable icons:
FORMULA 732 WIZARD
POCKET LASER TERM
DATALOGIC S. P. A.
4 LINESx16 CHARS
Time
The battery charge status
The icons which can be
controlled by the
application program
1.2 DOWNLOADING EASYGEN™ DEMO
By completing the electronic form at our web site,
http:\\www.datalogic.com\pdc\easygen_demo.htm, you can
download for free EasyGen™ Demo Software package
containing the following items:
•EasyGen™ Demo Version (user-friendly and highly
productive application generator)
•Systools™ 2001 (efficient utility for data exchange with
the F732 terminal)
•OLE for Formula (useful ActiveX software module for
easy integration of Windows applications)
•The most common application examples (data
collection, inventory, goods picking, assisted sales)
available in 5 languages (English, French, German,
Italian, Spanish)
•The complete documentation in PDF format.
1.3 APPLICATION DEVELOPMENT PROGRAMS
"C" ANSI standard
The Formula 732 terminal is fully programmable in C
language, thus solving even the most complex application
needs.
•Development System for Formula Basic Line order
nr. 94A104860
•CA51 "C" Compiler KIT order nr. 94A104890
F732 WIZARD™
1
4Ed.: 06/01
EasyGen™ Application Generator
By using the EasyGen™ software, developers can easily
and quickly build personalized applications of average
complexity in a Windows environment.
•EasyGen™ (Easy Application Generator Package)*
order nr. 94A104850.
*32-bit software for Microsoft Windows 95/98/2000/ME and NT
(PC Pentium processor, 16MB of RAM, 30MB free hard disk
space required)
1.4 PURPOSE OF THE MANUAL
The information contained in this manual is divided in two
parts:
−For the everyday user:
Chapters 1, 2, 4 and 7:
supply general information, safety information, the
F732 terminal operating instructions and technical
specifications.
−For the person in charge of the management of the
terminals and for those who are familiar with the
Microsoft Windows 95/98/2000/ME and NT operating
system and possess basic programming skills:
Chapters 3, 4, 5, 6, and 7:
supply instructions for the connection of F732 terminals
to the host computer, and battery substitution.
