F734-E Series Terminals

User's Manual

822000113 (Rev. D)

www.mobile.datalogic.com

Datalogic Mobile S.r.l.

Via S. Vitalino, 13

40012 Lippo di Calderara di Reno

Bologna - Italy

Telephone: (+39) 051-3147011

Fax: (+39) 051-3147561

World wide Sales Network

available from: www.mobile.datalogic.com/contacts

Datalogic Mobile S.r.l.

Via S. Vitalino 13

40012 - Lippo di Calderara di Reno

Bologna - Italy

F734-E Series Terminals

Ed.: 01/2008

Datalogic Mobile reserves the right to make modifications and improvements

without prior notification.

Datalogic Mobile shall not be liable for technical or editorial errors or

omissions contained herein, nor for incidental or consequential damages

resulting from the use of this material.

Product names mentioned herein are for identification purposes only and

may be trademarks and or registered trademarks of their respective

companies.

CONTENTS

REFERENCES .................................................................v

Conventions...................................................................... v

Reference Documentation................................................ v

Services and Support ....................................................... v

SAFETY REGULATIONS................................................vi

General Safety Rules....................................................... vi

Laser Safety.................................................................... vii

Radio Compliance .......................................................... xii

FCC Compliance ............................................................xiii

WEEE Compliance .........................................................xiii

GENERAL VIEW ........................................................... xvi

INTRODUCTION ..............................................................1

1.1

Terminal Description.........................................................1

1.1.1

F734-E..............................................................................1

1.1.2

F734-E/RF ........................................................................2

1.2

Application Development Programs .................................3

1.3

Downloading EasyGen™ Demo.......................................4

1.4

Package Contents ............................................................5

1.5

Accessories ......................................................................5

CONNECTIONS ...............................................................7

2.1

Cradle ...............................................................................7

2.2

Connection to the Host Computer ....................................8

2.2.1

RS232 Connection............................................................8

2.2.2

Connection with Eavesdrop Interface.............................10

2.2.3

RS485 Connection..........................................................11

2.2.4

RF Connection................................................................13

2.3

Connection Cable ...........................................................14

USE AND OPERATION .................................................16

3.1

Description of Keys Using EasyGen™ ...........................16

3.2

Barcode Scanning ..........................................................19

3.3

Deleting the Application Program ...................................20

3.4

Downloading Data to Host..............................................21

MAINTENANCE .............................................................22

4.1

Charging the Batteries....................................................22

4.2

Replacing the Batteries ..................................................24

4.3

Cleaning the Terminal.....................................................26

TROUBLESHOOTING ...................................................27

TECHNICAL FEATURES...............................................28

iii

GLOSSARY....................................................................30

INDEX.............................................................................32

REFERENCES

CONVENTIONS

This manual uses the following conventions:

“User” or “Operator” refers to anyone using a F734-E Terminal.

“Device” refers to the F734-E Terminal.

“You” refers to the System Administrator or Technical Support

person using this manual to install, operate, maintain or

troubleshoot a F734-E Terminal.

REFERENCE DOCUMENTATION

For further details refer to the Manuals of the various programs

provided on the CD-ROM.

SERVICES AND SUPPORT

Datalogic Mobile provides several services as well as technical

support through its website. Log on to www.mobile.datalogic.com

and click on the links indicated for further information including:

• PRODUCTS

Search through the links to arrive at your product page where

you can download specific Manuals and Software & Utilities

including:

- EasyGen™ Demo Version

EasyGen™ Demo software allows developers to easily and

quickly build personalized applications of average

complexity in a Windows environment.

- EasySend™

A Windows-based file uploading program.

• SERVICES & SUPPORT

- Datalogic Services - Warranty Extensions and

Maintenance Agreements

- Authorised Repair Centres

• CONTACT US

E-mail form and listing of Datalogic Mobile Subsidiaries

SAFETY REGULATIONS

NOTE

Read this manual carefully before performing any

type of connection or repair on the terminal.

The user is responsible for any damages caused

by incorrect use of the equipment or by

inobservance of the indication supplied in this

manual.

GENERAL SAFETY RULES

Use only the components supplied by the manufacturer for the

specific F734-E series terminal being used. The use of cradles

other than those supplied with the terminal or indicated in the list in

the appendix could cause serious damage to the terminal.

Do not attempt to disassemble the F734-E series terminal, as it

does not contain parts that can be repaired by the user. Any

tampering will invalidate the warranty.

When replacing the batteries or at the end of the operative life of the

terminal, disposal must be performed in compliance with the laws in

force.

Do not submerge the terminal in liquid products.

LASER SAFETY

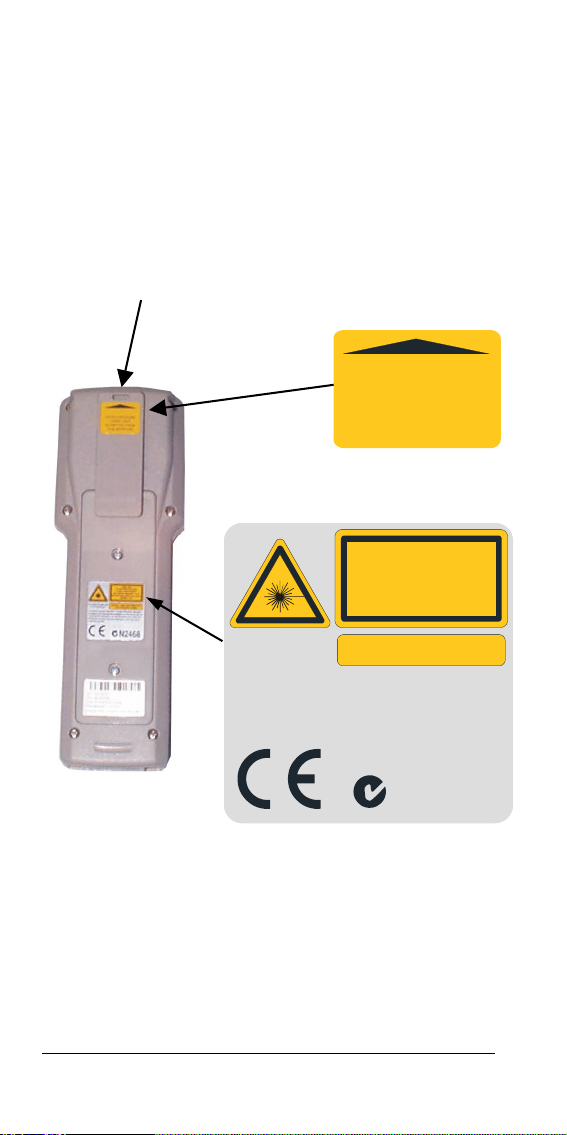

The laser light is visible to the human eye and is emitted from the

window indicated in the figure.

F734-E

Laser beam output window

AVOID EXPOSURE

LASER LIGHT

IS EMITTED FROM

THIS APERTURE

250

LASER LIGH

DO NOT STARE INTO BEAM

CLASS 2 LASER PRODUCT

MAX. OUTPUT RADIATION 1.0 mW

EMITTED WAVE LENGTH 630-680 nm

EN60825-1:2001

This product complies with

21 CFR Subchapter J CAUTION

–

CLASS 2 LASER LIGHT

WHEN OPEN DO NOT STARE INTO BEAM

This device complies with PART 15 of the FCC Rules. Operation

is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) this device must accept

any interference received, including interference which may

cause undesired operation.

N2468

Figure 1 - F734-E Laser Safety Labels

vii

F734-E/RF

Laser beam

output window

AVOID EXPOSURE

LASER LIGHT

IS EMITTED FROM

THIS APERTURE

N2468

LASER LIGHT

DO NOT STARE INTO BEAM

CLASS 2 LASER PRODUCT

MAX. OUTPUT RADIATION 1.0 mW

EMITTED WAVE LENGTH 630 ~ 680

EN60825-1:2001

CAUTION – CLASS 2 LASER LIGHT

WHEN OPEN DO NOT STARE INTO BEAM

This product complies with

21 CFR Subchapter J

Figure 2 - F734-E/RF Laser Safety Labels

I D F E

LA LUCE LASER

È VISIBILE

ALL'OCCHIO

UMANO E VIENE

EMESSA DALLA

FINESTRA

INDICATA NELLA

FIGURA.

DIE LASER-

STRAHLUNG IST FÜR

DAS MENSCHLICHE

AUGE SICHTBAR UND

WIRD AM

STRAHLAUS-

TRITTSFENTSTER

AUSGESENDET

(SIEHE BILD)

LE RAYON LASER

EST VISIBLE À

L'OEIL NU ET IL

EST ÉMIS PAR LA

FENÊTRE

DÉSIGNÉE SUR

L'ILLUSTRATION

DANS LA FIGURE

A LUZ LÁSER

ES VISIBLE AL

OJO HUMANO

Y ES EMITIDA

POR LA

VENTANA

INDICADA EN

LA FIGURA.

viii

I D F E

LUCE LASER

NON FISSARE IL

FASCIO

APPARECCHIO

LASER DI

CLASSE 2

MASSIMA

POTENZA

D'USCITA:

LUNGHEZZA

D'ONDA EMESSA:

CONFORME A

EN 60825-1(2001)

LASERSTRAHLUNG

NICHT IN DEN STRAHL

BLICKEN PRODUKT

DER LASERKLASSE 2

MAXIMALE

AUSGANGSLEISTUNG:

WELLENLÄGE:

ENTSPR.

EN 60825-1(2001)

RAYON LASER

EVITER DE

REGARDER LE

RAYON

APPAREIL LASER

DE CLASSE 2

PUISSANCE DE

SORTIE:

LONGUER

D'ONDE EMISE:

CONFORME A

EN 60825-1 (2001)

RAYO LÁSER

NO MIRAR

FIJO EL RAYO

APARATO

LÁSER DE

CLASE 2

MÁXIMA

POTENCIA DE

SALIDA:

LONGITUD DE

ONDA

EMITIDA:

CONFORME A

EN 60825-1

(2001)

ENGLISH

The following information is provided to comply with the rules

imposed by international authorities and refers to the correct use of

your terminal.

STANDARD LASER SAFETY REGULATIONS

This product conforms to the applicable requirements of both CDRH

21 CFR 1040 and EN 60825-1 at the date of manufacture.

For installation, use and maintenance, it is not necessary to open

the device.

CAUTION

Use of controls or adjustments or performance

of procedures other than those specified herein

may result in exposure to hazardous visible

laser light.

The product utilizes a low-power laser diode. Although staring

directly at the laser beam momentarily causes no known biological

damage, avoid staring at the beam as one would with any very

strong light source, such as the sun. Avoid that the laser beam hits

the eye of an observer, even through reflective surfaces such as

mirrors, etc.

ITALIANO

Le seguenti informazioni vengono fornite dietro direttive delle

autorità internazionali e si riferiscono all’uso corretto del terminale.

NORMATIVE STANDARD PER LA SICUREZZA LASER

Questo prodotto risulta conforme alle normative vigenti sulla

sicurezza laser alla data di produzione: CDRH 21 CFR 1040 e EN

60825-1.

Non si rende mai necessario aprire l’appa-recchio per motivi di

installazione, utilizzo o manutenzione.

ATTENZIONE

L'utilizzo di procedure o regolazioni differenti

da quelle descritte nella documentazione può

provocare un'esposizione pericolosa a luce

laser visibile.

Il prodotto utilizza un diodo laser a bassa potenza. Sebbene non

siano noti danni riportati dall’occhio umano in seguito ad una

esposizione di breve durata, evitare di fissare il raggio laser così

come si eviterebbe qualsiasi altra sorgente di luminosità intensa, ad

esempio il sole. Evitare inoltre di dirigere il raggio laser negli occhi

di un osservatore, anche attraverso superfici riflettenti come gli

specchi.

DEUTSCH

Die folgenden Informationen stimmen mit den Sicherheitshinweisen

überein, die von internationalen Behörden auferlegt wurden, und sie

beziehen sich auf den korrekten Gebrauch vom Terminal.

NORM FÜR DIE LASERSICHERHEIT

Dies Produkt entspricht am Tag der Herstellung den gültigen EN

60825-1 und CDRH 21 CFR 1040 Normen für die Lasersicherheit.

Es ist nicht notwendig, das Gerät wegen Betrieb oder Installations-,

und Wartungs-arbeiten zu öffnen.

ACHTUNG

Jegliche Änderungen am Gerät sowie

Vorgehensweisen, die nicht in dieser

Betriebsanleitung beschreiben werden, können

ein gefährliches Laserlicht verursachen.

Das Produkt benutzt eine Laserdiode. Obwohl zur Zeit keine

Augenschäden von kurzen Einstrahlungen bekannt sind, sollten Sie

es vermeiden für längere Zeit in den Laserstrahl zu schauen,

genauso wenig wie in starke Lichtquellen (z.B. die Sonne).

Vermeiden Sie es, den Laserstrahl weder gegen die Augen eines

Beobachters, noch gegen reflektierende Oberflächen zu richten.

Andere Handbücher für F734-E Series

Inhaltsverzeichnis

Andere Datalogic Touch-Terminal Handbücher

Datalogic

Datalogic Skorpio X5 Bedienungsanleitung

Datalogic

Datalogic JoyaTouch Bedienungsanleitung

Datalogic

Datalogic F734-E Series Bedienungsanleitung

Datalogic

Datalogic POWERSCAN PBT7100 guide Bedienungsanleitung

Datalogic

Datalogic Joya Bedienungsanleitung

Datalogic

Datalogic JoYa A6 Touch Betriebsanleitung

Datalogic

Datalogic ELF Bedienungsanleitung

Datalogic

Datalogic F732-E Wizard Bedienungsanleitung

$Datalogic Kyman\ Bedienungsanleitung$

Datalogic

Datalogic Kyman\ Bedienungsanleitung

Datalogic

Datalogic DL8700 Einrichtungshandbuch

Datalogic

Datalogic F732-E Wizard Bedienungsanleitung

Datalogic

Datalogic Formula Bedienungsanleitung

Datalogic

Datalogic Joya Touch A6 HC Bedienungsanleitung

Datalogic

Datalogic Joya Touch 22 Bedienungsanleitung

Datalogic

Datalogic Rhino-NET 40012 Bedienungsanleitung

Datalogic

Datalogic Viper-NET Bedienungsanleitung

Datalogic

Datalogic Falcon X3 Bedienungsanleitung

Datalogic

Datalogic Joya Touch 22 Bedienungsanleitung

Datalogic

Datalogic Joya X2 Bedienungsanleitung

Datalogic

Datalogic Memor X3 Betriebsanleitung

Datalogic

Datalogic JoYa A6 Touch Bedienungsanleitung

Datalogic

Datalogic JoYa A6 Touch Bedienungsanleitung

Beliebte Touch-Terminal Handbücher anderer Marken

Wincor Nixdorf

Wincor Nixdorf iPOS plus Advanced Bedienungsanleitung

Ingenico

Ingenico AXIUM EX4000 Bedienungsanleitung

Heisei Electronics

Heisei Electronics Q-POS 815 Bedienungsanleitung

Amano

Amano MTX-15 Bedienungsanleitung

FLOWBIRD

FLOWBIRD CWT Compact Touch Bedienungsanleitung

Demco

Demco SP7 Bedienungsanleitung

Lathem

Lathem PC600 Series Bedienungsanleitung

Partner

Partner MF-2352 Bedienungsanleitung

NCR

NCR RealPOS 7460-2 Handbuch

Simrad

Simrad MS50 Montageanleitung

Unitech

Unitech MR350 MKII Kurzanleitung

Jungheinrich

Jungheinrich WMT 210 Bedienungsanleitung

Motorola

Motorola MTP850 Bedienungsanleitung

YASKAWA

YASKAWA 62H-MDC0 Bedienungsanleitung

MVG industries

MVG industries NeptuLink Bedienungsanleitung

Price Industries Limited

Price Industries Limited FDC Gebrauchsanweisung

Honeywell

Honeywell TemaKey Bedienungsanleitung

EBN

EBN BPC65-B-A16G Bedienungsanleitung
