MICROFLASH 2Te PRINTER USER'S GUIDE

microFlash 2t

Printer: Top View

Charge LED

Paper/

Paper

Cavity

Data Port

Roller

Self-Test

Button

Print Head

Release

Lever

RF Power

LED

Power Port

Figure 1

Figure 2

ON/OFF

Status LED

Latch

LEDs

NOTE: When the cable plug is

inserted into the Power Port, the

cable plug must lay horizontally to

the bottom of the surface of the

case.

Bluetooth

Button

MICROFLASH 2Te PRINTER USER'S GUIDE

Using the Battery: General Guidelines

If the printer has not been used for a long period of

time, it may be necessary to recharge the battery. For

more information, see

Charging the Battery on page 2

Charging the Battery

If the battery is low when the printer “wakes up,” the

printer sounds three short beeps. Plug the AC Adapter

into an appropriate power source and into the Power

Port on the printer. The Charge LED will flash and

progress from red (when the battery is very low in

power) to orange, and then to a solid green when the

battery is fully charged. A complete charge takes

approximately 2.5 to 3.5 hours.

Determining Battery Condition

To determine the battery’s condition, print a self-test.

For more information, see

Printing a Self-Test on

page 4

. The battery voltage varies between 5.8 and 8.0

volts.

Note: To obtain full battery capacity, a new battery

must cycle through two to three complete depletions

and recharges.

Note: To restart a charge, unplug the power cord.

Wait 30 seconds, then replug the power cord.

Caution: There is a risk of explosion if the battery is

replaced by an incorrect type. Dispose of used

batteries according to the instructions.

MICROFLASH 2Te PRINTER USER'S GUIDE

Installing Paper

1. Insert a roll of paper with the end of the roll exiting

from the bottom of the paper cavity (Figure 3).

2. Open the print head by raising the green, print head

release lever until it stops (Figure 4).

3. Wake up the printer by briefly pressing the green,

self-test button (Figure 5).

Caution: The operating temperature of this portable

printer is 50° C. However, the operating temperature

when used with Datamax-O’Neil power supply for

charging the portable printer is limited to 40° C. Please

charge the printer in a suitable location that meets this

temperature requirement.

Caution: (For US/Canada) Please only use the

Datamax-O’Neil part number 220240-100 power

supply with this product.

Figure 3 Figure 4

MICROFLASH 2Te PRINTER USER'S GUIDE

4. Feed the end of the paper under the roller. The

paper automatically feeds under the roller and exits

from the top of the print head. Verify the paper exits

straight.

5. Lower the green, print head release lever (Figure 6).

6. Feed the paper through the printer's cover

(Figure 7).

7. Close and latch the printer's cover.

8. Tear off any excess media.

Printing a Self-Test

1. After installing the paper, open the printer's cover.

2. Press and hold the green, self-test button for

approximately five seconds until printing begins.

3. After printing begins, release the green, self-test

button.

Figure 5

Figure 6 Figure 7

MICROFLASH 2Te PRINTER USER'S GUIDE

Clearing Linerless Paper Jams

A paper jam may occur if an Datamax-O’Neil printer

with linerless paper installed is left in a cold

environment without being used for an extended period

of time (such as overnight).

Removing a Paper Jam

1. Open the print head by raising the print head

release lever until it is fully open. Do not stop at the

partial open position.

2. Roll the media tightly onto the spool.

Avoiding a Paper Jam

There are two options to help avoid paper jams with

linerless paper.

Note: The following applies to printers that are

designed for linerless paper.

Note: Do not use a knife to fix the paper jam. This

may cause damage to the printer roller underneath the

paper.

Figure 8

MICROFLASH 2Te PRINTER USER'S GUIDE

Remove the Linerless Paper from the Print Head

If the printer is going to be in a cold environment for a

long period of time, remove the linerless paper from

the print head. The paper can remain in the printer.

Advance the Paper

When the printer is turned on, hold the paper and then

advance the paper. Verify the paper exits the print head

straight.

Figure 9

Figure 10 Figure 11

MICROFLASH 2Te PRINTER USER'S GUIDE

Cleaning Guidelines

The following steps are intended to show how to clean

MF2Te printers that use receipt media. These steps do

not include cleaning media with adhesives.

The printer needs to be cleaned when any of the

following conditions occur:

Debris is on the printhead or after every ten (10)

rolls of media are used (Figure 12).

Dust and/or debris is found on the roller or print-

head (Figures 12 and 13).

The printout is light, faded, or characters are miss-

ing (Figures 14 and 15).

Note: Do not use a pen, screwdriver, or other

sharp object when cleaning; it may cause damage

to the printer that could void the warranty. Use

only the Datamax-O’Neil Thermal Printer Cleaning

Card (P/N 770015-001).

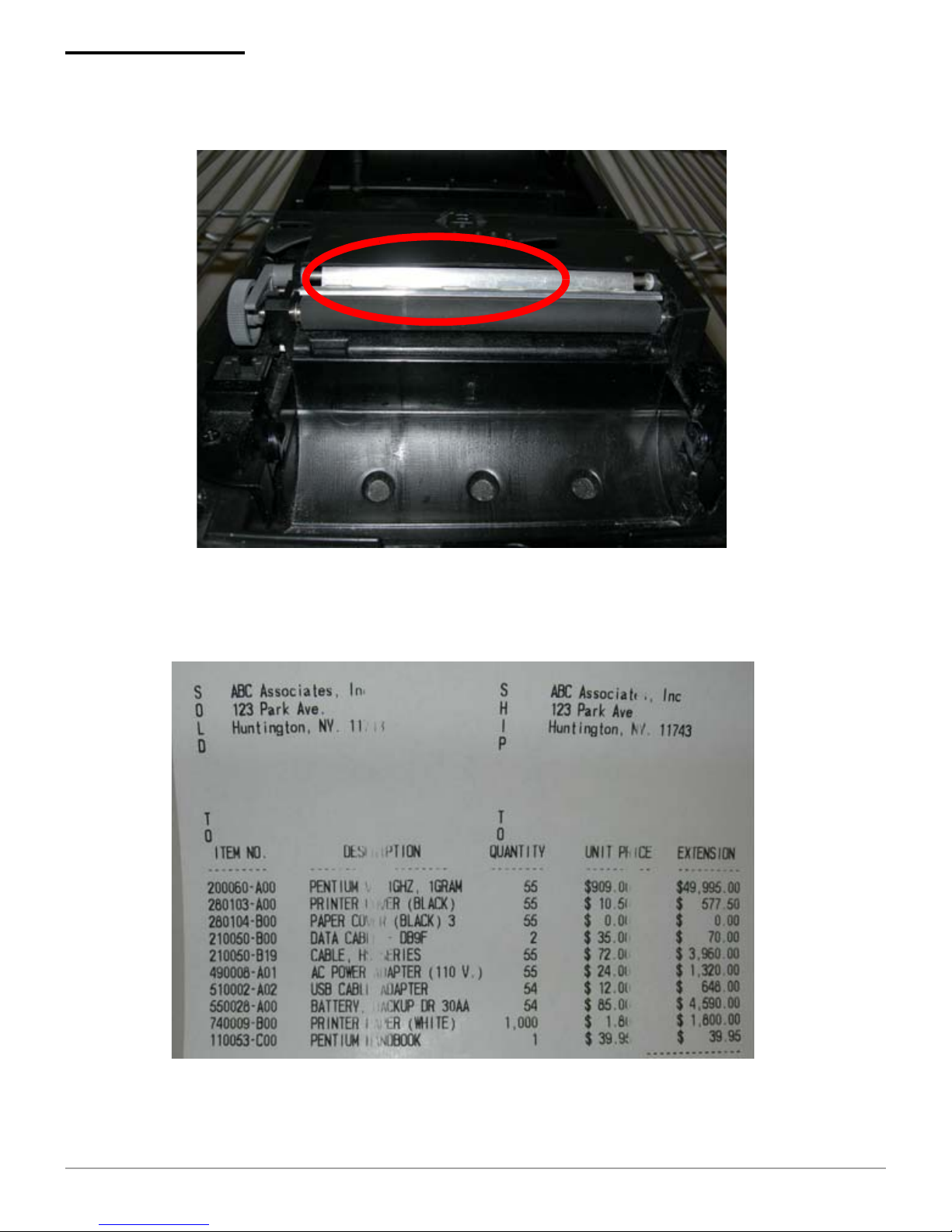

Figure 12 - dirty roller

MICROFLASH 2Te PRINTER USER'S GUIDE

Figure 13 - dirty roller

Figure 14 - faded printout
