Datastrip DSV2+Turbo Bedienungsanleitung

Part Number 4207-00008-109_0A

DSV2+Turbo User’sManual

GSA Approved – NIST FIPS 201/SP 800-76 Compliant

DSV2+Turbo User’s Manual, Version 1.09

Reproduction in whole or in part is prohibited.

Disclaimer Notice:

Datastrip Inc., Datastrip Ltd., Datastrip Products Inc., and related operating companies (hereafter collectively

referred to as Datastrip) reserve the right to change options, features, specifications, policies, pricing and availability

at any time. Datastrip is not liable for errors or omissions in any product related documentation, specifications or

software. Datastrip makes no claims of suitability for any particular application. Datastrip will not be held liable

for direct or indirect damages or other losses due to loss of data, reliability, or performance issues relating to

Datastrip-provided equipment or software.

No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any

means, electronic, mechanical, photocopying, recording, scanning, or otherwise, except as permitted under section

107 or 108 of the 1976 United States Copyright Act, without the prior written permission from Datastrip. Requests

to Datastrip for permission should be addressed to:

Datastrip Inc.

211 Welsh Pool Road, Suite 100

Exton, PA 19341-1321 USA or

Datastrip Ltd.

Unit 7, Thame Park Business Centre

Wenman Road

Thame, Oxon, OX9 3XA UK

Acknowledgements:

•DSV2+Turbo is a registered trademark of Datastrip.

•Windows and WinCE are registered trademarks of Microsoft Corporation.

•All other trademarked or copyrighted names mentioned herein are the property of their respective owners.

Revision History:

•Version 1.06 – 3/27/07 – Initial release with all features and functions compatible with Wave 6 software

and current product revisions released March 2007

•Version 1.06B – 4/20/07 – Updated Spec sheet and added UPEK Sensor Calibration procedure.

•Version 1.06C – 5/15/07 – Updated Spec sheet, and Appendix A

•Version 1.06D – 9/4/07 – Added Section 4.7.1. Updated Section 5 to specify that scanners should not be

operated on AC power alone. Batteries should always be plugged in for reliable operation. Updated

Sections 7, 9 & 13.

•Version 1.08A – 03/03/08 – Updated Sections 13 and 16 for USB 2.0 Active Sync

•Version 1.08R - 05/02/08 – Updated for regulatory compliance

•Version 1.09A – 07/19/08 – added compliance statement to Section 10

DSV2+Turbo User Manual, Version 1.09

Reproduction in whole or in part is prohibited.

Table of Contents

1. Overview............................................................................................................................... 6

2. Unpacking & Inventory....................................................................................................... 7

3. Initial Setup.......................................................................................................................... 7

4. Hardware Features.............................................................................................................. 8

4.1 Keypad...........................................................................................................................................8

4.2 Power LED Indications................................................................................................................8

4.3 LCD, Touch Screen, Fingerprint Sensor & Indicators.............................................................9

4.3.1 LCD Display & Touch Screen...............................................................................................................9

4.3.2 Fingerprint Sensor – UPEK Turbo, NIST FIPS 201/SP 800-76 Compliant ..........................................9

4.3.3 UPEK Sensor Calibration......................................................................................................................9

4.3.4 Finger Placement:..................................................................................................................................9

4.3.5 Cleaning the LCD Touch Screen and Fingerprint Sensor......................................................................9

4.4 I/O Port Access ...........................................................................................................................10

4.4.1 External Compact Flash Slot ...............................................................................................................10

4.4.2 USB Ports ............................................................................................................................................10

4.4.3 10/100 LAN Ethernet Port...................................................................................................................10

4.4.4 Smart Card Slot....................................................................................................................................10

4.5 Serial Port ...................................................................................................................................11

4.5.1 Serial Port Electrical Specifications.....................................................................................................11

4.6 Dual Grip Battery Cover ...........................................................................................................11

4.7 Digital Still Camera....................................................................................................................11

4.7.1 Digital Still Camera Installation Instructions.......................................................................................12

5. Battery Charging and Replacement.................................................................................. 13

6. Basic Operation.................................................................................................................. 15

6.1 System Startup Sequence...........................................................................................................15

6.2 Stylus............................................................................................................................................15

6.3 Touch Screen Adjustments........................................................................................................15

6.4 Input Panel / Keyboard..............................................................................................................16

6.5 Creating Desktop Shortcuts.......................................................................................................16

6.6 Power Management....................................................................................................................16

6.6.1 Power States.........................................................................................................................................16

6.6.2 Battery Gauge......................................................................................................................................17

6.7 Safe Boot Mode...........................................................................................................................18

7. Demo Applications and Utilities........................................................................................ 18

7.1 Software Version Utility (DsVerify2About.exe) ......................................................................18

7.2 Smart Card Reader & Scanner Demo (SuperViewer.exe) .....................................................18

7.3 PIV Card and CHUID Verifier (DatastripPIVCard_CHUIDVerifier.exe)..........................21

7.4 Digital Still Camera Demo (DsVerifyStillCameraTest.exe)....................................................23

7.5 Scanner (PA & SW) Test Demo (DsVerifyScanTestAsync.exe).............................................24

DSV2+Turbo User Manual, Version 1.09

Reproduction in whole or in part is prohibited.

7.6 EPassport ICAO Viewer (ICAO Viewer.exe)..........................................................................26

7.7 Data Capture Enrollment Application (DataCapture,exe).....................................................27

7.8 iClass Card Demo (IClassReadWriteSample.exe)...................................................................28

7.9 IClass Key Loader Utility (DsVerify2KeyLoader.exe) ...........................................................28

7.10 Fingerprint Capture Utility (DsVerifyFpCaptureTest.exe)................................................30

7.11 DsVerify Registry Install Utility (DsVerifyRegInst.exe).....................................................30

7.12 DsVerify Registry Saver Utility (RegistrySaver.exe)...........................................................30

8. Loading Software and Firmware ...................................................................................... 31

8.1 Loading DSV2+ Software Updates ...........................................................................................31

8.1.1 DSV2+ Software Update Procedure - Using CF card in external slot.................................................31

8.1.2 DSV2+ Software Update Procedure – Using Datastrip FTP site.........................................................31

8.2 Loading Scanner Firmware Updates........................................................................................32

8.3 Loading Smartcard Firmware Updates ...................................................................................32

8.4 Loading Digital Still Camera Firmware Updates....................................................................33

8.5 Loading PIC Firmware Updates...............................................................................................33

9. DSV2+Turbo-SC Product Specifications - GSA FIPS-201 Compliant............................... 34

10. Regulatory Compliance Statement.................................................................................... 35

11. Fingerprint Algorithms and Support ................................................................................ 36

12. Troubleshooting.................................................................................................................36

13. Available Parts, Supplies, and Accessories....................................................................... 37

14. Service & Support.............................................................................................................. 40

15. Appendix A: Docking Station........................................................................................... 41

15.1.1 Adjusting the Docking Station Backrest..............................................................................................41

15.1.2 Dual Grip Tethered Stylus...................................................................................................................41

16. Appendix B: Active Sync................................................................................................... 42

16.1 ActiveSync via USB 2.0 Client Port.......................................................................................42

16.1.1 Hardware/Software Requirements.......................................................................................................42

16.1.2 PC Configuration for USB 2.0 ActiveSync (First Time Only)............................................................42

16.1.3 Establishing a Connection ...................................................................................................................42

16.1.4 Troubleshooting the Connection..........................................................................................................42

16.2 ActiveSync via the Docking Station.......................................................................................43

16.2.1 Software/Hardware Requirements and Setup ......................................................................................43

16.2.2 Establishing the Connection ................................................................................................................43

16.2.3 Disconnect ...........................................................................................................................................43

16.2.4 Troubleshooting the Connection..........................................................................................................43

16.3 ActiveSync via 802.11 CF Adaptor or Bluetooth USB Adaptor.........................................43

16.3.1 Hardware/Software Requirements.......................................................................................................43

16.3.2 PC Configuration for 802.11 ...............................................................................................................43

16.3.3 PC Configuration for Bluetooth...........................................................................................................45

16.3.4 DSV2+ Configuration..........................................................................................................................47

16.3.5 Establishing the Connection ................................................................................................................47

16.3.6 Troubleshooting the Connection..........................................................................................................47

DSV2+Turbo User Manual, Version 1.09

Reproduction in whole or in part is prohibited.

17. Appendix C: Scanner Information................................................................................... 48

17.1 Scanner Settings......................................................................................................................48

17.2 DSV2+Turbo-PA Product Specifications .................................................................................51

DSV2+Turbo User Manual, Version 1.09

Reproduction in whole or in part is prohibited.

1. Overview

The DSV2+Turbo is a GSA Approved, NIST FIPS-201 CHUID, mobile hand-held reader with an

integrated fingerprint sensor and Smart Card reader with the capability to identify and

authenticate a PIV card by accessing and authenticating the CHUID stored on the cards as

defined by “SP 800-73, Section 1.8.3.”

The Smart Card reader can read both contact style Smart Cards (ISO 7816 compliant) as well as

RF-based contactless Smart Cards (ISO 14443 compliant). The contact and contactless Smart

Cards can be programmed to contain biometric information that can be verified against the

internal fingerprint sensor using 1-to-1 or 1-to-N fingerprint matching algorithms. The

DSV2+Turbo is applicable for programs such as USVISIT, Transportation Worker ID Card

(TWIC), Common Access Card (CAC), and many other ID card scenarios.

The basic DSV2+Turbo product comes from the factory with a Windows CE .NET, Version 5.00

Operating System, software utilities, and some demo and sample applications. When the unit is

activated, a standard Windows CE desktop is presented that allows users to launch demonstration

programs. The primary human interface is the touch screen, stylus, and function keys.

The internal fingerprint sensor is an 8-bit, grayscale, solid-state, capacitive-touch device that can

capture fingerprint bitmap images measuring 256 pixels wide by 360 pixels high at 500 dpi.

Images from this sensor can be used for a variety of card holder ID validation purposes,

including extraction, matching, and storage of fingerprint minutia templates.

Figure 1: DSV2+Turbo-SC

DSV2+Turbo User Manual, Version 1.09

Reproduction in whole or in part is prohibited.

2. Unpacking & Inventory

Depending on the number of terminals ordered, your DSV2+Turbo units and accessories may be

shipped in a single pack box, a multi pack box or some number of each type. Carefully open the

shipping box(s) and use the following Shipping Box Inventory list to verify the contents.

Shipping Box Inventory:

•DSV2+Turbo Smart Card Reader

•Universal (90-240 VAC input) DC power/charging adapter.

•AC power cord for DC power/charging adapter. (Plug depends on country of destination)

•Documentation, including: User Manual (on CD), End User License Agreement, and

Quick-Reference Guide.

Please retain the shipping box in the event you need to return your product for service.

3. Initial Setup

•Each unit is shipped with one Lithium Polymer battery installed, though disconnected.

To connect the battery, you will need to remove the rear battery access cover and plug the

battery connector into the mating connector on the left hand side of the battery

compartment.

•It is recommended that you fully charge the internal battery before use to maximize

operating time before recharging is required. The unit will operate when connected via

the AC adapter regardless of the charge state of the internal battery.

•The DSV2+ contains an integrated charging circuit that allows the batteries to be charged

inside the unit whenever the unit is properly connected to the AC adapter. No external

standalone charger for batteries is required.

Please refer to Section 5. 0 “Battery Charging and Replacement”, for additional instructions and

safety information.

DSV2+Turbo User Manual, Version 1.09

Reproduction in whole or in part is prohibited.

4. Hardware Features

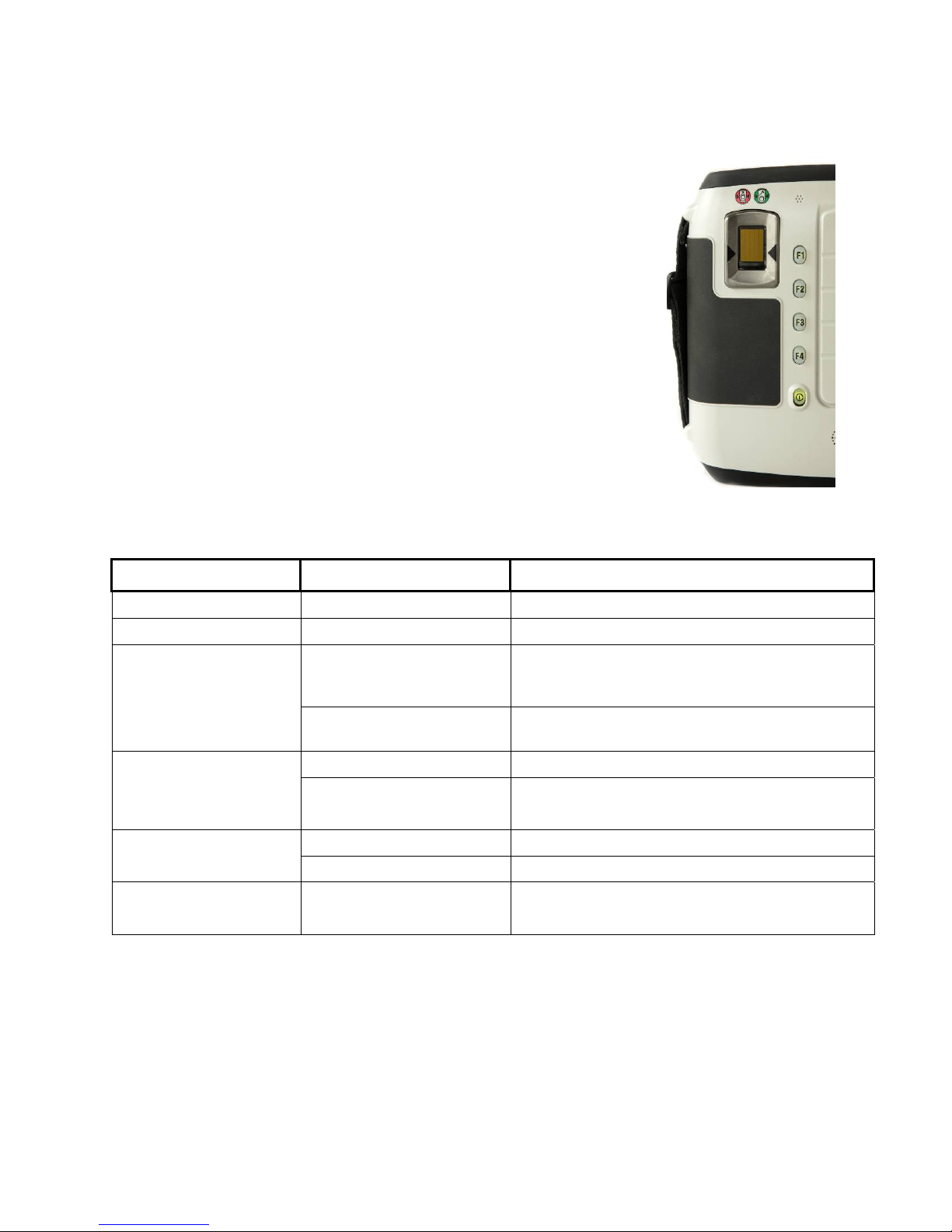

4.1 Keypad

The DSV2+ comes equipped with a backlit, 5-button keypad, shown at

right. The upper four keys are function-keys, and are vertically aligned

along the left side of the LCD display, enabling application software to

position “virtual buttons” appropriately. These keys are initially

programmed as standard “F1” through “F4” keys and are mapped as

cursor (arrow) keys.

Below the four function keys is the power switch. The power switch

has a bi-color (red/green) backlight indicator, which identifies whether

the system is on, charging, or running low on battery power. To turn

the unit on, you must depress and hold the power switch until a single

beep is heard, then immediately release it for an additional two beeps.

Holding the button too long will cause an “error” type beep sound and

the system will not be powered up or down, as the case may be. This

procedure helps to guard against accidental activation or shutdown of

the system.

4.2 Power LED Indications

System State Power-switch LED Comments

Off, not charging Off

Off, charging Red Unit is plugged into external power

Green Release power button after first beep. If power button

is pressed too long it causes an “error” beep tone and

system remains locked “off” until button is released.

User initiates power-on by

pressing power button.

Red Available battery power is too low, causing an “error”

beep tone and unit will not start.

Green System on, not charging.

System on

Green ÆRed flash

(90% Æ10%)

System on, with the unit plugged into external power

with the AC adapter and batteries charging.

Green flash Unit is in the Suspend state and not charging.

Suspend mode

Red flash Unit is in the Suspend state and batteries are charging.

System Warning: Batteries

very low Green ÆRed alternating

(50% Æ50%)

Batteries are very low and should be charged as soon

as possible

DSV2+Turbo User Manual, Version 1.09

Reproduction in whole or in part is prohibited.

4.3 LCD, Touch Screen, Fingerprint Sensor & Indicators

4.3.1 LCD Display & Touch Screen

The LCD is a color-TFT (Thin Film Transistor) active-matrix display, and features white-LED

backlighting. There is a resistive touch panel overlay, which should only be operated with the

included stylus to help prevent scratching or other damage.

4.3.2 Fingerprint Sensor – UPEK Turbo, NIST FIPS 201/SP

800-76 Compliant

The DSV2+ UPEK TCS1 fingerprint sensor is an 8-bit, grayscale, solid-

state, capacitive-touch device that can capture fingerprint bitmap images

measuring 256 pixels wide by 360 pixels high at 500 dpi. Images from this

sensor can be used for a variety of card holder ID validation purposes,

including extraction, matching, and storage of fingerprint minutia templates.

Datastrip supports fingerprint matching algorithms from a variety of the

industry leading vendors such as: Cogent, Bioscrypt, Identix, Motorola, and

NEC.

4.3.3 UPEK Sensor Calibration

The UPEK sensor is factory calibrated and tested on every DSV2+ terminal, however, if

recalibration is required for whatever reason follow these steps:

•Double tap My Computer and Select Storage Card / DSVII.

•Double tap the PPCalFt41utility and press the “Calibrate” button to re-calibrate the

fingerprint sensor. This process may take up to a minute and then a “green” window

with a number “1” should appear to indicate the sensor was successfully calibrated.

•Double tap the DsVerifyFpCaptureTest application. In the lower right hand corner select

“UPEK” and click “OK”.

•Use the “Scan” button to test the fingerprint image quality.

4.3.4 Finger Placement:

It is important to place the finger properly on the sensing area, to enable the DSV2+ to capture

more quickly a good fingerprint image:

•Finger placement icons: These two icons pictorially indicate the correct (green) and

incorrect (red) way to align the cuticle of your finger with the points of the finger-

placement guide arrows.

•Finger placement guide arrows: These arrows should be used as a guide for alignment of

the cuticle part of the finger as described above.

4.3.5 Cleaning the LCD Touch Screen and Fingerprint Sensor

The LCD touch screen and fingerprint sensor require periodic cleaning to remove dirt, oils,

grease, dust, and foreign matter.

•Ensure that the DSV2+ power is OFF and unplugged from any external power source.

•Using standard alcohol wipes, gently wipe the surface of the LCD screen and fingerprint

sensor until it appears clear.

•Allow the cleaning solvent to dry completely before turning the unit on again.

DSV2+Turbo User Manual, Version 1.09

Reproduction in whole or in part is prohibited.

4.4 I/O Port Access

The top rubber end cap on the DSV2+ snaps open to reveal the I/O ports. To open the top rubber

end cap pull up from the back edge using the two finger indents. The rubber cap is tethered at

two points to prevent it from being lost or misplaced. To reattach the cover, simply press the

cover into place.

Shown here is the I/O connector panel located on the top of the unit, which includes a 10/100

base-T LAN port, two USB-2.0 host ports, one mini-USB client port, and one external Compact

Flash slot.

4.4.1 External Compact Flash Slot

The DSV2+ has one externally accessible Type-I/II Compact Flash slot. It is compatible with

“ATA-Flash” storage cards, NE-2000-compatible network adapters, and various modem and

serial interface devices.

4.4.2 USB Ports

The DSV2+ supplies two standard USB ports (Ver-2.0), compatible with either low-speed (1.5

Mbps) or full-speed (12 Mbps) devices. These are “host” type ports, compatible with peripheral

devices only (keyboard, mouse, etc.). DO NOT connect this host ports directly to other USB

host devices such as a PC, for these type applications use the mini USB client port (Ver-2.0).

4.4.3 10/100 LAN Ethernet Port

The DSV2+ features an Ethernet LAN port, compatible with 10/100baseT networking standards.

The mating connector is a standard RJ-45. The LAN connector has two integrated LED

indicators: Green for “link activity” and Yellow for “link present”.

4.4.4 Smart Card Slot

The DSV2+ has an integrated Smart Card reader. It is compatible with

Contact-type Smart Cards (ISO 7816, 8-contact style). Cards need to

be inserted with the contacts facing UP (towards the LCD display).

In addition, there is an integrated Contactless

Smart Card transceiver and antenna. The

antenna is positioned in a plane perpendicular

to the LCD screen, on the same side of the

unit as the Smart Card slot. The typical

maximum operating range is 30 mm.

USB Client Port

USB Host Ports

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Beliebte Sicherheitssystem Handbücher anderer Marken

Inner Range

Inner Range Concept 2000 Bedienungsanleitung

Climax

Climax Mobile Lite R32 Montageanleitung

CADDX

CADDX NX-6 Bedienungsanleitung

FBII

FBII XL-31 Series Bedienungsanleitung

Johnson Controls

Johnson Controls PENN Connected PC10 Bedienungsanleitung

Aeotec

Aeotec Siren Gen5 Bedienungsanleitung

Blaupunkt

Blaupunkt SA 2700 Bedienungsanleitung

IDEAL

IDEAL Accenta Betriebsanleitung

AJAX

AJAX DoubleButton Bedienungsanleitung

Swann

Swann SW-P-MC2 Bedienungsanleitung

Ecolink

Ecolink Siren+Chime Bedienungsanleitung

Digital Monitoring Products

Digital Monitoring Products XR150 Bedienungsanleitung

EDM

EDM Solution 6+6 Wireless-AE Bedienungsanleitung

Highway Safety Group

Highway Safety Group EA401 Bedienungsanleitung

Siren

Siren LED GSM Bedienungsanleitung

Detection Systems

Detection Systems 7090i Montageanleitung

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Bedienungsanleitung

Siemens

Siemens FDM273 Bedienungsanleitung
