DaytonAudio MARK1 Bedienungsanleitung

BLUETOOTH

SPEAKER

Model: MARK1 User Manual

Dayton Audio®Last Revised: 11/18/2015

daytonaudio.com

tel + 937.743.8248

info@daytonaudio.com

705 Pleasant Valley Dr.

Springboro, OH 45066

USA

Warranty Information

Dayton Audio products are warranted free from defects in material and workmanship for 5 years from

date of purchase (see exceptions below). In the rare case of a product failure, please contact your place of

purchase or call our Customer Support Department at (937) 743-8248.

Warranty Limitations

There are no other warranties, either express or implied, that extend the foregoing, and there are no

warranties of merchantability or ﬁtness for any particular purpose. Dayton Audio is not responsible for any

consequential on inconsequential damage to any other unit or component or the cost for installation or

extraction of any component of the audio system, or for the improper use of products. This includes but is

not limited to burnt voice coils, overheating, bent frames, holes in the cone, or broken lead wires. Warranty

does not apply to misuse, abuse, neglect, accident, improper use, etc. Dayton Audio reserves the right to

repair or replace the products with either a new or factory refurbished unit.

Exception: Dayton Audio HDMI Cables -- No registration, no questions asked LIFETIME warranty.

Replacement of Dayton Audio HDMI cables is with equal or better quality HDMI cables. Unassembled Kits -

A 45-day return policy applies to unassembled kits. Once assembly has been started or completed, kits are

deemed used and are nonreturnable for refund/exchange. This does not limit the manufacturers' warranty

policies on any kit component.

This warranty gives you speciﬁc legal rights and you may also have other rights that vary from state to state.

Non-Warranty Service: If non-warranty service is required, the product may be sent to the Company for

repair/replacement, transportation prepaid, by calling (937) 743-8248 for details, complete instructions, and

service fee charges.

Please read this guide carefully before using this product.

SAFETY INSTRUCTIONS:

• Topreventreorelectricalhazarddonotdisassemblethisproduct.

• Donotexposetheunittowaterormoisture.

• Donotplaceliquidonorclosetounit.

• Donotplaceunitonornearanopenameorheatsource.

• Keepproductfreefromdustanddebris.

• Placeunitonastableandlevelplatform.

• Donotplaceheavyitemsontopofunit.

• Donotuseexcessiveforcewhenpushingtheunitbuttons.

• Donotattempttopullthepowercordwhenremovingitfrompoweroutlet.

• ProductusesLithiumBatteries,pleasedon'tburn,ingest,orsmashbatteries.

• Donotusedamagedordefectivepowercables.

• Unplugthepowercableiftheunitisnotinuse.

• Cleanwithadampclothonly.

PACKAGE CONTENTS

1. MARK1speaker

2. Poweradapter

3. 3.5mmaudiocable

4. Usermanual

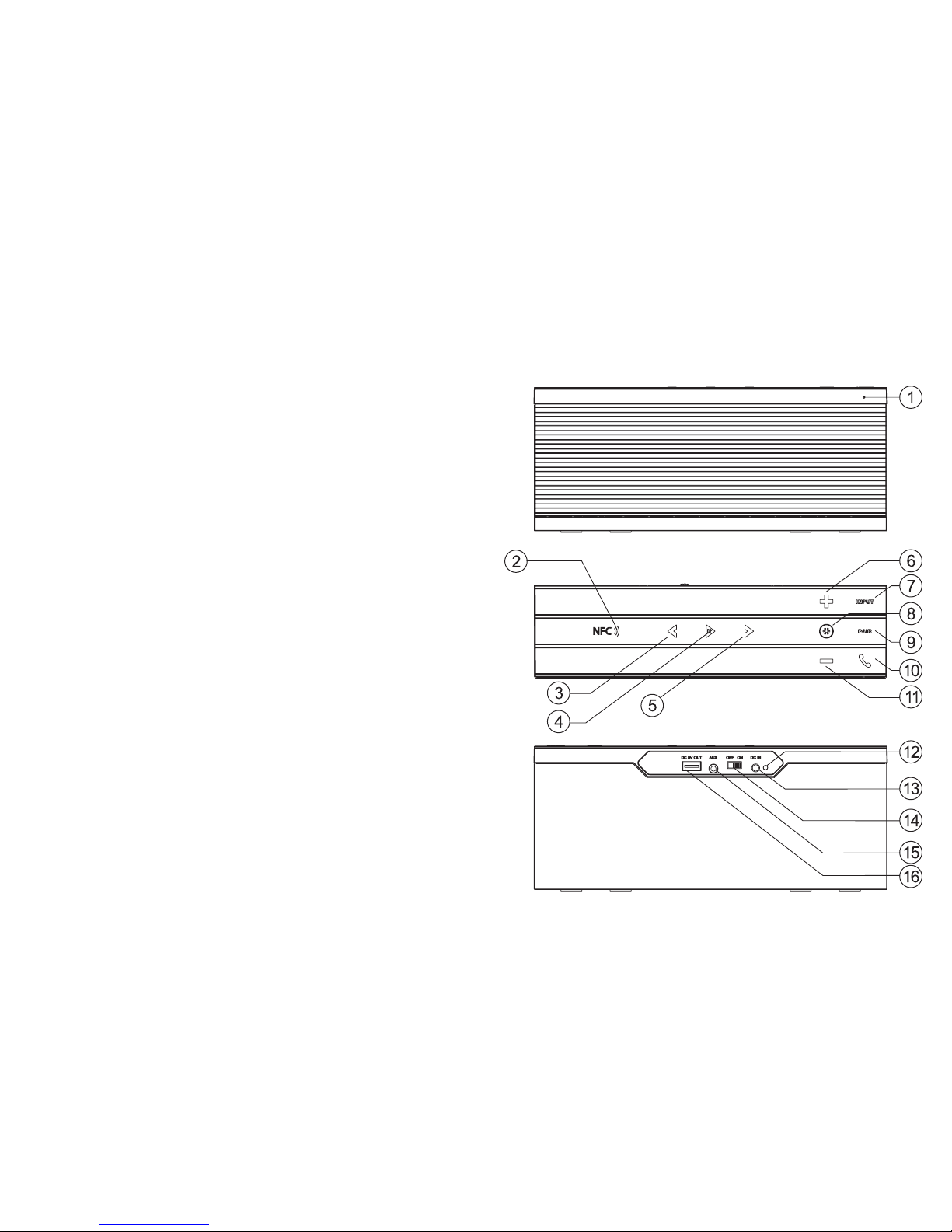

CONTROL PANELS

1.Power/InputLED  9.PairButton

2.NFCIcon   10.PhoneButton

3.BackButton   11.Volume-Button

4.Play/PauseButton  12.ChargingIndicator

5.ForwardButton  13.DCPowerInput

6.Volume+Button  14.Powerswitchon/off

7.InputSelect Button  15.AUXinput

8.Microphone   16.ChargingPort(DC5V1A)

2 7

TROUBLESHOOTING/NOTES

• IftheSpeakercan’tbefoundinBluetoothmodethespeakercouldbe

connectedtoanotherdevice.Removethedevicefromanyotherdevicesand

tryagain.Ifyoustillcan’tndtheBluetoothspeaker,pleaseturnoffthespeaker

for5secondthenturnitbackon.

• Bluetoothsignalisintermittent:theeffectivedistancebetweenspeakerand

deviceis30feet,thesignalwillbeintermittentifthedistancebetweenthe

deviceandspeakerismorethan30feet.

• IfyourBluetoothdeviceisinsearchmodeitmayndmanyotherBluetooth

devices,pleasewaituntilthesearchisnishedandselecttheMARK1speaker

topair.

• Don'tholdthemobiledevicetoclosetothespeakerwhenusingthephone

functiontoavoidecho.

• NFC:pleasemakesurethemobilehasNFCfunctionanditisturnedoninthedevice.

SPECIFICATIONS

Operating temperature: 0ºC-55ºC(32ºF~131ºF)

Amplier output power: Left/Right1.5Wx2,subwoofer3.5Wx1

Amplier input sensitivity: ≤400mV

Amplier SNR: ≥70dB

Frequency response: 70Hz~20KHz

Power voltage: AC100-240V,50/60Hz/DC9V,1.5A

Battery: 7.4V2000mAh

Battery time: 10hours

Battery charging time: 4-6hours

Blue tooth range: 7-10M(22-33ft.)

Bluetooth version: 3.02.4GSupportA2DP

CONTROL PANELS

FRONT PANEL

BACK PANEL

TOP PANEL

6. NFC:

 WiththespeakerinBluetoothmode,

place the NFC device (screen

unlocked,andNFCisenabled)near

thespeakerstoppanelNFCicon.The

voicepromptwillannounce“pairing”

iscompletewhenyouhearthespeakertonalchime.

7. AUX input:

 Make sure the MARK1 is turned

off;connectyouraudiosourceto

the MARK1 with a 3.5mm audio

cable.TurntheMARK1on,youwill

hearthe voice promptannounce

“Power on”. Touch the INPUT

button on the top control panel,

theindicatorwillturnredandthe

speaker is inAUX in mode. You

canadjustthevolumebytouchingtheVOL+andVOL-onthecontrolpanel.

8. Control Panel ON/OFF:

 PressandholdtheVOL+andVOL-

at same time for 3 seconds, the

LED Indicator will turn purple and

thecontrolbuttonsarenow inactive

exceptthePHONEbutton.Repeatthesestepstoactivatethecontrolpanelbuttons.

9. USB Charging Port:

 TheMARK1hasastandard

USB charging port with

DC5V1Acurrentoutputfor

poweringorchargingmost

devices.

10. Battery:

 WhentheMARK1isdisconnectedfromapowersourcethespeakercanbe

usedinbatterymode.Ifthebatterypowerislowthespeakerwillautomatically

decreasethevolumetoensuresoundqualityandplaytime.Whenthebattery

powerbecomesverylow,thefrontLEDpowerindicatorwillashfor30

secondsandthespeakerwillswitchtostandbymode.Usetheincludedpower

adaptertochargethespeaker.

11. Charging:

 TheMARK1isequippedwith

abuilt-inbattery,onlyusethe

suppliedpoweradapterwhen

charging. The green LED

indicatoron the backofthe

speakerwillashwhileinchargingmode.

2. Power-on:

 Switch the Mark1 on, the voice prompt

willannounce“PowerON”.ThefrontLED

willbeilluminatedblueandthespeakeris

readyforuseinBluetoothmode.

3. Bluetooth Speaker Controls:

 Usingthetouchsensitivecontrolbuttonsonthetopofthespeakeryoucanplay,

pause,answerthephoneorselectsongusingthetopoperationcontrolpanel.

4. Incoming-call operation:

 Whenacallcomesinyoucan

answerthecallbytouchingthe

PHONEiconbuttononthetop

controlpanel.

5. Pairing:

 Touch the PAIR button on the

control panel, the LED indicator

willashandthevoicepromptwill

announce “Pairing”. Make sure

your mobile device is in pairing

mode,selecttheMARK1speaker

from the Bluetooth list in your

mobiledevice.Pairingiscomplete

whenyouhearthetonalchime.

OPERATION

1. Power connection:

 MakesuretheMARK1powerswitchisintheoffposition:connectthepoweradapter.

PHONE

PAIR

VOL + / VOL -

INPUT

AC ADAPTER

OFF

AC ADAPTER
