Installation Manual
SPLIT
SPLIT
UNITS
UNITS
Installation must be performed by
a professional
Switch off / disconnect battery
before installation
Unit is heavy. Do not handle or
install the unit alone.
Wear goggles and gloves for the installation
Do not remove any protection
provided on the unit.
SAFETY INSTRUCTION

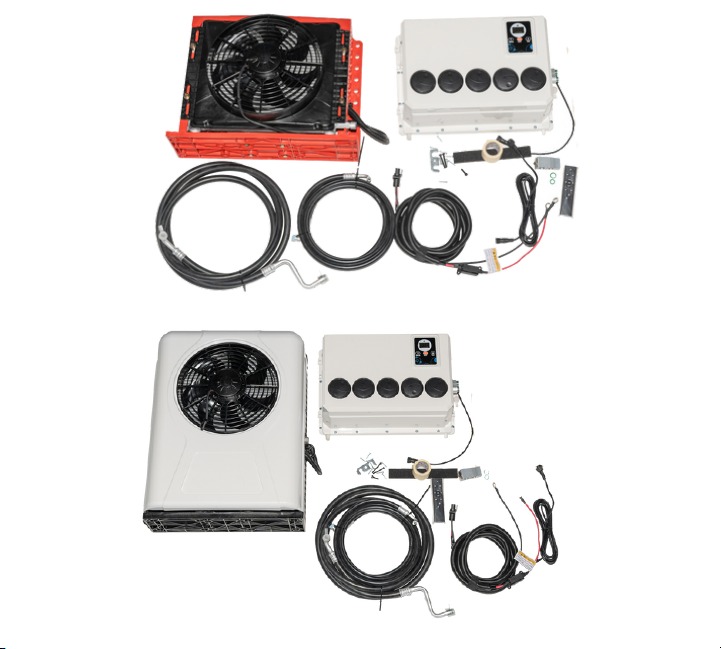

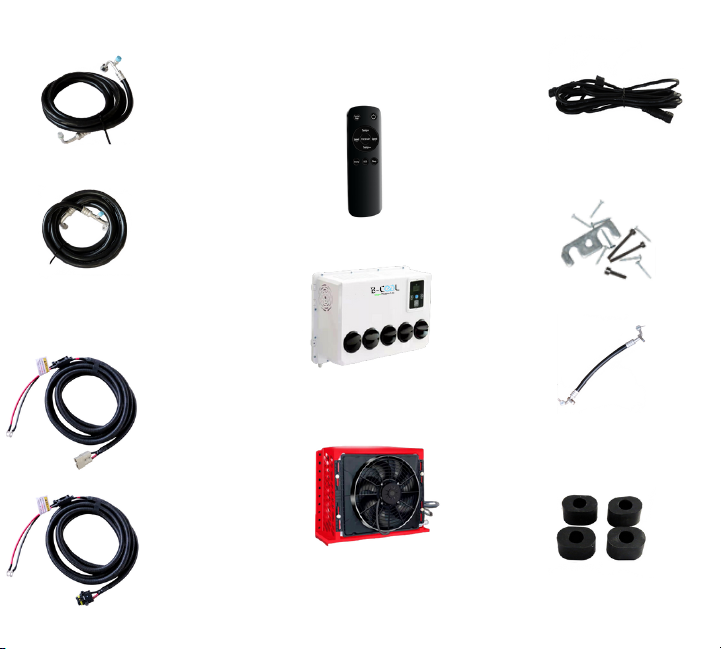

each box contains
Power Harness
(12v)
Power Harness
(24v)
Remote Controller
Air Conditioner
Air Conditioner
Install Screws
3 points hose
injection molding
connection line
Backpack high
pressure pipe
5 points hose
Compressor Shock Pad
Recommended
Recommended
Recommended
Hole Cut Sizes
Hole Cut Sizes
Hole Cut Sizes
B-COOL12000Flex5H
B-COOL12000WMB
50 mm x 50 mm
50 mm x 50 mm
1.97 in x 1.97 in
1.97 in x 1.97 in

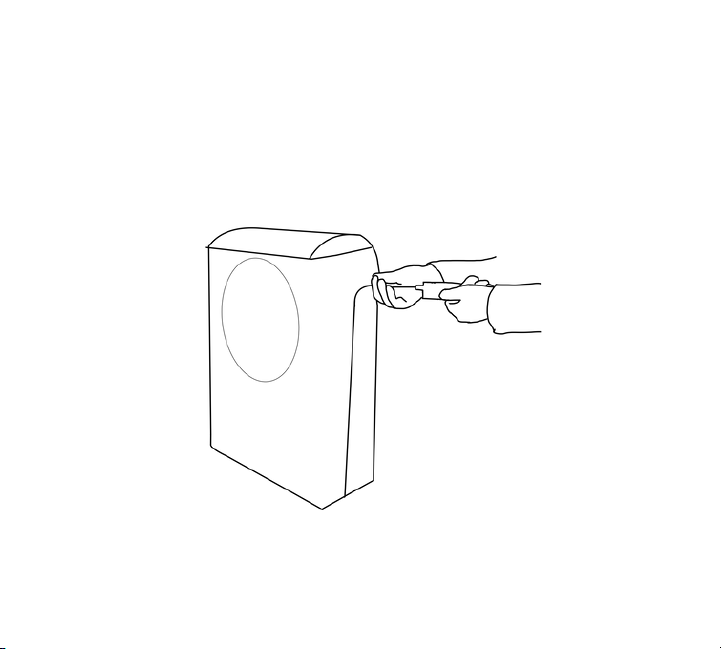

Remove the Outer Casing

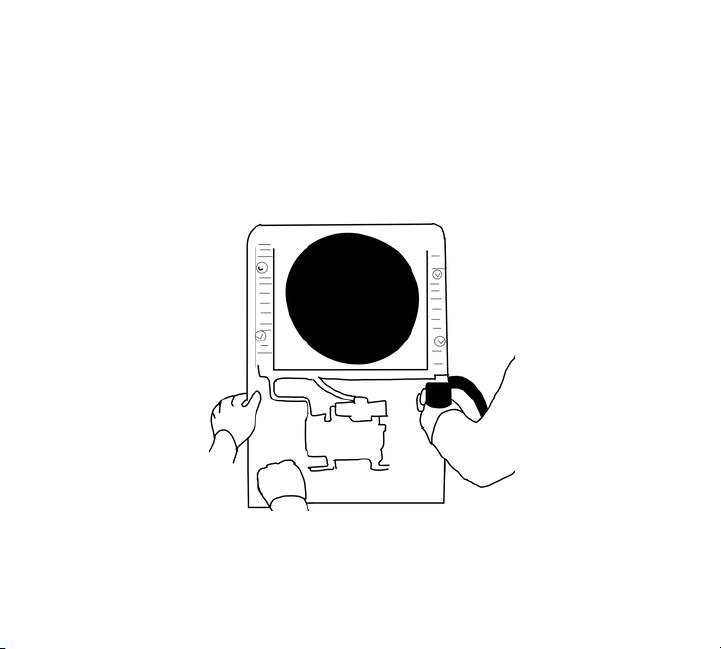

Fix the damping pad and sleeve at the marked points on the
external machine.
STEP 1.
Before Punching a Hole

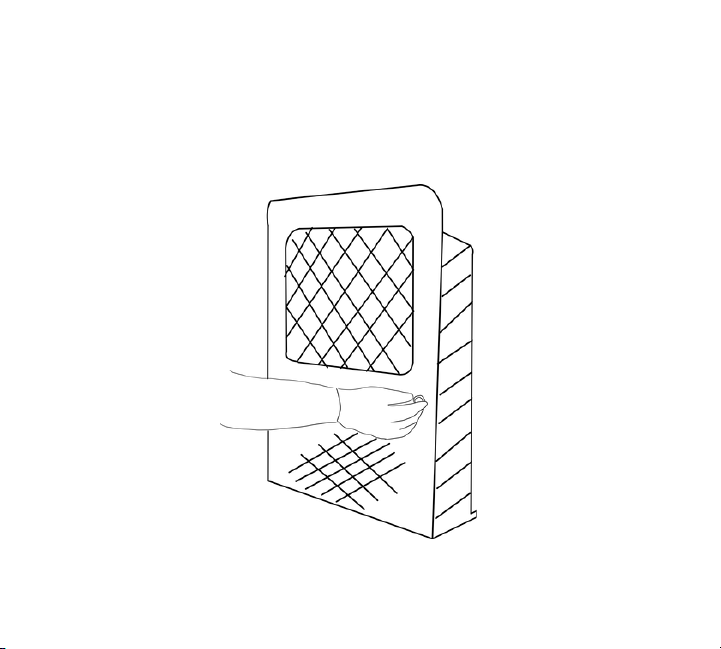

Mark the punch position (before making a hole)
(select 5 installation points)
STEP 2.
Punching a Hole for Installation
Punch a Hole using a drill ( 8 mm drill).

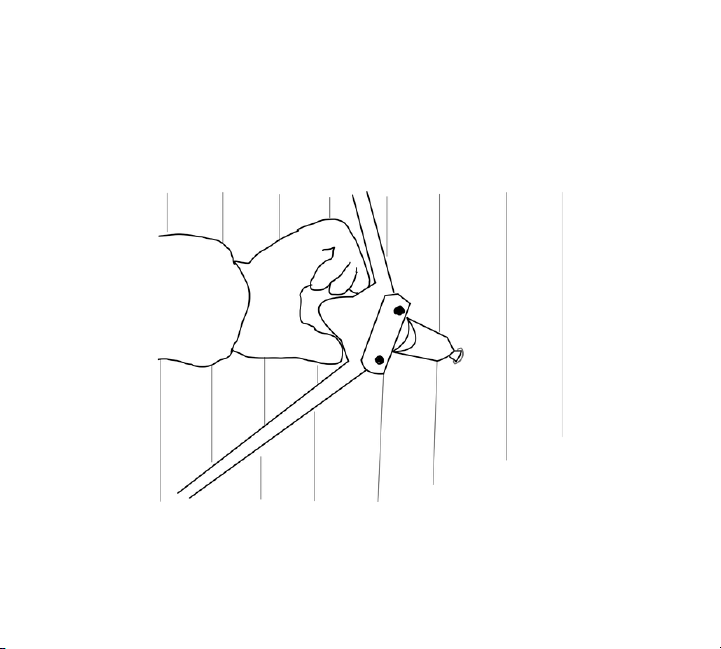

Use a pull riveter to fix the pull rivet nut at the marked hole.
STEP 3.
Fixing the Damping Pads
Fix the damping pad and sleeve at the marked points on the
external machine.
STEP 4.
Install the External Unit
Install the External Unit
STEP 5.
