Electric Fireplace
Model No.:
□IF-1330□IF-1336□IF-1340
□IF-1350□IF-1360□IF-1370
CONSUMER SAFETY INFORMATION
Read this manual before installing and operating this appliance
Failure to follow these instructions may result in electric shock, fire property,
or personal injury
Do not store or use gasoline or other flammable liquids in vicinity of this
appliance.
2
IMPORTANT SAFETY INFORMATION!
WARNING
Read all instructions before using this heater!
This heater is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If
provided, use handles when moving this heater. Keep combustible materials, such as
furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the front
of the heater, and keep them away from the sides and rear.
Extreme caution is necessary when any heater is used by or near children or invalids and
whenever the heater is left operating and unattended.
DO NOT operate any heater with a damaged cord or plug or after the heater malfunctions,
has been dropped or damaged in any manner, Discard heater, or return to authorized
service facility for examination and /or repair.
DO NOT run power cord under carpeting. DO NOT cover power cord with throw rugs,
runners, or similar coverings. DO NOT route power cord under furniture or appliances.
Arrange power cord away from traffic area, and where it will not be tripped over.
WARNING
Connect to properly grounded outlets ONLY.
DO NOT insert or allow foreign objects to enter any ventilation or exhaust openings, as
this may cause electric shock or fire, or damage the heater.
To prevent a possible fire, DO NOT block air intakes or exhaust in any manner. Doing so
could cause a fire. DO NOT use on soft surfaces, like a bed, where openings may become
blocked.
A heater has hot and arcing or sparking parts inside. DO NOT use it in areas where
gasoline, paint, or flammable liquids are used or stored.
Use this heater only as described in this manual. Any other use not recommended by
the manufacturer may cause fire, electric shock, or injury to persons.
ALWAYS plug heaters directly into a wall outlet/receptacle. Never use with an
extension cord or relocatable power tap (outlet/power strip).
DO NOT place the heater near a bed because objects such as pillows or blankets can fall off
the bed and be ignited by the heater.
NEVER use this heater in bathrooms, laundry rooms, or any other location where the
heater could fall into a bathtub or pool,become damp or come in contact with water.
AVOID FIRE! Regularly inspect all air vents to make sure they are free from dust, lint, or other
Blockage.Unplug the unit and clean with a vacuum ONLY.DO NOT rinse or get wet.
ALWAYS mount to wall bracket before use. DO NOT set on the floor, or other surface, to use.
3
NEVER use a wall mount bracket from another manufacturer.
This product is not intended to be a primary heat source. It is for supplemental heat only.
INDOOR use only! NEVER use this heater outdoors! Doing so may result in electric shock!
Risk of electric shock!DO NOT OPEN! No user-serviceable parts inside!
ALWAYS turn this heater off before unplugging it from the outlet.
ALWAYS disconnect this unit from the power supply before performing any assembly or
cleaning, or before relocating the electric fireplace.
NEVER leave this heater unattended. ALWAYS unplug this heater when not in use.
ALWAYS store this heater in a dry location.NEVER use the fireplace if it has become wet.
NEVER plug this heater into an outlet that is old,cracked, or has any loose wires or
connections. Plugging this heater into a faulty outlet could result in electric arcing within
the outlet that could cause the outlet to overheat or catch fire.
ALWAYS check your heater cord and plug connections with each use!
i) MAKE SURE the plug fits tight in the outlet! Faulty wall outlet connections or loose plugs
can cause the outlet to overheat.
ii) Heaters draw more current than small appliances. Overheating may occur even if it
has not occurred with the use of other appliances.
iii) During use check frequently to see if the plug outlet or face plate is HOT!
iv) If the outlet or face plate is HOT,discontinue use immediately and have a qualified
electrician inspect and/or replace the faulty outlets.

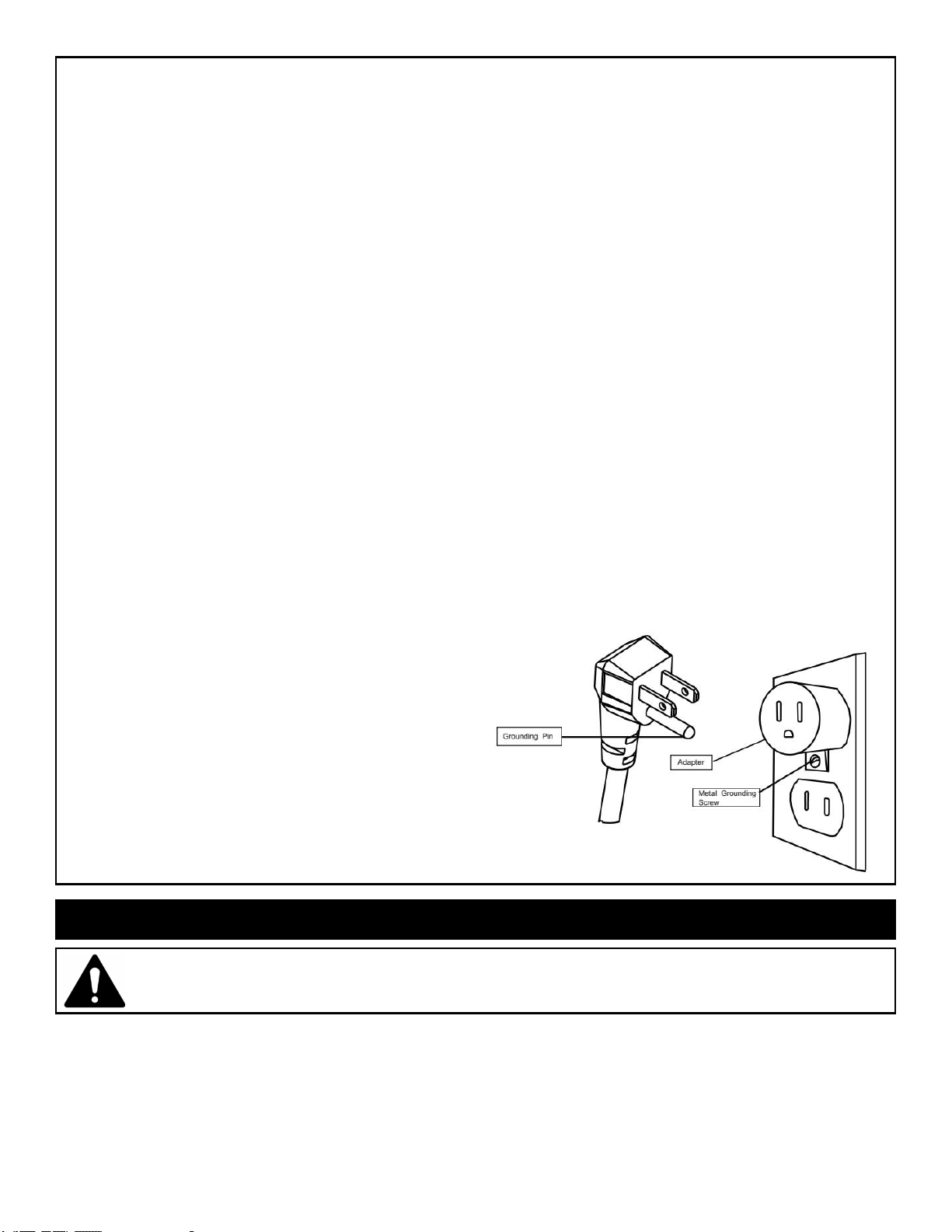

The power cord supplied with the heater
has a plug with two flat blades (live and
neutral) and one round pin (ground). If a 3-
slot receptacle is not available, an adapter
MUST be used. The adapter MUST be
properly grounded to the outlet box (see
figure at right).(Note:Adapter NOT
INCLUDED.)
SAVE THESE INSTRUCTIONS!
PREPARATION
This product includes a GLASS panel! Always use extreme caution when handing
glass. Failure to do so could result in personal injury or property damage.
Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. Parts
and assembly steps are grounded for wall-hanging or recessing use. Check the parts list to make
sure nothing is missing. Dispose of packaging materials properly. Please recycle whenever
possible. You will need the following tools (not included): Phillips screwdriver; stud finder; level;
tape measure; electric drill; 1/4” wood drill bit, hammer.
4

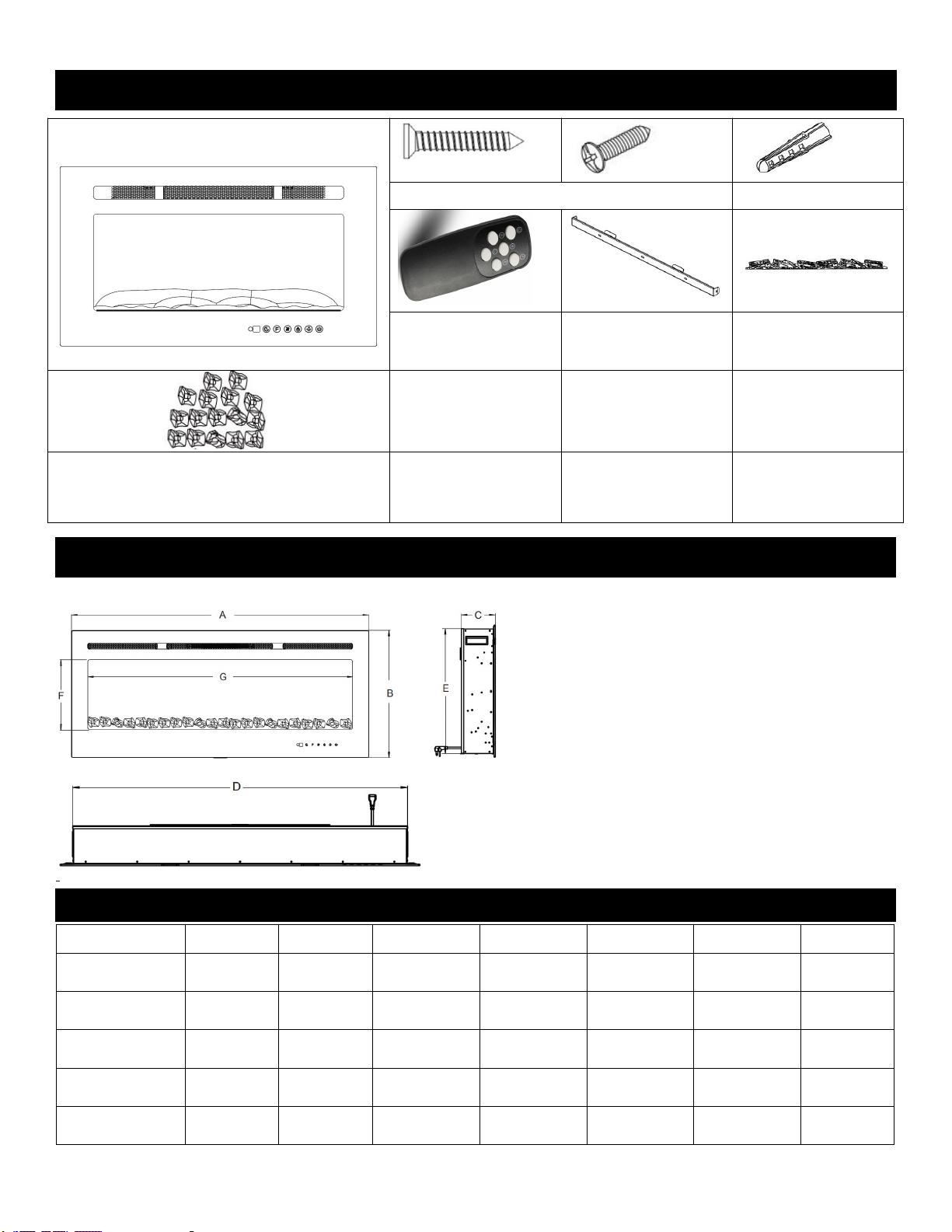

PARTS & HARDWARE
a.Fireplace
b. Wood Screws
c-Drywall anchors
Remote control
d Wall Bracket
Fixed on back of firebox
e-Log set
f-Decorative
Crystals
Specification and Dimension
T
PRODUCT DIMENSIONS
Model Number
A
B
C
D
E
F
G
IF-1330
30”
76.2cm
17.0”
43.2cm
4.13”
10.5cm
26.2”
66.5cm
16.2”
41.2cm
9.1”
23.2cm
23.7”
60.2cm
IF-1336
36”
91.5cm
17.0”
43.2cm
4.13”
10.5cm
32.2”
81.8cm
16.2”
41.2cm
9.1”
23.2cm
29.7”
60.2cm
IF-1340
40”
101.6cm
17.0”
43.2cm
4.13”
10.5cm
36.2”
91.8cm
16.2”
41.2cm
9.1”
23.2cm
33.7”
85.6cm
IF-1350
50”
127.0cm
17.0”
43.2cm
4.13”
10.5cm
46.2”
117.3cm
16.2”
41.2cm
9.1”
23.2cm
43.7”
111.0cm
IF-1360
60”
152.4cm
17.0”
43.2cm
4.13”
10.5cm
56.2”
142.7cm
16.2”
41.2cm
9.1”
23.2cm
53.7”
136.4cm
5
m
Installation and Assembly
Your appliance is a wall-mounted, recessed and /or mantel installed appliance. Select a suitable location that is
not susceptible to moisture and is away from drapes, furniture and high traffic areas.
NOTE：Follow all National and local electrical codes.

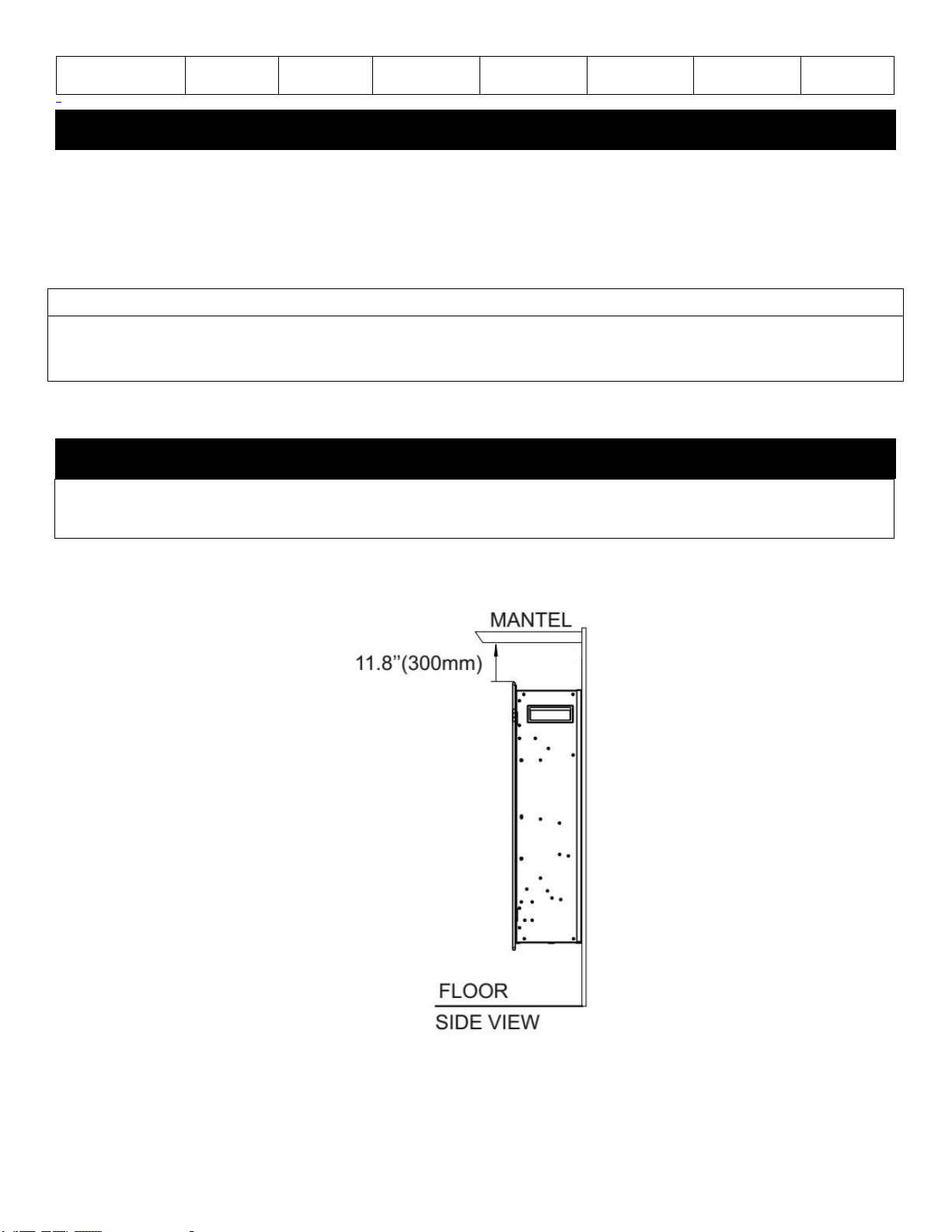

MINIMUM CLEARANCE TO COMBUSTIBLES
Measurements are taken from the glass front.
Bottom 0” Top 11.8”(300mm) to mantel
Sides 0” Top 11.8”(300mm) to ceiling
Back 0”
MINUMUM MANTEL CLEARANCES
WARNING
WHEN USING PAINT OR LACQUER TO FINISH THE MANTEL, THE PAINT OR LACQUER MUST
BE HEAT RESISTANT TO PREVENT DISCOLOURATION
RECESSED TO WALL INSTALLATION
IF-1370
72”
152.4cm
17.0”
43.2cm
4.13”
10.5cm
68.2”
173.2cm
16.2”
41.2cm
9.1”
23.2cm
65.7”
166.9cm
6

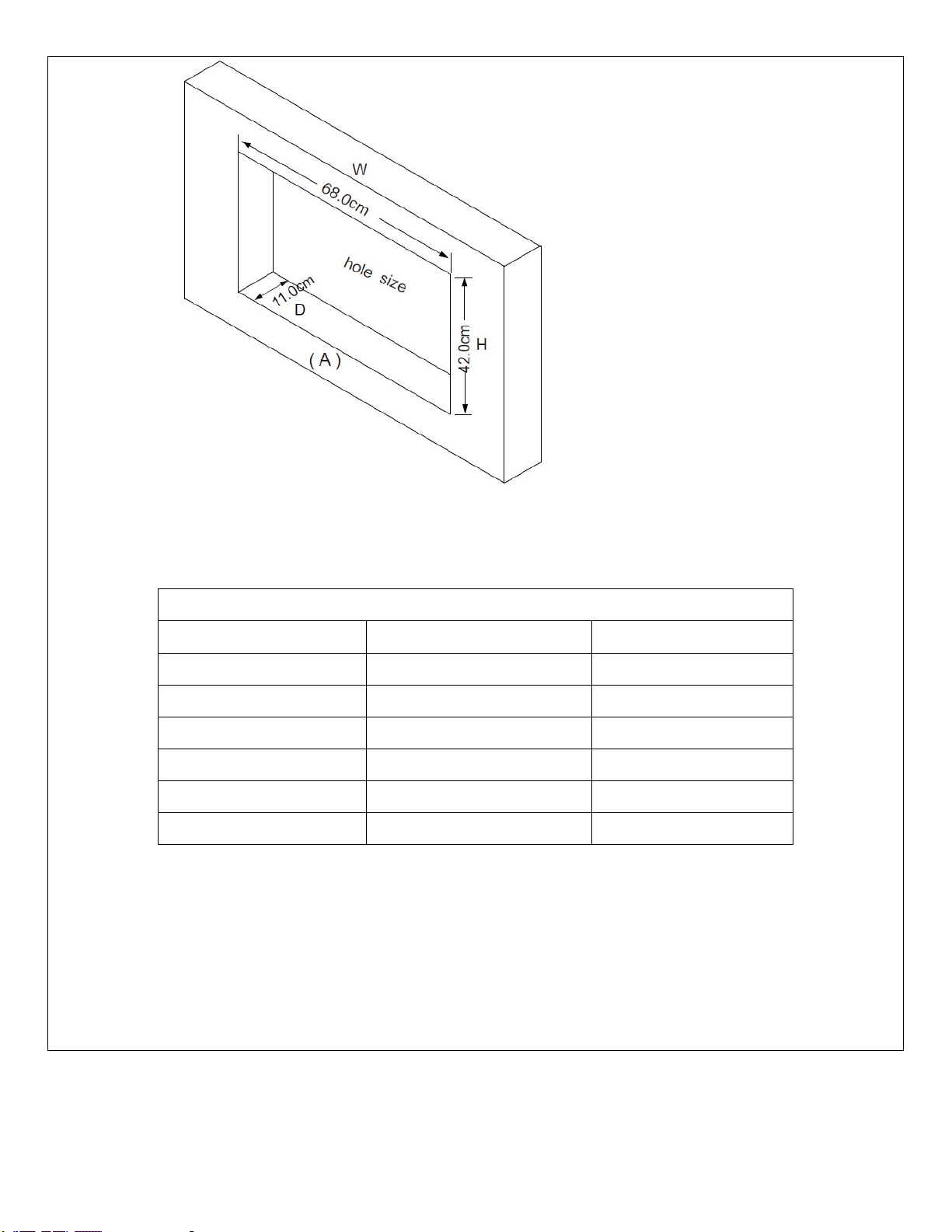

Figure (A) Framing Hole Size
STEP A. Selection a dry wall to open a hole for fireplace box. Size of hole as below chat
Figure (A)
Framing Hole Size
Model Number
W
H
IF-1330
26.77”(68.0cm)
16.54”(42.0cm)
IF-1336
32.77(83.2cm)
16.54”(42.0cm)
IF-1340
36.77”(93.4cm)
16.54”(42.0cm)
IF-1350
46.77”(118.8cm)
16.54”(42.0cm)
IF-1360
56.77”(144.2cm)
16.54”(42.0cm)
IF-1370
68.77”(174.7cm)
16.54”(42.0cm)
7
IF-1330 IF-1336
Figure (B )
IF-1340 IF-1350
8
IF-1360 IF-1370

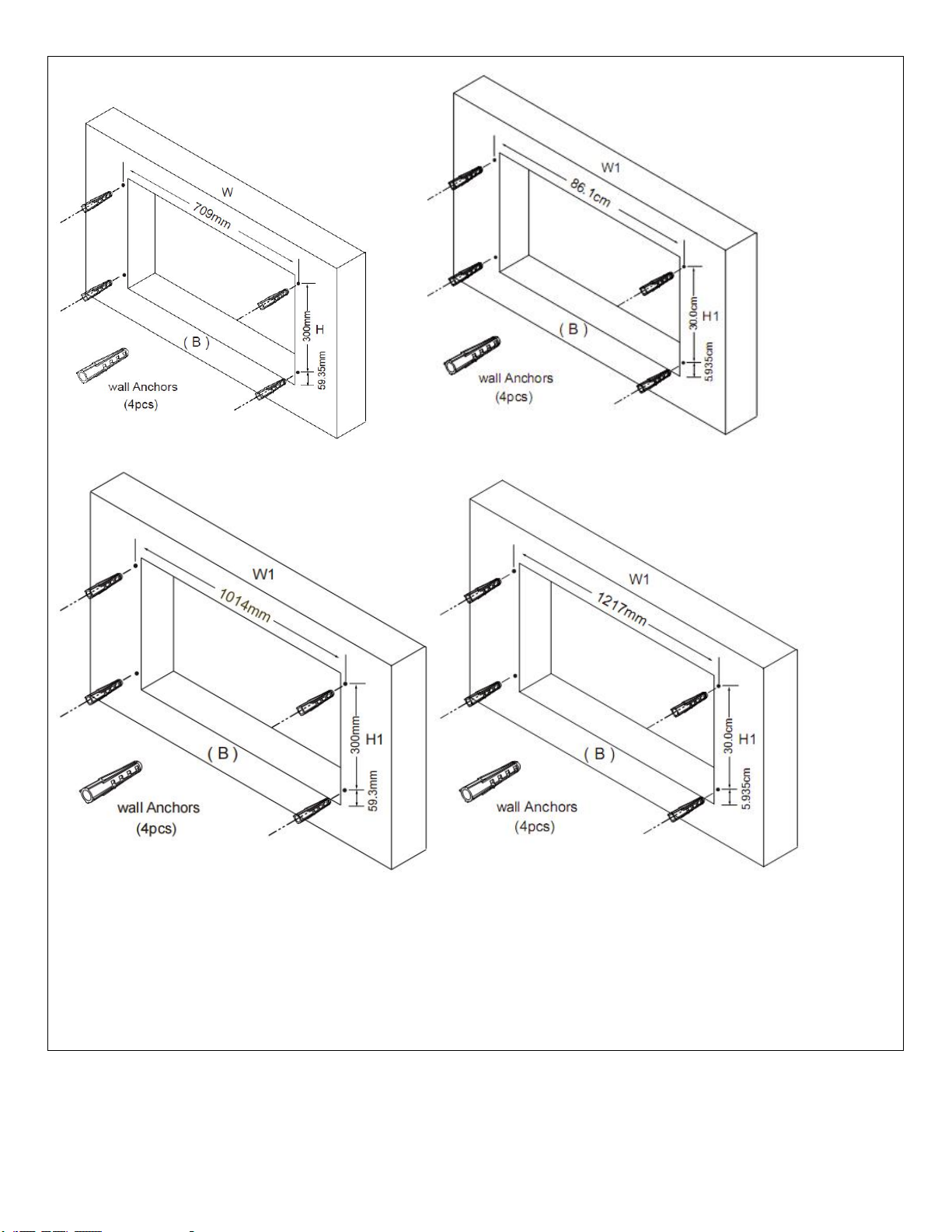

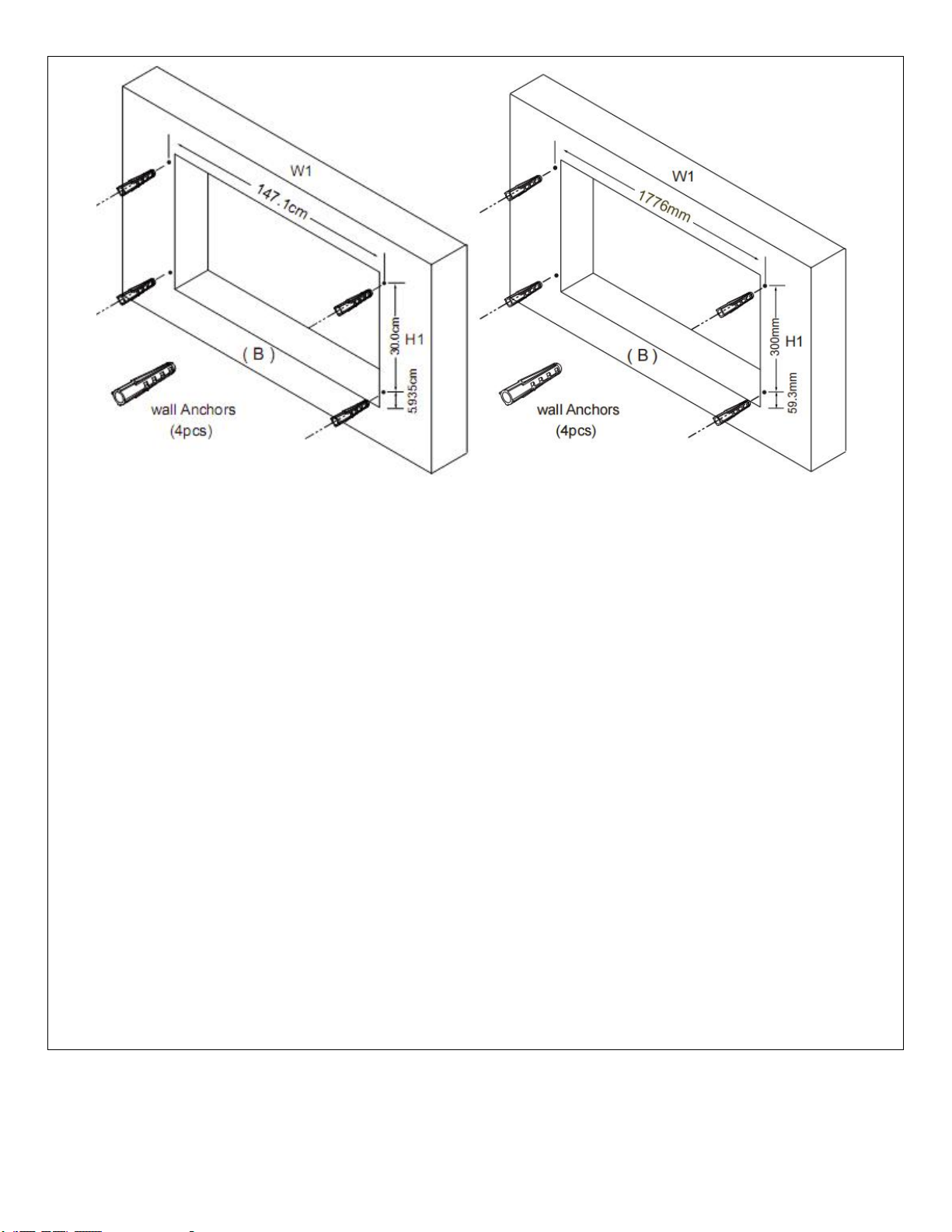

STEP B. Fix the four wall anchors in each side of the fireplace box according to the dimensions
Showed on the drawing. Figure (B)
9
(C) (D) (E)

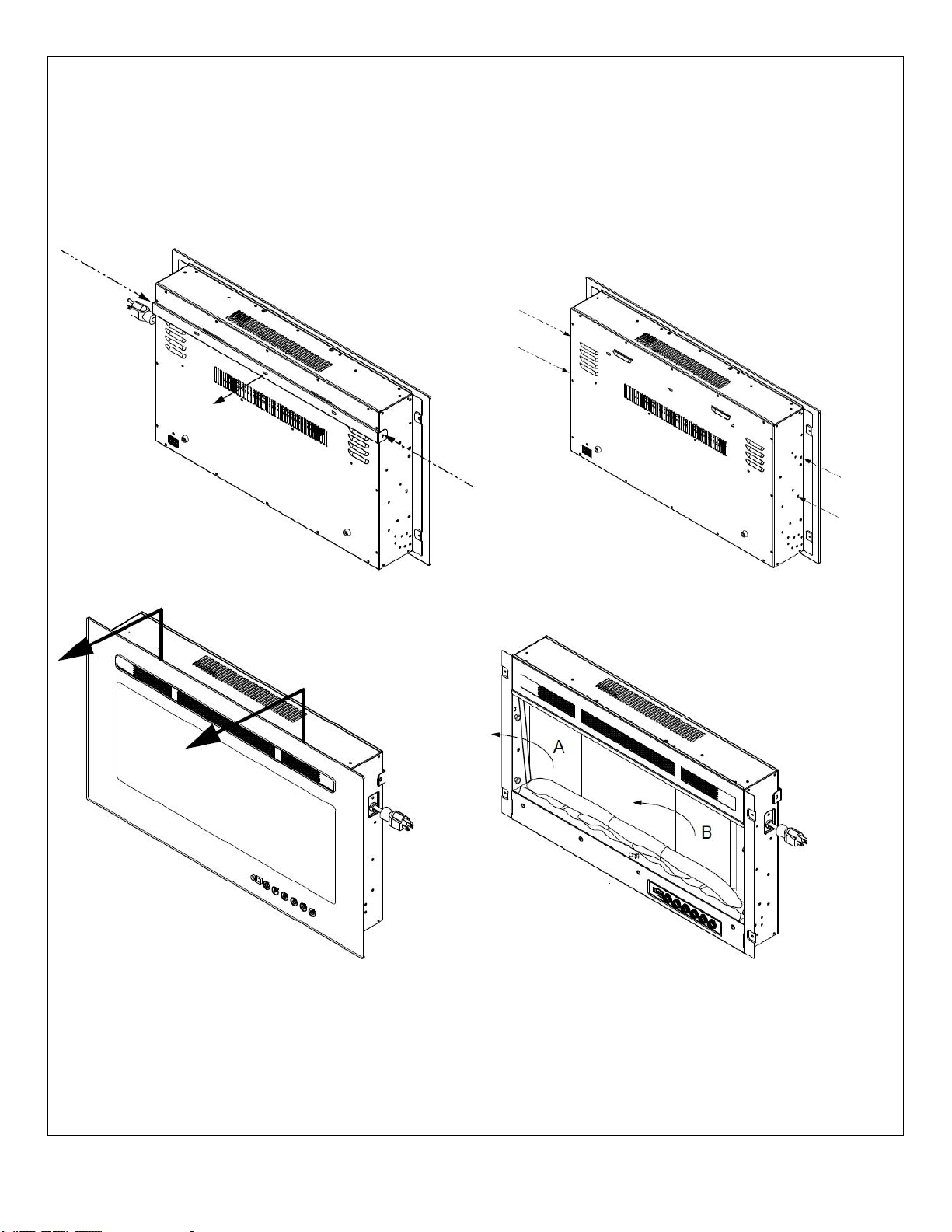

STEP C. Take off the two screws in both sides of fireplace. Figure (C)
STEP D. Have two person to take the glass panel out of the fireplace box. Place it to a soft and
clean place. Figure (D) , taks two pcs of foam out of fireplace(E).
(‘F) (G) (H)
(I)

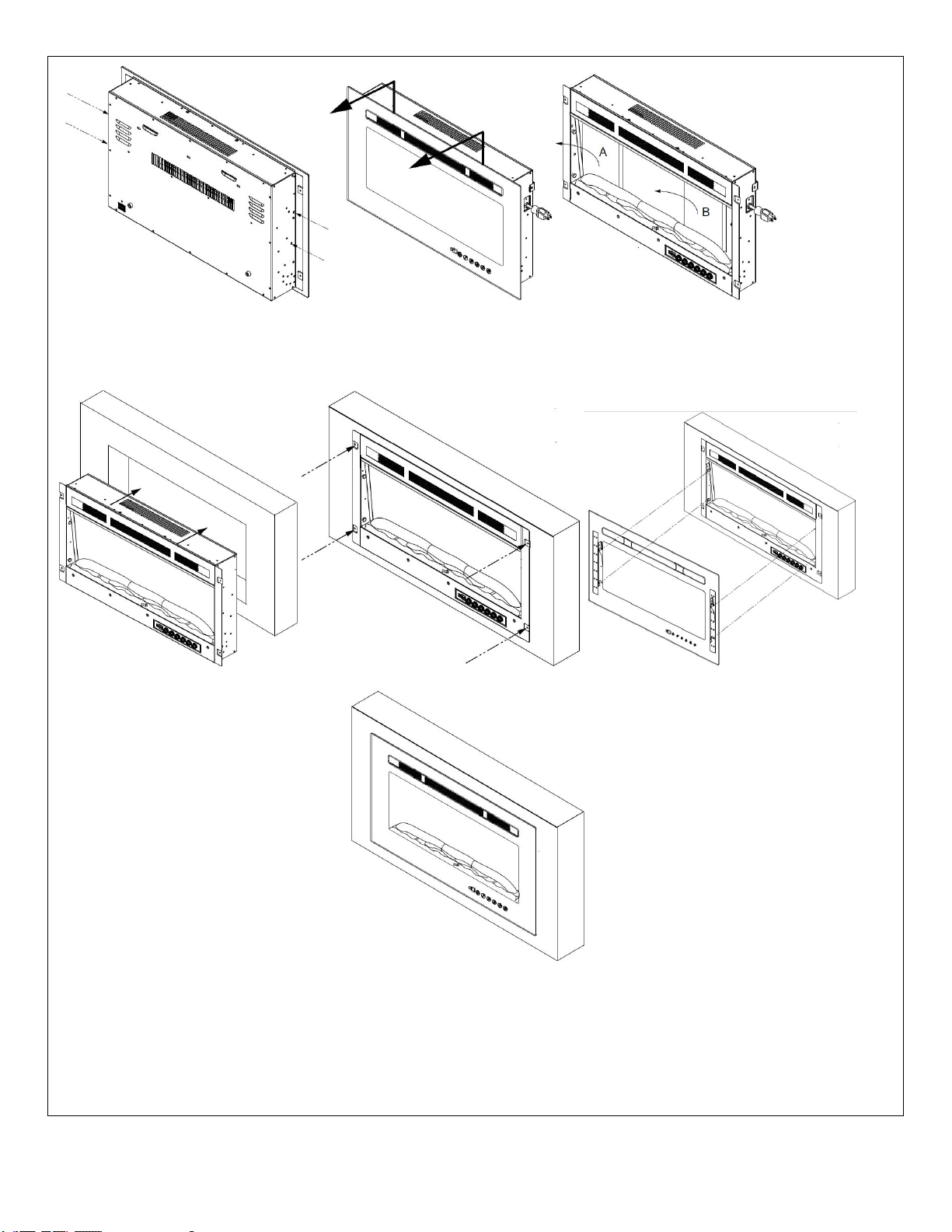

STEP E. Have two person to move the fireplace box to the wall hole or fireplace mantel (F).
If the appliance is fully recessed into the wall:
Use the 4 screws(provided) to lock the appliance into wall with the existing two side flanges, see
Figure(G)
Install the media and re-install the glass front.
STEP F. Place the front panel lock the appliance. See Figure (H)
STEP G. Fireplace will be like this after installation Figure (I)
10
Wall Mounted Installation
Due to the many different materials used on different walls, it is highly recommended that you consult your
local builder before you install this appliance on the wall.
A. Select a location that is not prone to moisture and is located at least 36”(914mm) away from combustible
materials such as curtain drapes, furniture, bedding, paper, etc.
B. Have two people hold the appliance against the wall to determine the final location.
C. Place unit face down on a soft, non abrasive surface.Remove the bracket from the back of the unit by
removing the screws, refer to Figure 1. Remove four pcs of silver screws at bothe sides, refer to Figure 2.
Fig.1 Fig.2
D. Take glass off carefully, then take two pcs of foam out of fireplace.
Fig.3 Fig.4
E. Mark out location, then mount the bracket(s) onto the wall using the supplied screws. This bracket MUST
have the hooks facing upward and be level.
