ASSEMBLY INSTRUCTIONS
Universal DeckDolly
To be used with any and all mower decks.
2
IMPORTANT!!
After assembly, please be sure to operate the Deck Dolly on level,
hard surfaces only. Standing the Deck Dolly in the upright
position on soft or uneven surfaces may lead to injury and/or
damage.
Note: These instructions show the dolly with optional dual
wheels. If ordered, separate instructions will be included.
Assembly Instructions
1) Open packaging and inspect to ensure contents are complete.

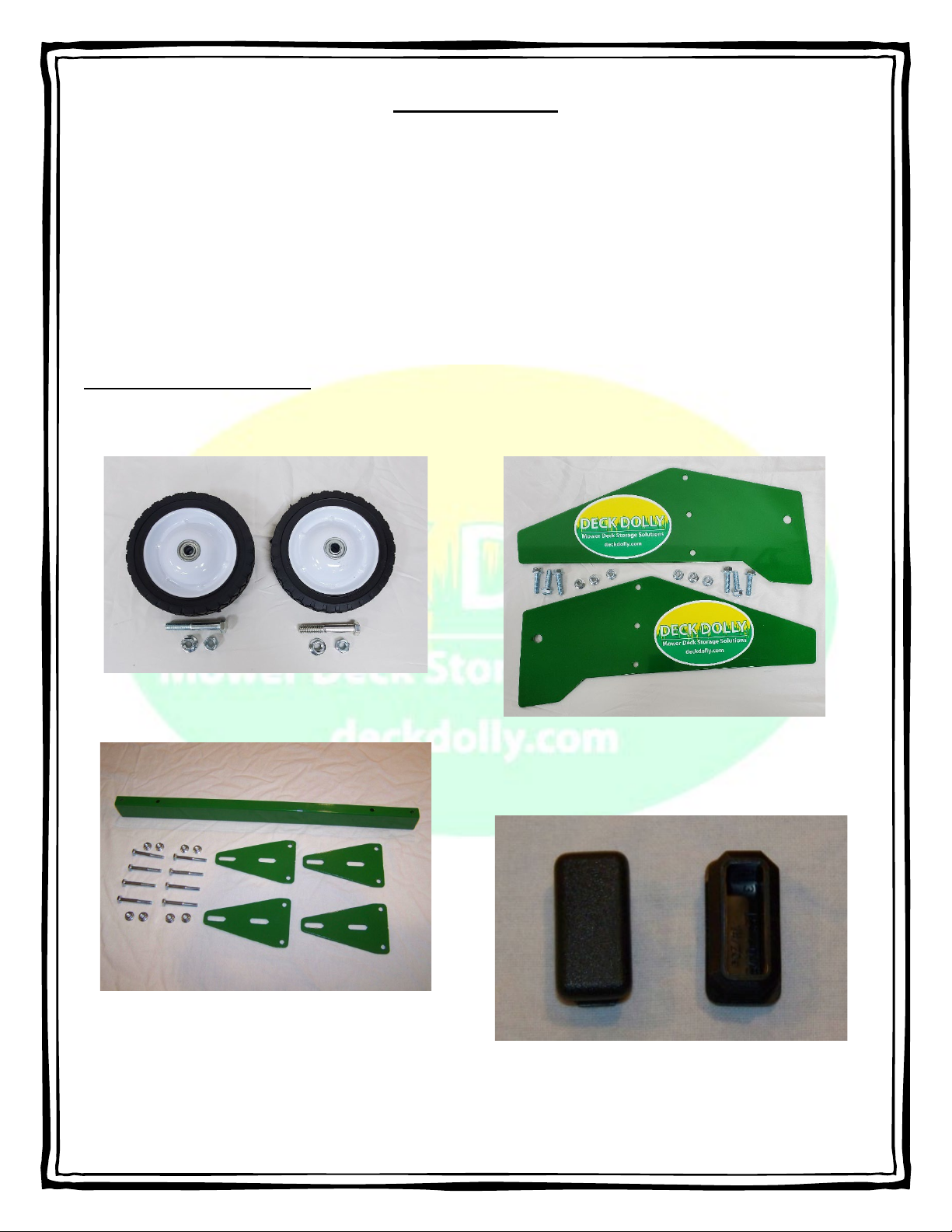

2) Contents should be as pictured below:
2 - 7” Tires w/ 2 - ½ x 3 ¼ bolts, nuts
Bottom Cross Support Assembly
and 4 Brackets with hardware.
2 - Base Plates with hardware
6 – 5/16 x 1 ¼ bolts and nuts
2 end plugs.
3

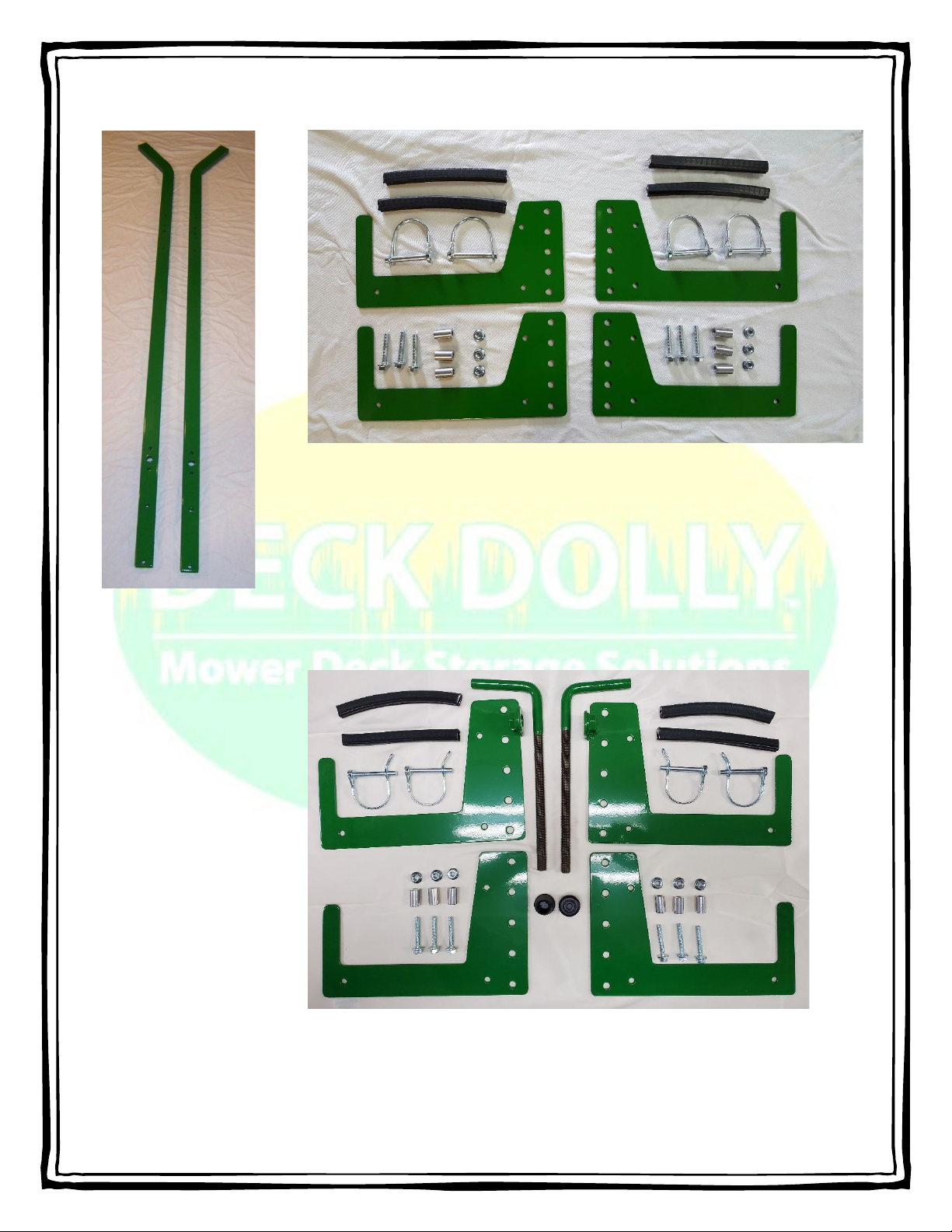

4 Bottom Brackets with 4 5/16 pins, 4 pcs of trim loc, 6 ¼ x
1 ½ bolts with nuts, 6 aluminum spacers.
← 2 Uprights.
4 Top Brackets with 4 1/4 pins, 4 pcs of trim loc, 6 ¼ x 1 ½
bolts with nuts, 6 aluminum spacers, 2 deck stabilization bolts
with 2 rubber caps.
4
STEP 1
Preassemble the bottom cross support tube and brackets as shown with ¼ “x 2 ¼” bolts
while leaving the nuts loose.
STEP 2
Preassemble the Base Plates and Tires as shown below. The regular nut should be
between the wheel and base and the serrated nut should be to the outside of the
base plate. Take care to tighten the bolt and nuts to allow the tire to spin freely but
not be loose on the bolt. Use 2 -½” x 3 ¼” bolts. If dual wheels were purchased see
the included instructions.
Step 3
Tap ends caps into Leg Uprights as shown below with a hammer using light taps.
5
STEP 4
Assemble the pieces as shown below tight with ¼”x2 ¼” bolts. Use a square to insure
the legs are parallel to each other and tighten. Width is not a concern.
STEP 5
The Base Plate may be tightened when assembled as shown below with 5/16” x 1 ¼”
bolts. The handles of the legs face the same side as the wheels.
Step 6
Assemble the Bottom and Top Brackets as shown below, position the trim lock by
tapping gently with a hammer. Use ¼ x 1 ½ bolts and nuts with the spacers between
each bracket and tighten. TIP: You will have to cut the trim lock to install to your liking
for protecting your deck. Using a hair dryer or similar will help you with installing the
trim lock.
6
Step 7
Install the lower brackets as low as you can with the 5/16 pins included. These may be
changed as needed but it is a good idea to carry the deck as low as possible.
Check all bolts for tightness before operating the Deck Dolly.
You may now lay the dolly over the deck with the lower brackets under the rear of
the deck and then adjust the upper brackets to slide under the front of the deck
and turn the hand adjuster down to just touching the top of the deck while the
upper deck bracket is touching the underside of the deck. This is designed to stop
the deck from hitting against the dolly. Please take care to watch the deck wheels
when operating the Dolly for the first time. See front page for example.
