Dedrone RF-310 Bedienungsanleitung

ENGLISH

IM-Inst-RF310en v1.0

RF-310

INSTALLATION MANUAL

Detects, classifies, and locates drones and

their remote controls and communicates

directly to the cloud or local network.

Dedrone

2v1.0 IM-Inst-RF310en

Legal Provisions

The information contained in these documents is the property of Dedrone Holdings, Inc.. Any publication,

whether in whole or in part, requires prior written approval by Dedrone Holdings, Inc.. Internal reproduction

used solely for the purpose of product evaluation or other proper use is allowed and does not require prior

approval.

The declaration of conformity is available on request at support@dedrone.com.

This manual is the intellectual property of Dedrone Holdings, Inc. and is protected by copyright. All rights

reserved.

Dedrone Holdings, Inc.

45662 Terminal Dr.

Sterling, VA 20166

USA

Fon +1 703 2608051

Email info@dedrone.com

IM-Inst-RF310en v1.0

Dedrone

Content

1 Safety ..............................................................................................................................................4

1.1 Symbols.................................................................................................................................................................4

1.2 Intended Use ........................................................................................................................................................4

1.3 Safety Information..............................................................................................................................................5

2 The RF-310 ..................................................................................................................................... 6

3 Unpacking....................................................................................................................................... 6

4 Scope of Delivery ..........................................................................................................................6

5 Select the Mounting Place .......................................................................................................... 7

5.1 Mounting Location .............................................................................................................................................. 7

5.1.1 Detection Conditions ..................................................................................................................................... 7

5.1.2 Direction Finding and Localization Conditions ........................................................................................8

5.2 Mounting Location ..............................................................................................................................................9

6 Installation................................................................................................................................... 10

6.1 Power Supply ..................................................................................................................................................... 10

6.2 Required Tools....................................................................................................................................................10

5.3 Overvoltage Protection ...................................................................................................................................10

6.3 Cable Requirements...........................................................................................................................................11

6.4 Cable Preparation...............................................................................................................................................11

6.5 Mount sensor...................................................................................................................................................... 12

6.5.1 Mount sensor on a thin pole (1.5" to 3")................................................................................................... 12

6.5.2 Mount sensor on a thick pole (from 3") ...................................................................................................14

6.5.3 Mount sensor on a wall................................................................................................................................ 15

7 Integrate the RF-310 in your DedroneTracker ....................................................................... 16

7.1 Integrate the RF-310 in your on prem DedroneTrackerServer ................................................................. 17

7.2 Connect and Configure the RF-310 to your Dedrone Cloud ...................................................................... 18

9 Cleaning........................................................................................................................................ 19

8 Decommissioning ....................................................................................................................... 19

8.1 Shut down the RF-310...................................................................................................................................... 19

8.2 Dismantling ........................................................................................................................................................ 19

8.3 Disposal ............................................................................................................................................................... 19

10 Technical Data .............................................................................................................................20

11 Appendix....................................................................................................................................... 21

Safety Dedrone

4v1.0 IM-Inst-RF310en

1 Safety

1.1 Symbols

Symbol Explanation

Indicates a situation which, if not avoided, can result in property damage

Information that is important for a specific goal, but is not safety-relevant

Indicates a requirement for meeting a specific goal

Desired result

A problem that might occur

Action to resolve a problem

1.2 Intended Use

The RF-310 is a passive, network-attached sensor for the detection and direction finding of radio frequencies

(RF) and Wi-Fi signals. The RF-310 detects targeted radio signals, classifies them, and identifies their direction.

Combined with two or more Dedrone RF sensors, it can determine the position of a drone and remote

controls by the RF signals. The RF-310 sends the data and an alert via LAN connection to the DedroneTracker

System.

The RF-310 is intended for civil, commercial, and private use in conjunction with a DedroneTracker System.

The RF-310 is suitable for outdoor use.

Use this product only in accordance with the information provided in the enclosed documentation and with

the locally applicable legal standards and directives. Any other application may cause personal injury or

property damage.

Any use of the product other than that described in the intended use section does not qualify as appropriate.

The enclosed documentation is an integral part of this product. Keep the documentation in a convenient place

for future reference and observe all instructions therein.

The type label must remain permanently attached to the product.

Compliance Information Statement FCC and IC

The RF-Sensor RF-310 complies with Industry Canada license-exempt RSS standard(s) and complies with Part

15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2.This device must accept any interference received, including interference that may cause undesired

operation.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

IM-Inst-RF310en v1.0

Dedrone

Safety

Caution!

To prevent permanent exposure, the device should be installed and operated with a minimum

distance of 20 cm (7.87 in) between the device and your body.

1.3 Safety Information

Read, follow and retain all of the following safety instructions. Heed all warnings on the unit and in the

operating instructions before operation.

Warning! Setup should be carried out by trained personnel only, in accordance with the national

electric code, ANSI/NSPA, and all local country codes.

Do not attempt to service this device yourself. Refer all servicing to qualified service personnel. This

device has no user-serviceable internal parts. Whenever any damage to the device has occurred,

unplug the devices from the power source by disconnecting the patch cable and refer servicing to

qualified service personnel. Such damages can be:

•the patch cable is damaged

•an object has fallen on the device

•the device has been dropped, or its enclosure has been damaged

•the device does not operate normally when the user follows the operating instructions

correctly

Adjust only those controls specified in the operating instructions. Improper adjustment of other

controls may cause damage to the unit.

Despite careful construction, electrical devices can cause fires. Do not mount the RF-310 in

areas containing highly flammable materials or gases. Do not mount the RF-310 in a potentially

explosive atmosphere.

Do not install product near any heat sources such as radiators, heaters, exhaust air systems or

other equipment (including amplifiers) that produce heat.

instruction manual, may cause harmful interference to radio communications. Operation of this equipment in

a residential area is likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.

Modifications: Any modifications made to this device that are not approved by Dedrone Holdings Inc. may

void the authority granted to the user by the FCC to operate this equipment.

The RF-310 Dedrone

6v1.0 IM-Inst-RF310en

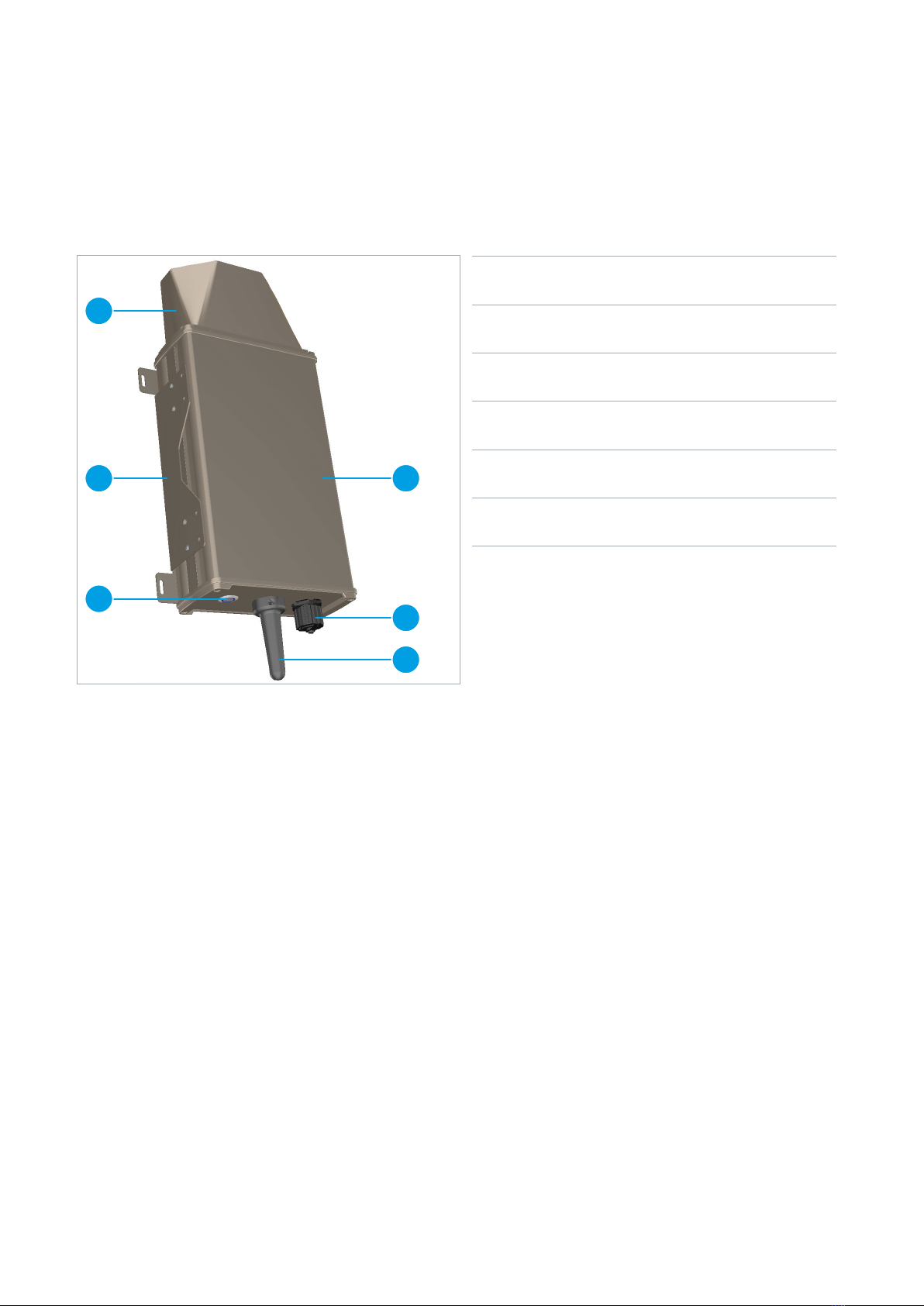

AAntenna cover

BUniversal mount

CActivation button

DRF-310

ENetwork socket

FAntenna cover

2 The RF-310

The RF-310 is a passive, network-attached sensor for the detection and direction finding of radio frequencies

(RF) and Wi-Fi signals. The RF-310 detects targeted radio signals, classifies them and identifies their direction.

In combination with two or more Dedrone RF sensors it is able to determine the position of a drone and

remote controls by the RF signals. the RF-310 sends the data, along with an alert via LAN connection to the

DedroneTracker System.

It scans a wide frequency band for radio frequencies and classifies them. The data is recorded and available on

the user interface DedroneTracker UI.

3 Unpacking

This equipment should be unpacked and handled with care. Check the exterior of the packaging for visible

damage. If an item appears to have been damaged in shipment, notify the shipper immediately.

4 Scope of Delivery

Verify that all the parts listed in the scope of delivery are included. If any items are missing, notify your

Dedrone Partner.

Do not use this product if any component appears to be damaged. Please contact Dedrone in the event of

damaged goods.

1 x RF-310

1 x RF pole mount (preassembled)

4 x Strap

IM-Inst-RF310en v1.0

Dedrone

Select the Mounting Place

The original packing carton is the safest container in which to transport the unit and must be used if returning

the unit for service. Save it for possible future use.

5 Select the Mounting Place

5.1 Mounting Location

The position of the RF-310 has strong impact to the detection range. The RF-310 is intended for an installation

on top of a pole. Make sure that a suitable pole is available (diameter from1.5"(38mm)).

The detection is the precondition for the direction finding.

5.1.1 Detection Conditions

For ideal results the location should fulfill the following conditions:

`Clear view over the area

`Exposed, elevated position: 10 ft (3 m) minimum, 33 ft (10 m) recommended

Do not install the device nearby the following objects:

•Metal surfaces or coated glass

Disturbs the detection and prevents the localization.

•Walls

These shade the detection area and prevent classification of signals behind the wall.

•Base station and other strong signal sources

The detected signals are getting interfered.

•Any excessive heat sources

•Any overhead power lines, power circuits, high-voltage lines or electrical lights

Electrical discharge can damage the device.

Select a secure installation location and mounting position for the device. Ideally, this is a location where the

device cannot be interfered with, either intentionally or accidentally.

1 x Outdoor ethernet cable, 32 ft (10 m)

1 x Bag with the 5 parts of the outdoor housing for prewired RJ45 cordset and a quick manual

1 x Installation manual

1 x Safety information

1 x Product registration document (this information is only needed for a cloud based sensor operation

and is provided by an enclosed document or online by the Dedrone Service)

Note the properties of each RF-310. This is needed for the correct configuration and for

service.

We recommend the table in the appendix. The following information is important:

•Serial Number

•GPS position (longitude and latitude)

•Horizontal angle

Select the Mounting Place Dedrone

8v1.0 IM-Inst-RF310en

To localize a drone an intersection of the

bearings from at least two sensors is

needed.



Localization is not possible in the case

where two RF-310s are aligned.

This is the blind area of two sensors.



Both RF-310s detects a direction in

alignment to the left. The overlapping

area covers the complete bearing of

the other RF-310. The position can’t be

determined.



Both RF-310s detect a direction in

alignment to the right. The overlapping

area covers the complete bearing of

the other RF-310. The position can’t be

determind.

5.1.2 Direction Finding and Localization Conditions

For accurate localization results, follow the guidance below in addition to the Detection Conditions (see

chapter 5.1.1 Detection Conditions, page 7).

The position is determined by the intersection of at least two bearings. Therefore minimum two RF-310

sensors are

required for localization, but we recommend at least three RF-310 sensors as this significantly reduces

localization errors.

For best localization results, all RF-310 sensor should be installed at the same height.

Position of the sensors to each other

IM-Inst-RF310en v1.0

Dedrone

Select the Mounting Place

5.2 Mounting Location

Mounting Surface

•Make sure the selected mounting surface is capable of supporting the combined weight of the RF-310

(12.4 lb (5.6 kg)) and the pole under all expected conditions of load, vibration, and temperature.

Mounting Orientation

•Important for a good result is the vertical alignment of the device. Do not tilt the device.

Distances between the RF-310s

The distance between the RF-310 usually should be 650 ft to 3,200 ft (200 m to 1,000 m).

650 ft - 3,200 ft

(200 m - 1,000 m)

Distance between the RF-310s

`For the best result, Dedrone strongly recommends a distance of 1,650 ft to 2,600 ft (500 m to 800 m).

`Choose the position depending on your monitoring focus. Increase the distance between the sensors to

increase the accuracy at further distances.

`Localization accuracy increases as the drone gets closer to the sensors.

`For large installations with sensor distances of more than 3,200 ft (1,000 m) to each other a special

sensor configuration in the DedroneTracker user interface is necessary. Please contact the Dedrone

Support.

Both RF-310s detect a direction against

each other. No exact position can be

determined.

With three RF-310s there is no blind

area. The third RF-310s can always verify

the area of intersection.

650 ft - 3,200 ft

(200 m - 1,000 m)

650 ft - 3,200 ft

(200 m - 1,000 m)

Installation Dedrone

10 v1.0 IM-Inst-RF310en

Lightning Protection Installation with RF-310s

Ensure that the location has the appropriate clearance from power and lightning conductors, in accordance

with NEC725 and NEC800 (CEC Rule 16-224 and CEC Section 60 and Section 810 of the National Electrical

Code, ANSI/NFPA No.70).

5.3 Overvoltage Protection

For safe mounting in an exposed position overvoltage protection must be observed. Ensure that the mast is

connected to the lightning conductor of the building and there is a metallic contact between the mast mount

and the mast. The lightning conductor must be installed at least 1.5 m above the RF-310.

6 Installation

6.1 Power Supply

The RF-310 does not need any additional power supply connection. The power supply is provided by the

connected switch with activated active PoE IEEE 802.3bt (60 W).

`Make sure, that your network has activated active PoE IEEE 802.3bt (60 W).

Note: Data transfer is only possible with a suitable PoE switch.

6.2 Required Tools

`Socket wrench: 7 mm ( 9/32” )

`Screwdriver Torx TX20

`Crimping tool

For an environmentally sealed connection to the RF-310, it's necessary to crimp the supplied connector

to the laid patch cable (see chapter 6.4 Cable Preparation, page 11).

`Ladder or lift truck, depending on the mounting location

`For wall mount: Drilling machine, screwdriver, suitable screws, and washer

`Recommendation: GPS device

Inhaltsverzeichnis

Andere Dedrone Sicherheitssensor Handbücher

Dedrone

Dedrone Multi Sensor 2.5 Bedienungsanleitung

Beliebte Sicherheitssensor Handbücher anderer Marken

THORLABS

THORLABS PDA10JT Bedienungsanleitung

Waeco

Waeco UV-DETECT Bedienungsanleitung

Intermatic

Intermatic IOS-DSIMF Bedienungsanleitung

urmet domus

urmet domus 1083 Bedienungsanleitung

Siemens

Siemens AZL66 Series Bedienungsanleitung

BTI

BTI Profiline Multi Finder Bedienungsanleitung

Challenger

Challenger SL01 Bedienungsanleitung

DMP Electronics

DMP Electronics 1122INT Bedienungsanleitung

Rielta

Rielta Ladoga MK-RK Bedienungsanleitung

Mirion Technologies

Mirion Technologies ACCURAD PRD Bedienungsanleitung

Bosch

Bosch DS835 Bedienungsanleitung

DBI SALA

DBI SALA EZ Stop Bedienerhandbuch

Lamptime

Lamptime ST05C Bedienungsanleitung

Ubiquiti

Ubiquiti MFI-MSC Bedienungsanleitung

Subsite

Subsite 910R Montageanleitung

Satel

Satel OPAL Pro Bedienungsanleitung

Aleph

Aleph XC-1XTEU Bedienungsanleitung

Pima

Pima LARIS QUAD Bedienungsanleitung
