Page 1

The Manufacturer strives for

continuous improvements.

For this reason, the text

and illustrations in this book

are subject to change without notice

570

Side by Side

Frost Free

Refrigerator—Freezer

You can rely on Defy

Owner's Manual

www.defy.co.za

INDEX

2 - Introduction

2 - Unpacking

2 - Before installation

2 - Removing the doors

3 - Replacing the doors

3 - Installation

3 - Electrical installation

4 - Levelling the refrigerator

4 - Caution notes

5 - Interior parts identification

6 - The control panel

6 - Setting the temperature

7 - Food storage tips

7 - Care and cleaning

8 - Replacing a faulty light bulb

8 - Owner’s responsibility

9 - Questions and answers

9 - Check

10 - Service centres

10 - Notes

11 - Notes

12 - Warranty

Page 2

Congratulations on the purchase of this quality appliance.

Please read these instructions carefully before using the product. This book will provide

you with information on how to operate and care for your appliance in order that you gain

the maximum benefit from it and enjoy many years of trouble free use.

Introduction

Unpacking

• Please ensure that packaging material is disposed of in a responsible manner.

• Plastic bags should be cut up to prevent children playing with them and accidentally

suffocating.

• If the appliance is damaged in any way, do not use it. Report the damage to your

dealer, who will take the necessary corrective action.

1. Remove the hinge cover screw. Insert a blade or

small flat screw driver into the side groove of the

hinge cover and pry it loose. Remove the hinge

cover.

2. Turn the top hinge fastener 3 to 4 times in an

anti-clockwise direction and disconnect the wir-

ing harness

3. Remove the hinge by lifting the front and pulling

it free. Be sure to hold the door securely as the

top is now no longer secured.

4. Lift the door free of the bottom hinge pin.

Removing the refrigerator door

The refrigerator door has 1 earth wire to be unscrewed

at the top hinge.

Otherwise the procedure is the same as described

above.

Removing the freezer door

Before installation

Measure the width of the kitchen entrance through which the unit must pass.

The refrigerator measures 1790mm x 903mm x 735mm. (H x W x D incl. handles.)

If the unit will not pass easily through the kitchen entrance, without risking damage, then

either the kitchen door or those of the refrigerator or both should be removed to allow

free passage. Once the unit is in position the doors can be re-fitted.

Page 3

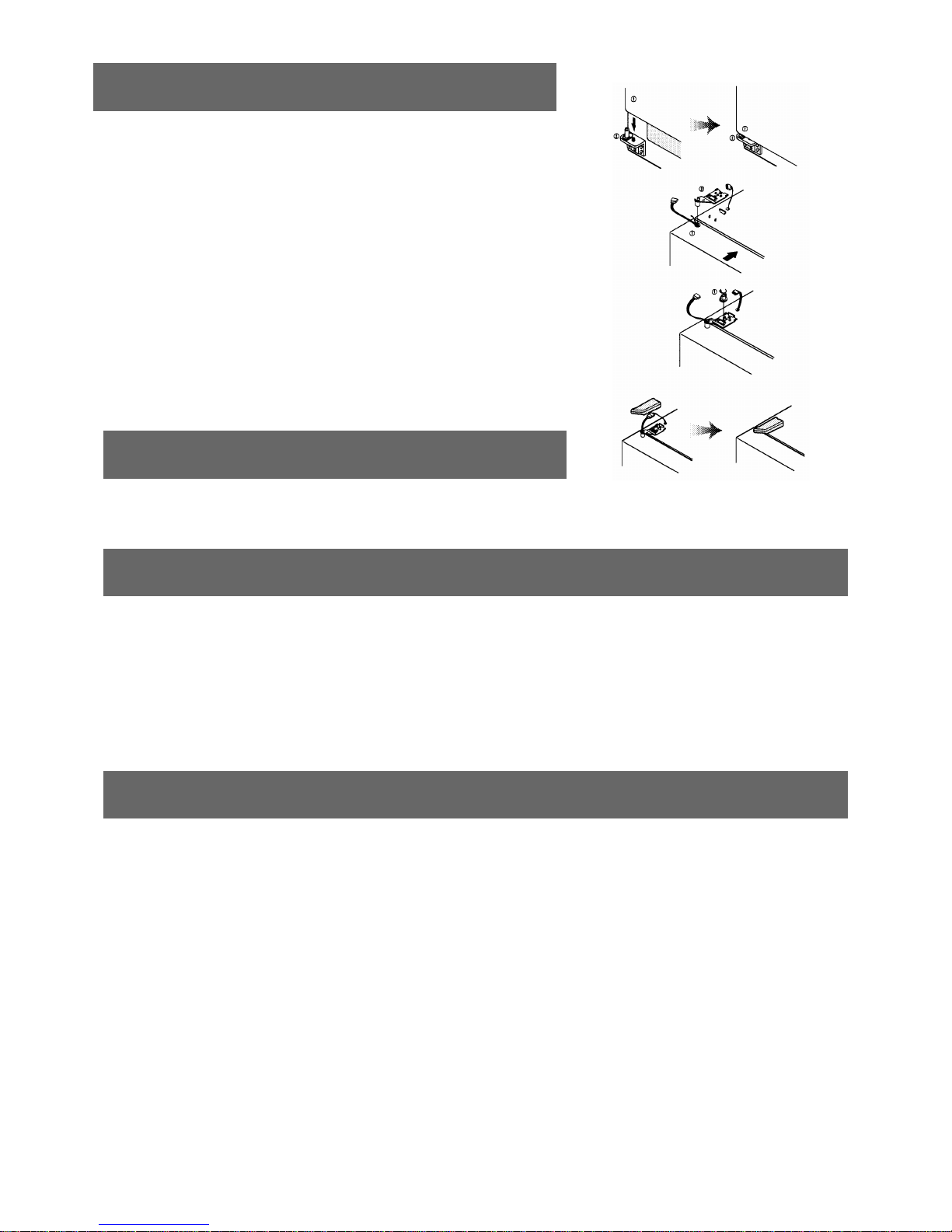

Replacing the freezer door

Lower the freezer door bottom hinge hole over

the bottom hinge pin and close the door.

Slide the back of the top hinge into the slot and

lower the hinge pin into the top hinge hole of the

door.

Tighten the hinge fastener and re-connect the

harness wiring. (earth wire for refrigerator door)

Snap the hinge cover in place and tighten the

screw.

Replacing the refrigerator door

Repeat steps 1 to 4 as described above.

Installation

The appliance should be positioned in a dry, well aired place away from heat

sources such as stoves, geysers and direct sunlight. Allow an airspace at the rear of

the refrigerator for ventilation purposes.

An electrical wall plug should be nearby and easily accessible.

Electrical Installation

This appliance uses a 220-240V/50 Hz power supply.

The appliance should be plugged into a dedicated 15A earthed wall socket. Do not

use an extension cord or multiple adaptor.

If the mains power cord is damaged, it must be replaced by a qualified electrician.

This appliance must be earthed and the manufacturer and the seller do not accept

responsibility for any damage due to incorrect electrical connection.

This appliance may not be used with a battery inverter power supply.

Page 4

Levelling the refrigerator

To adjust the freezer door: Insert a flat tip screw driver

into the left front levelling foot and turn it. Clockwise will

raise the unit and anti-clockwise will lower it.

To adjust the refrigerator door: Repeat the procedure ,

turning the right hand levelling foot until the unit stands

level and the doors are aligned.

It is advisable to adjust the cabinet so that it tilts slightly backwards. This will ensure that

doors close properly. The doors must be aligned and the cabinet must stand level (left to

right) To adjust levels proceed as follows:

Caution notes

• Never use flammable gas, benzene, thinners, petrol or other flammable liquids and

sprays near the refrigerator.

• Do not store flammable gas or liquids in the refrigerator or freezer.

• Do not store medicine or academic research samples requiring strict temperature

control in the refrigerator or freezer.

• Always unplug the refrigerator when cleaning it.

• Avoid touching metal freezer containers with bare hands as “cold burn” could result.

• Do not store liquids, pot plants or open containers on top of the refrigerator as these

might spill causing electrical shorting.

• When discarding an old refrigerator please render the doors inoperative as chil-

dren ,while playing, might get trapped inside and suffocate.

• Do not place sealed liquid containers in the freezer. Liquids expand as they freeze

and containers might rupture as a result.

Page 5

Interior parts identification

1. Freezer door storage bins are used for storing items that need to be accessed readily.

Do not store ice cream or foods requiring a long storage period in the topmost bin.

2. Freezer shelves are made of strong tempered glass and may be used for storing fro-

zen foods such as meat, fish, and ice cream.

3. The top freezer drawer is ideal for storing dried foods like snoek and squid, for an

extended period of time.

4. The bottom freezer drawer is for storing meat, poultry and fish for long periods of

time.

5. Refrigerator shelves are made of strong tempered glass and may be used for storing

everyday foods.

6. Movable storage bin. Do not use the bin for storing ice cubes nor place it in the

freezer compartment.

7. The top crisper may be used to store vegetables.

8. The bottom crisper may be used to store fruit.

9. The dairy compartment is ideal for storing butter and cheese.

10. Refrigerator door storage bins offer convenient storage space for milk, bottles, jams

and condiments.

11. Cold storage drawer for meats and fish which will be consumed shortly.

Page 6

The control panel

Setting the freezer temperature

• Press the FRZ SET button to select the desired freezer temperature. The temperatures

are displayed sequentially as shown below.

• Press the SUPER FRZ button should you require faster freezing.

• The Super Freezer mode will end automatically after a period and the unit will re-set

to the previously selected mode. The Super Freezer mode may be cancelled manually

by pressing the button once more.

19 20 21 22 16 17 18

Setting the refrigerator temperature

• Press the RFR SET button to select the desired freezer temperature. The temperatures

are displayed sequentially as shown below.

• Press the SUPER REF button should you require faster refrigeration.

• The Super Refrigeration mode will end automatically after a period and the unit will

re-set to the previously selected mode. The Super Freezer mode may be cancelled

manually by pressing the button once more.

4 3 2 8 7 65

Insert the power cord plug into a wall socket and switch on.

Four temperature sensors automatically regulate the temperatures in

both the freezer and refrigerator compartments The Fuzzy icon is al-

ways visible and indicates that the digital control system is operational.

The antibiotic deodoriser mode works whenever the refrigerator is op-

erating and requires no maintenance. The deodoriser is located behind

the vegetable crisper.

FUZZY

DEODO

Note: The interior temperature can vary depending on the frequency of door open-

ings and the ambient air temperature.

Page 7

Food storage tips

Freezer

• Wash food before storing it.

• Operate the freezer for 12 hours before loading it.

• If you are loading bulk into the freezer, load one quarter at a time and allow to freeze

before loading the next quarter.

• Divide food into reasonable portions according to your requirements.

• Allow hot food to cool before putting it in the freezer.

• Seal all foods, or place in airtight containers to prevent dehydration.

• Remember, liquids can increase in volume when frozen. Do not store sealed bottles,

jars or cans in the freezer as the contents will freeze, expand and rupture the container.

• Do not exceed the expiry date shown on food packs.

Refrigerator

• Be aware that tropical fruit like bananas can easily deteriorate if the storage tempera-

ture is too low.

• Allow sufficient space between stored foods for the air to circulate.

Care and cleaning

• Always disconnect the plug from the mains socket before cleaning the appliance.

• Clean the inside of the appliance whenever necessary using a solution of warm wa-

ter and Bicarbonate of Soda. ( 1 table spoon to every 2 litres of water ).

• Dry with a soft cloth.

• Do not use pot scourers or abrasive powders to clean the appliance.

• Do not use benzene, thinners or any volatile cleaners to clean any part of the refrig-

erator

• Spillages, especially citric and acidic juices, must be wiped up immediately as they

could stain the product.

• The back of the unit may be vacuumed or dusted using a soft bristle brush.

• A mild furniture polish may be used on the exterior cabinet to add lustre and protect

against finger marks.

• Shelves, freezer drawers, crispers and door bins may be removed for cleaning pur-

poses. 1. To remove the dairy compartment flap, open it a little , hold with both

hands and slide to the left To remove the dairy bin , hold both ends and

lift upwards.

2. To remove a door bin, hold both ends of the bin and lift up.

3. To remove the shelves, open the doors fully and slide each shelf out.

4. To remove the crispers, lift slightly and pull free.

Page 8

Replacing a faulty light bulb

Refrigerator lamp

Freezer lamp

1. Unscrew the screws securing the light cover.

2. Hold the light cover and pull forward to remove it.

3. Remove and replace the light bulb with one of similar specifications.

4. Reassemble in reverse order.

Since the following are not factory faults they are the owners responsibility:

• Damage to the exterior finish.

• Damage caused by moving, installing or connecting the appliance incorrectly.

• Breakage of glass, plastics and other components.

• Replacement of light bulbs.

• Damage caused through improper use of the appliance.

Owner’s responsibility

1. Unscrew the screws securing the light cover.

2. Hold the light cover and pull forward to remove it.

3. Remove and replace the light bulb with one of similar specifications.

4. Reassemble in reverse order.

Page 9

Questions and answers

Why do the front and sides of the refrigera-

tor feel warm? Heating tubes are located beneath the sur-

face which are designed to prevent water

vapour from condensing on a cold surface.

Why are the doors sometimes difficult to

open? When the door is closed and opened imme-

diately thereafter, warm air which entered

the refrigerator caused a pressure difference

which tends to suck the door closed mo-

mentarily. Wait a little while and the door

should open easily once more.

Why does the refrigerator sometimes make

a peculiar gurgling, buzzing or cracking

noise.?

These are normal and could be caused by

the compressor, the defrost system, the fan,

and material shrinkage / expansion

Levelling the refrigerator can reduce these

sounds.

Why does moisture form on the interior

walls and lamp housing? If the refrigerator or freezer is located in a

hot and humid area, and the door is opened

frequently, water droplets or dew may form

on the interior walls of the appliance.

This has no effect on the performance and

the water may simply be wiped up using an

absorbent cloth.

Why is the refrigerator too warm or too

cold? Set the freezer and refrigerator temperatures

to a more suitable setting.

Before calling a service technician to assist with a problem, please check:

• Are the temperatures set correctly?

• Is the power switched OFF? The power should be ON.

• Has a house fuse blown or a circuit tripped out? Repair or re-set as necessary.

• Is the 15-amp plug pushed firmly into the wall socket? Check another appliance such

as a toaster or kettle in the same socket.

• Has the door been left open for a long time? Close the door and monitor performance.

• Is there adequate provision for airflow at the rear of the unit.?

• Are any of the shelves so tightly packed as to obstruct air flow between stored foods?

Remember that you may be charged for a service call even during the warranty period if

the fault is caused by any of the above.

If you have followed the instructions and still have a problem, contact the nearest

Defy Service Centre. They will be able to advise you on any aspect of the machine or

send a qualified technician to repair it.

Check:

Page 10

Service Centres

If you have followed the instructions and still have a problem,

consult your telephone directory for the nearest regional Defy Service Centre.

They will advise on any aspect of the product, direct you to the nearest Service Agent

or have it repaired by qualified technicians.

Service Centres are located in Bloemfontein, Cape Town, Durban,

East London, Johannesburg, Polokwane, Port Elizabeth and Pretoria.

Other areas are serviced by over 200 authorised Service Agents.

Further details may be obtained from our Web Site:

www.defy.co.za

Notes

Inhaltsverzeichnis

Andere Defy Kühlschrank Handbücher

Defy

Defy DFD446 Bedienungsanleitung

Defy

Defy Refrigerator Freezer Bedienungsanleitung

Defy

Defy DFS132 Bedienungsanleitung

Defy

Defy F 600 LM Bedienungsanleitung

Defy

Defy KS 60361 W Bedienungsanleitung

Defy

Defy upright refrigerator Bedienungsanleitung

Defy

Defy G10750 NE Bedienungsanleitung

Defy

Defy DFS 132 Bedienungsanleitung

Defy

Defy L300 Bedienungsanleitung

Defy

Defy F640 Bedienungsanleitung

Defy

Defy 14875 Bedienungsanleitung

Defy

Defy C410 Bedienungsanleitung

Defy

Defy B 4802 W Bedienungsanleitung

Defy

Defy C300 Bedienungsanleitung

Defy

Defy F660L Bedienungsanleitung

Defy

Defy SBS F740 Bedienungsanleitung

Defy

Defy B120 Bedienungsanleitung

Defy

Defy C375 Bedienungsanleitung

Defy

Defy G605 Bedienungsanleitung

Defy

Defy DFD430 Bedienungsanleitung

Defy

Defy C365 Bedienungsanleitung

Defy

Defy DAC 510 Bedienungsanleitung

Defy

Defy DAC 536 Bedienungsanleitung

Defy

Defy K60328 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
