Owner’s

Manual

CONICAL CHIMNEY HOOD

STAINLESS

CONTENTS

2 Installation

3 Electrical Installation

3 The Controls

4 Operation

4 Maintenance

4 The controls

5 Cleaning and maintaining

stainless steel

6 Problem check

6 Service

www.defy.co.za

CONICAL CHIMNE

STAINLESS

HOOD

The manufacturer strives for

continuous improvements. For

this reason, the text and

illustrations in this book are

subject to change without notice.

Part Number 064 782

Installation

CAUTION

The exhaust air from the chimney hood must not be discharged into a flue or chimney

which is used for exhausting the fumes from other appliances burning gas or fuels.

Please ensure that the regulations concerning the discharge of exhaust air have been

fulfilled. ( SABS IE C60335-2-31)

S L I M L I N E

113

MIN 650

FOR ELECTRIC HOB

MIN 750

FOR GAS HOB

TOP CHIMNEY

FIXING BRACKET

KEYHOLE

SLOTS

RETAINER

HOLES

OUTLET VENT SLOTS IN

LOWER CHIMNEY

Y-PIECE FOR

RECIRCULATED AIR

SPIGOT FOR

OUTSIDE VENTING

FLANGE

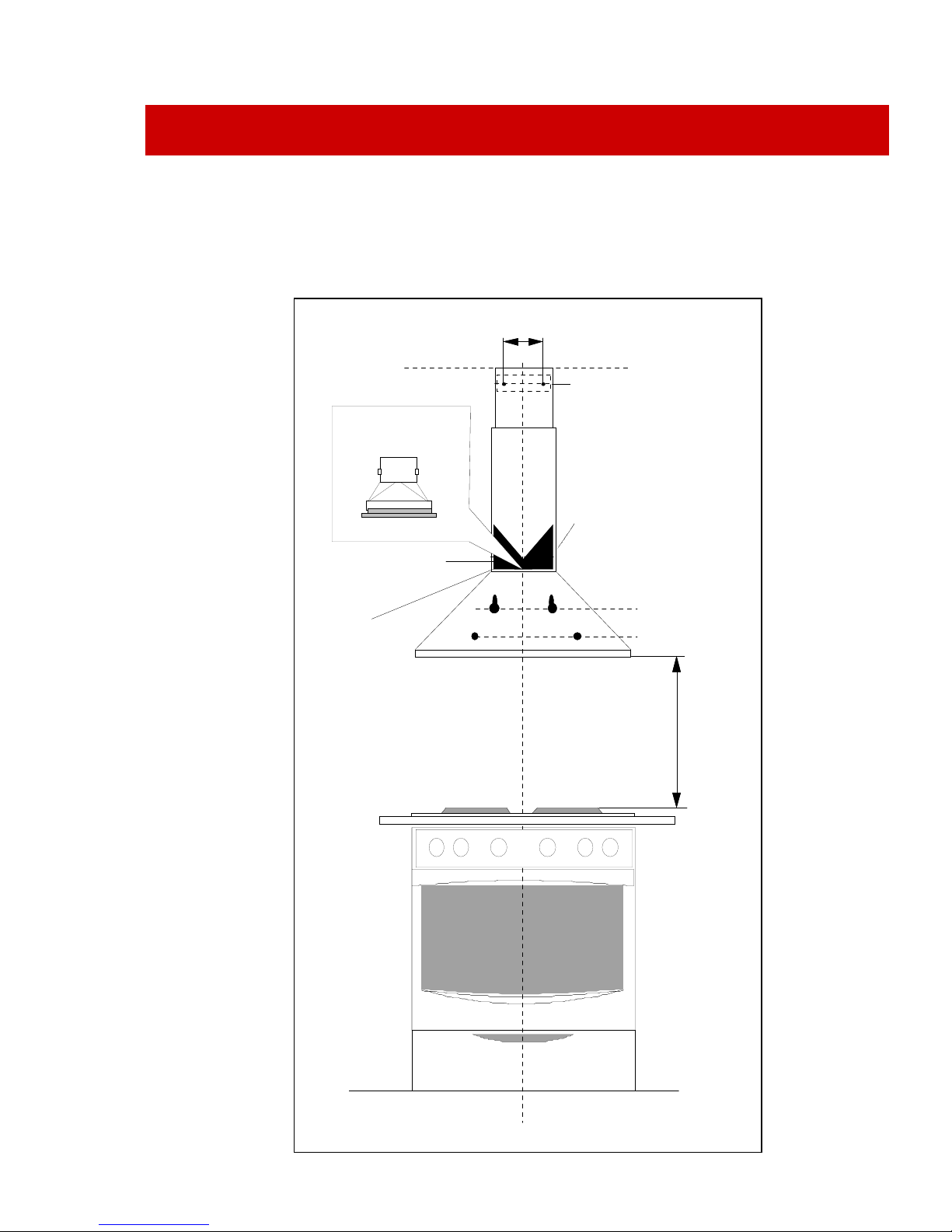

Installation

Please read these instructions carefully before installing and attempting to operate the appliance.

CAUTION

The exhaust air from the chimney hood must not be discharged into a flue or chimney which is

used for exhausting the fumes from other appliances burning gas or fuels.

Please ensure that the regulations concerning the discharge of exhaust air have been fulfilled.

( SABS IE C60335-2-31)

S L I M L I N E

113

MIN 650

FOR ELECTRIC HOB

MIN 750

FOR GAS HOB

TOP CHIMNEY

FIXING BRACKET

KEYHOLE

SLOTS

RETAINER

HOLES

OUTLET VENT SLOTS IN

LOWER CHIMNEY

Y-PIECE FOR

RECIRCULATED AIR

SPIGOT FOR

OUTSIDE VENTING

FLANGE

Wall mounting.

Remove the aluminium grease filters (perforated plates) by gently pulling down on the

handles so that the interior of the cooker hood and the keyhole slots are exposed.

The hood must be mounted directly over the cooking area. The minimum distance

between the cooking surface and the underside of the hood must be 650 mm. for

electric cookers and 750 mm. for gas burners.

Get two people to help you hold the body of the hood in position against the wall and

using a pencil, mark the two keyhole slots and the two retaining hole positions, on the

wall.

Using a masonry bit, drill a hole at the top of each marked slot and at the centre of the

retaining hole marks. Insert a rawl plug into each hole.

Using pan-head screws with a head diameter slightly smaller than the bottom opening

of the keyhole slot, insert the screws part way into the marked keyhole positions.

Leave about 5 mm of the screws proud of the wall.

Installation continued

The Hood has the ability to either circulate the filtered air back into the kitchen o

to exhaust the filtered air throu

h an outside wall or chimne

pipe. Decide on which

option best suits your needs and proceed with the installation accordingly

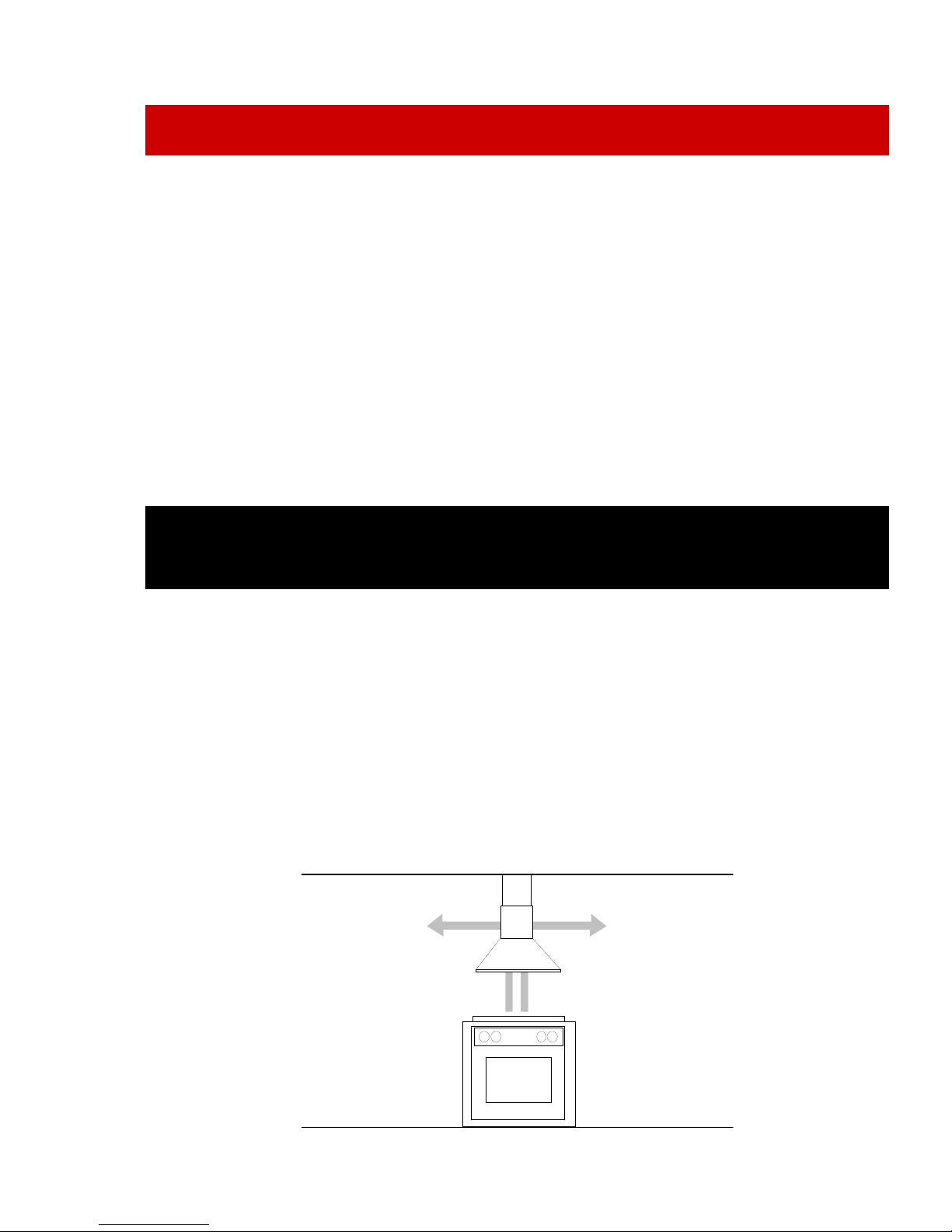

Option 1—Re- circulated air

Fit the metal Y-piece on to the main body using the self tapping screws supplied

Fit the larger of the two chimney pieces to the main body using the two self tapping

screws supplied.

Lift and hang the hood and chimney assembly onto the two keyhole mounting screws.

Fit and tighten two suitable retainer screws ensuring all the while that the hood is

level.

Using the top chimney fixing bracket as a template, mark the hole positions. Drill and

attach the fixing bracket to the wall at the marked positions. Reposition the top

chimney piece so that the side holes correspond with the holes in the fixing bracket

and secure with two self tapping screws.

CEILING

ceiling

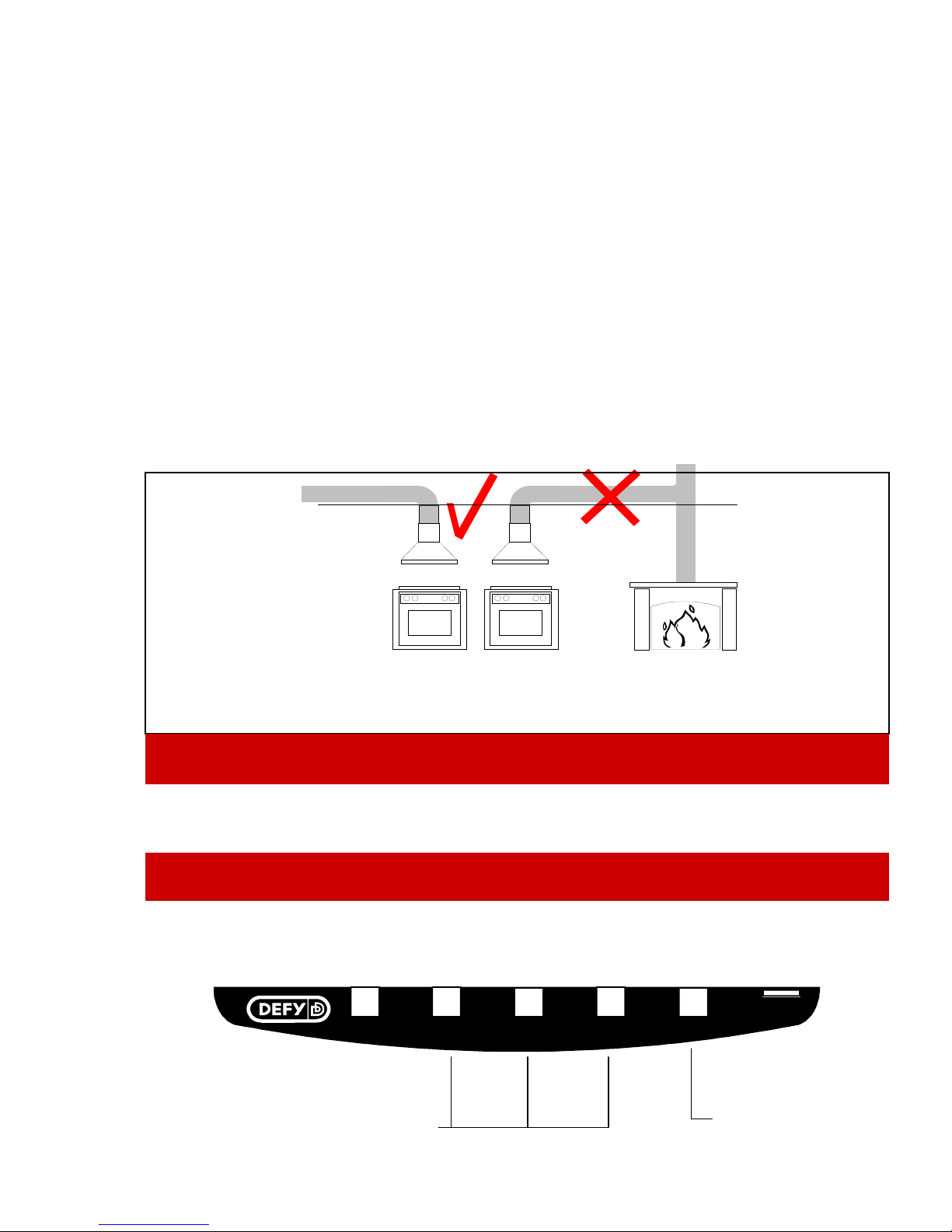

To prevent the risk of fire, do not discharge the exhaust air into a flue from other

appliances burning gas or fuel.

Connect the appliance to a 15A 230V 50 Hz earthed wall socket.

Switch off the power at the mains in the event of a fault or when cleaning the appliance.

Electrical installation

The controls

FAN SPEED SELECTO

These at located under the hood at the front.

Option 2 - Outside venting

Fit the plastic spigot to the main body using the self tapping screws supplied

Connect a 125 mm. diameter flexible duct straight onto the spigot flange.

Ensure that the duct vents to the outside air.

To prevent the risk of fire, do not lead the duct into an existing chimney or flue as the

duct could carry airborne combustible grease and fats

Fit the larger of the two chimney pieces to the main body using the two self tapping

screws supplied.

Lift and hang the hood and chimney assembly onto the two keyhole mounting screws.

Fit and tighten two suitable retainer screws ensuring all the while that the hood is

level.

Using the top chimney fixing bracket as a template, mark the hole positions. Drill and

attach the fixing bracket to the wall at the marked positions. Reposition the top

chimney piece so that the side holes correspond with the holes in the fixing bracket

and secure with two self tapping screws.

0LIGHT

FAN 1 FAN 2 FAN 3

INDICATOR LIGHTOFF

HOB LIGHT ON /OFF

Operation

Switch on the chimney hood prior to cooking.

Select the fan speed you would require depending on the type of cooking being done.

3 for high extraction level, 2 for medium and 1 for low.

If required, you can illuminate the cooking area by switching the hood lights on.

Leave the hood running for a short period after the cooking has been completed to

clear any smoke and odours.

CAUTION There should be adequate ventilation of the room when the chimney hood

is used at the same time as appliances using gas or other fuels.

CAUTION Do not flambé under the chimney hood

Maintenance

CLEANING

Disconnect the power before attempting any maintenance or cleaning.

Remove the aluminium grease filters by gently pulling down on their handles.

Wash the aluminium grease filters every month in a solution of warm water and

dishwashing liquid. This will remove accumulated grease and fats and maintain

extraction performance.

Allow the filters to dry before re-fitting them.

When washing is no longer effective, the aluminium filters should be replaced.

Located on the fan housing is a round charcoal packed filter. This filter is designed to

absorb and neutralise cooking odours.

The life of the charcoal filter is approximately 2 years and when odour absorption is no

longer effective it should be replaced.

Remove the charcoal filter by gently turning it in an anti-clockwise direction.

CAUTION

If cleanin

is not carried out in accordance with the instructions, the accumulated

grease could, over time, become a fire risk.

REPLACING A FAULTY LIGHT

Disconnect the power

Working from below the hood, grip the lamp retaining spring clip ends between thumb

and forefinger.

Squeeze the ends together and withdraw the clip

This allows the lamp socket to drop from the lamp housing.

Hold the lamp socket firmly and turn the lamp anti-clockwise to disengage it from the

socket.

Replace the lamp with a similar lamp 240V 50 W and re-assemble in reverse order.

Cleaning and maintaining

stainless steel chimney hoods

ALWAYS WIPE IN THE DIRECTION OF THE BRUSHED TEXTURE ON THE

STAINLESS STEEL

On stainless steel models, some components have a coloured protective film which

protects against accidental scratching. This film should be removed before

operating the hood.

Stainless steel is not adversely affected by normal household use but because of it’s

reputation for durability, it is sometimes assumed to be indestructible, and therefore

subjected to misuse or even abuse. Care should be taken to avoid such ‘abnormal use’.

Cleaning materials

DO USE

A soft cloth or synthetic sponge.

Soap

Diluted dishwashing liquid.

A nylon bristle brush.

Cleaners labelled “Suitable for stainless steel”

DO NOT USE

Acids

Coarse abrasive cleaning powders.

Metallic scourers, steel wool or metal scrapers.

Wire brushes or emery paper.

So called “silver cleaners”.

Kitchen scourers / foam pads

Cleaning products containing Ammonia

Cleaning procedure

Frequent cleaning is recommended rather than an occasional aggressive clean.

Routine cleaning will preserve the corrosion resistance and the appearance of the

stainless steel for many years.

Clean the stainless steel as often as necessary ( i.e. when noticeably dull or dirty ) and

use the simplest cleaning method that will effectively do the job.

Use clean water, or a mild detergent solution applied with a soft cloth or sponge. Rinse

well and wipe dry.

Problem check

Service

If you have followed the instructions and still have a problem, contact the nearest Defy

Service Centre. They will be able to advise you on any aspect of the hood or send a

qualified technician to repair it.

Before calling a service technician to assist with a problem please check:

the main distribution board to see if a circuit has tripped or a fuse has blown.

the wall socket. Check with another appliance such as a kettle.

that the filters have been cleaned

that the chimney is not blocked.

Remember that you may be charged for a service call even during the warranty period if

the fault is due to or caused by any of the above.

The manufacturer strives for continuous improvements. For this reason, the text

and illustrations in this book are subject to change without notice.

Part Number 064 782
