LAUNDROMAIN ELECTRLOGIC 850

TOP

AUTOMATIC

WASHING

MACHINE

CONTENTS

2 Features

2 Accessories

3 Safety Precautions

4 Installation

6 Electrical Installation

6 Loading the Machine

7 Functions of the Controls

8 Programme Selections

9 Time Delayed Start

9 Customising Programmes.

11 Operating Procedure

12 Maintenance

13 Technical Specification

14 Trouble Shooting

www.defy.co.za

CONGRATULATIONS

You are now the proud owner of one of the finest and most modern washing machines

that today’s technology can produce. You and your machine are going to make a great

team together. But first it will pay if you really get to know each other. This book will tell

you all you need to know about your machine, what it will do and how to do it. Please

read all the instructions carefully before operating the machine.

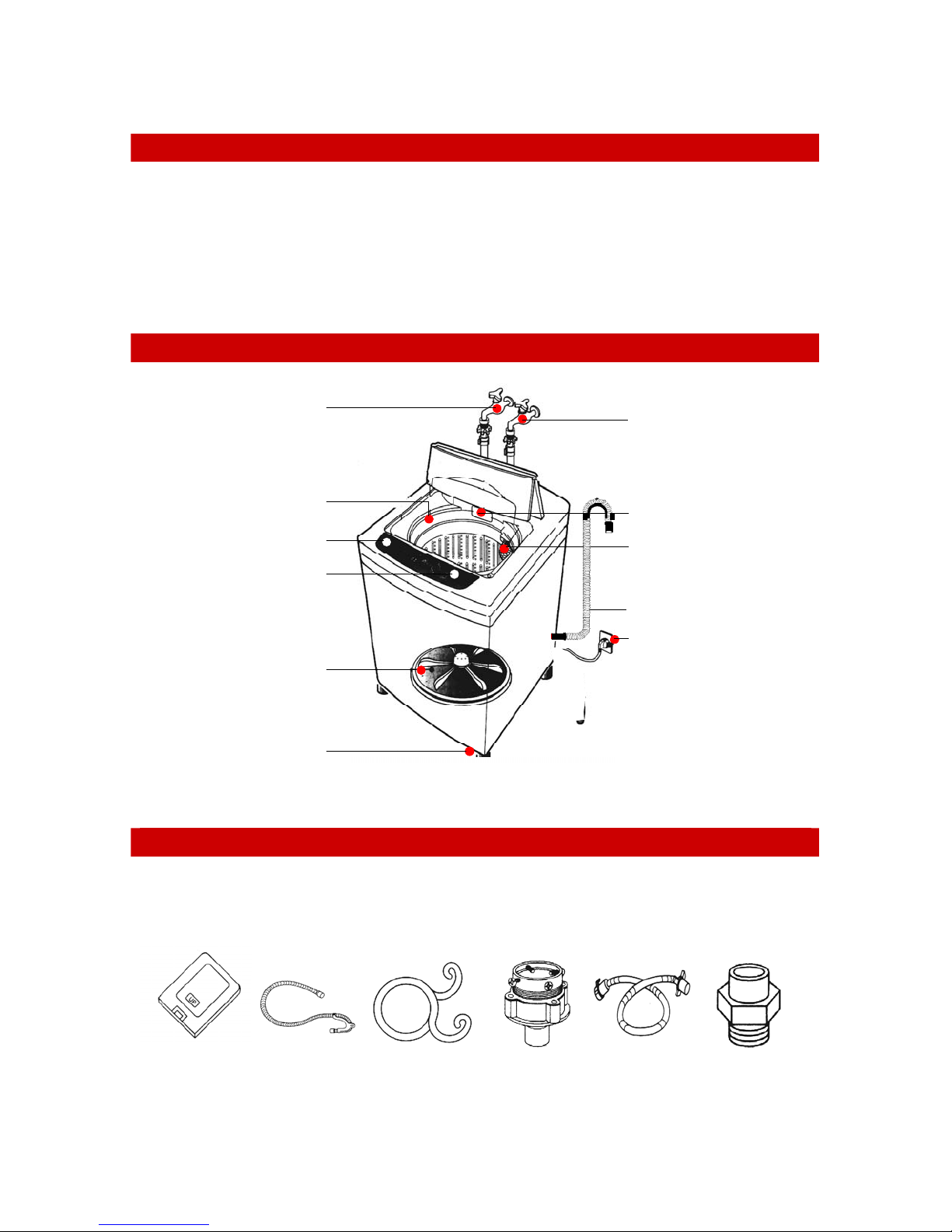

FEATURES

HOT WATER TAP

Close the tap when

the wash cycle has

been completed.

SOFTENER INLET.

CONTROL PANEL.

POWER ON / OFF

SWITCH.

PULSATOR.

ADJUSTABLE

LEVELLING FOOT.

COLD WATER TAP

Close the tap when

the wash cycle has

been completed.

DETERGENT BOX

LINT FILTER

POWER CORD

AND PLUG

DRAIN HOSE

ACCESSORIES

BASE

COVER

DRAIN

HOSE

DRAIN

HOSE

CLAMP

WATER TAP

ADAPTOR

INLET

HOSE

INLET

ADAPTOR

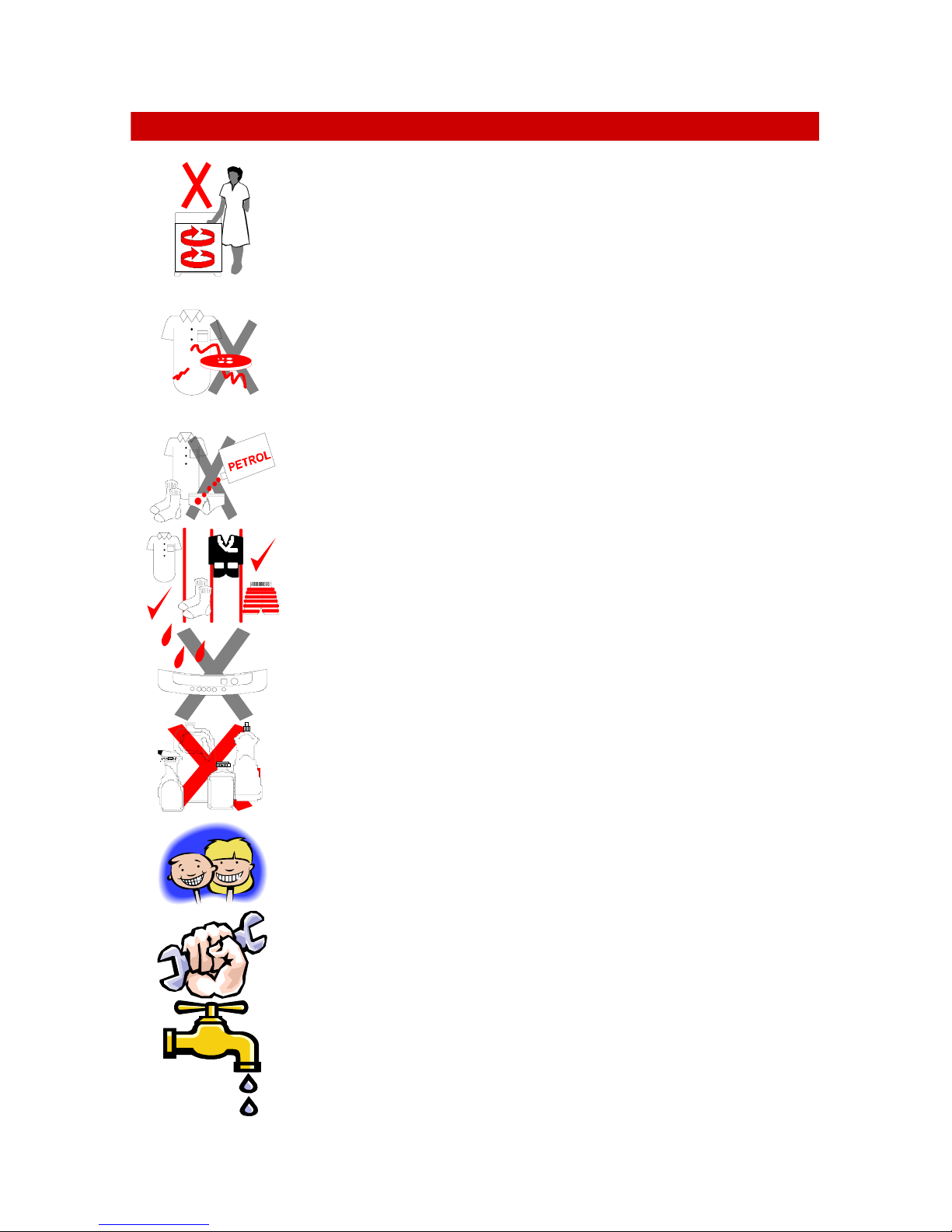

SAFETY PRECAUTIONS

Do not reach inside the tub while the machine is working.

Wait until all motion stops.

Before washing, check all clothes for loose buttons and

tears.

Check pockets for coins, pins or other small articles.

Close zips and fasteners.

Wash small articles inside a pillow slip.

Do not wash clothes soaked in petrol, thinners, vegetable

oil or any other flammable liquids. Nor should any of

these liquids be added to the wash water as they constitute

a fire hazard.

Only use the machine for washing fabrics. Do not attempt

to wash plastic leather or fibreglass. Sort and separate

clothes by fabric, colour and degree of dirt.

Avoid spraying water on to the control panel and back of

the machine.

Do not use detergents which are not specifically designed

for top loading automatic washing machines.

Do not allow children to play with or crawl inside the

machine.

Supervise them closely when the washer is in use.

Always unplug the machine from the wall socket when it

requires cleaning or service. Only permit qualified

persons to repair or install parts in the washer.

Do not use water which is hotter than 65 degrees Celsius

as this may deform plastic parts of the machine.

INSTALLATION

UNPACKING

• Remove all packaging and dispose of it in a responsible manner.

• Open the wash-tub lid and remove all the accessories stored in the drum.

• Do not attempt to operate the machine while any of the packaging is still in place.

POSITIONING

• The machine should be installed in a well ventilated place, away

from direct sunlight.

• Hot and cold water taps should be located within 1 metre of the

inlet valves.

• Positioned the machine on a flat and stable uncarpeted floor

capable of supporting the fully loaded washer.

• An adjustable levelling foot is located at the right

front of the machine and may be turned in or out to

achieve stability. An unstable machine will vibrate

and generate excessive noise.

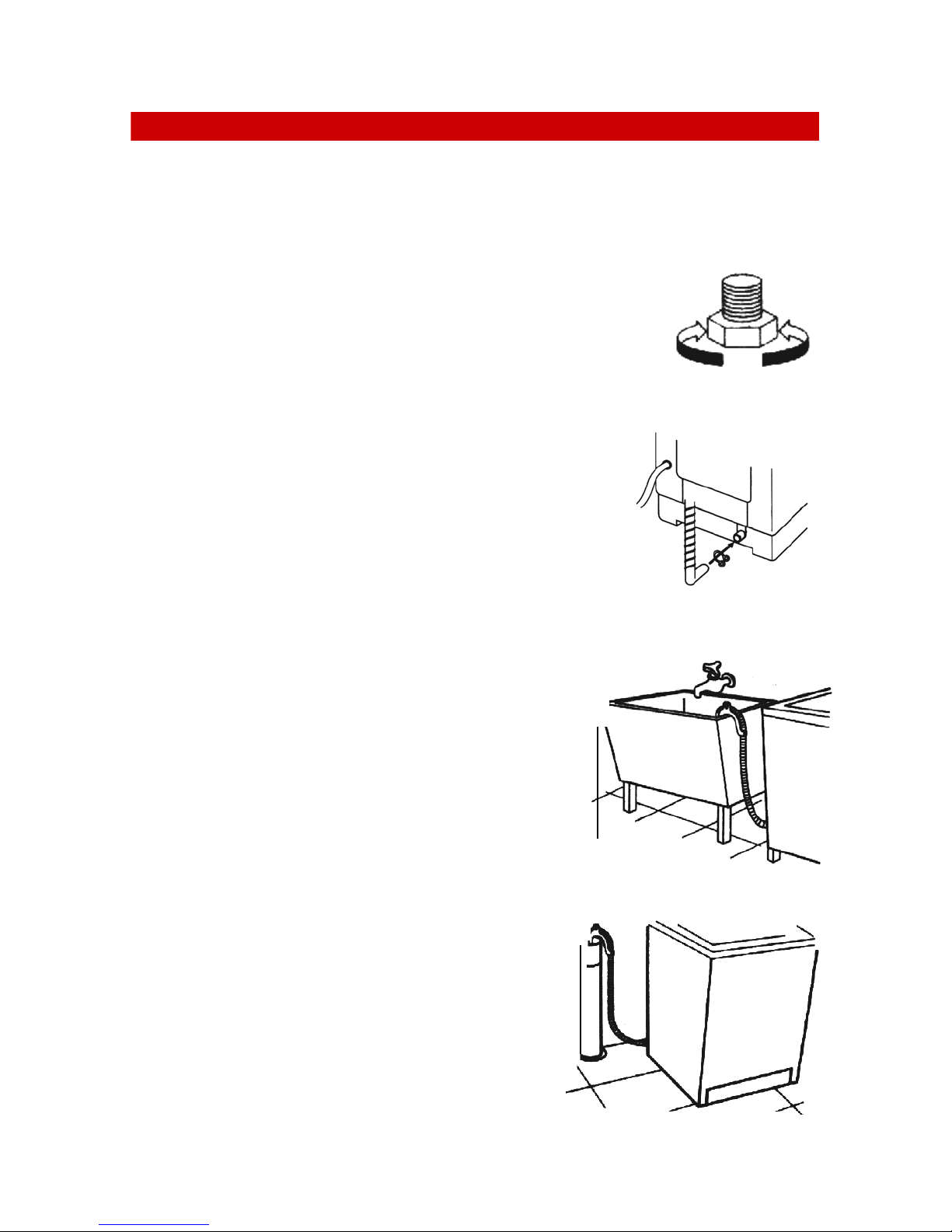

DRAIN HOSE

• Connect the drain hose to the drain outlet at the rear

of the machine and secure it with the hose clamp

supplied.

• Hook the outlet end of the drain hose over the lip of a

sink or outlet pipe.

SINK OR LAUNDRY TUB DRAIN

• The top lip of the sink must be at least 860mm (A)

above floor level and not higher than 1300mm.

PIPE DRAIN

• The minimum inside diameter of the pipe drain

should be 30mm and the pipe should be able to

drain 30 litres per minute.

• The top lip of the pipe should be at least 860mm

(B) above floor level and not higher than 1300mm.

Drain hose Hose clamp

Drain

outlet

INSTALLATION - CONTINUED

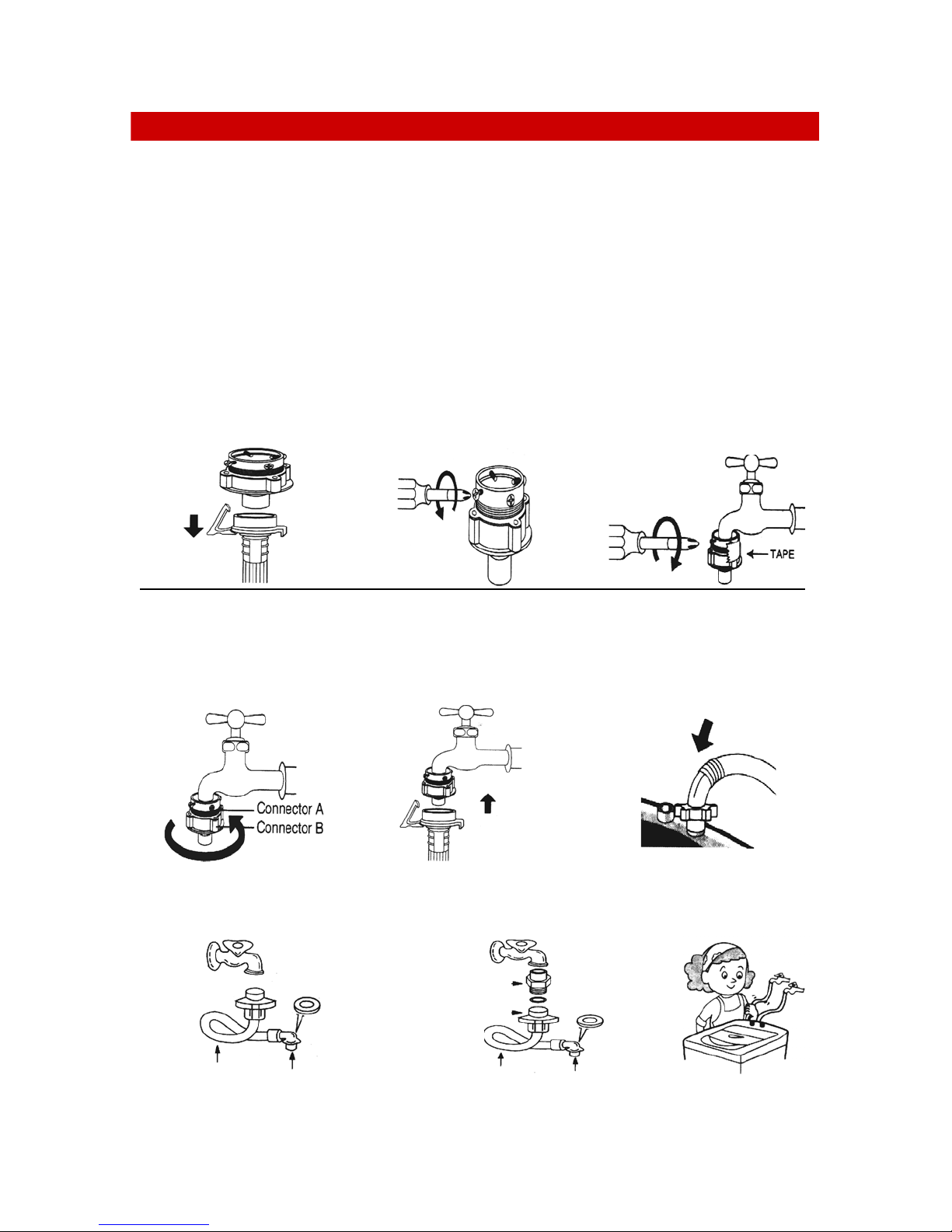

INLET HOSES

• Connect the respective inlet hoses to the hot and cold water taps and to the machine’s inlet

fittings. (see sketches below). The hot water inlet is on the left and the cold water inlet on

the right.

CONVENTIONAL TAPS

Pull down the collar of the

inlet valve to separate it

from the water tap adaptor.

Loosen the four screws

in the water tap adaptor.

Fit the tap adaptor to the

tap so that the rubber seal

fits snugly. Then tighten

the four screws evenly.

Remove the tape and

screw (B) into (A).

Connect the inlet hose to

the water tap adaptor.

Attach the other end of

the hose to the machine

inlet by turning it clock-

wise until tight.

FOR THREADED TAPS

HOSE

CONNECTOR WASHER CONNECTOR INLET

CONNECTOR

HOSE

WASHER

Open the water taps and check for any leaks. Tighten fittings if necessary.

ELECTRICAL INSTALLATION

• The washing machine is designed to operate on a 230 Volt, 50 Hz, 15 Amp, AC power

supply.

• The machine should be connected to an earthed 3 pin wall socket.

• If the power-cord should ever need replacing, use only a genuine cord available from

the nearest Defy Service Centre.

The appliance must be earthed and the manufacturer and seller do not

accept responsibility for any damage due to incorrect electrical connection.

LOADING THE MACHINE

PREPARATION

• Close all zippers, snaps and hooks to prevent them from snagging other articles.

• Remove pins, and other hard items to prevent them from scratching the machine.

• Empty all pockets and turn them inside out.

• Turn down cuffs and turn synthetic knits inside out.

• Tie strings and sashes so they will not tangle.

• Treat spots and stains before washing.

SORTING

• Mix large and small items in each load.

• Separate heavily soiled items from lightly soiled ones.

• Separate dark colours from light colours.

• Separate colourfast items from non-colourfast ones.

• Separate robust fabrics from delicate.

• Separate whites from colours.

• Lift and fold the lid.

• Arrange the articles to be washed loosely round the perimeter of the tub.

• Load evenly as an off balance load may cause unnecessary vibrations.

• Use a large load programme when washing permanent press garments. These items

need more space to move than heavy items such as jeans and towels.

• Do not overload the machine as this will result in poor cleaning, increased creasing

and excessive lint formation.

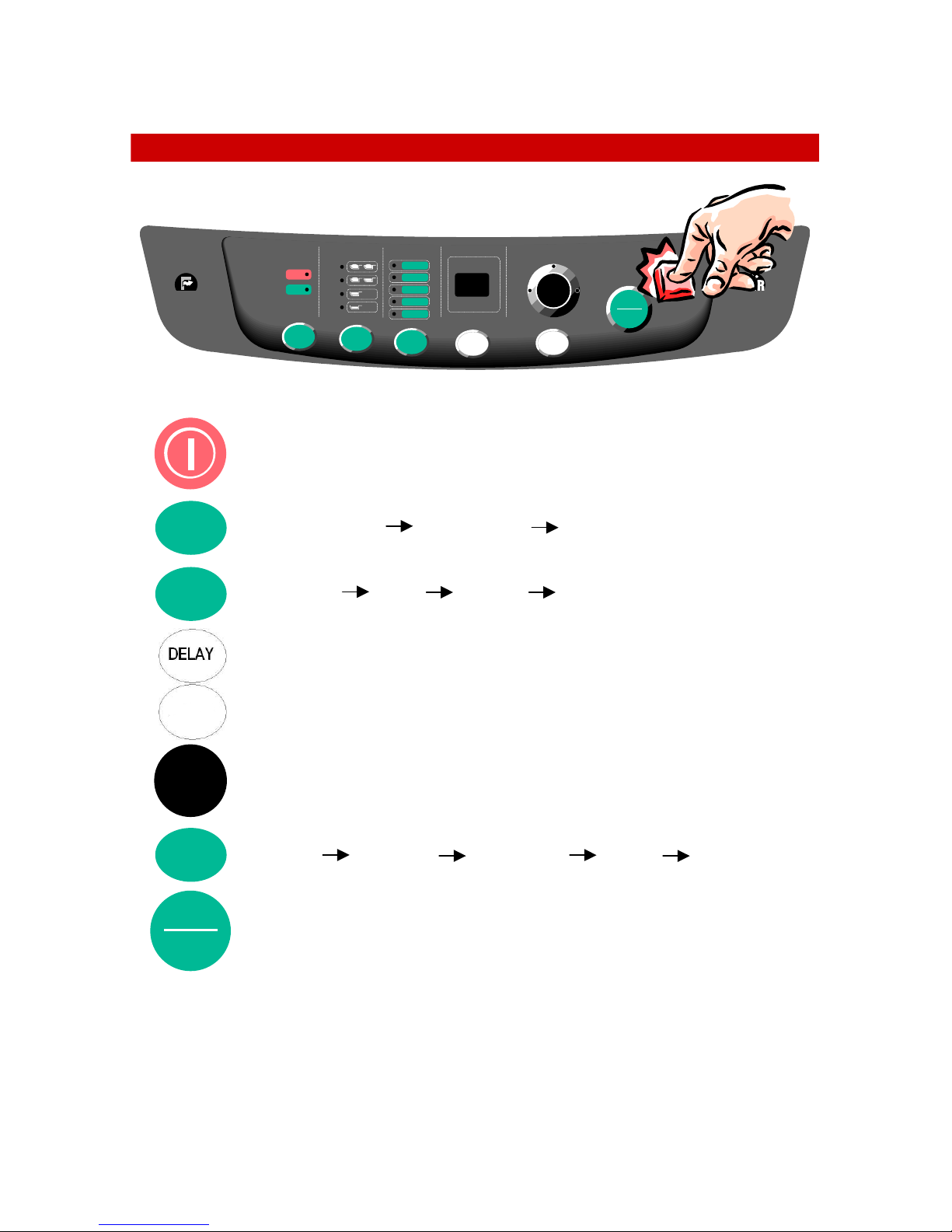

FUNCTIONS OF THE CONTROLS

WASH

TEMP.

DETERGENT

HOT

COLD

HIGH

MED.

LOW

SMALL

FUZZY

HEAVY

ECONOMY

WOOL

REMAIN

TIME

MIN. WASH

RINSE

SPIN

CONTROL

SPIN ONLY

START

HOLD

POWER

WASH

TEMP

SOAK

WATER

LEVEL CYCLE DELAY MODE

ON / OFF

FUZZY POWER

Press this pad to turn the power on or off.

WASH

TEMP

Press this pad to select the water temperature. Repeated pressing will

highlight COLD COLD + HOT HOT.

WATER

LEVEL

Press this pad to select the water level. Repeated pressing will highlight

MEDIUM HIGH SMALL LOW.

Press this pad to engage the time delay function.( 2— 48 hours )

The wash will be completed at the end of the selected time.

Press this pad to select a partial wash cycle or any combination of:

WASH, RINSE, SPIN.

CONTROL

SPIN ONLY

Press this pad to change the WASH TIME, RISE TIME, or SPIN TIME.

The pad is also used for selecting SPIN ONLY.

CYCLE

Press this pad to select the required wash cycle.

FUZZY BLANKET ECONOMY WOOL SOAK.

START

HOLD

Press this pad to commence operation. Pressing it a second time will

cause the machine to pause, during which time any settings may be

altered. Pressing it again will cause the machine to resume the wash cycle

at the new settings.

NOTE:

Always refer to garment care labels for the manufacturer's recommendations.

MODE

PROGRAMME SELECTION

FUZZY LOGIC PROGRAMME

This machine has Fuzzy Logic sensors. These enable it to evaluate each load placed in

the drum and to select and modify a wash programme to suit the load.

Do not use the FUZZY programme for woollen or delicate garments.

POWER START

HOLD

To select Fuzzy, simply press the

POWER On pad and then the START /

HOLD pad.

HEAVY PROGRAMME

Use this programme for washing blankets, curtains and small rugs.

CYCLE START

HOLD

Select BLANKET. Select water level and temp.

ECONOMY PROGRAMME

This programme saves water and is ideal for washing lightly soiled clothes.

CYCLE START

HOLD

Select ECONOMY. Select water level and tem

WOOL PROGRAMME

Wash 1.5 kg maximum. Do not wash chamois or leather.

CYCLE

START

HOLD

Select WOOL.

After the detergent has dissolved, a buzzer will sound. Put the clothes into the tub

after the buzzer has sounded. Close the lid and push the start / hold pad.

SOAK PROGRAMME

Use this programme for blue jeans, overalls and heavy duty wear.

CYCLE START

HOLD

Select SOAK. Select water level and temp.

REMAIN

TIME DELAYED START

The wash cycle completion time may be delayed by 2 to 48 hours. This feature is

particularly useful when you are at work and only want the machine to finish washing

just before you arrive home.

To cancel the “time Delayed Start” press the power button. Wait five seconds before

pressing the power button once more to resume.

EXAMPLE: To set a completion time 8 hours from the present, proceed as follows:

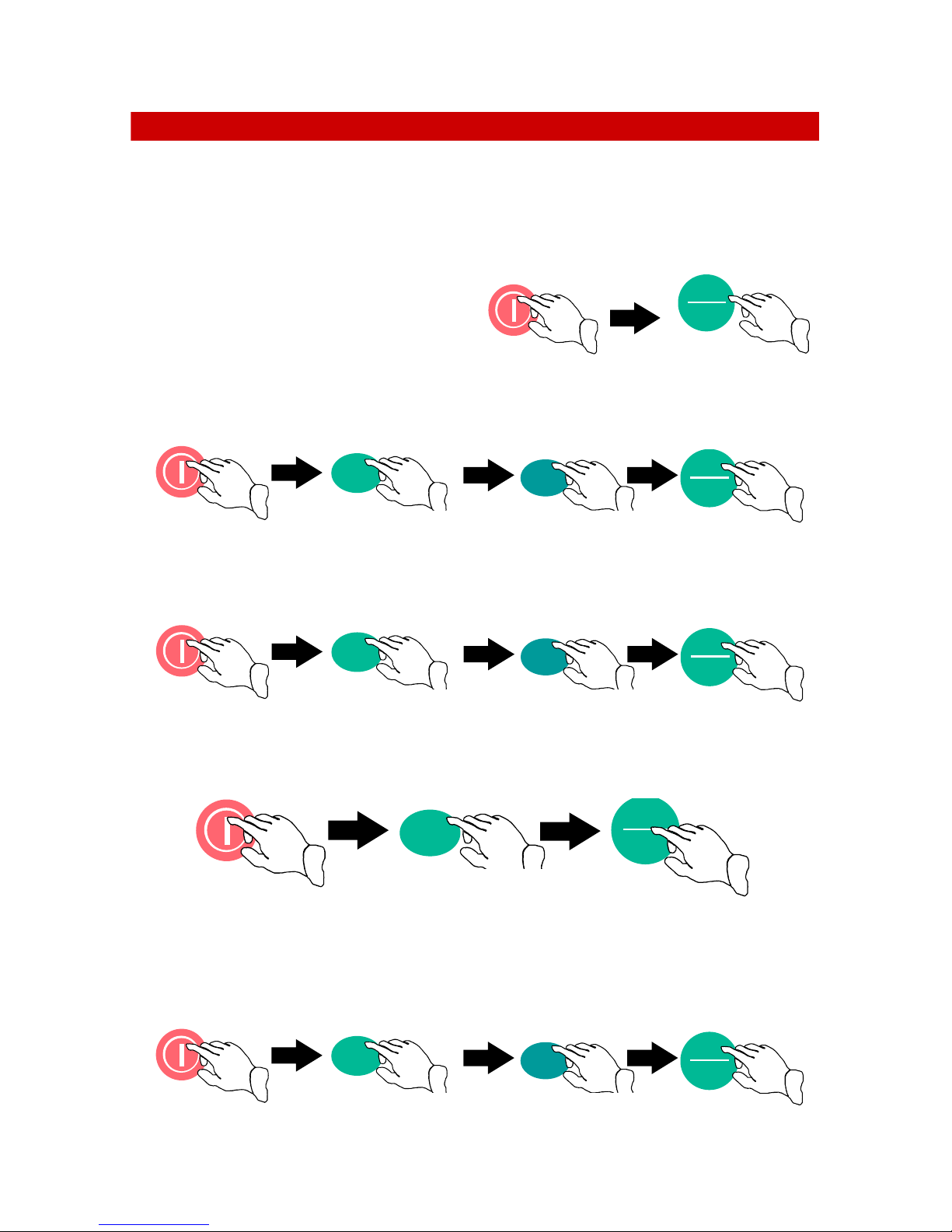

CUSTOMISING PROGRAMMES

MODE

CONTROL

SPIN ONLY

MODE

CONTROL

SPIN ONLY

MODE

CONTROL

SPIN ONLY

START

HOLD

Press the POWER ON pad.

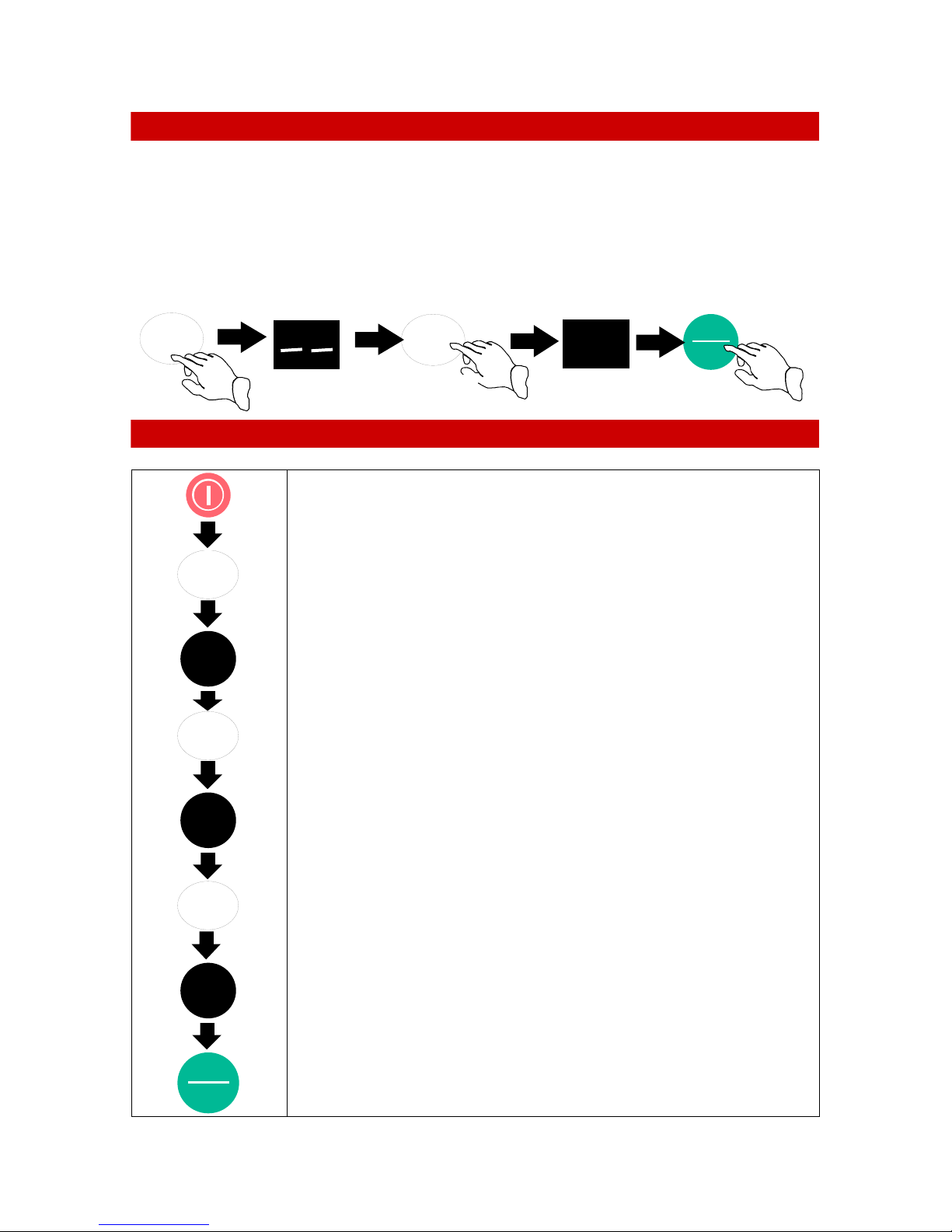

SELECTING THE WASH TIME

Press the Mode pad and the WASH light will illuminate.

Repeatedly press the CONTROL pad to select 14, 18, 0, 6 or 10

minutes.

If you do not want a wash cycle, select the time at 0 minutes.

SELECTING THE NUMBER OF RINSES

Press the Mode pad and the RINSE light will illuminate.

Repeatedly press the CONTROL pad to select 2, 3, 4, 0, or 1 rinse.

If you do not want a rinse cycle, select the time at 0 rinse.

SELECTING THE SPIN TIME

Press the Mode pad and the SPIN light will illuminate.

Repeatedly press the CONTROL pad to select 5, 7, 9, 0, 1 or 3

minutes.

If you do not want a spin cycle, select the time at 0.

Press the START / HOLD pad.

REMAIN START

HOLD

Display

DELAY

MODE

Set to 8 Display

CONVENIENT SPIN ONLY SELECTION

Press the POWER ON pad.

Press the CONTROL pad.

Press the START HOLD pad.

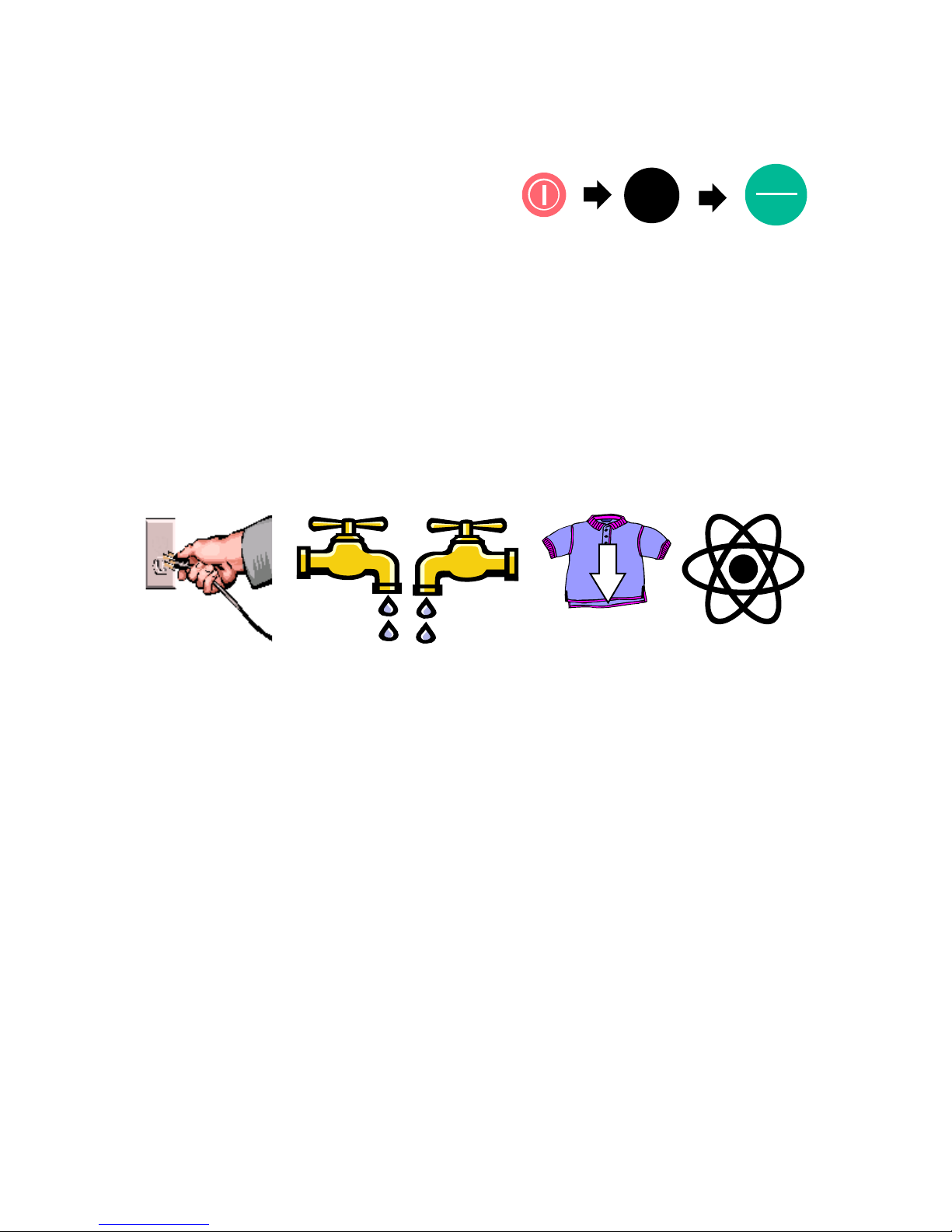

BEFORE ANY OF THE WASH OPTIONS ARE SELECTED YOU MUST FIRST:

• Insert the power plug into an earthed wall socket and switch on.

• Open the hot and cold water taps.

• Load the washing into the machine. (see Loading)

• Add detergent and if necessary softener and bleach. (See Adding detergents)

• Close the lid.

• NOTE: DO NOT OPEN THE HOT WATER TAP BY ITSELF.

• IT IS ESSENTIAL TO OPEN THE COLD WATER TAP FOR ALL

PROGRAMMES. THE MACHINE RINSES IN COLD WATER EVEN WHEN

USING A HOT WASH.

HOT

OPTIONAL

COLD

CONTROL

SPIN ONLY

START

HOLD

Andere Handbücher für Maximaid 850

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Defy Waschmaschine Handbücher

Defy

Defy DAW 376 Bedienungsanleitung

Defy

Defy DTL146 Bedienungsanleitung

Defy

Defy AUTOMAID Bedienungsanleitung

Defy

Defy WMY 71283 MLCW Bedienungsanleitung

Defy

Defy WTL8019W Bedienungsanleitung

Defy

Defy Maximaid 850 DAW 321 Bedienungsanleitung

Defy

Defy TWINMAID Bedienungsanleitung

Defy

Defy DTT180 Bedienungsanleitung

Defy

Defy DTL151 Bedienungsanleitung

Defy

Defy LAUNDROMAID Electro Logic 920 Bedienungsanleitung

Defy

Defy AUTOMAID SM Bedienungsanleitung

Defy

Defy DAW 318 Bedienungsanleitung

Defy

Defy TWINMAID 1000 Bedienungsanleitung

Defy

Defy Automaid 600 electronic Bedienungsanleitung

Defy

Defy DAW371 Bedienungsanleitung

Defy

Defy LAUNDROMAID Electro Logic 1300 Bedienungsanleitung

Defy

Defy Twinmaid 800 Bedienungsanleitung

Defy

Defy DTT151 Bedienungsanleitung

Defy

Defy MAXIMAID 720M Bedienungsanleitung

Defy

Defy DAW386 Bedienungsanleitung

Defy

Defy DTL148 Bedienungsanleitung

Defy

Defy MAXIMAID 800 DAW 327 Bedienungsanleitung

Defy

Defy DTL144 Bedienungsanleitung

Defy

Defy DTL160 Bedienungsanleitung

Beliebte Waschmaschine Handbücher anderer Marken

Tricity Bendix

Tricity Bendix AW 1000 W Produkthandbuch

Panasonic

Panasonic NA-F60L5WRB Bedienungsanleitung

GE WSLP1500 Handbuch

Electrolux

Electrolux EWF1284EDW Bedienungsanleitung

Bosch

Bosch WAN2829BSN Bedienungsanleitung

LG TV2516DV3B Bedienungsanleitung

LG TH2517DSAV Bedienungsanleitung

VESTEL

VESTEL CMH-XL 7510 TE Bedienungsanleitung

AEG

AEG 74335 Bedienungsanleitung

Johnson

Johnson JWF721A Bedienungsanleitung

Beko

Beko WTE7604XLW0 Bedienungsanleitung

Danby

Danby DTT100A1WDB Montageanleitung

Amica

Amica WA 14 Ex Bedienungsanleitung

Daewoo

Daewoo DWD-F1222 Bedienungsanleitung

Bosch

Bosch WAS28461AU Bedienungsanleitung

Miele

Miele PW 6080 Vario Bedienungsanleitung

Finlux

Finlux FLX108CF220 Bedienungsanleitung

Whirlpool

Whirlpool 3LBR5132AN0 Bedienungsanleitung
