Del ozone Z0-151 Bedienungsanleitung

INSTALLATION & OPERATIONS

MANUAL FOR DELZONE® Z0-151

PORTABLE PURIFIER

MANUFACTURED BY

3428 Bullock Lane

San Luis Obispo, CA 93401

800-676-1335

4-0252 Rev B - 050904

IMPORTANT SAFETY INSTRUCTIONS

When using the DELZONE® ZO-151 PORTABLE PURIFIER, basic

safety precautions must always be followed, including the following:

1.READ AND FOLLOW ALL INSTRUCTIONS

2.Install in a sheltered area protected from the weather and exposure

to water.

3.Unplug the Portable Purier before attempting any service. Never

attempt any servicing while wet.

4.Do not bury cord.

5.WARNING: To reduce the risk of electrical shock, replace damaged

cord immediately.

6.Leave rooms and areas unoccupied during period of treatment. It is

preferable to leave the ozone generator itself outside of the room

and pass the diffusion stone through a door or window opening.

7.Do not reenter treated area for thirty minutes.

8.Avoid inhaling high concentrations of ozone.

9.Do not expose your pets to ozone

10. When used for water purication, make sure that:

a) If the electrical connection of the ZO-151 Portable Purier is

made directly to a spas electrical system, be sure the spa or wa-

ter vessel is protected by a ground fault circuit interrupter

(G.F.C.I.). If the Portable Purier is connected to an independent

electrical supply, a G.F.C.I. should be installed between the Z0-

151 Portable Purier and the electrical supply.

b) When mounting to a spa, fountain, holding tank, livestock/water

tank or wading pool for permanent application: connect only to a

grounded grounding-type receptacle.

c) Mount the Portable Purier at least twelve (12) inches above the

maximum water level and at least ve (5) feet away from the spa

or water vessel.

d) As with any electrical appliance, to reduce the risk of injury, the

Portable Purier should be placed where it is inaccessible to

children or anyone in the water.

11. SAVE THESE INSTRUCTIONS.

TABLE OF CONTENTS

SAFETY INSTRUCTIONS...................................................................... 1

TABLE OF CONTENTS.......................................................................... 2

HISTORY OF OZONE............................................................................ 3

OZONE IS AN EFFECTIVE PURIFIER .................................................. 4

OPERATION........................................................................................... 4

PORTABLE APPLICATIONS

Elimination of Odors in Rooms ........................................................ 5

Ozone Treatment of Boats and RVs ................................................ 7

Automobile Odors ............................................................................ 7

Treatment of Fruits and Vegetables ................................................. 8

Treatment of Food and Cooking Utensils......................................... 8

Portable Water Treatment ................................................................ 8

PERMANENT APPLICATIONS

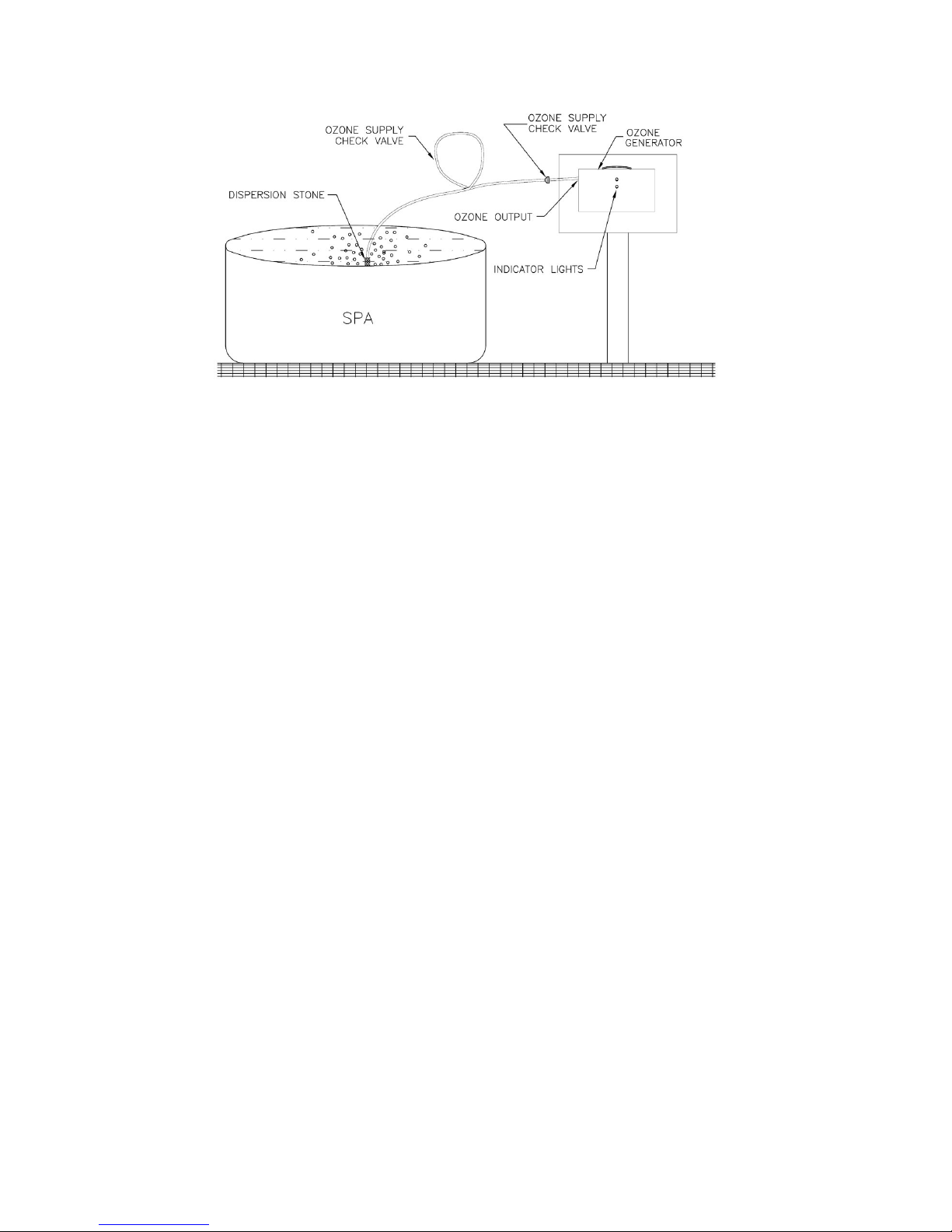

Spas and Pools................................................................................ 9

Thru-Wall Dispersion Installation ..................................................... 10

TROUBLE SHOOTING .......................................................................... 11

MAINTENANCE

Changing the Ozone Lamp .............................................................. 12

Cleaning the Dispersion Stone ........................................................ 13

Changing the Pump Filter ................................................................ 13

UNIT SPECIFICATIONS ........................................................................ 13

PARTS LIST ........................................................................................... 13

WARRANTY ........................................................................................... 14

THE HISTORY OF OZONE

Ozone, sometimes called active oxygen, is comprised of three atoms of

oxygen. Ozone is a natural purier and one of nature’s basic elements.

Ozone is produced in nature when the ultraviolet rays of the sun strike

oxygen molecules. When this occurs high in the atmosphere it creates what

we know as the “ozone layer”. Because the oxygen molecules absorb the

sun’s energy, living things on earth are protected from the damaging and

potentially cancer-causing rays of the sun. Nature also produces ozone

near the earth’s surface, especially during a thunderstorm, when lightning

ashes. The sweet, fresh smell after a thunderstorm is ozone.

Ozone will destroy viruses, bacteria, and virtually all other forms of microbes,

as well as break down chemical contaminants. It does this in both air and

water and does it without the use of chemicals or additives of any kind!

Ozone’s use as a water purier was discovered in the late 1800’s in the

Netherlands. Its rst large-scale use was in Nice, France where it was

used to purify drinking water. Today, more than thirty countries use ozone

systems to purify drinking water. In fact, Los Angeles has one of the larg-

est ozone water treatment plants in the world, processing more than 580

million gallons of city drinking water per day. This system was chosen over

a chlorine system due to ozone’s extraordinary ability to effectively purify

water without negative side effects. In addition, most of the world's bottled

water plants use ozone as part of their water purication process.

Ozone is also gaining tremendous popularity as an air purier throughout

the world. Our homes and ofces can be a source of environmental pollu-

tion. The EPA estimates that indoor pollution causes tens of thousands of

illnesses each year, and many more from contaminated water. Ozone is

the most effective way to purify your air and water.

Ozone is clearly superior to virtually all other forms of purication. When

you use the PORTABLE PURIFIER, you won’t have to purchase or store

any chemical or purication materials or change any lters. Everything you

need is generated within the small, lightweight, and portable unit. All this

for just pennies a day.

3 4

The DELZONE PORTABLE PURIFIER is easy to use. It has an easy-carry

handle and is light weight so you can take it anywhere and feel good about

the quality of the air you breathe and the water you drink. The Portable

Purier can be used indoors or out, uses only 60 watts of power and is

virtually maintenance free. Simply plug it in and you have natural purica-

tion at your nger tips!

OZONE IS AN EFFECTIVE PURIFIER

Ozone kills: bacteria, viruses, molds, mildew, spores, and cysts.

Ozone destroys: chemical contaminants such as aldehydes which can be

emitted from paneling, carpets, insulation, paints, stains, and plastics.

Ozone eliminates odors: cigarettes, cigars, pets, diapers, mildews, musty/

stale smells, airborne molds, food, locker rooms, shoes and boots, and

more!

OPERATION

Unpack the Portable Purier and familiarize yourself with the unit and its

components. The unit should include:

ZO-151 PORTABLE PURIFIER UNIT

OZONE SUPPLY TUBING (15 FEET)

OZONE DISPERSION STONE

SUCTION CUP

4" BALL CHAIN

4 ADHESIVE RUBBER FEET

Connect ozone supply tubing to the ozone supply check valve. Hint: Soften

the tubing if necessary by dipping it in warm water. To use the suction cup,

feed the ball chain through the hole in the suction cup, then through the loop

in the steel clamp (attached to the dispersion stone). Snap the ball chain

closed. Attach the rubber feet to the enclosure as desired.

Plug in the Portable Purier as described in the SAFETY INSTRUCTIONS.

Turn on the Portable Purier with the toggle switch located on the left side of

the unit. The green indicator light will come on and remain on while power

is being supplied to the unit to show that the unit is operating. The red

indicator light on the front of the unit should light, icker, and then go out.

This indicates that the purier is operating properly. If the red light remains

on, see the TROUBLE SHOOTING section.

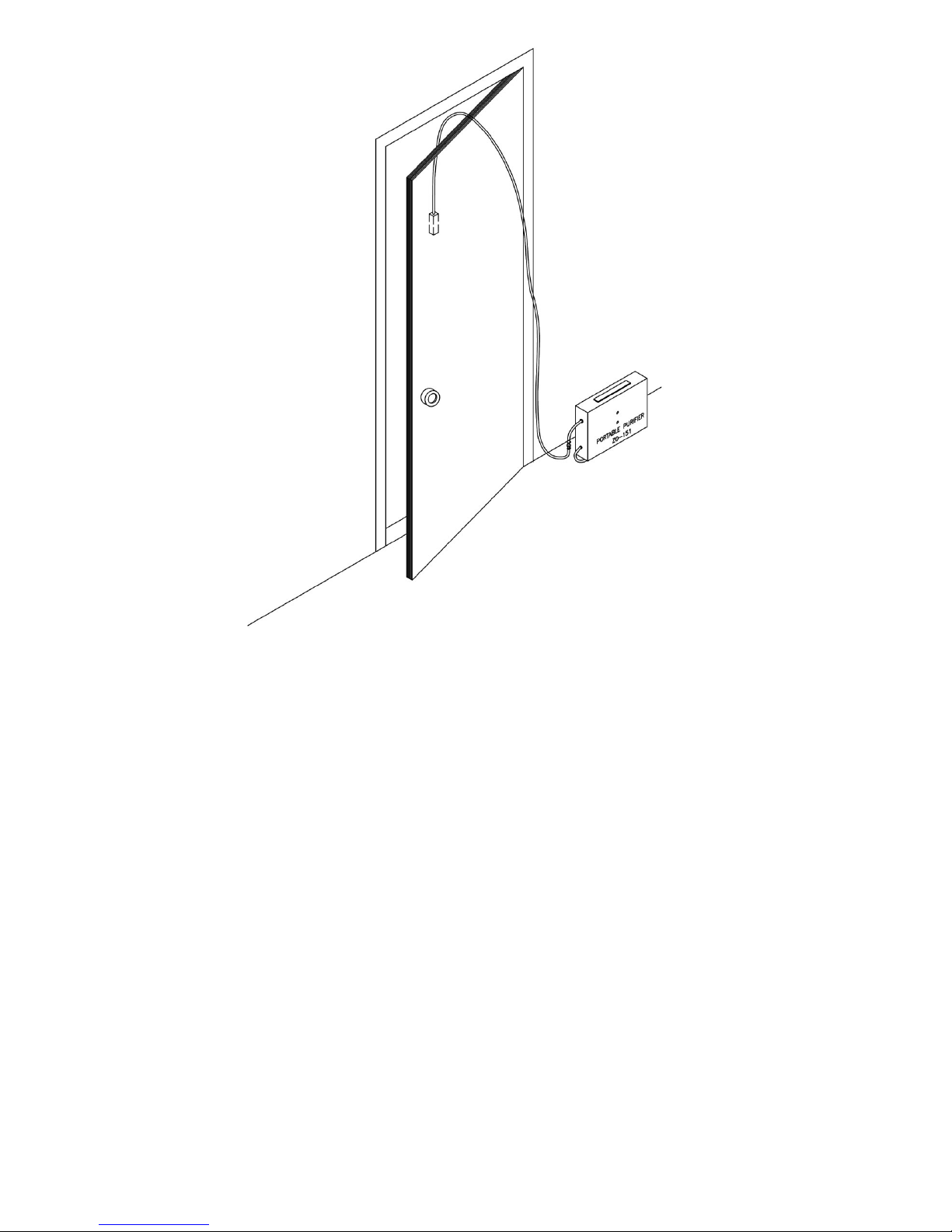

Figure 1: Example Dispersion Stone Location

PORTABLE APPLICATIONS

ELIMINATION OF ODORS IN ROOMS

The Portable Purier will effectively eliminate odors in your homes and of-

ces. Due to its portability you can move it from room to room to treat the

whole home or ofce.

If possible, place the Portable Purier in a separate room from the dispersion

stone. Locate the dispersion stone as high and as far from other objects

as possible (Figure 1, for example). Turn on the Portable Purier and/or

set the timer and leave the room. Allow the Portable Purier to run for the

approximate times as indicated in the table below.

The amount of ozone treatment required will vary depending on the air ow

in the room and the air quality. When the treatment is completed, turn off

the Portable Purier and air out the room. This can be done to as many

rooms, and as often as desired.

The treatment times listed below are intended as guidelines. Your application

may require a longer or shorter treatment time.

ROOM/AREA ODOR TYPE SIZE SUGGESTED TIME

KITCHEN Food smells: broccoli, sh, 10' X 10' 60 minutes

cabbage, eggs, greasy foods

cigarette odors, pet odors,

Persistent odors, 15' X 15' 60 min. intervals

Strong pet odors or larger or until gone

REFRIGERATOR Soured foods (locate 15 minutes

dispersion stone on top

inside door)

GARBAGE Soured foods (locate dispersion 15 minutes

DISPOSAL stone inside disposal)

GARBAGE CAN Soured foods (locate dispersion 15 minutes

stone at bottom of can)

LIVING ROOM Cigarette odors 15' X 20' 40 minutes

Cigar odors 60 minutes

BATHROOM Unpleasant odors 10' X 10' 60 minutes

BEDROOM Unpleasant odors 17' X 18' 60 minutes

Cigarette odors

CLOSET AREA Shoes, clothes with odors 4' X 4' 45 minutes

CLOTHES Mildew/Musty (locate dispersion 15 minutes

stone near garment)

Cigarette/cigar odors (locate 15 minutes

dispersion stone near garment)

SHOES Foot odor (locate dispersion 15 minutes

stone inside each shoe)

NURSERY Diaper odors, spit up odors 10' X 10' 30 minutes

DIAPER PAIL Diaper odors (locate dispersion 30 minutes

stone at bottom of can)

OFFICE Cigarette odors, art 15' x 15' 60 minutes

materials, paints, glues

GARAGE Paint, wood-working 20' X 20' 120 minutes

exhaust fumes

PET BED/ Pet odors (locate dispersion 30 minutes

BLANKET stone in middle of bed)

FLOOR MAT Mildew on bottom (locate 60 minutes

dispersion stone underneath)

HOTEL ROOM Occupant odors 20' X 20' 40 minutes

Cigarette odors

CONFERENCE Heavy cigarette odors, 20 X 30 120 minutes

ROOM Food or alcohol

OZONE TREATMENT OF BOATS AND RV’s

Boats and Recreational Vehicles often have a stale/musty smell or owners

have difculty eliminating cigarette/food odors. To get rid of these odors,

simply place the dispersion stone in the RV and shut the door tightly, or in

the case of a boat, under the boat cover. The required periods of ozone

treatment may vary depending upon the size and condition of the affected

area. For both an RV and an average-sized boat, please refer to the sug-

gested guidelines below:

AREA ODOR TYPE SIZE SUGGESTED TIME

RV INTERIOR

Dust/stale air 18- 24 45 minutes

Dust/stale air 30-32 50 minutes

Dust/stale air 35-40 60 minutes

Cigarette/food odors 18-24 60 minutes

Cigarette/food odors 30-32 70 minutes

Cigarette/food odors 35-40 75 minutes

Soured foods (locate 15 minutes

dispersion stone at

bottom of garbage can)

BOAT INTERIOR

Dust/stale air/mildew 18-24 120 minutes

Dust/stale air/mildew 30-32 240 minutes

Dust/stale air/mildew 35-40 360 minutes

TREATMENT OF AUTOMOBILE ODORS

Automobiles can acquire a variety of odors from drinks, food crumbs, ciga-

rettes and pets. Guidelines below are for a standard four-door automobile.

For effective treatment, place dispersion stone in the car through a 1/4" crack

above the window. Locate the dispersion stone near the rear-view mirror.

Close all other openings. Leave the vehicle unoccupied during treatment.

ODOR TYPE SUGGESTED TIME

CIGARETTE ODOR 120 minutes

PET ODORS 180 minutes

FOOD AND DRINK 90 minutes

OTHER ODORS 90 minute intervals

until odors are gone

TREATMENT of FRUITS & VEGETABLES

The shelf life of fruits and vegetables can be extended by ozone treat-

ment. Not only will they keep a more attractive appearance, but they will

also taste fresher! To help keep your produce fresh, ll your sink with water

and place the Portable Purier’s dispersion stone in the bottom of the sink.

Place the vegetables and/or fruit to be treated in the water and operate the

Portable Purier for 15 minutes. (Average sized sink half-full of pre-washed

produce). Increase treatment time for larger sinks and greater quantities

of produce.

TREATMENT of FOOD & COOKING UTENSILS

Since ozone kills bacteria and viruses, it can aid in the destruction of bac-

teria found on raw foods and cooking utensils. Soaking uncooked chicken

parts, for example, in ozone treated water will help retard the growth of

salmonella. For best results, follow the same procedure described above

for produce. For utensils, rinse off food debris and treat in clean water with

ozone for fteen minutes.

PORTABLE WATER TREATMENT

The ZO-151 Portable Purier is specically designed to purify water in

emergency storage, spas, bathtubs, fountains, and wading pools. It can

also be used to purify drinking water from well sources or city water sup-

plies, removing undesirable tastes, odors and colors caused by iron, copper,

manganese, chlorine and organics. Do not use water from a source that is

questionable such as stagnant pool water or the like.

To treat water, place the dispersion stone into the water container and

leave the unit on the approximate amount of time shown in the table below.

If bacteria is suspected, allow a minimum of one hour per gallon. When

completed, turn off the Purier and allow a few moments for excess ozone

to dissipate from the water. Higher output ozone generators are available

for wells and holding tanks

When used in conjunction with a particulate lter, ozone will also remove

excess minerals including iron, manganese, and lead, as well as radon

and sulfur gases.

NUMBER OF GALLONS SUGGESTED TREATMENT TIME

1 15 minutes

5 30 minutes

10 45 minutes

50 1.5 hours

100 3 hours

PERMANENT INSTALLATIONS

Figure 2: Standard Installation Diagram

SPAS AND POOLS

The Portable Purier can be used on spas, hot tubs, and wading pools to

1,000 gallons, allowing you to reduce your chemical usage up to 90%. You

will never need to put up with dry skin, red eyes, faded suits, or green hair

again! Ozone is pH neutral, so it will not adversely affect the acid/alkaline

balance of your water. It is more cost effective than traditional chemicals

and leaves no undesirable smell or taste. Continuous operation is proven

to be the most economical treatment method for spa water, fountains and

larger bodies of water to 1,000 gallons.

1.The ZO-151 must be securely mounted to a clean surface and sheltered

from direct exposure to the elements (rain and water). Mount at least

ve feet from the spa or water enclosure and at twelve inches above

the maximum water level. Ensure that the location is out of the reach

of children or anyone in the water.

2.To mount the ZO-151 Portable Purier remove the two screws on the

unit cover and gently lift off the cover.

3.Using the four mounting holes in the corners, secure the ZO-151 Por-

table Purier to the wall with screws. Spacer blocks may be necessary

for your particular installation. After mounting your Portable Purier

reinstall the cover.

4.Connect the ozone supply tubing to the check valve on the left side of

the purier. If the ozone supply tubing is too long, trim it with household

scissors or a razor knife. If the tubing is too short, additional ozone

supply tubing is available.

5.Place the dispersion stone into the body of water near the bottom

center for maximum ozone saturation in the water.

6.Plug the ZO-151 Portable Purier into a Ground fault circuit interrupter

(G.F.C.l.) protected outlet.

Inhaltsverzeichnis

Andere Del ozone Luftreiniger Handbücher

Del ozone

Del ozone ZO-103 Stücklistenhandbuch

Beliebte Luftreiniger Handbücher anderer Marken

IKEA

IKEA UPPÅTVIND Bedienungsanleitung

Nash

Nash AP-1 PureSmart Bedienungsanleitung

LG PH-U450 Series Bedienungsanleitung

DeLonghi

DeLonghi DDSX 220WFA Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MA-E85R-E Bedienungsanleitung

Sharp

Sharp FU-40SE Bedienungsanleitung

Philips

Philips AC2721 Bedienungsanleitung

Hitachi

Hitachi EP-A3000 Bedienungsanleitung

TruSens

TruSens Z-2000 Bedienungsanleitung

Motorola

Motorola MBP87SN Bedienungsanleitung

Beko

Beko ATP 7100I Bedienungsanleitung

Carrier

Carrier INFINITY 1620 Bedienungsanleitung

AtmosAir

AtmosAir P2002 Bedienungsanleitung

Winix

Winix NK300 Bedienungsanleitung

Friedrich

Friedrich C-90A Bedienungs- und Montageanleitung

Surgically Clean Air

Surgically Clean Air JADE2.0 Bedienungsanleitung

Base aire

Base aire 555 Pro Bedienungsanleitung

Champion

Champion CP25 Bedienungsanleitung
