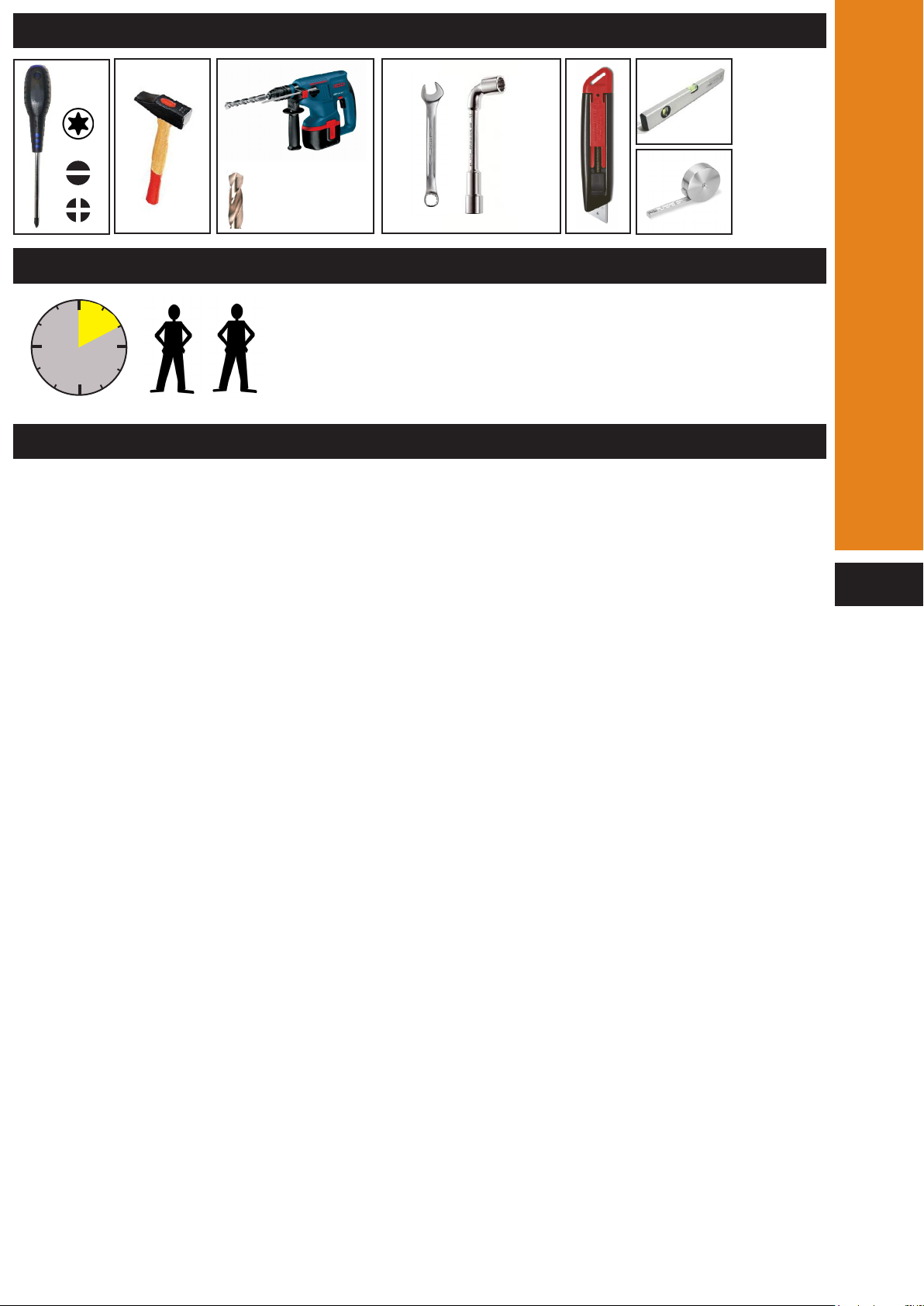

3
a
b
c
information
-The motor (compliant with electric standards) is located in the tube and can
be accessed from the exterior of the terminal.

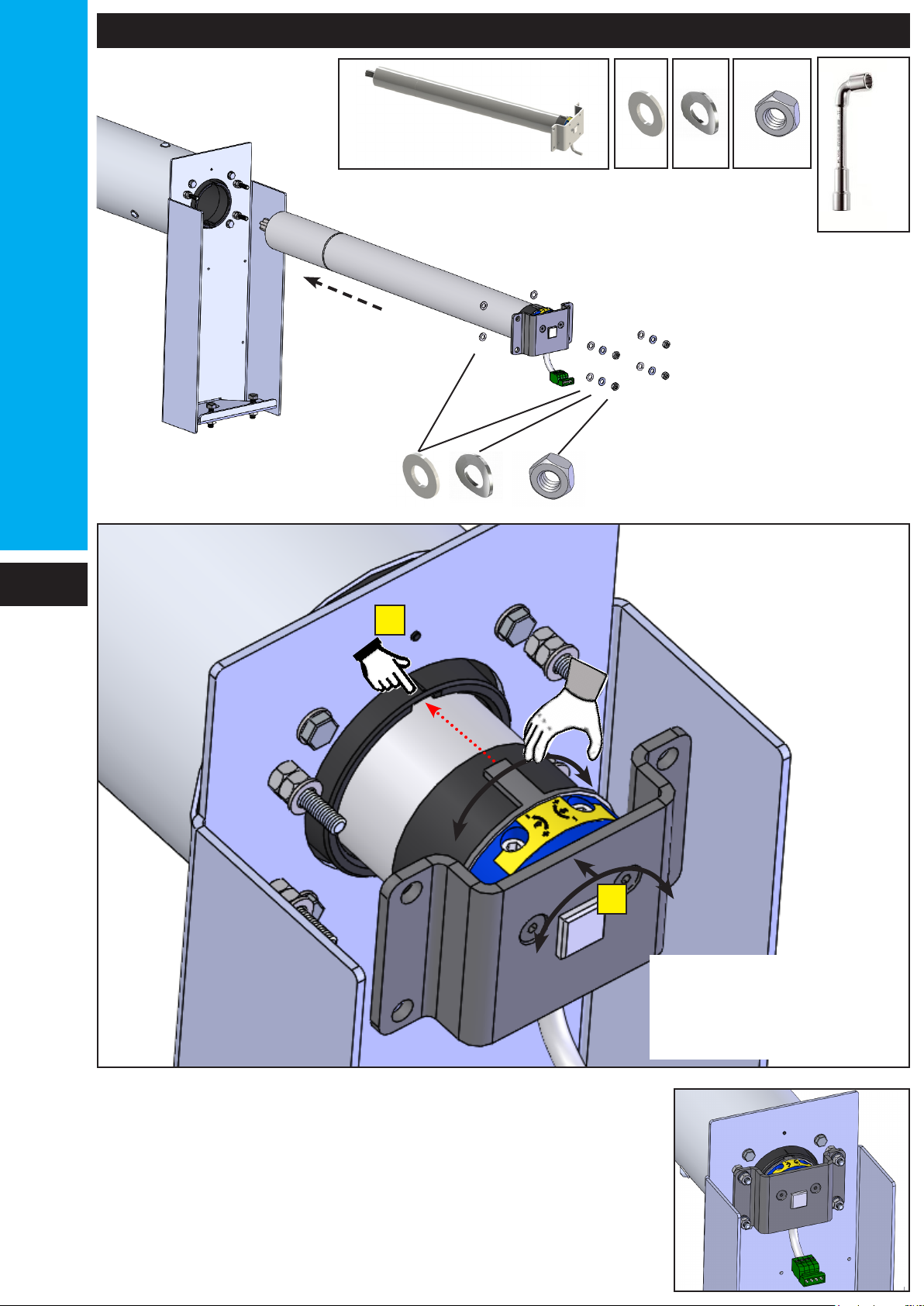

- Adjustment of the “mechanical automatic stop” locking the cover in place once
it has been fully unrolled or rolled, is done
directly on the motor.

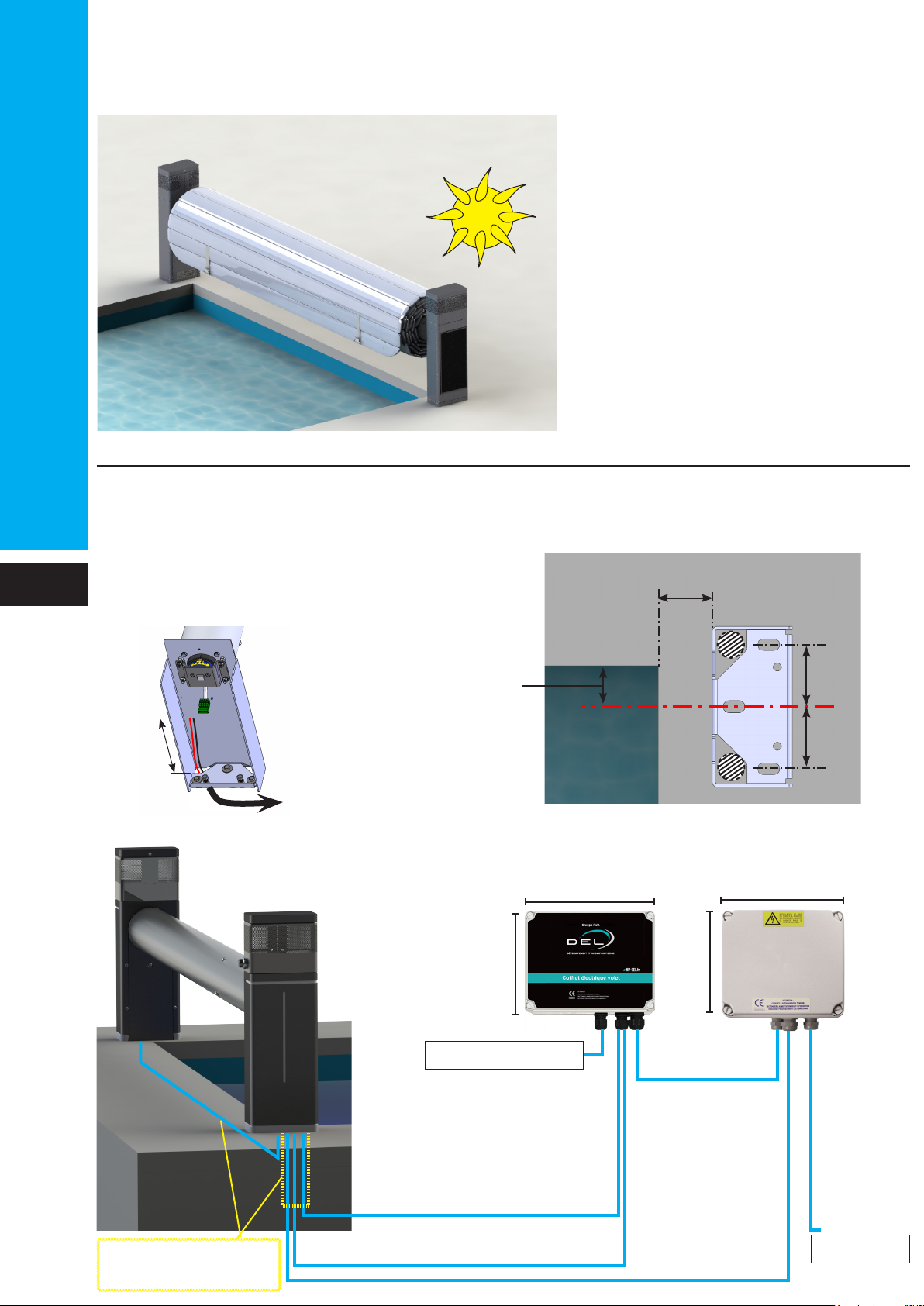

- Solar version: The solar panel and batteries are built into the tube fitted.
- Electric version: The electrical control box is fitted in a technical room close to
the pool. (see page 6 for the box size)
Slats:

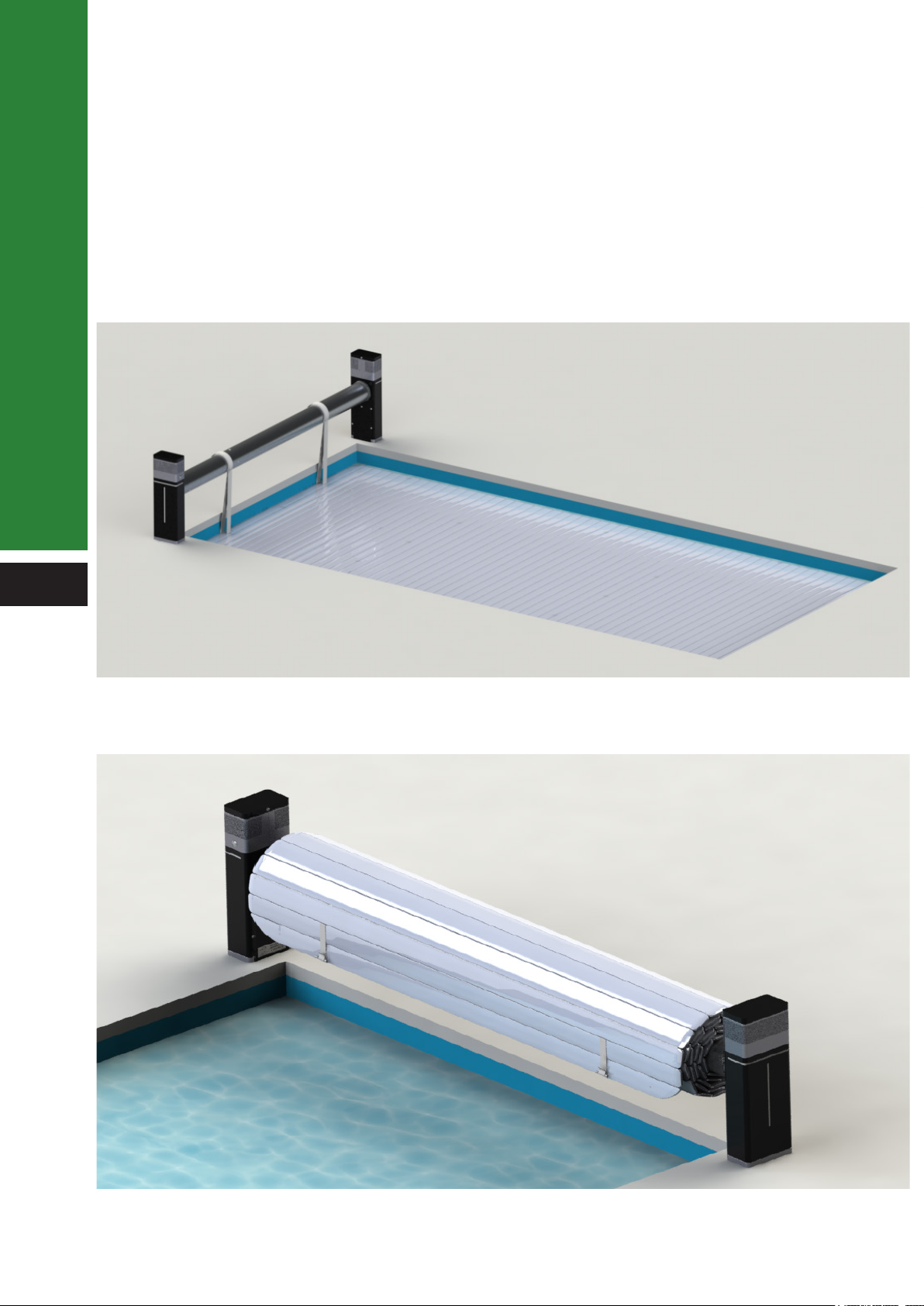

- The cover itself is made from unleaded PVC slats (this material conforms to
anti-ageing requirements as defined in the NF T 54 405-1 Standard), they are
watertight and hinged and will float on the surface of the water.
- The gap between the side and the cover must be <= 70 mm.
- The cover is connected to the tube using white straps that are attached to the
first slat of the cover.
- There are fixture straps at the start and end of the cover used to fix the cover
to the fastening kit fixed to the side of the pool.

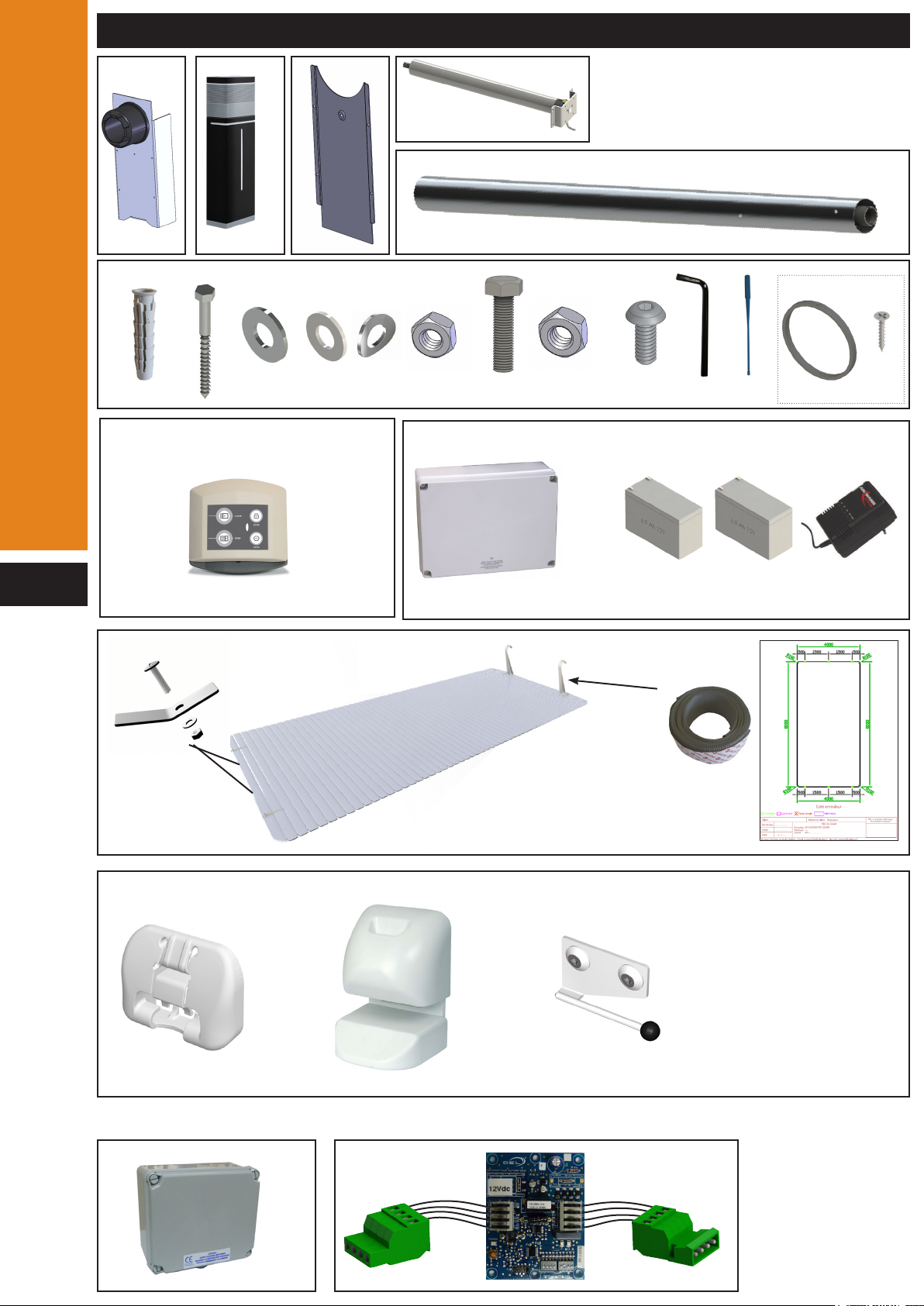

Fastening kits:
3 models: (a - Push-lock / b - Quick-lock / c - Straplock)
3 fixture modes: (surface mount – insert mount – hanging mount)
- The fastening kits are positioned on each width of the pool.
(the number varies depending on the pool configuration)
- These fastening systems are triggered by a tool or a double action.

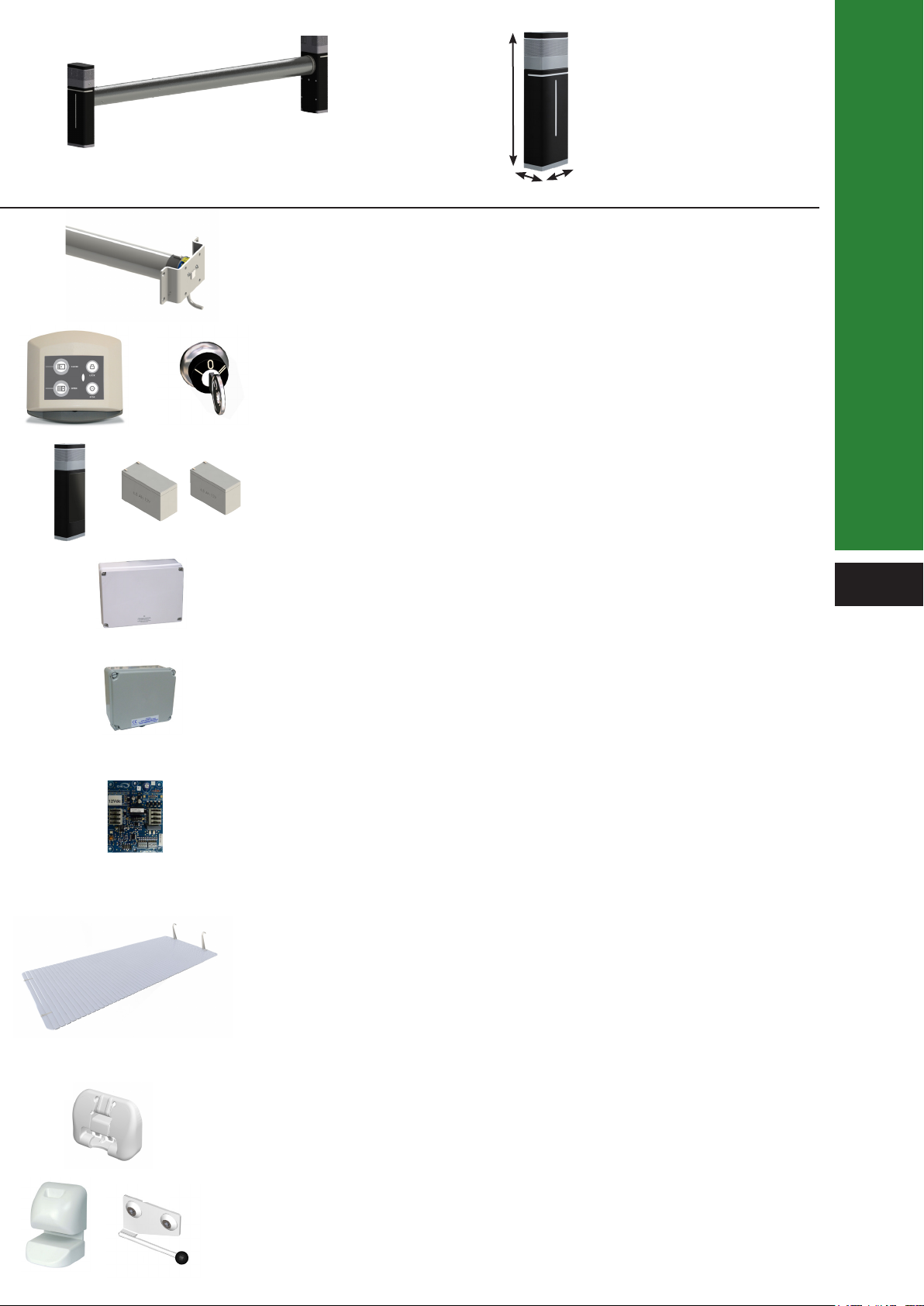

Optional:
- “Chlorinator coupling” (electric version only):
Connected to the roller and chlorinator control box, this option is used
to automatically reduce chlorine production when the pool is closed in order
to avoid excess chlorine in the water.

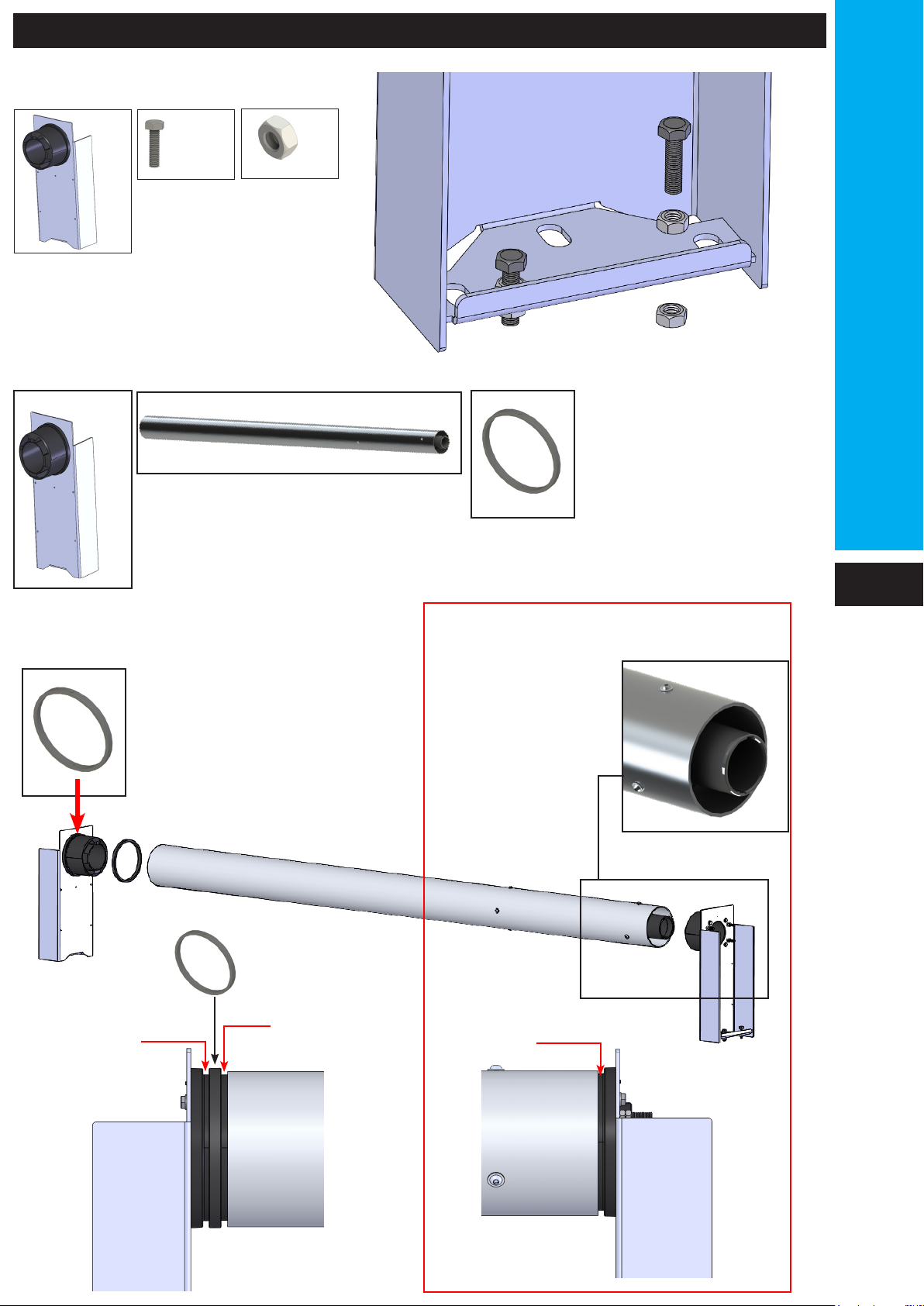

The roller:
32 cm at the shaft
- “Torque limter”:
Printed circuit board with stops motion when an abnormal force on the cover is
detected. (unlocking of locking kit oversight)
Cover control:
- Wi-Key “wireless”
Or
- Key switch
