Short Form Specifications

Top is constructed of one-piece 16-gauge stainless steel, with integral 2.12”

(5.4 cm) square nosing on front and 10.4” (26.3 cm) full length raised

refrigerated syrup rail. Refrigerated rail is furnished with syrup pumps,

chocolate pump and fruit jars. Top to be insulated and have raised rim open-

ing(s) provided with cover. Cover(s) are insulated, folding and removable.

Interior is constructed of 22-gauge stainless steel. Liner is insulated with 2.5”

(6.4 cm) foamed-in-place polyurethane. Unit has a cold wall refrigeration sys-

tem and is supplied with a low pressure control for the tank and an evaporator

pressure regulating valve for the rail. Unit is designed to maintain 0°F (-18°C)

to 5° F (-15°C) in the tank and 33°F (1°C) to 40°F (4°C) in the rail.

Exterior front has 22-gauge stainless steel front panel(s). Exterior ends

are constructed of 18-gauge galvanized steel. Unit has condensing unit on

right end of cabinet and wired with cord and plug. Housing for condens-

ing unit has a louvered front panel.

Electrical connections are 115 volt, 60 Hertz, single phase.

Unit is mounted on on 6.13” (15.6 cm) high adjustable stainless steel legs.

Optional Accessories and Modifications

505B Stainless steel back

906A Stainless steel end

505F Laminate facing

505A Laminate back

906E Laminate end

717M Sink and dipperwell (consult factory)

717N Dipperwell

717O Sink (consult factory)

120F Drain with gate valve for rail

213 *220V/50 cycle electrical

*Inclusion of this option will alter

electrical specifications.

Built to NSF7 standards.

Model F13BC56

31.5”(80cm)DeepSelf-ContainedLowTemp,IceCreamCabinetswithSyrupRail

The Delfield Company, P.O. Box 470, Mt Pleasant, MI 48804-0470, U.S.A. • (800) 733-8821 • Fax (800) 669-0619 • www.delfield.com

PROJECT

ITEM #

QUANTITY DATE

APPROVAL

F13BC

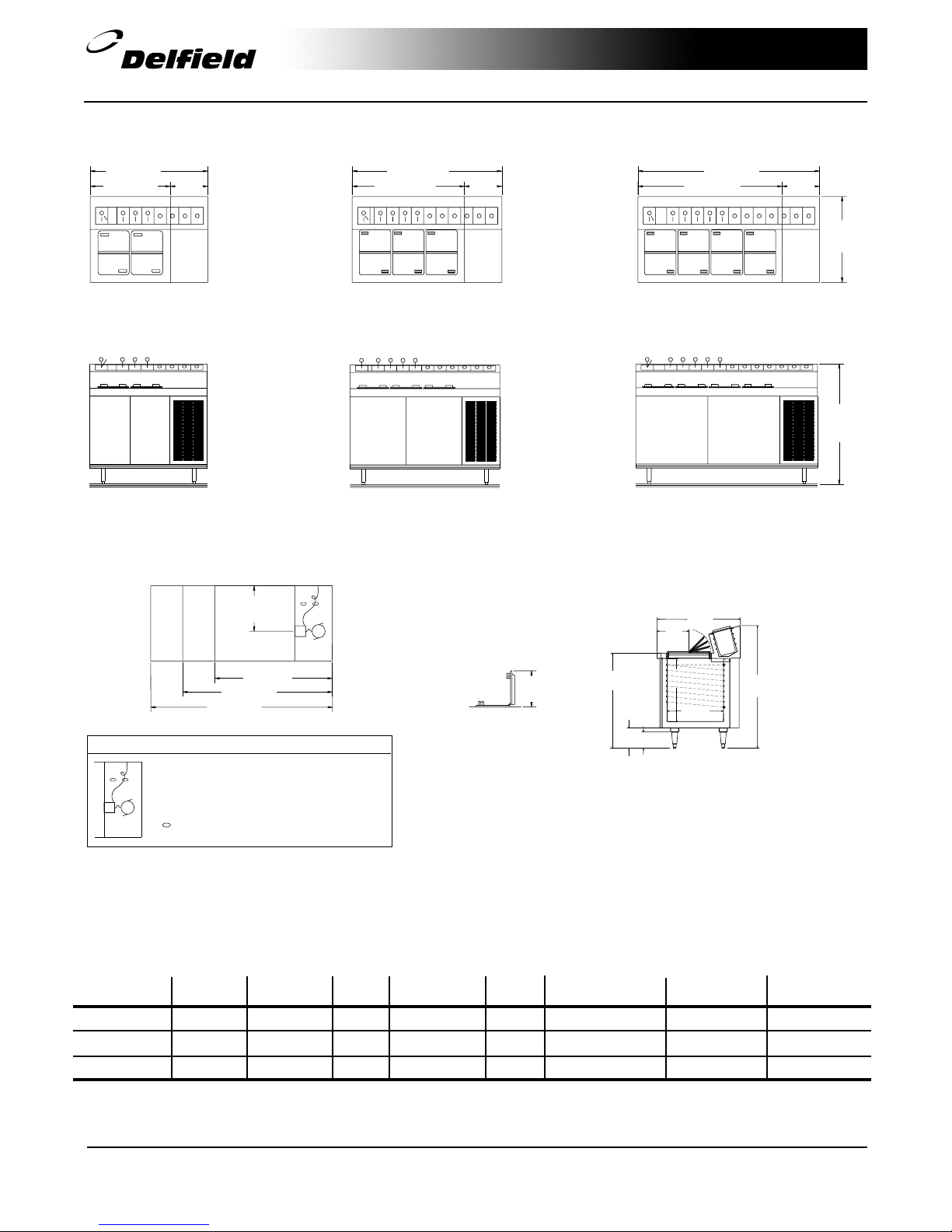

Mechanical Data–Standard Unit

MODEL GALLON NUMBER OF VOLTS/HERTZ BTU DESIGN LOAD BTU SYS. CAP. SHIP

NUMBER CAPACITY COVERS H.P. PHASE AMPS FRZR./RAIL FRZR./RAIL WEIGHT

F13BC44

24 4 1/3 115/60/1 8.0 506/192 983/828 435 lbs/ 197 kg

F13BC56

36 6 1/3 115/60/1 8.0 638/250 1073/979 480 lbs/ 218 kg

F13BC72

48 8 1/2 115/60/1 10.0 796/307 1309/1174 540 lbs/ 245 kg

5-15P NEMA plug used on all lengths.

EXPANSION VALVES FOR BASE & RAIL

LEGEND

CONDENSING UNIT WIRED TO J-BOX 25" A.F.F..

J-BOX TO HAVE ON/OFF SWITCH AND 8' CORD

AND PLUG ATTACHED, REAR OF COMP.

OPEN TO EXIT CORD

31.50"

(80.0)

14"

(35.6)

44" (111.8)

30" (76.2) 42" (106.7)

56" (142.2)

54" (137.2)

72" (182.9)

17"

(43.2)

44" (111.8)

56" (142.2)

72" (182.9)

SMALL LID

ALL UNITS

9.25"

(23.5)

PLAN VIEW

F13BC44

PLAN VIEW

F13BC56

PLAN VIEW

F13BC72

ELEVATION VIEW

F13BC44

ELEVATION VIEW

F13BC56

ELEVATION VIEW

F13BC72

46.37"

(117.8)

SIDE VIEW

ALL UNITS

14"

(35.6) 18"

(45.7)

V V

6.12"

(15.6)

7.62"

(19.4)

21.31"

(54.1)

36"

(91.4)

23.75"

(60.3)

31.5"

(80)

12"

(30.5)

46.37"

(117.8)

F13BC

The Delfield Company, P.O. Box 470, Mt Pleasant, MI 48804-0470, U.S.A. • (800) 733-8821 • Fax (800) 669-0619 • www.delfield.com

DS13BC 02/01

31.5”(80cm)DeepSelf-ContainedLowTemp,IceCreamCabinetswithSyrupRail
