Compact Refrigerators & Freezers

400P & 4000P Series

Original Instructions

Installation, Operation and Maintenance Manual

This manual is updated as new information and models are released. Visit our website for the latest manual.

**Note - additional shelves shown above**

Part Number 9294045C 03/22

Original Document

,Caution

Read this instruction before operating this equipment.

Fresh Soluons, Fit For You

All manuals and user guides at all-guidesbox.com

all-guidesbox.com

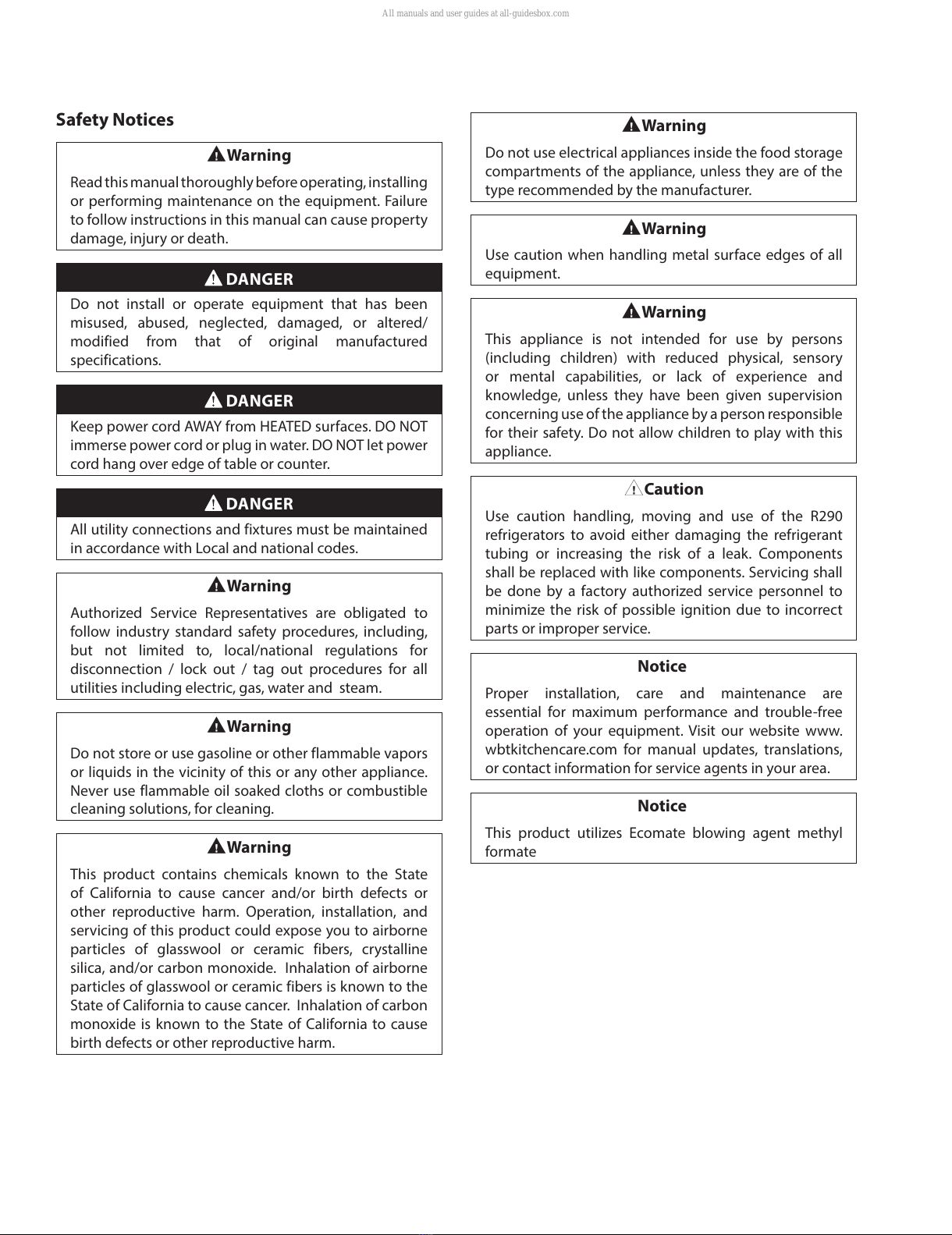

Safety Notices

nWarning

Read this manual thoroughly before operating, installing

or performing maintenance on the equipment. Failure

to follow instructions in this manual can cause property

damage, injury or death.

DANGER

Do not install or operate equipment that has been

misused, abused, neglected, damaged, or altered/

modified from that of original manufactured

specifications.

DANGER

Keep power cord AWAY from HEATED surfaces. DO NOT

immerse power cord or plug in water. DO NOT let power

cord hang over edge of table or counter.

DANGER

All utility connections and fixtures must be maintained

in accordance with Local and national codes.

nWarning

Authorized Service Representatives are obligated to

follow industry standard safety procedures, including,

but not limited to, local/national regulations for

disconnection / lock out / tag out procedures for all

utilities including electric, gas, water and steam.

nWarning

Do not store or use gasoline or other flammable vapors

or liquids in the vicinity of this or any other appliance.

Never use flammable oil soaked cloths or combustible

cleaning solutions, for cleaning.

nWarning

This product contains chemicals known to the State

of California to cause cancer and/or birth defects or

other reproductive harm. Operation, installation, and

servicing of this product could expose you to airborne

particles of glasswool or ceramic fibers, crystalline

silica, and/or carbon monoxide. Inhalation of airborne

particles of glasswool or ceramic fibers is known to the

State of California to cause cancer. Inhalation of carbon

monoxide is known to the State of California to cause

birth defects or other reproductive harm.

nWarning

Do not use electrical appliances inside the food storage

compartments of the appliance, unless they are of the

type recommended by the manufacturer.

nWarning

Use caution when handling metal surface edges of all

equipment.

nWarning

This appliance is not intended for use by persons

(including children) with reduced physical, sensory

or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision

concerning use of the appliance by a person responsible

for their safety. Do not allow children to play with this

appliance.

,Caution

Use caution handling, moving and use of the R290

refrigerators to avoid either damaging the refrigerant

tubing or increasing the risk of a leak. Components

shall be replaced with like components. Servicing shall

be done by a factory authorized service personnel to

minimize the risk of possible ignition due to incorrect

parts or improper service.

Notice

Proper installation, care and maintenance are

essential for maximum performance and trouble-free

operation of your equipment. Visit our website www.

wbtkitchencare.com for manual updates, translations,

or contact information for service agents in your area.

Notice

This product utilizes Ecomate blowing agent methyl

formate

All manuals and user guides at all-guidesbox.com

Part Number: 9294045C 03/22 3

Section 1

General Information

Model Numbers..................................................................................................................4

Serial Number Location .....................................................................................................4

Warranty Information ........................................................................................................4

Regulatory Certifications ..................................................................................................4

Section 2

Installation

Location ..............................................................................................................................5

Weight of Equipment .........................................................................................................6

Clearance Requirements.................................................................................................... 6

Dimensions .........................................................................................................................6

Electrical Service ................................................................................................................7

Ground Fault Circuit Interrupter .......................................................................................................7

Rated Amperages, Horsepower, Voltage & Power Cord Chart...............................................7

Refrigeration ......................................................................................................................8

Drain Connections.............................................................................................................. 8

Caster Or Leg Installation ..................................................................................................8

Leg Leveling .............................................................................................................................................9

Caster and Leg Mounting Detail.......................................................................................................9

Loosen Freezer Compressor Bolts.....................................................................................9

Section 3

Operation

Controls/Programming/Settings ....................................................................................13

R290 Refrigerators............................................................................................................................... 13

Freezers................................................................................................................................................... 14

Evaporator Fan Operation................................................................................................................ 14

Section 4

Maintenance

Interior Cleaning ..............................................................................................................16

Preventing Blower Coil Corrosion ................................................................................................. 16

Exterior Cleaning..............................................................................................................16

Drain......................................................................................................................................................... 16

Cleaning the Condenser Coil ...........................................................................................16

Doors/Hinges....................................................................................................................16

Section 5

Troubleshooting

Problem -> Cause -> Correction Chart............................................................................17

Wiring Diagrams...............................................................................................................18

Table of Contents

All manuals and user guides at all-guidesbox.com

4 Part Number: 9294045C 03/22

Model Numbers

This manual covers standard units only.

NOTE: For custom units, consult Welbilt KitchenCare at

1-844-724-CARE.

NOTE: The prefix P on a model number indicates the use of

the refrigerant propane.

Work Top Refrigerator Bases With Stainless Steel Top &

Backsplash

402P ST4048P

Work Top Freezer Base With Stainless Steel Top & Backsplash

403P

403P-ES

Undercounter Refrigerator Bases With Stainless Steel Top

406P UC4048P

Undercounter Refrigerator With Subtop And 3.75” Casters

406CAP

Undercounter Freezer Base With Stainless Steel Top

407P

407P-ES

Undercounter Freezer With Subtop And 3.75” Casters

407CAP

Export Model Numbers

This manual covers standard units only.

NOTE: For custom units, consult Welbilt KitchenCare at

1-844-724-CARE.

NOTE: The prefix P on a model number indicates the use of

the refrigerant propane.

Undercounter Refrigerator Bases With Stainless Steel Top

406-CE

Undercounter Refrigerator With Subtop And 3.75” Casters

406CA-CE

Undercounter Freezer Base With Stainless Steel Top

407P-CE1

407P-CE2

407P-DHL-CE1

407P-DHL-CE2

Undercounter Freezer Base With Stainless Steel Top

407-CE

Undercounter Freezer With Subtop And 3.75” Casters

407CAP-CE

407CA-CE

Serial Number Location

The serial number on 400 series compact refrigerators and

freezers is printed on the right side of the interior back wall.

The serial tag on 4000 series compact refrigerators is

located either on the left upper sidewall inside the cabinet

or under the top nosing directly above the door when the

door is in the closed position (right hand door when there

are two doors).

Always have the serial number of your unit available

when calling for parts or service.

Warranty Information

Visit

http://www.delfield.com/warranty to:

• Register your product for warranty.

• Verify warranty information.

• View and download a copy of your warranty.

Regulatory Certifications

Models are certified by:

• National Sanitation Foundation (NSF)

• Underwriters Laboratories (UL)

• Underwriters Laboratories of Canada (cUL)

• TUV

Section 1

General Information

All manuals and user guides at all-guidesbox.com

Part Number: 9294045C 03/22 5

DANGER

Installation must comply with all applicable fire and

health codes in your jurisdiction.

DANGER

Use appropriate safety equipment during installation

and servicing

nWarning

Remove all removable panels before lifting and

installing.

nWarning

Do not damage the refrigeration circuit when installing,

maintaining or servicing the unit.

Location

nWarning

This equipment must be positioned so that the plug is

accessible unless other means for disconnection from

the power supply (e.g., circuit breaker or disconnect

switch) is provided.

nWarning

Adequate means must be provided to limit the

movement of this appliance without depending on or

transmitting stress to the electrical conduit or gas lines.

nWarning

To avoid instability the installation area must be capable

of supporting the combined weight of the equipment

and product. Additionally the equipment must be level

side to side and front to back.

nWarning

This equipment is intended for indoor use only. Do not

install or operate this equipment in outdoor areas.

,Caution

Do not position the air intake vent near steam or heat

exhaust of another appliance.

The location selected for the equipment must meet the

following criteria. If any of these criteria are not met, select

another location.

• Units are intended for indoor use only.

• The location MUST be level, stable and capable of

supporting the weight of the equipment.

• The location MUST be free from and clear of

combustible materials.

• Equipment MUST be level both front to back and side to

side.

• Position the equipment so it will not tip or slide.

• Front casters MUST be locked once positioned.

• Recommended air temperature is 41° - 86°F (5° - 30°C).

• Proper air supply for ventilation is REQUIRED AND

CRITICAL for safe and efficient operation. Refer to

Clearance Requirements chart on page 6.

• Do not obstruct the flow of ventilation air. Make sure the

air vents of the equipment are not blocked.

• Do not install the equipment directly over a drain.

Steam rising up out of the drain will adversely affect

operation, air circulation, and damage electrical /

electronic components.

Section 2

Installation

All manuals and user guides at all-guidesbox.com

6 Part Number: 9294045C 03/22

Installation Section 2

Weight of Equipment

Model Weight

402P 176lbs (80kg)

403P 176lbs (80kg)

406P 176lbs (80kg)

406CAP 168lbs (76kg)

407P 176lbs (80kg)

407CAP 168lbs (76kg)

ST4048P 234lbs (106kg)

UC4048P 236lbs (107kg)

Export

406-CE 176lbs (80kg)

406CA-CE 168lbs (76kg)

407P-CE1 176lbs (80kg)

407P-CE2 176lbs (80kg)

407P-DHL-CE1 176lbs (80kg)

407P-DHL-CE2 176lbs (80kg)

407-CE 176lbs (80kg)

407CAP-CE 168lbs (76kg)

407CA-CE 168lbs (76kg)

Clearance Requirements

DANGER

Minimum clearance requirements are the same for

noncombustible locations as for combustible locations.

The flooring under the appliance must be made of a

noncombustible material.

DANGER

Risk of fire/shock. All minimum clearances must be

maintained. Do not obstruct vents or openings.

Back 3.00” (76mm)

Top / Sides 1.00” (25mm)

Bottom 2.00” (51mm)

• Keep the vents clean and free of obstruction.

• Legs or casters must be used and not removed.

Dimensions

Model Length Depth Height

402P 27” (69cm) 28.5” (72cm) 39.5” (100cm)

403P 27” (69cm) 28.5” (72cm) 35.5” (90cm)

406P 27” (69cm) 28.5” (72cm) 35.5” (90cm)

406CAP 27” (69cm) 27.75” (70cm) 33.25” (84cm)

407P 27” (69cm) 28.5” (72cm) 35.5” (90cm)

407CAP 27” (69cm) 27.75” (70cm) 33.25” (84cm)

ST4048P 48” (122cm) 28.5” (72cm) 39.5” (100cm)

UC4048P 48” (122cm) 28.5” (72cm) 35.5” (90cm)

Export

406-CE 27” (69cm) 28.5” (72cm) 35.5” (90cm)

406CA-CE 27” (69cm) 27.75” (70cm) 33.25” (84cm)

407P-CE1 27” (69cm) 29.4” (75cm) 35.38” (89cm)

407P-CE2 27” (69cm) 29.4” (75cm) 35.38” (89cm)

407P-DHL-CE1 27” (69cm) 29.4” (75cm) 35.38” (89cm)

407P-DHL-CE2 27” (69cm) 29.4” (75cm) 35.38” (89cm)

407-CE 27” (69cm) 29.4” (75cm) 35.38” (89cm)

407CAP-CE 27” (69cm) 27.75” (70cm) 33.25” (84cm)

407CA-CE 27” (69cm) 27.75” (70cm) 33.25” (84cm)

Model Volume Shelf Space

402P

403P

406P

406CAP

407P

407CAP

5.7Ft3(161L) 4.6Ft2(43dm2)

ST4048P

UC4048P 10.80Ft3(306L) 8.0Ft2(74dm2)

Export

406-CE

406CA-CE

407P-CE1

407P-CE2

407P-DHL-CE1

407P-DHL-CE2

407-CE

407CAP-CE

407CA-CE

5.7Ft3(161L) 4.6Ft2(43dm2)

All manuals and user guides at all-guidesbox.com

all-guidesbox.com

Part Number: 9294045C 03/22 7

Section 2 Installation

Electrical Service

DANGER

Check all wiring connections, including factory

terminals, before operation. Connections can become

loose during shipment and installation.

DANGER

Units with two power cords must be plugged into

individual branch circuits. During movement, cleaning

or repair it is necessary to unplug both power cords.

nWarning

This appliance must be grounded and all field wiring

must conform to all applicable local and national

codes. Refer to rating plate for proper voltage. It is the

responsibility of the end user to provide the disconnect

means to satisfy the authority having jurisdiction.

• Plug units with R290 refrigerant into a receptacle that is

a minimum of 14” (36cm) above the floor.

• All electrical work, including wire routing and

grounding, must conform to local, state and national

electrical codes.

• The equipment must be grounded.

• A separate fuse/circuit breaker must be provided for

each unit.

• The maximum allowable voltage variation is ±10% of

the rated voltage at equipment start-up (when the

electrical load is highest).

• Check all green ground screws, cables and wire

connections to verify they are tight before start-up.

GROUND FAULT CIRCUIT INTERRUPTER

Ground Fault Circuit Interrupter (GFCI/GFI) protection is

a system that shuts down the electric circuit (opens it)

when it senses an unexpected loss of power, presumably

to ground. Welbilt does not recommend the use of GFCI/

GFI circuit protection to energize our equipment. If code

requires the use of a GFCI/GFI then you must follow the

local code. The circuit must be dedicated, sized properly

and there must be a panel GFCI/GFI breaker. We do not

recommend the use of GFCI/GFI outlets to energize our

equipment as they are known for more intermittent

nuisance trips than panel breakers.

RATED AMPERAGES, HORSEPOWER, VOLTAGE &

POWER CORD CHART

Units with plugs are supplied with approximately 6ft

(183cm) cords.

Models 406P and 407P may be stacked using a stacking

collar. In this case two 6ft (183cm) long grounded supply

cords and plugs are standard.

Model Amps HP Voltage, Cycle,

Phase

NEMA

Plug

402P 2.6 .18

115/60/1 5-15P

403P 4.5 .30

406P 2.6 .18

406CAP 2.6 .18

403P-ES 4.5 .30

407P 4.5 .30

407P-ES 4.5 .30

407CAP 4.5 .30

ST4048P 2.6 .18

UC4048P 2.6 .18

Export

406-CE 2.6 .18 230-240/50/1

Variable

406CA-CE 2.6 .18 230-240/50/1

407P-CE1 3.9 .30 100-120/50-60/1

407P-CE2 1.9 .30 200-240/50-60/1

407P-DHL-CE1 3.9 .30 100-120/50-60/1

407P-DHL-CE2 1.9 .30 200-240/50-60/1

407-CE 4.5 .30 230-240/50/1

407CAP-CE 4.5 .30 200-240/50-60/1

407CA-CE 4.5 .30 230-240/50/1

All manuals and user guides at all-guidesbox.com

8 Part Number: 9294045C 03/22

Installation Section 2

Refrigeration

Model BTU/Hour

Capacity

Heat of

Rejection

Refg Charge

402P 1276 177 68g R290

403P 922 542 68g R290

403P-ES 922 542 68g R290

406P 1276 177 68g R290

406CAP 1276 177 68g R290

407P 922 542 68g R290

407CAP 922 542 68g R290

ST4048P 1276 452 68g R290

UC4048P 1276 452 68g R290

Export

406-CE 1276 177 213g R404A

406CA-CE 1276 177 213g R404A

407P-CE1 922 542 150g R290

407P-CE2 922 542 150g R290

407P-DHL-CE1 922 542 150g R290

407P-DHL-CE2 922 542 150g R290

407-CE 922 542 180g R404A

407CAP-CE 922 542 150g R290

407CA-CE 922 542 180g R404A

Drain Connections

nWarning

If a refrigerated base does not have a condensate

evaporator supplied, you must connect the condensate

line to a suitable drain. Otherwise, water will collect on

the floor, causing a potentially hazardous situation.

nWarning

Moisture collecting from improper drainage can create a

slippery surface on the floor and a hazard to employees.

It is the owner’s responsibility to provide a container or

outlet for drainage.

Caster Or Leg Installation

DANGER

Legs or casters must be installed and the legs or casters

must be screwed in completely to prevent bending.

When casters are installed the mass of this unit will

allow it to move uncontrolled on an inclined surface.

These units must be tethered/secured to comply with

all applicable codes.

nWarning

The unit must be installed in a stable condition with

the front wheels locked. Locking the front casters after

installation is the owner’s and operator’s responsibility.

nWarning

Use a jack to lift the refrigeration unit off the ground

just far enough to remove the leg/caster. Place blocking

underneath the unit. Do not work underneath a raised

unit without proper blocking. Do not lift the unit more

than necessary to remove the leg/caster. Lifting the unit

too far can make the unit unstable.

,Caution

All single-section units require that the swivel casters be

mounted on the front and rigid casters be mounted on

the rear.

1. Carefully place the unit on its back.

2. Located at each caster mounting location are 4 Phillips

head screws, for a total of 16 screws. Remove them.

3. Place a locking plate caster or leg over one of the front

holes, matching the 4 mounting holes to the pre-drilled

holes in the underside of the unit. Insert 4 Phillips head

screws and tighten. Repeat with the other locking front

caster or leg.

All manuals and user guides at all-guidesbox.com

Part Number: 9294045C 03/22 9

Section 2 Installation

4. Repeat step 3 with the non-locking casters or legs in

the rear of the unit.

5. Carefully lift the unit upright.

,Caution

After installing casters, the unit must stand upright for

twenty-four (24) hours before being powered up to

assure oil return to the compressor sump.

Plate Casters

With Locks

Plate Casters

Without Locks

Screws

LEG LEVELING

All four legs are adjustable. Adjust each leg until the unit is

stable and level left to right. If necessary adjusting the front

legs slightly higher than the rear by about 1/8”(3mm) will

help the door remain closed.

CASTER AND LEG MOUNTING DETAIL

A universal bolt hole pattern is provided on the bottom of

the cabinet. It will accommodate any leg or caster. Simply

line up the plate holes with the corresponding cabinet

holes.

2.38”

(60mm)

3.40”

(86mm)

2.82”

(72mm)

1.75”

(44mm)

2.14”

(54mm)

0.94”

(24mm)

NOTE: If hole pattern on caster/leg matches the one above

mount in middle set of holes.

• 3” Caster - 3234024

• 5” Caster - 3234161

• 6” Leg - 3234791

2.38”

(60mm)

3.40”

(86mm)

2.82”

(72mm)

1.75”

(44mm)

2.14”

(54mm)

0.94”

(24mm)

NOTE: If hole pattern on caster/leg matches the one above

mount in inner set of holes.

• 2” Caster - 3234148

Loosen Freezer Compressor Bolts

Semi hermetic models should be loosened before

operating. Loosen (but do not remove) the bolts on the

compressor. If not done the freezer may vibrate excessively

when the compressor is running,

All manuals and user guides at all-guidesbox.com

10 Part Number: 9294045C 03/22

Installation Section 2

THIS PAGE INTENTIONALLY LEFT BLANK

All manuals and user guides at all-guidesbox.com

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Delfield Kühlschrank Handbücher

Delfield

Delfield SADFL2-S Bedienungsanleitung

Delfield

Delfield D4448N-18M Bedienungsanleitung

Delfield

Delfield Meridian MFR1-S Bedienungsanleitung

Delfield

Delfield SADBP1-GH Bedienungsanleitung

Delfield

Delfield 4472N-12 Bedienungsanleitung

Delfield

Delfield SARRI1-G Bedienungsanleitung

Delfield

Delfield Versa Drawer F2984VDL Bedienungsanleitung

Delfield

Delfield N8100-FA Bedienungsanleitung

Delfield

Delfield 407-CA Bedienungsanleitung

Delfield

Delfield SADBR1-SH Bedienungsanleitung

Delfield

Delfield SARS Bedienungsanleitung

Delfield

Delfield Nordic Zone Cold Food Bars Bedienungsanleitung

Delfield

Delfield Shelleyspeed SPRH-68E Bedienungsanleitung

Delfield

Delfield Enodis 400 Series Bedienungsanleitung

Delfield

Delfield Enodis 400 Series Produktinformationsblatt

Delfield

Delfield Shelleyspeed SPRD36P-50NE Bedienungsanleitung

Delfield

Delfield 4427N-6 Bedienungsanleitung

Delfield

Delfield Shelleyspeed SPR-40EW Bedienungsanleitung

Delfield

Delfield SSDP1-SH Bedienungsanleitung

Delfield

Delfield Versa Drawer F18VD50 Bedienungsanleitung

Delfield

Delfield UC4448N-18M Bedienungsanleitung

Delfield

Delfield ST4464N Bedienungsanleitung

Delfield

Delfield Versa Drawer F18VD50 Bedienungsanleitung

Delfield

Delfield Specification Line SAHRT1-S Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
