Dell OptiPlex 9020 AIO Betriebsanleitung

Dell OptiPlex 9020 AlO

Setup And Features Information

About Warnings

WARNING: A WARNING indicates a potential for property damage, personal injury,

or death.

Front View

Figure 1. Front View

1. microphone (left)

2. camera (optional)

3. camera tilt wheel (touch screen) /

camera slide bar (non-touch

screen)

Regulatory Model: W04C

Regulatory Type: W04C002

2013 – 02

4. camera LED

5. microphone (right)

NOTE:

The location of microphone varies

in the non-touch version.

6. display

7. optical drive (optional)

8. optical drive eject button

9. On-Screen Display (OSD) buttons (3)

10. hard-drive activity light

11. power button

12. stand

Back View

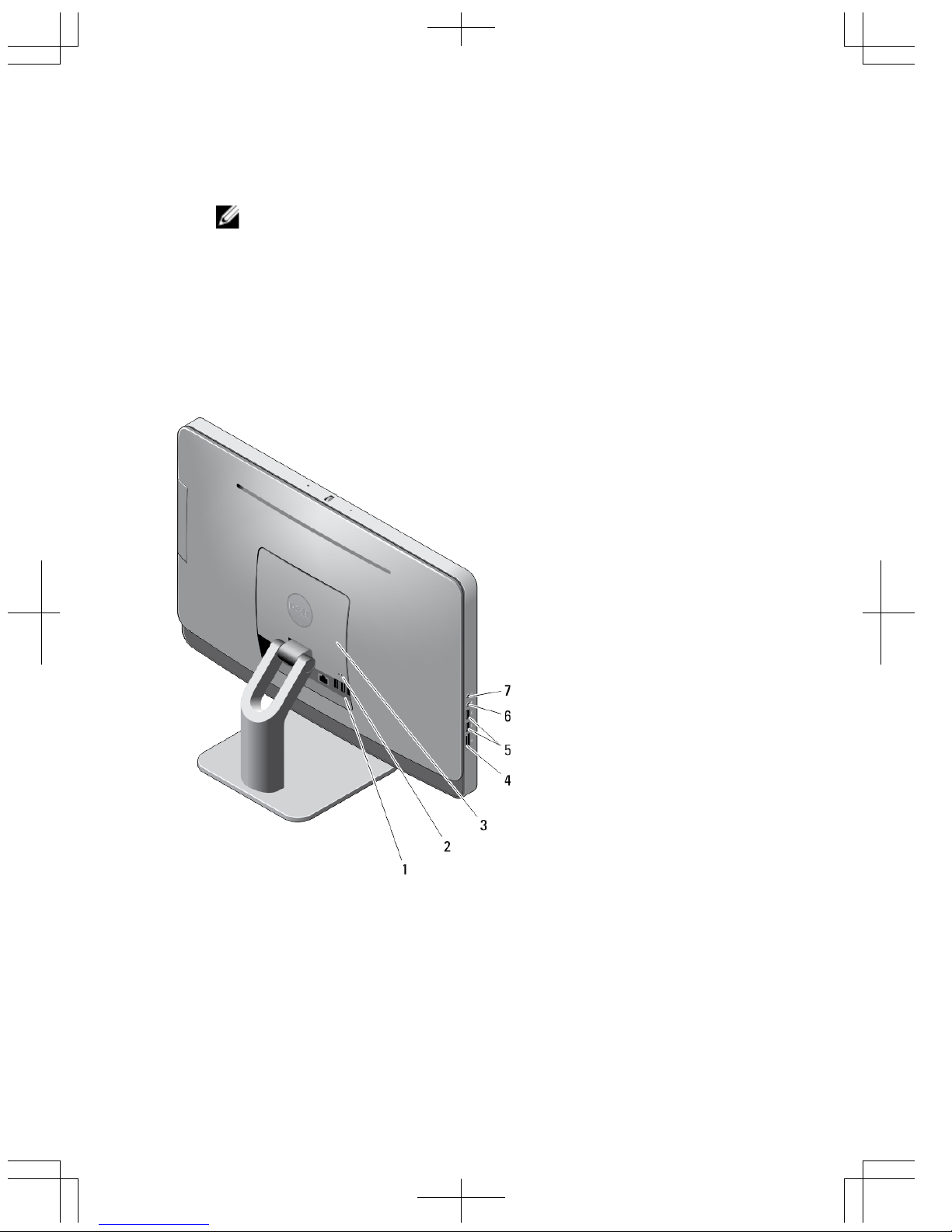

Figure 2. Back View

1. back panel connectors

2. security cable slot

3. VESA cover

4. memory card reader

5. USB 3.0 connectors (2)

6. microphone connector

7. headphone connector

Back Panel View

Figure 3. Back Panel View

1. power-supply diagnostic light

2. power-supply diagnostic button

3. VGA-out connector

4. line-out connector

5. HDMI-out connector

6. USB 2.0 connectors (2)

7. USB 3.0 connector

8. mouse connector

9. power connector

10. network connector

11. USB 2.0 connectors (2)

12. USB 3.0 connector

13. keyboard connector

Quick Setup

WARNING: Before you begin any of the procedures in this section, read the safety

information that shipped with your computer. For additional best practices

information, see www.dell.com/regulatory_compliance

NOTE: Some devices may not be included if you did not order.

1. Connect the keyboard or mouse.

Figure 4. USB Connection

2. Connect the network cable (optional).

Figure 5. Network Connection

3. Connect the power cable(s).

Figure 6. Connecting Power

4. Press the power button on the computer.

Figure 7. Turning On Power

Specifications

NOTE: Offerings may vary by region. The following specifications are only those

required by law to ship with your computer. For more information regarding the

configuration of your computer, click Start → Help and Support and select the

option to view information about your computer.

Power

Coin-cell battery 3 V CR2032 lithium coin-cell

Power Supply Unit (PSU):

Voltage 100 VAC to 240 VAC

Wattage 200 W

Maximum heat dissipation 4774 BTU/hr

NOTE: Heat dissipation is calculated by using the power supply wattage rating.

Physical

with stand without stand

Width 574.00 mm (22.60 inches) 574.00 mm (22.60 inches)

Height 441.86 mm (17.40 inches) 385.80 mm (15.19 inches)

Depth:

non-touch 174.40 mm (6.86 inches) 70.50 mm (2.76 inches)

touch 174.40 mm (6.86 inches) 72.80 mm (2.87 inches)

Weight:

non-touch 10.25 kg to 10.91 kg (22.58 lb to

24.03 lb)

8.10 kg to 8.76 kg (17.86 lb to

19.32 lb)

touch 11.34 kg to 11.99 kg (24.97 lb to

26.42 lb)

9.19 kg to 9.84 kg (20.26 lb to

21.71 lb)

Environmental

Operating Temperature 5 °C to 35 °C (41 °F to 95 °F)

Information para NOM (únicamente para México)

The following information is provided on the device described in this document in

compliance with the requirements of the official Mexican standards (NOM).

Voltaje de alimentación 100–240 VAC

Frecuencia 50–60 Hz

Consumo eléctrico 2,9 A

Finding More Information and Resources

See the safety and regulatory documents that shipped with your computer and the

regulatory compliance website at www.dell.com/regulatory_compliance for more

information on:

• Safety best practices

• Regulatory certification

• Ergonomics

See www.dell.com for additional information on:

• Warranty

• Terms and Conditions (U.S. only)

• End User License Agreement

Additional information on your product is available at www.dell.com/support/manuals.

Trademarks used in this text: Dell™, the DELL logo, Dell Precision™, Precision ON™,

ExpressCharge™, Latitude™, Latitude ON™, OptiPlex™, Vostro™, and Wi-Fi Catcher™are

trademarks of Dell Inc. Intel®, Pentium®, Xeon®, Core™, Atom™, Centrino®, and Celeron®are

registered trademarks or trademarks of Intel Corporation in the U.S. and other countries. AMD®is a

registered trademark and AMD Opteron™, AMD Phenom™, AMD Sempron™, AMD Athlon™,

ATI Radeon™, and ATI FirePro™are trademarks of Advanced Micro Devices, Inc. Microsoft®,

Windows®, MS-DOS®, Windows Vista®, the Windows Vista start button, and Office Outlook®are

either trademarks or registered trademarks of Microsoft Corporation in the United States and/or

other countries. Blu-ray Disc™is a trademark owned by the Blu-ray Disc Association (BDA) and

licensed for use on discs and players. The Bluetooth®word mark is a registered trademark and

owned by the Bluetooth®SIG, Inc. and any use of such mark by Dell Inc. is under license. Wi-Fi®is

a registered trademark of Wireless Ethernet Compatibility Alliance, Inc.
