Dell OPTIPLEX XE Series Bedienungsanleitung

TECHNICAL GUIDEBOOK

INSIDE THE OPTIPLEX XE

DELL

OPTIPLEX XE

OVERVIEW

Desktop Computer (DT) View 3

Small Form Factor Computer (SFF) View 4

Desktop and Small Form Factor Computer (DT, SFF) View 5

MARKETING SYSTEM CONFIGURATIONS

Operating System, Chipset, Processor 6

Advanced System Manageability Modes, Memory 7

Drives and Removable Storage 8-9

System Board Connectors, Graphics/Video Controller/External Ports/Connectors 10

Communications—Integrated LAN, Wireless, Audio and Speakers, Keyboard and Mouse 11

Security, Service and Support, Software 12

DETAILED ENGINEERING SPECIFICATIONS

System Dimensions (Physical), System Board Connector Maximum Allowable Dimensions 13

System Level Environmental and Operating Conditions 14

Power, Compliance 15-16

Audio, Communications 17-19

Graphics/Video Controller 20

Hard Drives 21-27

Optical Drive 28-29

BIOS Defaults 30-31

Chassis Enclosure and Ventilation Requirements 32

Acoustic Noise Emission Information 33-34

TABLE OF CONTENTS

DELL™ OPTIPLEX™ XE TECHNICAL GUIDEBOOK V1.0

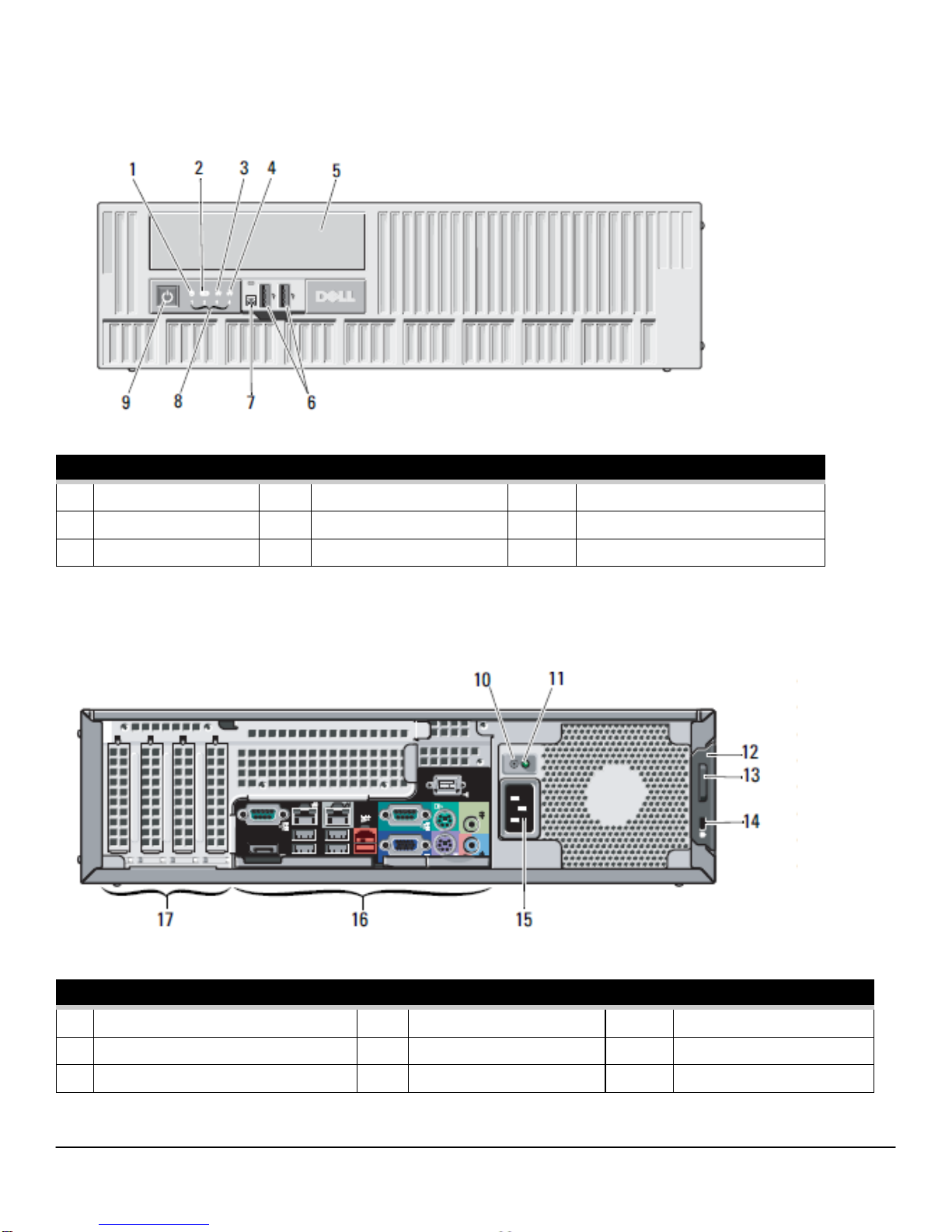

FRONT VIEW

1 Drive activity light 4 Network activity light 2 7 External power button connector

2 Wi-Fi activity light 5 DVD drive bay 8 Diagnostic Lights (4)

3 Network activity light 1 6 USB 2.0 connectors (2) 9 Power button, power light

DESKTOP COMPUTER (DT) VIEW

BACK VIEW

10 Power supply diagnostic button 13 Padlock ring 16 Back panel connectors

11 Power supply diagnostic light 14 Security cable slot 17 Expansion card slots (4)

12 Cover release latch 15 Power cable connector

DELL™ OPTIPLEX™ XE TECHNICAL GUIDEBOOK V1.0

FRONT VIEW

1 Drive activity light 4 Network activity light 2 7 External power button connector

2 Wi-Fi activity light 5 DVD drive bay 8 Diagnostic Lights (4)

3 Network activity light 1 6 USB 2.0 connectors (2) 9 Power button, power light

SMALL FORM FACTOR COMPUTER (SFF) VIEW

BACK VIEW

10 Power supply diagnostic button 13 Padlock ring 16 Back panel connectors

11 Power supply diagnostic light 14 Security cable slot 17 Expansion card slots (2)

12 Cover release latch 15 Power cable connector

DELL™ OPTIPLEX™ XE TECHNICAL GUIDEBOOK V1.0

BACK PANEL CONNECTORS

1 Serial Connector 1 7 Network Activity Light 1 13 PS/2 Keyboard Connector

2 Link Integrity Light 2 8 Serial Connector 2 14 VGA Connector

3 Network Adapter Connector 2 9 Wi-Fi Connector 15 24V Powered USB Connector

4 Network Activity Light 2 10 PS/2 Mouse Connector 16 USB 2.0 Connectors (4)

5 Link Integrity Light 1 11 Line-Out Connector 17 DisplayPort

6 Network Adapter Connector 1 12 Line-In/Mic Connector

DESKTOP AND SMALL FORM FACTOR COMPUTER (DT, SFF) VIEW

DELL™ OPTIPLEX™ XE TECHNICAL GUIDEBOOK V1.0

MARKETING SYSTEM CONFIGURATIONS

NOTE: Offerings may vary by region. For more information regarding the configuration of your computer, click

Start>Help and Support and select the option to view information about your computer.

OPERATING SYSTEM

NOTE: One of the following Operating Systems will be preinstalled.

DT SFF

Windows 7® operating system Microsoft® Windows 7® Professional (64 and 32 bit); Microsoft® Win-

dows 7® Home Premium (32 bit); Microsoft® Windows 7® Basic (32 bit)

Windows Vista® operating system

Windows Vista® Business (64 and 32 bit), Windows Vista® Home Basic

SP1 (32 bit), Windows Vista® Business SP1 (32 bit) via Windows 7 Pro-

fessional Downgrade Rights

Windows XP® operating system

Windows®XP Professional SP3 via Windows Vista® Business Down-

grade Rights (32 bit), Windows®XP Professional SP3 via Microsoft®

Windows 7® Professional Downgrade Rights (32 bit); Windows® XP

Home SP3 (China only)

Other Microsoft® Windows Embedded POSReady (target availability

May 2010); FreeDOS for (N-series), Ubuntu® Linux (China only)

OS Media Support X X

CHIPSET

NOTE: The OptiPlex XE uses a Chipset from Intel’s long lifecycle Embedded Roadmap

DT SFF

Chipset Intel Q45 Express Chipset w/ICH10DO

Non-volatile memory on chipset

BIOS Configuration SPI (Serial Peripheral Interface) 16Mbit (2MB) located at SPI_FLASH on chipset

NIC EEPROM 5761—8Mbit, 57780—OTP

PROCESSOR

NOTE: The OptiPlex XE uses CPUs from Intel’s long lifecycle Embedded Roadmap

NOTE: Processor numbers are not a measure of performance.

DT SFF

Intel® Core™ 2 Duo and Pentium® Dual Core Processors

Intel® Core™ 2 Duo E7400/2.83GHz, 3M, 1066FSB XX

Intel® Pentium® Dual-Core E5300/2.60GHz, 2M, 800FSB XX

Intel® Celeron® Processors

Intel® Celeron® 440/2.0GHz, 512K, 800FSB XX

DELL™ OPTIPLEX™ XE TECHNICAL GUIDEBOOK V1.0

MEMORY

Memory modules should be installed in pairs of matched memory size, speed, and technology. If the memory

modules are not installed in matched pairs, the computer will continue to operate, but with a slight reduction

in performance.

ADVANCED SYSTEM MANAGEABILITY MODES

NOTE: Hardware management mode options allow you to select the right systems management feature support

for your enterprise. Dell’s innovative approach to scalable remote client management offers you a choice of

built-in hardware management capabilities across platform offerings.

The latest generation of Broadcom® TruManage™ technology provides the capability to manage your install

base of systems regardless of the power or O/S state of the system.

This functionality allows IT to address many issues remotely rather than having to physically visit systems.

The OptiPlex™ XE supports Broadcom® TruManage™ technology which supports the following features:

BIOS Management, asset reporting, remote troubleshooting and repair, power on for remote patching/updating.

DT SFF

Broadcom® TruManage™ Systems Management Ready X X

DT SFF

Type: DDR3 Synch DRAM Non-ECC Memory 1066MHz

DIMM Slots 4 4

DIMM Capacities Up to 2GB Up to 2GB

Minimum Memory 1GB 1GB

Maximum System Memory (uses 2GB DIMMS) 8GB18GB1

1066MHz Memory configurations

8GB1DDR3 Non-ECC SDRAM, 1066MHz, (4 DIMM) X X

4GB1DDR3 Non-ECC SDRAM, 1066MHz, (4 DIMM) X X

4GB1DDR3 Non-ECC SDRAM, 1066MHz, (2 DIMM) X X

3GB DDR3 Non-ECC SDRAM, 1066MHz, (3 DIMM) X X

3GB DDR3 Non-ECC SDRAM, 1066MHz, (2 DIMM) X X

2GB DDR3 Non-ECC SDRAM, 1066MHz, (2 DIMM) X X

2GB DDR3 Non-ECC SDRAM, 1066MHz, (1 DIMM) X X

1GB DDR3 Non-ECC SDRAM, 1066MHz, (1 DIMM) X X

1 The total amount of available memory may be less than 4GB. The amount less depends on the actual system configuration. To fully utilize 4GB or

more of memory requires a 64-bit enabled processor and 64-bit operating system.

DELL™ OPTIPLEX™ XE TECHNICAL GUIDEBOOK V1.0

DRIVES AND REMOVABLE STORAGE

DT SFF

Bays:

5.25-inch bay (for External Optical) 1 1 (slim-line)

3.5” Hard Drives Supported (Internal) 2 1

2.5” Hard Drives Supported (Internal) 1 2

Interface:

SATA 3 3

3.5” Hard Drives:

500GB1,4 SATA 7200 RPM HDD X X

320GB1SATA 7200 RPM HDD X X

250GB1SATA 7200 RPM HDD X X

160GB1,4 SATA 7200 RPM HDD X X

2.5” Hard Drives:

250GB1SATA 7200 RPM HDD X X

160GB1,4 SATA 7200 RPM HDD X X

160GB1SATA Full Disk Encryption HDD X X

128GB1SATA Solid State Drive X X

64GB1SATA Solid State Drive X X

RAID 1 Data Protection: (includes two matching capacity/speed hard drives)

500GB1,4 SATA 7200 RPM HDD (3.5”) X

320GB1SATA 7200 RPM HDD (3.5”) X

250GB1SATA 7200 RPM HDD (3.5”) X

160GB1,4 SATA 7200 RPM HDD (3.5”) X

250GB1SATA 7200 RPM HDD (2.5’) X

160GB1,4 SATA 7200 RPM HDD (2.5”) X

1For hard drives, GB means 1 billion bytes; actual capacity varies with preloaded material and operating environment and will be less.

43.5” 160GB and 500GB and 2.5” 160GB 7200 RPM SATA 3.0Gb/s HDDs are expected to be offered during the entire system purchase lifecycle.

DELL™ OPTIPLEX™ XE TECHNICAL GUIDEBOOK V1.0

DRIVES AND REMOVABLE STORAGE

DT SFF

RAID 0 Performance: (includes two matching capacity/speed hard drives)

1TB1SATA 7200 RPM HDD (3.5”) X

640GB1SATA 7200 RPM HDD (3.5”) X

500GB1SATA 7200 RPM HDD (3.5”) X

320GB1SATA 7200 RPM HDD (3.5”) X

500GB1SATA 7200 RPM HDD (2.5”) X

320GB1SATA 7200 RPM HDD (2.5”) X

Optical Drive: (SFF requires a slim-line optical drive)

DVD+/-RW2SATA 1.5Gbit/s SATA 1.5Gbit/s

DVD-ROM3SATA 1.5Gbit/s SATA 1.5Gbit/s

1For hard drives, GB means 1 billion bytes; actual capacity varies with preloaded material and operating environment and will be less.

2Discs burned with this drive may not be compatible with some existing drives and players; using DVD+R media provides maximum compatibility.

3DVD-ROM drives may have write-capable hardware that has been disabled via firmware modifications.

DELL™ OPTIPLEX™ XE TECHNICAL GUIDEBOOK V1.0

DT SFF

Integrated Intel GMA 4500 Integrated on system board

Enhanced Graphic/Video Options

DVI (Digital) Adapter Card Optional card

SYSTEM BOARD CONNECTORS

NOTE: See Detailed Engineering Specifications for maximum card dimensions.

GRAPHICS/VIDEO CONTROLLER

NOTE: DT supports low profile card or full height card with optional combo riser. SFF supports low profile

DT SFF

PCI Slot(s): number of 2 1

PCIe x16 Slot: number of 1 1

PCIe x1 Slot: number of 1 0

Serial ATA (SATA) 3 3

See chassis diagrams section for port/connector locations DT SFF

USB 2.0 2 Front, 4 Rear, 2 Internal

24V Powered USB 2.0 1 Rear

Serial 2 rear with option for powered

Network Connector (RJ-45) 2 Rear

PS/2 2 Rear

Wireless Optional via add-in card

Routing for external power 1 Front

Video:

VGA 1 Rear

DVI-D Optional via add-in card or DP-to-DVI adapter

DisplayPort 1 Rear

Audio:

Line in/microphone 1 Rear

Line out 1 Rear

Risers: (replaces PCI slot and 1 PCIe slot on DT system board)

Combo full height riser with 1 PCI and 1 PCIe x16 connector X

Dual full height riser with 2 PCI connectors X

EXTERNAL PORTS/CONNECTORS

NOTE: DT supports low profile card or full height card with optional riser. SFF supports low profile card.
