Dell W2607C Bedienungsanleitung
www.dell.com | support.dell.com
Dell™ W2607C LCD TV Display
Owner’s Manual
Model W2607C
Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you make better use of your LCD TV display.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the
problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.
____________________
Information in this document is subject to change without notice.
© 2006 Dell Inc. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, Dimension, OptiPlex, Dell Precision, Latitude, Inspiron, DellNet, PowerApp, PowerEdge. PowerConnect,
PowerVault, EMC
®
and the DELL logo are trademarks of Dell, Inc.; TruSurround XT, SRS, and symbol are trademarks of
SRS Labs, Inc.
TruSurround XT technology is incorporated under license from SRS Labs, Inc.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.
Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
February 2006 Rev. A00
Contents 3
Contents
1About Your LCD TV Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Front View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Right Side View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Left Side View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Bottom View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2Setting Up Your LCD TV Display . . . . . . . . . . . . . . . . . . . . . . . . .11
Proper Location for Your LCD TV Display . . . . . . . . . . . . . . . . . . 11
Connecting Your LCD TV Display . . . . . . . . . . . . . . . . . . . . . . 11
Connecting Your Computer to the LCD TV Display . . . . . . . . . . . . . . 13
3Your Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Installing Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Using Your Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . 20
Using Your LCD TV Display With a Universal or Learning Remote Control. . . 22
4Using the TV Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Using Your Remote Control With the TV Menu. . . . . . . . . . . . . . . . 23
Selecting Your TV Menu Language . . . . . . . . . . . . . . . . . . . . . 24
Input Select Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Picture Settings Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Audio Settings Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Size Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4Contents
Parental Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Closed Caption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
5Troubleshooting Your LCD TV Display . . . . . . . . . . . . . . . . . . . .30
Troubleshooting Tips. . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
General Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
TV Menu Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Remote Control Problems . . . . . . . . . . . . . . . . . . . . . . . . . 36
Using the Self-Test Feature When Your LCD TV Display is Connected
to Your Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Problems When Using the LCD TV Display as a Monitor . . . . . . . . . . . 37
6Specifications for Your LCD TV Display. . . . . . . . . . . . . . . . . . .38
7Contacting Dell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
About Your LCD TV Display 5
1
About Your LCD TV Display
Front View
1IR receiver Senses the signal from the remote control.
2Power indicator light (LED) The light is blue when the LCD TV display is on and amber
when the LCD TV display is in power save mode.
2
1
6About Your LCD TV Display
www.dell.com | support.dell.com
Right Side View
1Power button
Press to turn the LCD TV display on and off. The power button
is blue when it is on and amber when it is in power saving
mode.
2
TV Menu menu button Press to enable the TV Menu.
3Volume button Press to decrease the volume.
4Volume button Press to increase the volume.
5Channel button Press to select the previous channel or navigate through the TV
Menu.
6Channel button Press to select the next channel or navigate through the TV
Menu.
7Input Select button Press to display the Input Select menu.
2
1
3
4
5
6
7
OK
About Your LCD TV Display 7

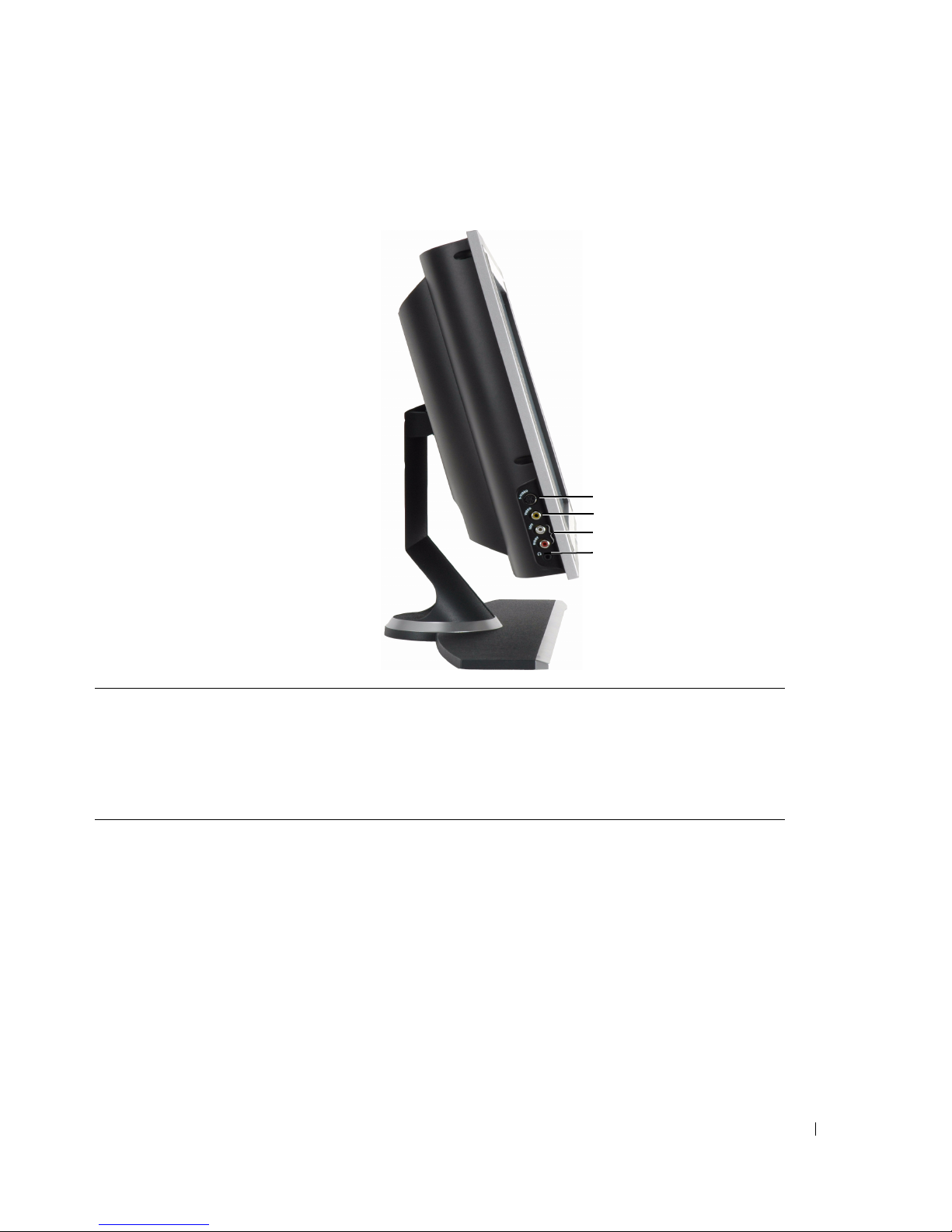

Left Side View
1AV SIDE (S-Video 2) Connect devices such as a video game system or a VCR.
2AV SIDE (Composite 2) Connect devices such as a VCR or DVD player.
3AV SIDE audio connector Use the audio connector if you have connected a device to AV
SIDE connectors.
4Headphone connector Connect headphones.
1
2
3
4
8About Your LCD TV Display
www.dell.com | support.dell.com
Bottom View
1DVI audio connector (L / R) Use the DVI audio connector if you have connected a device
such as a DVD player to the DVI connector.
2VGA Connect your computer.
3DVI connector Connect your computer or video devices such as a DVD player.
4Audio connector for VGA or DVI Connect the audio cable from your computer to the LCD TV
Display.
5NTSC/Analog Cable Connect analog cable TV box or an analog antenna.
6HDTV/Digital Cable Connect digital cable TV box or a digital antenna.
7Composite out/Audio Out (L/R) Connect to VCR (L/R) audio inputs.
8Composite out/Video Out Connect to VCR video input.
9Composite video and audio
connectors (AV1)
Connect devices such as a VCR or DVD player.
10 S-Video video and audio connectors
(AV2)
Connect devices such as a video game system or a VCR.
11 Component video and audio
connectors (AV3)
Connect devices such as a DVD player or cable TV box.
12 Component video and audio
connectors (AV4)
Connect devices such as a DVD player or cable TV box.
13 Power connector Connect your power cord.
12
8
612
7
3
11
9
10
5
4
13
About Your LCD TV Display 9
Package Contents
NOTE: If you need additional cables, contact Dell.
Remote control
AAA batteries (2)
Power cord
Component video cable
Audio cable
10 About Your LCD TV Display
www.dell.com | support.dell.com

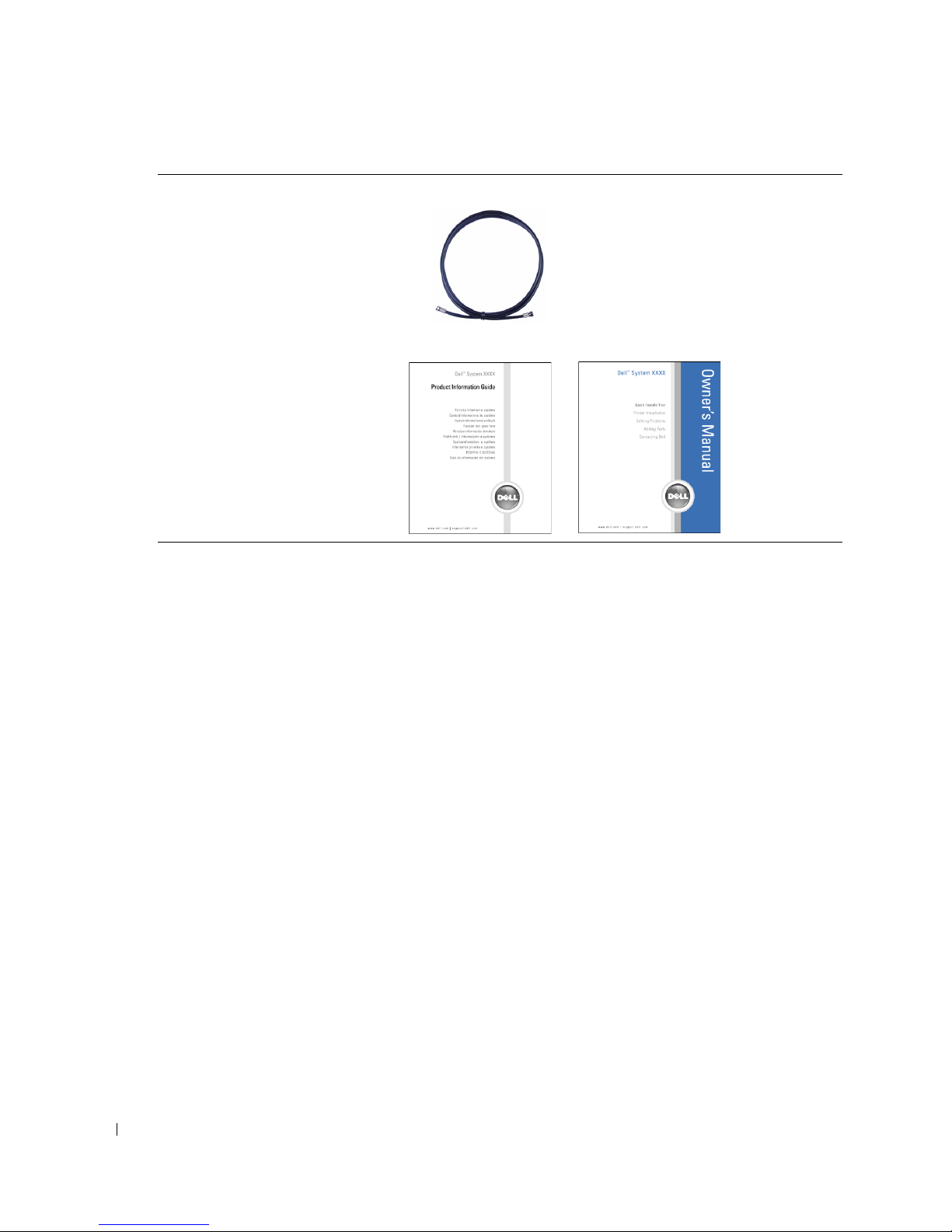

Coaxial cable
Documentation:
Setup Guide
Product Information Guide
Owner's Manual
