Dell P2222H Gebrauchsanweisung

Product Announcement:

This product is certificated to meet RoHS

Directive and Lead-Free produced definition.

Using approved critical components only is

recommended when the situation to replace

defective parts. Vender assumes no liability

express or implied, arising out of any unauthorized

modification of design or replacing non-RoHS

parts. Service providers assume all liability.

Qualified Repairability:

Proper service and repair is important to the safe,

reliable operation of all series products. The

service providers recommended by vender should

be aware of notices listed in this service manual in

order to minimize the risk of personal injury when

perform service procedures. Furthermore, the

possible existed improper repairing method may

damage equipment or products. It is recommended

that service engineers should have repairing

knowledge, experience, as well as appropriate

product training per new model before performing

the service procedures.

NOTICE:

! To avoid electrical shocks, the products should be

connected to an authorized power cord, and turn

off the master power switch each time before

removing the AC power cord.

! To prevent the product away from water or

expose in extremely high humility environment.

! To ensure the continued reliability of this

product, use only original manufacturer’s

specified parts.

! To ensure following safety repairing behavior, put

the replaced part on the components side of

PWBA, not solder side.

! To ensure using a proper screwdriver, follow the

torque and force listed in assembly and

disassembly procedures to unscrew screws.

! Using Lead-Free solder to well mounted the

parts.

! The fusion point of Lead-Free solder requested in

the degree of 220°C.

1. Important Safety Notice

2. Exploded view diagram with list of items

3. Wiring Connectivity Diagram

Panle 1920*1080

1TRC1IMDH DP1

LCD1

Function Key Board

USB Up

stream

USB Down

Stream #1

USB Down

Stream #2

USB Down

Stream #3

USB Down

Stream #4

Power Board Interface Board

4. Disassembly and Assembly Procedures

4.1 Disassembly Procedures:

Necessary repair and test equipment:

1. Philips-head screwdriver

2. Hex-head screwdriver

Wedge your fingers between the rear cover and the

middle bezel on the corners of the top side of the

monitor to release the rear cover, then use one hand

to press the middle bezel, the other hand to pull up

carefully the rear cover in order of arrow preference

for unlocking mechanisms of rear cover..

Use a Philips-head screwdriver to remove four

screws for unlocking mechanisms.

(No.1~4 screw size=M4x10; Torque=12±0.5kgfxcm)

Lift the rear cover up carefully. Disconnect the key

cable and USB FFC cable from the connectors of

the interface board, and then remove the rear cover.

Remove the monitor stand base:

1. Place the monitor on a soft cloth or cushion.

2. Press and hold the stand-release button.

3. Lift the stand up and away from the monitor.

Tear off 2pcs aluminium foils for unfixing the bracket

Tear off 1pcs acetate tape, and then release the

panel lamp cable from the hook of the middle bezel.

Use a Philips-head screwdriver to remove 2pcs

screws for unlocking the joystick key board unit, then

tear off the tapes and release the USB board.

(No.1~2 screw size=M2x3.3,Torque=1±0.2kgfxcm)

Use a Philips-head screwdriver to remove one screw

for unlocking the USB board unit, then release the

USB board unit and put it aside.

(No.1 screw size=M3x6, Torque=4±0.5kgfxcm)

aluminum foil

conductive tape

4. Disassembly and Assembly Procedures

Disconnect the LED cable from the connector, then

release the LED cable by tearing off 2pcs tapes.

Take away the

middle bezel, and put it on a fixture,

then tear off the mylar tape for releasing the LED

board

S10

Lift up the panel with the bracket for releasing the

front bezel away from the panel. Use a Philips-head

screwdriver to remove one screw for unlocking the

bracket with panel.

(No.1 screw size=M3x0.5x3, Torque=4±0.5kgfxcm)

Use a Philips-head screwdriver to remove 11pcs

screws for unlocking the middle bezel with the panel.

(No.1~9 screw size=M3x4, Torque=5±0.5kgfxcm;

No.10~11 screw size=M1.6x1.7, Torque=1±0.2kgfxcm)

S11

Take away the bracket chassis module and then put

the bracket chassis module on a protective cushion.

S13

Put the panel module on a protective cushion, then

disconnect the panel lamp cable from the connector

of panel module, then unplug the LVDS cable from

the connector of the panel module.

S12

4. Disassembly and Assembly Procedures

Remove the black Mylar from the hooks of the

bracket as the picture below shown.

Remove the interface board and power board from

the bracket chassis module carefully, and disconnect

all the cables.

Use a Philips-head screwdriver to remove 5pcs

screws for unlocking the power board and interface

board, and then release all the cables from the

hooks.

(No.1~4 screw size=M3x7.5, Torque=6±0.5kgfxcm;

No.5 screw size=M4x8, Torque=6±0.5kgfxcm)

S14

S16

Use a Hex-head screwdriver to remove two screws

for unlocking the D-Sub connector.

(No.1~2 screws size=M3x8, Torque=6±0.5kgfxcm)

S17

S15

4. Disassembly and Assembly Procedures

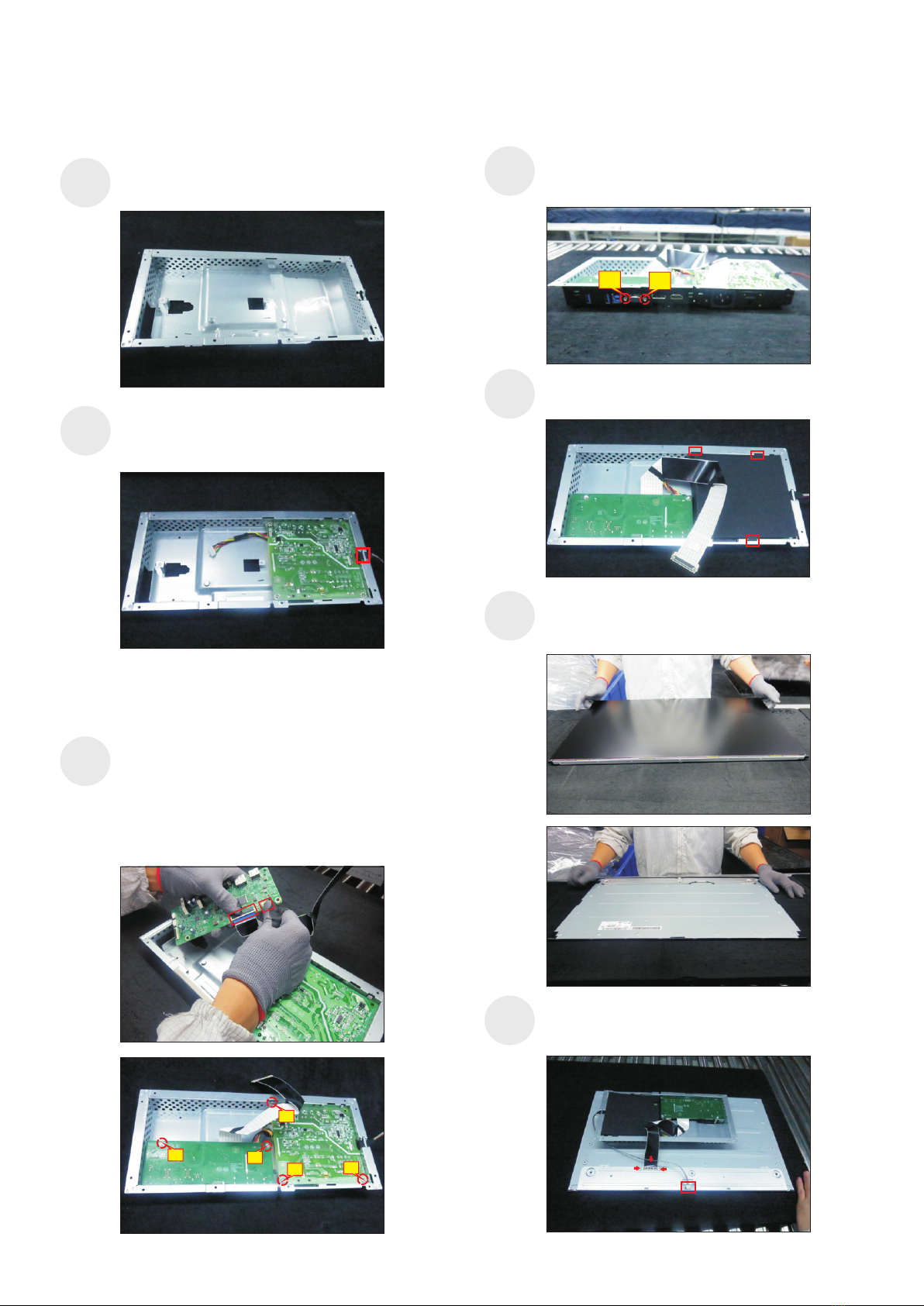

Take a mylar to insert the hooks of the bracket to

cover the power board.

Panel preparation: Examine the panel surface

according to inspection criteria. Turn over the panel

to place the screen faced down for later assembling.

Turn over a power board and put the power board

into the bracket chassis, locate the panel power

cable into the hook of the bracket chassis.

Place a bracket chassis base on a protective

cushion.

4.2 Assembly Procedures:

Take a interface board, connect a LVDS cable to the

connector of the interface board, then connect the

cable of the power board to the connector of the

interface board. Turn over the interface board and

locate it into the bracket. Use a Philips-head

screwdriver to tighten 5pcs screws for locking the

power board and interface board.

(No.1~4 screw size=M3x7.5, Torque=6±0.5kgfxcm;

No.5 screw size=M4x8, Torque=6±0.5kgfxcm)

Put the bracket chassis module on the back of LCD

module, then connect LVDS cable and panel lamp

cable to the connectors of the panel module.

Use a Hex-head screwdriver to tighten 2pcs screws

for locking the D-Sub connector.

(No.1~2 screw size=M3x8, Torque=6±0.5kgfxcm)

4. Disassembly and Assembly Procedures

Use a fixture jip to fix the bracket chassis, then paste

2pcs aluminum foil on the specific position to fix the

bracket chassis module. Locate the panel lamp into

the hook of the middle bezel, then fix the panel lamp

cable with 1pcs acetate tape as the picture below

shown.

Take 1pcs LED board and 1pcs middle bezel, then

put the middle bezel into a fixture jip to fix the middle

bezel. Tear off the release paper on the back of the

board, and then paste the LED board on the correct

position of the middle bezel, then paste 1pcs mylar

tape to cover the LED board.

Fix the LED cable with 2pcs tapes on the middle

bezel by tearing off papers., and then connect the

LED cable to the connector of the interface board.

Assemble the middle bezel with the front bezel and

panel module, then adjust the middle bezel for two

parts firmly attachment.

S10

Take a front bezel, then lift up the panel with bracket

and assemble the front bezel with the unit. Use a

Philips-head screwdriver to tighten 1pcs for locking

the bracket with panel module.

(No.1 screw size=M3x0.5x3, Torque=4±0.5kgfxcm)

Use a Philips-head screwdriver to tighten 11pcs

screws for locking the middle bezel with the panel.

(No.1~9 screw size=M3x4, Torque=5±0.5kgfxcm;

No.10~11 screw size=M1.6x1.7, Torque=1±0.2kgfxcm)

S11

aluminum foil

conductive tape

S12

S13

4. Disassembly and Assembly Procedures

Use a Philips-head screwdriver to tighten 4pcs

screws for locking rear cover with the assembled

unit. Stick 2pcs labels on the specific positions as

the picture below shown

(No.1~4 screw size=M4x10; Torque=12 0.5kgfxcm)±

Move the assembled rear cover close to the

panel unit, then connect the key cable and USB

FFC cable to the connectors of interface board.

Put down the rear cover and push the rear cover

on the positions marked as the picture below

shown for mechanisms engagement.

S16

Take 1pcs USB board and a connect cable. Connect

the cable to the USB board, then paste 1pcs

conductive foam on the back of the board. Locate

the USB board into the hook of the middle bezel.

Use a Philips-head screwdriver to tighten one screw

for locking the USB unit with middle bezel.

(No.1 screw size=M3x6, Torque=4±0.5kgfxcm)

S14

S17

Take 1pcs assembled stand base, then fit the two

tabs on the upper part of the stand into the grooves

on the back of the monitor, and then press the stand

so that the monitor mounting area snaps onto the

stand.

S18

Take 1pcs joystick key, 1pcs joystick board and 1pcs

rear cover, then assemble the joystick key with board.

Locate the joystick board to the correct position of the

rear cover, then use a Philips-head screwdriver to

tighten 2pcs screws for locking the joystick board with

rear cover, then fix the key cable with 2pcs tapes.

(No.1~2 screw size=M2x3.3,Torque=1±0.2kgfxcm)

S15

4. Disassembly and Assembly Procedures

video signal to the monitor

ift up the monitor, then provide power supply and a

, then turn on the monitor

for functionality check.

S19
