Dell Mobile Projector M900HD
Firmware Upgrade
Setup Guide
Released date: June 2015 Rev.D
1
Contents
1. Projector Firmware Upgrade Setup.......................................................................................... 2
Part A: Install the Dell Flasher Tool on Your Computer.................................................................2
Part B: Enter Download Mode and Install the USB driver on Your Computer..........................3
Part C: Launch the Dell Flasher Tool to Upgrade Projector Firmware........................................5
2. Multimedia Firmware Upgrade Setup .......................................................................................7
Part A: Project the Image.....................................................................................................................7
Part B: Connect Your Computer to the Projector and Login Web Management.....................8
Part C: Upgrade Multimedia Firmware..............................................................................................9
2
1. Projector Firmware Upgrade Setup
Part A: Install the Dell Flasher Tool on Your Computer
1. Please follow your computer operating system to select flasher version.
You may find the setup file in the Flasher 2.0_xx folder created after downloading and
unzipping or extracting the .zip file.
Win 8.1, Win 8, Win 7, Vista, and XP 32-bit OS: Please install Flasher 2.0_32 bit version
Win 8.1, Win 8, Win 7, Vista, and XP 64-bit OS: Please install Flasher 2.0_64 bit version
NOTE: Dell Flasher tool does not support Mac OS.
2. Double-click Setup.exe from downloaded Flasher_v2.0_32 or 64bit FW folder.
3. Follow the on-screen instructions to complete the setup and find the installed flasher on
Start menu.
NOTE: You only need to install the “Dell Flasher Tool” once.
3
Part B: Enter Download Mode and Install the USB driver on Your Computer
4. Plug in the power cord and perform following steps to enter download mode.
NOTE: Please DON’T press power button to turn on the projector when entering download
mode.
Step A: Press the Menu button and hold it.
Step B: Continuously hold the Menu button and press the Power button simultaneously.
Step C: Release the buttons after Temp and Error LED LEDs are both lighted up.
5. Connect the USB (type A to type A) cable to projector and computer.
NOTE:
a. If Windows XP pop-up this diagram, please click Cancel. Windows 7/8/8.1 OS does not
pop-up this diagram.
Step A. Press and hold the
“Menu” button.
Step B. Press the “Power” button
for a second.
4

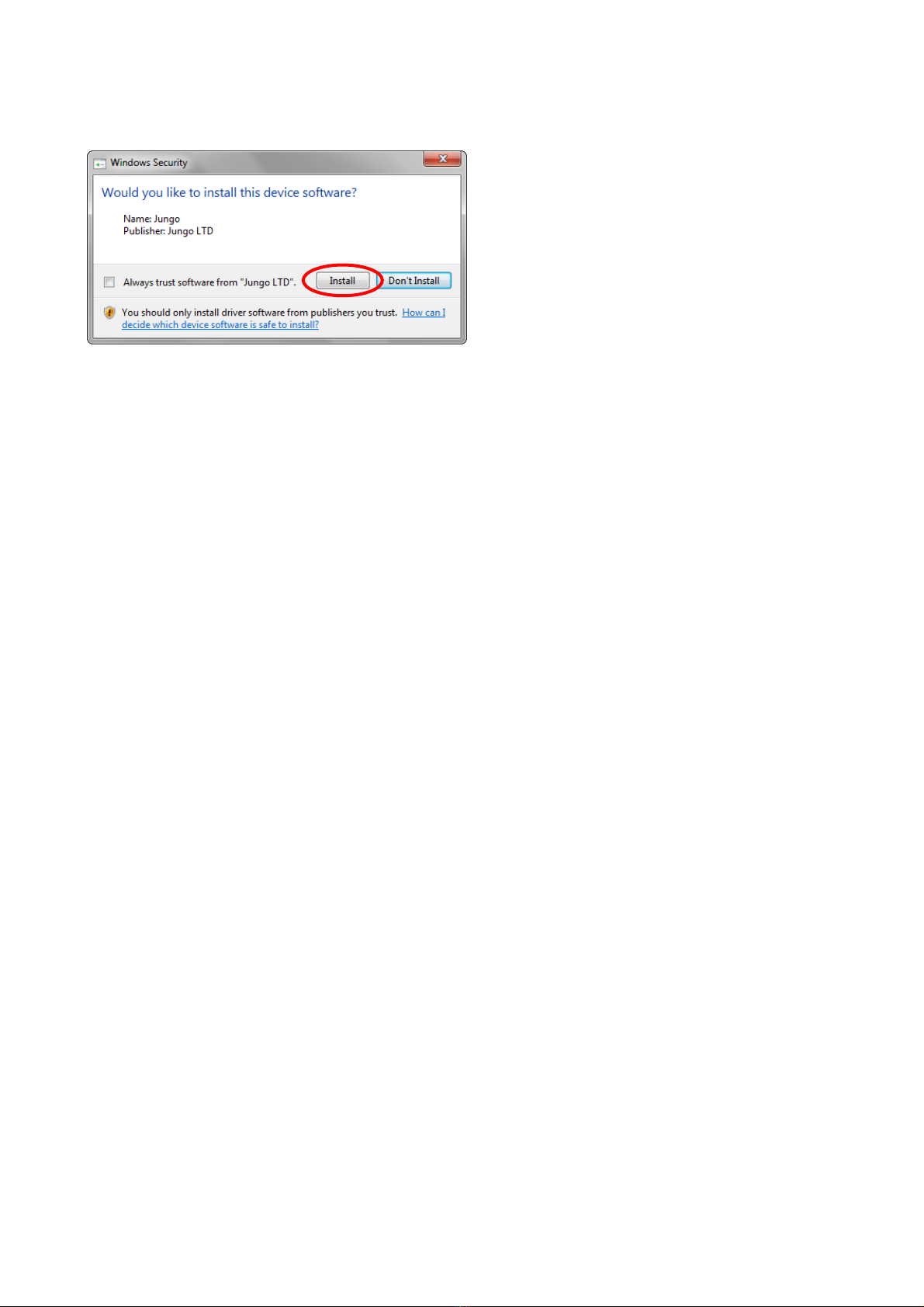

b. If Window 7/8/8.1 32-bit or 64-bit OS pop-up this diagram, please click Install. Windows
XP does not pop-up this diagram.
5
Part C: Launch the Dell Flasher Tool to Upgrade Projector Firmware
Please keep the projector in download mode as step 4.
6. Execute the Dell Flasher: Start All Programs Dell Flasher 2.0Flasher
7. Dell Flasher is executing and please check USB status is Connected before upgrade
firmware.
NOTE: If Window 7/8/8.1 32-bit or 64-bit OS pop-up this diagram, please click Install.
Windows XP does not pop-up this diagram.
NOTE: You only need to install the “Jungo driver” once.
8. Follow these steps to upgrade firmware:
Step A: Click the “Browse” to find the firmware (*.img) from downloaded Projector FW
folder.
6
Step B: Click the “DownLoad” to pop-up the dialog.
Step C: Click the “YES” to start the upgrade projector firmware.
Step D: Start to Erasing projector.
Step E: Download and upgrade firmware
WARNING: When you are in downloading mode, PLEASE do not press the keyboard.
Step F: Firmware completed, press “OK” and plug out the USB cable from projector.
9. Unplug and re-plug in the power cord to turn on M900HD projector.
NOTE: If you have installed Dell Flasher Tool once, you may skip step 1~ 3, and only proceed
step 4~9 afterward to upgrade the projector firmware.
A
B
C
D
7
2. Multimedia Firmware Upgrade Setup
Part A: Project the Image
1. Connect the power cable and turn on the projector by pressing the power button.
2. Press Menu button, at Input Source option, will be source switch to Wi-Fi source.
The Wireless Guide Screen shown below appears:
8
Part B: Connect Your Computer to the Projector and Login Web Management
3. Connect your computer to the M900HD wireless network.
NOTE:
Your computer must have wireless network function to detect the connection.
When you connect to the M900HD wireless network, you will lose wireless connectivity
with other wireless network.
4. Open the Internet browser on your computer. You will be automatically directed to the
M900HD Web Management web page.
NOTE: If the web page does not load automatically, enter the IP address (default IP address
is 192.168.100.10) in the browser’s address bar.
9
Part C: Upgrade Multimedia Firmware
5. The M900HD web management page opens. Click the Admin.
6. Enter the administrator password (default password is admin), then click the Login.
7. Click the Firmware Upgrade.
8. Follow these steps to upgrade firmware:
Step A: Click the “Browse” to first find the firmware (*.nad) from downloaded Multimedia
FW folder.
