Dell S510 Bedienungsanleitung

Dell Interactive Projector

S510/S510n

User’s Guide

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make

better use of your projector

CAUTION: A CAUTION indicates potential damage to hardware or

loss of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage,

personal injury, or death.

____________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written

permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; DLP

and DLP logo are trademarks of TEXAS INSTRUMENTS INCORPORATED; Microsoft and

Windows are either trademarks or registered trademarks of Microsoft Corporation in

the United States and/or other countries.

Other trademarks and trade names may be used in this document to refer to either

the entities claiming the marks and names or their products. Dell Inc. disclaims any

proprietary interest in trademarks and trade names other than its own.

Model: Dell Interactive Projector S510/S510n

February 2015 Rev. A01

Contents | 3

Contents

1 About Your Dell Projector . . . . . . . . . . . . . . . . . 5

Projector Box Contents . . . . . . . . . . . . . . . . . . . . 5

Projector Top and Bottom View . . . . . . . . . . . . . . . 7

2 Setting Up Your Projector . . . . . . . . . . . . . . . . . 9

Cleaning Projector's Mirror . . . . . . . . . . . . . . . . . . 9

Adjusting Projector Focus . . . . . . . . . . . . . . . . . . . 9

Adjusting Image Size . . . . . . . . . . . . . . . . . . . . . 10

Adjusting Image Shape . . . . . . . . . . . . . . . . . . . . 11

Using Remote Control . . . . . . . . . . . . . . . . . . . . 12

Projector Connections . . . . . . . . . . . . . . . . . . . . 17

3 Using Your Projector . . . . . . . . . . . . . . . . . . . . 31

Turning Projector On . . . . . . . . . . . . . . . . . . . . . 31

Turning Projector Off . . . . . . . . . . . . . . . . . . . . . 31

Menu Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Using Interactive Pen (Only for S510) . . . . . . . . . . 51

Using Intel®WiDi. . . . . . . . . . . . . . . . . . . . . . . . 59

Using Miracast. . . . . . . . . . . . . . . . . . . . . . . . . . 68

Using Wireless/LAN Display (DoWiFi/DoLAN) . . . . . 74

Using USB Display (DoUSB) . . . . . . . . . . . . . . . . . 91

Using PC-Free Presentation. . . . . . . . . . . . . . . . . 94

Using Audio Projection . . . . . . . . . . . . . . . . . . . 102

Managing Projector with Web Browser . . . . . . . . . 111

4 Troubleshooting Your Projector . . . . . . . . . . 130

Guiding Signals . . . . . . . . . . . . . . . . . . . . . . . . 135

Changing the Lamp . . . . . . . . . . . . . . . . . . . . . 136

FAQS: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Firewall Configuration and FAQ . . . . . . . . . . . . . 140

5 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 142

RS232 Pin Assignment . . . . . . . . . . . . . . . . . . . 146

4| Contents

6 Contacting Dell . . . . . . . . . . . . . . . . . . . . . . . 148

Contacting Crestron . . . . . . . . . . . . . . . . . . . . 149

7 Appendix: Glossary . . . . . . . . . . . . . . . . . . . . 150

About Your Dell Projector 5

Your projector comes with all the items shown below. Ensure that you have

all the items, and contact Dell if anything is missing.

Projector Box Contents

1About Your Dell Projector

S510 Package Contents

Power cable VGA cable (VGA to VGA)

Remote control AAA Batteries (6)

CD User’s Guide and Documentation Mini USB cable (USB-A to Mini

USB-B)

IR Pen (2 pcs)/Pen tip cap (4 pcs) Wrist strap (2 pcs)

Freeze

Source Auto

Adjust

Blank

Screen

Blank

Screen

Video

Mode

VGA Video

PageDown

HDMI

PageUp

Aspect

Ratio

AAA

Dell

Projector s

oduct Information Guide

Informacion Importante

Dell™ Interactive Projector

S510/S510n

Contents:

•User's Guide

Documentation

P/N 8K5P4

Rev. A01

P/N 36.73901G001

January 2015

Madein China

Dell

™

Projector S510/S510n

08K5P4A01

6About Your Dell Projector

S510n Package Contents

Power cable VGA cable (VGA to VGA)

Remote control AAA Batteries (6)

CD User’s Guide and Documentation

Freeze

Source Auto

Adjust

Blank

Screen

Blank

Screen

Video

Mode

VGA Video

PageDown

HDMI

PageUp

Aspect

Ratio

AAA

Dell

Projector s

oduct Information Guide

Informacion Importante

Dell™ Interactive Projector

S510/S510n

Contents:

•User's Guide

Documentation

P/N 8K5P4

Rev. A01

P/N 36.73901G001

January 2015

Madein China

Dell

™

Projector S510/S510n

08K5P4A01

About Your Dell Projector 7

Projector Top and Bottom View

1 Power button

2TempLED

3 Lamp LED

4IRreceivers

5 Lamp cover

6 Camera (only for S510)

710Wspeaker

8 Lens

9Focusring

10 Mounting holes for wall mount: Screw hole M4 x 8 mm depth.

Recommended torque <10 kgf-cm

163.00

112.5038.80

151.30

10 7

936

821

Top View Bottom View

8About Your Dell Projector

CAUTION: Safety Instructions

Do not use the projector near appliances that generate a lot of heat.

Do not use the projector in areas where there is an excessive amount of

dust. The dust may cause the system to fail and the projector will

automatically shutdown.

Ensure that the projector is mounted in a well-ventilated area.

Do not block the ventilation slots and openings on the projector.

Ensure the projector operates between ambient temperatures (5 °C to

35 °C).

Do not try to touch the ventilation outlet as it can become very hot after

the projector has been turned on or immediately after it is turned off.

Do not look into the lens while the projector is on as it may cause injury to

your eyes.

Do not place any objects near or in front of the projector or cover its lens

while the projector is on as the heat may cause the object to melt or burn.

Do not use the wireless projector near cardiac pacemakers.

Do not use the wireless projector near medical equipment.

Do not use the wireless projector near microwave ovens.

NOTE:

•

Do not attempt to wall mount the projector by yourself. It should be

installed by a qualified technician.

•

Recommended Projector Wall Mount Kit (P/N: 7XY53). For more

information, see the Dell Support website at

dell.com/support

•

For more information, see the Safety Information that shipped with

your projector.

•

The S510/S510n projector can only be used indoors.

Setting Up Your Projector 9

Cleaning Projector's Mirror

Turn off the projector power and disconnect the power cord.

Let the projector cool for at least 30 minutes.

Use air blower bulb to blow off dust on the mirror or gently wipe the mirror

by using a microfiber cleaning cloth. Do not scrub the surface of the

mirror. It may scratch the mirror.

CAUTION: Do not spray cleaners or solvents directly on the

projector.

WARNING: Cleaning a wall-mounted projector can result in a fall

or injury. You can remove the projector from the wall-mounting

bracket to clean the projector's mirror.

Adjusting Projector Focus

Rotate the focus ring until the image is clear. The projector focuses at

distances ranging between 1.7 ft to 2.49 ft (0.517 m to 0.759 m ± 0.01 m).

2Setting Up Your Projector

1Focusring

10 Setting Up Your Projector

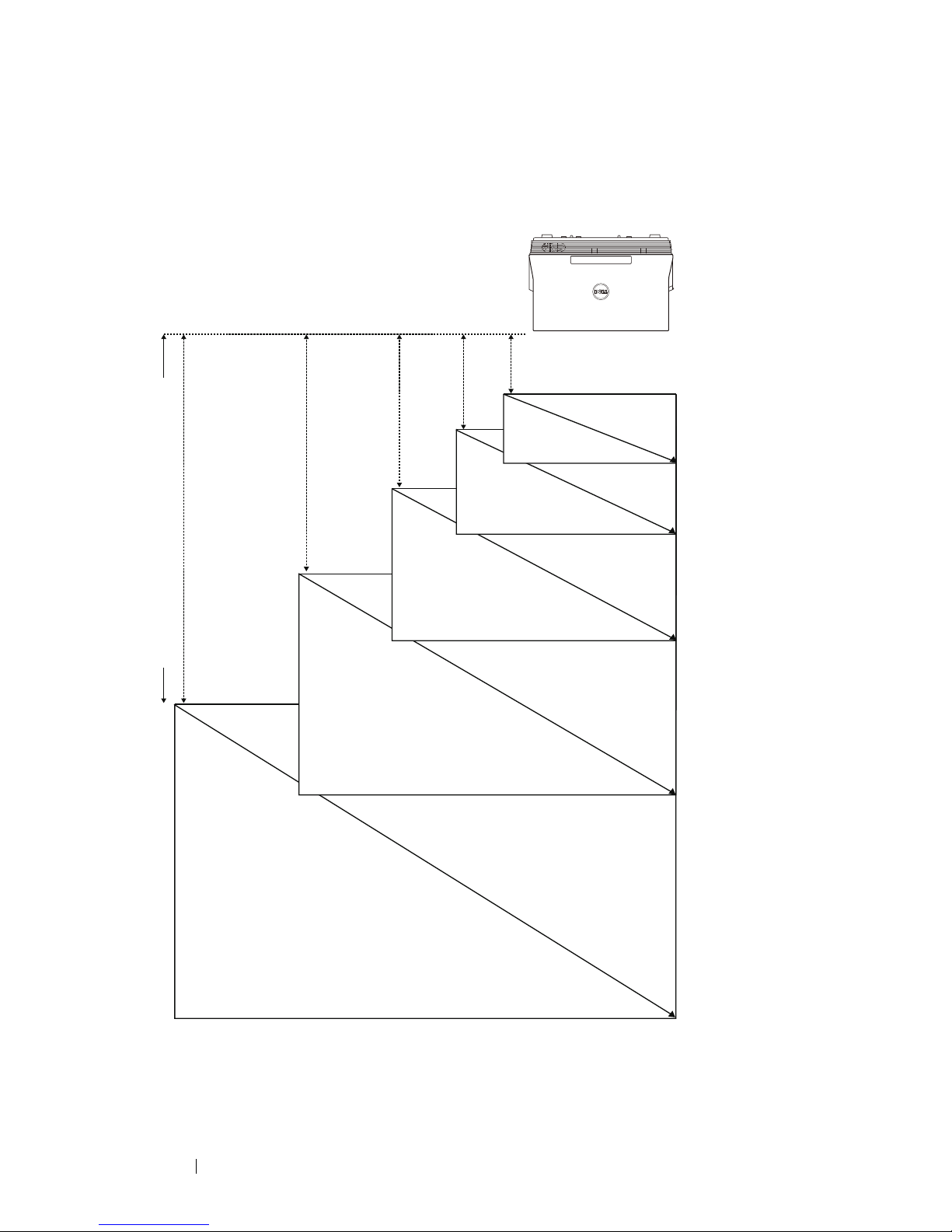

Adjusting Image Size

70" (177.8 cm)

0.597’ (18.2 cm)

0.872’ (26.6 cm)

1.05’ (32 cm)

1.122’ (34.2 cm)

1.391’ (42.4 cm)

80" (203.2 cm)

87.2" (221.49 cm)

90" (228.6 cm)

100" (254 cm)

Projector to screen distance (d)
