Dell™ PowerVault™ 136T LTO Tape Library

Updating the LTO-1 Tape

Drive Modules to LTO-2 Tape

Drive Modules

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use of your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you

how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury,

or death.

____________________

Information in this document is subject to change without notice.

Reproductioninanymannerwhatsoever without the written permissionofDellComputerCorporationisstrictlyforbidden.

Trademarks used in this text: Dell, DELL logo, and PowerVault are trademarks of Dell Computer Corporation; Microsoft

and Windows are registered trademarks of Microsoft Corporation.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and

names or their products. Dell Computer Corporation disclaims any proprietary interest in trademarks and trade names

other than its own.

June 2003 P/N F1311 Rev. A03

Updating Tape Drive Modules 1-1

This document provides procedures for updating your LTO-1 tape drive module to an

LTO-2 tape drive module in the Dell™ PowerVault™ 136T LTO tape library. You must

perform the following procedures to complete the update:

• Removing the LTO-1 drive modules

• Installing the LTO-2 drive modules

• Updating the tape library firmware

Removing the LTO-1 Drive Modules

NOTICE: You must fully complete the update from an LTO-1 tape library to an LTO-2 tape

library. LTO-1 tape drive modules and LTO-2 tape drive modules cannot be present in the same

tape library.

CAUTION: Before performing this procedure, read and follow the safety

instructions in your System Information Guide.

1Shut down the tape library.

2From the back of the library, remove the drive module by loosening the two captive

thumbscrews on each sled. See Figure 1-1.

3Slide the drive module out by its handle.

NOTE: If you are installing more LTO-2 drive modules than LTO-1 drive modules that you

just removed, then beginning with the lowest-available plate, remove the additional filler

plates by loosening the two captive thumbscrews.

Installing the LTO-2 Tape Modules

CAUTION: Before performing this procedure, read and follow the safety

instructions in your System Information Guide.

1Slide the new LTO-2 drive modules into place beginning with the lowest-available

slot. See Figure 1-1.

2Tighten the two captive thumbscrews on each drive module.

NOTE: If you are installing fewer LTO-2 drive modules than LTO-1 drive modules that you

just removed, then install a filler plate in each empty drive slot.

1-2 Updating Tape Drive Modules

www.dell.com | support.dell.com

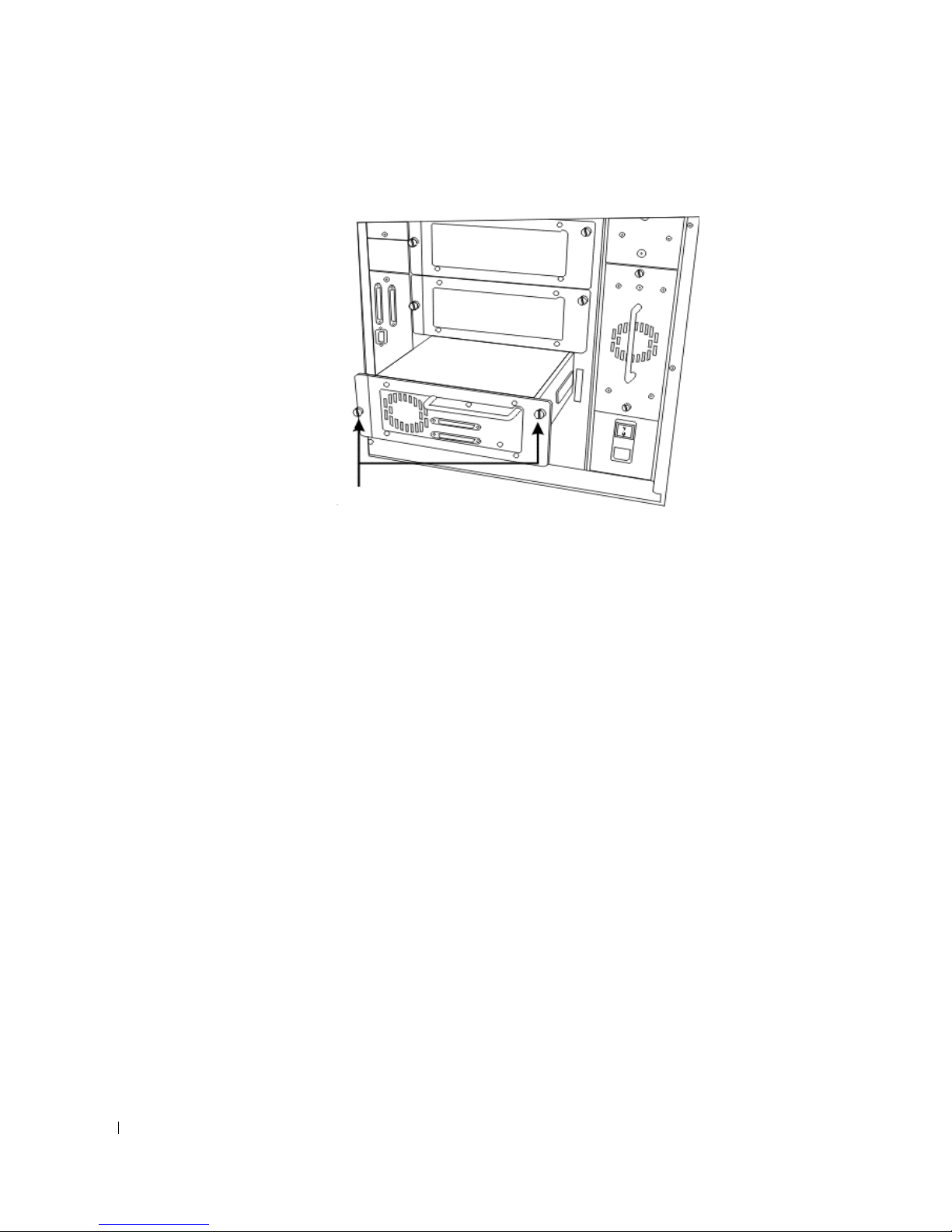

Figure 1-1. Removing and Installing the Tape Drive Module

Updating the Tape Library Firmware

Use one of the following two methods to update the tape library firmware:

• Tape library serial port

• Remote management controller card

You must download the latest firmware package from the Dell Support website at

support.dell.com. After you download the package, the firmware file will be located at

c:\dell\drivers\rxxxxx\library\LTO2, where rxxxxx is the release number of the downloaded

firmware package.

Updating the Firmware Through the Serial Port

1Turn on the tape library.

2Connect one end of the straight-through serial cable to the tape library serial port.

3Connect the opposite end of the cable to a COM port on the system where you

downloaded the firmware file.

filler plate

drive module

captive thumbscrews

Updating Tape Drive Modules 1-3

4Browse to the downloaded firmware file, open a command prompt in Microsoft®

Windows®, and then run the Dell_LTO2_Update <Com Port#>file, where

<Com Port#> represents the COM port to which the serial cable is connected.

NOTE: The downloaded firmware file is located at c:\dell\drivers\rxxxxx\library\LTO2,

where rxxxxx is the release number of the downloaded firmware package.

When the update is complete, the window closes. If the "#" sign only is displayed in

the download utility window, you must power-cycle the tape library to complete the

downloading process.

5After the update is complete, reboot the tape library.

6Ensure that the tape library operator panel does not display error messages.

The tape library firmware version can be verified in the About menu on the library’s

operator panel. The version is also displayed in the Library Firmware field on the main

Web page of the remote management controller card.

Updating the Firmware Using the Remote Management Controller Card

1Turn on the tape library and wait for the tape library to completely initialize.

NOTE: The following message might display during the tape library’s initial set up: "Your

library versions do not match. Download the latest version to

the library." Ignore this message.

2Open a Web browser on the system that contains the firmware file that you

downloaded.

3Enter the IP address of the remote management controller card that is installed in the

tape library that requires the updated firmware.

4Click the Firmware tab on the main page.

5Enter the administrator name and password for this tape library. The default user

name is admin and the default password is password.

6In the Select target for update dialog box that is displayed, select Update Library

Firmware.

7Click Browse and locate the firmware file that you downloaded.

NOTE: The downloaded firmware file is located at c:\dell\drivers\rxxxxx\library\LTO2,

where rxxxxx is the release number of the downloaded firmware package.

8Click Update Firmware.

The firmware update starts. Do not power-cycle or reset the tape library until the

firmware update completes.

1-4 Updating Tape Drive Modules

www.dell.com | support.dell.com

9After the update is complete, reboot the tape library.

10 Ensure that the tape library operator panel does not display error messages.

The tape library firmware version can be verified in the About menu on the library’s

operator panel. The version is also displayed in the Library Firmware field on the main

Web page of the remote management controller card.

www.dell.com | support.dell.com

Dell™ PowerVault™ 136T LTO 磁带库

将LTO-1 磁带驱动器模块更新

为LTO-2 磁带驱动器模块

注、注意和警告

注：注表示可以帮助您更好地使用计算机的重要信息。

注意：注意表示可能会损坏硬件或导数据丢失，并告诉您如何避免此类问题。

警告：警告表示可能会导致财产损失、人身伤害甚至死亡。

____________________

未经 Dell Computer Corporation 书面许可，严禁以任何形式进行复制。

本说明文件中使用的商标：Dell DELL 徽标和 PowerVault 为Dell Computer Corporation 的商标； Microsoft 和

Windows 为Microsoft Corporation 的注册商标。

本文件中使用的其它商标和商品名称是指拥有这些商标和名称的公司或其制造的产品。Dell Computer

Corporation 对其它公司的商标和商品名称不拥有任何专利权。

2003 年6月P/N F1311 修订 A03

更新磁带驱动器模块 2-1

本说明文件提供了在 Dell™ PowerVault™ 136T LTO 磁带库中将 LTO-1 磁带驱动器模块

更新为 LTO-2 磁带驱动器模块的步骤。要完成更新，必执行以下步骤：

•卸下 LTO-1 驱动器模块

•安装 LTO-2 驱动器模块

•更新磁带库固件

卸下 LTO-1 驱动器模块

注意：必须充分完成从 LTO -1 磁带库到 LTO -2 磁带库的更新。LTO-1 磁带驱动器模块和

LTO-2 磁带驱动器模块不能同时存在于同一个磁带库中。

警告：在执行此步骤之前，请阅读并且遵循《系统信息指南》中的安全说明。

1关闭磁带库。

2从库背面拧松每个滑板上的两颗系留指旋螺钉，从而卸下驱动器模块。参见

图2-1。

3抓住手柄，将驱动器模块滑出。

注意：如果您安装的 LTO-2 驱动器模块数量多于刚卸下的 LTO-1 驱动器模块数量，则

应该从最底部的可用挡板开始，拧松两颗系留指旋螺钉，卸下附加填充档板。

安装 LTO-2 驱动器模块

警告：在执行此步骤之前，请阅读并且遵循《系统信息指南》中的安全说明。

1从最底部的可用插槽开始，将新的 LTO-2 驱动器模块滑入到位。请参见图 2-1。

2拧紧每个驱动器模块上的两颗系留指旋螺钉。

注意：如果您安装的 LTO-2 驱动器模块数量少于刚卸下的 LTO-1 驱动器模块数量，则

应该在每个空闲的驱动器插槽中安装填充挡板。

2-2 更新磁带驱动器模块

www.dell.com | support.dell.com

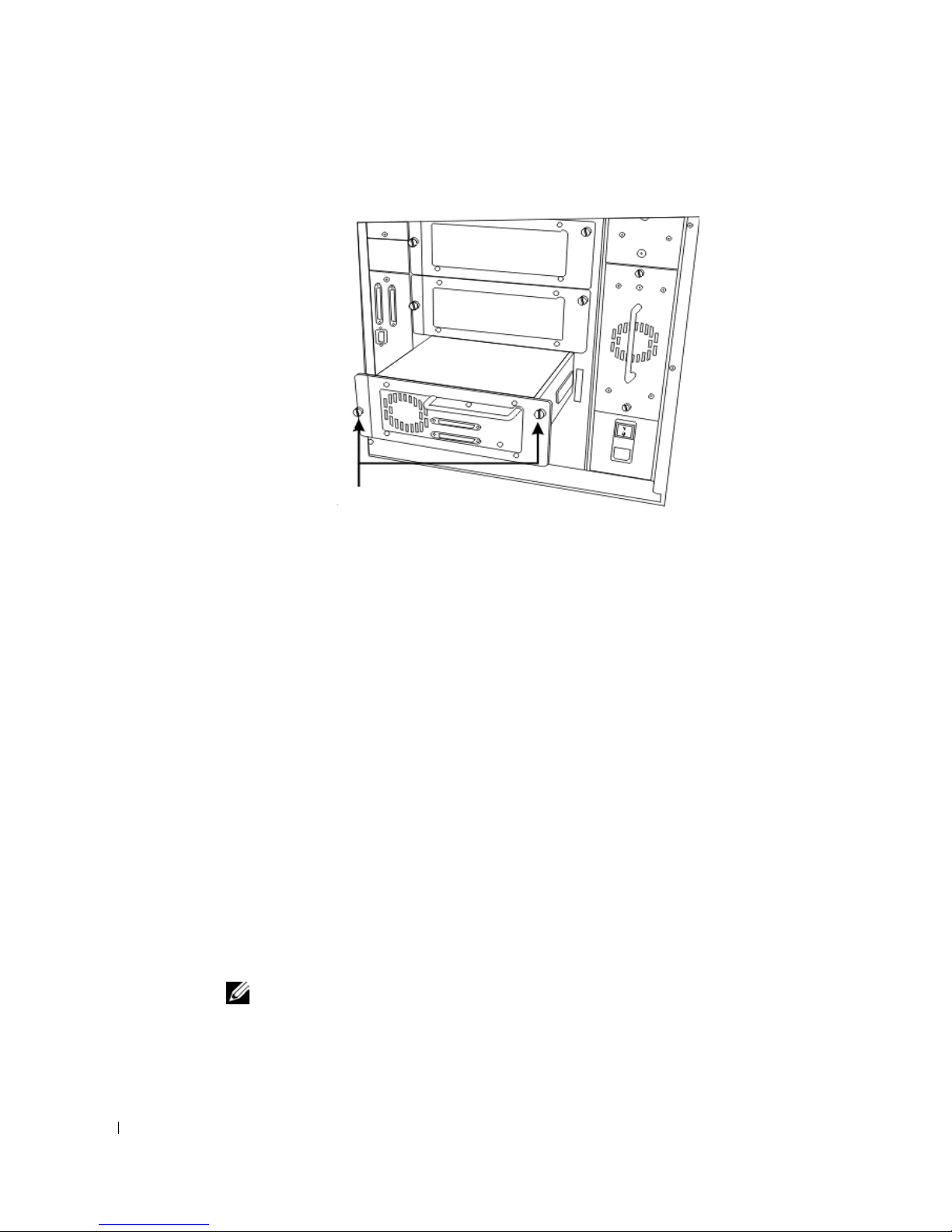

图2-1 卸下和安装磁带驱动器模块

更新磁带库固件

使用以下方法之一，更新磁带库固件：

•磁带库串行端口

•远程管理控制器卡

您必从 Dell 支持网站 support.dell.com 下载最新的固件包。固件包下载后，固件文

件将位于 c:\dell\drivers\rxxxxx\library\LTO2 下，其中 rxxxxx 为所下载的固件包的发布

号。

通过串行端口更新固件

1打开磁带库。

2将直通式串行电缆的一端连接至磁带库串行端口。

3将电缆的另一端连接至系统的 COM 端口，该系统含有下载的固件文件。

4浏览到下载的固件文件，在 Microsoft®Windows®中打开一个命令提示符，然后运

行Dell_LTO2_Update <Com Port#> 文件，其中 <Com Port#> 代表与串行电缆

相连接的 COM 端口。

注意：下载的固件文件位于 c:\dell\drivers\rxxxxx\library\LTO2 下，其中 rxxxxx 为所下

载的固件包的发布号。

填充挡板

驱动器模块

系留指旋螺钉
