Dell PowerVault MD3260/3260i/3660i/3660f/3060e

Storage Arrays

Getting Started Guide

Regulatory Model: E08J Series

Regulatory Type: E08J001

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the

problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Trademarks used in this text: Dell™, the Dell logo, Dell Boomi™, Dell Precision™, OptiPlex™, Latitude™, PowerEdge™, PowerVault™,

PowerConnect™, OpenManage™, EqualLogic™, Compellent™, KACE™, FlexAddress™, Force10™, Venue™and Vostro™are trademarks

of Dell Inc. Intel®, Pentium®, Xeon®, Core®and Celeron®are registered trademarks of Intel Corporation in the U.S. and other countries.

AMD®is a registered trademark and AMD Opteron™, AMD Phenom™and AMD Sempron™are trademarks of Advanced Micro

Devices, Inc. Microsoft®, Windows®, Windows Server®, Internet Explorer®, MS-DOS®, Windows Vista®and Active Directory®are

either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. Red Hat®and

Red Hat®Enterprise Linux®are registered trademarks of Red Hat, Inc. in the United States and/or other countries. Novell®and SUSE®

are registered trademarks of Novell Inc. in the United States and other countries. Oracle®is a registered trademark of Oracle

Corporation and/or its affiliates. Citrix®, Xen®, XenServer®and XenMotion®are either registered trademarks or trademarks of Citrix

Systems, Inc. in the United States and/or other countries. VMware®, vMotion®, vCenter®, vCenter SRM™and vSphere®are registered

trademarks or trademarks of VMware, Inc. in the United States or other countries. IBM®is a registered trademark of International

Business Machines Corporation.

2013 - 09

Rev. A02

Installation and Configuration

WARNING: Before performing the following procedure, review the safety instructions that came with the system.

Unpacking A Rack System

WARNING: The weight of your system without the physical disks installed (empty weight) is 19.50 kg (43.0 lb) and

when fully populated with all the physical disks is 105.20 kg (232.0 lb).

WARNING: Your system must be installed by Dell certified service technicians. For safe installation of an empty

system, a minimum of three service technicians are required. To install a fully populated system, a mechanized

lifting tool is required to position the system in a rack.

WARNING: Install the physical disks into the system only after installing the system in the rack. Installing the

system in the rack with the physical disks installed can damage the disks or cause injury.

CAUTION: Before installing your system in the rack, ensure that the weight of the system does not exceed the

rack's weight limit. For more information, see the Rack Installation Instructions that shipped with your system.

NOTE: For weight stability, always load the rack from the bottom up.

Figure 1. Installing the System in a Rack

Unpack your system and identify each item.

Assemble the rails and install the system in the rack following the safety instructions and the rack installation

instructions provided with your system.

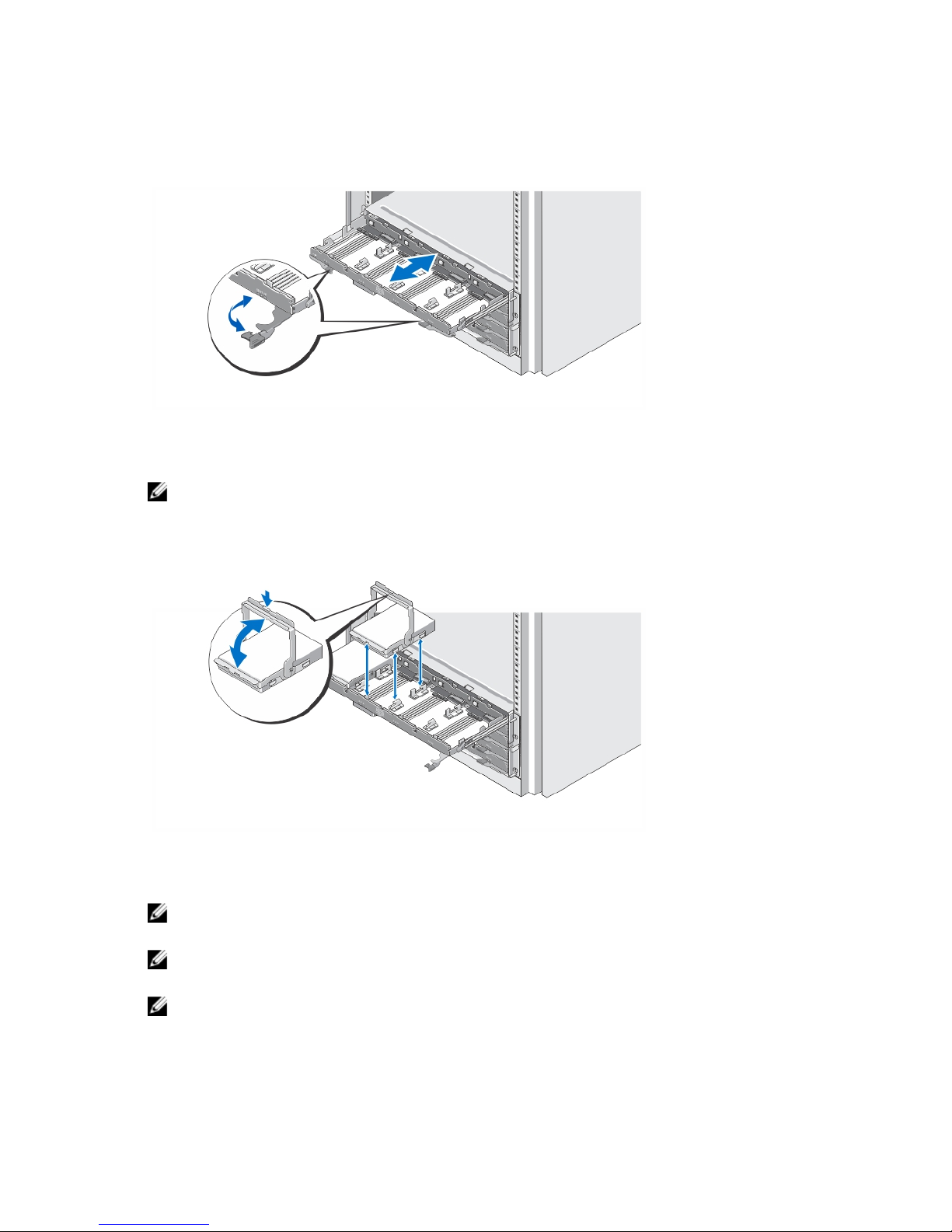

Opening And Closing The Disk Drawer

Figure 2. Opening and Closing the Disk Drawer

Open the disk drawer to install or remove the physical disk carrier(s).

NOTE: You can open only one disk drawer at a time. Forcing to open more than one drawer at a time may damage

the assembly or produce unexpected results.

Installing The Physical Disks

Figure 3. Installing the Physical Disk(s)

Install physical disk(s) in the disk drawer.

NOTE: You may receive multiple drives with carriers in separate boxes. Drives need to be installed in the same

enclosure.

NOTE: Each disk drawer must have a minimum of four physical disks installed starting from slots 0, 3, 6, and 9.

Always install the physical disks starting from the front row of each drawer.

NOTE: Ensure all drawers are firmly closed using the handles.

Connecting The Power Cable(s)

Figure 4. Connecting the Power Cable(s)

Connect the system’s power cable(s) to the system.

Securing The Power Cable(s)

Figure 5. Securing the Power Cable(s)

Open the cable retention bracket by pulling the tabs on its sides, insert the cable, and secure the system power cable,

as shown in the illustration.

Plug the other end of the power cable(s) into a grounded electrical outlet or a separate power source such as an

uninterruptible power supply (UPS) or a power distribution unit (PDU).

Turning On The System

Figure 6. Turning on the System

Turn the power switch on the back of the system to the On position. The power LED will turn on.

Installing The Bezel

Figure 7. Installing the Bezel

Install the bezel as shown in the figure.

Dell Software License Agreement

Before using your system, read the Dell Software License Agreement that came with your system. You must consider

any media of Dell-installed software as BACKUP copies of the software installed on your system’s hard drive. If you do

not accept the terms of the agreement, call the customer assistance telephone number. For customers in the United

States, call 800-WWW-DELL (800-999-3355). For customers outside the United States, see dell.com/support and select

your country or region from the top left of the page.

Other Information You May Need

WARNING: See the safety and regulatory information that shipped with your system. Warranty information may be

included within this document or as a separate document.

• The

Owner’s Manual

provides information about system hardware features and describes how to troubleshoot

the system and install or replace system components. This document is available online at dell.com/support/

manuals.

• The

Administrator's Guide

provides information about Modular Disk Storage Manager software features and

describes how to configure and manage your modular disk system. This document is available online at

dell.com/support/manuals.

• The

Deployment Guide

provides information about cabling your system and the installation and initial

configuration of the Modular Disk Storage Manager software. This document is available online at dell.com/

support/manuals.

• For videos and other resources on PowerVault MD series, see dell.com/PVresources.

• The rack documentation included with your rack solution describes how to install your system into a rack, if

required.

• Any media that ships with your system that provides documentation and tools for configuring and managing your

system, including those pertaining to the operating system, system management software, system updates, and

system components that you purchased with your system.

NOTE: Always check for updates on dell.com/support/manuals and read the updates first because they often

supersede information in other documents.

NOTE: When upgrading your system, it is recommended that you download and install the systems management

firmware on your system from dell.com/support.

Obtaining Technical Assistance

If you do not understand a procedure in this guide or if the system does not perform as expected, see your system

Owner’s Manual. Dell offers comprehensive hardware training and certification. See dell.com/training for more

information. This service may not be offered in all locations.

Technical Specifications

NOTE: The following specifications are only those required by law to ship with your system. For a complete and

current listing of the specifications for your system, go to dell.com/support.

Power

AC power supply (per power supply)

Wattage 1,755 W

Heat dissipation (maximum)

NOTE: Heat dissipation is calculated using the

power supply wattage rating. The heat

dissipation values are for the entire system

which includes chassis and two controllers.

5988 BTU/hr

Voltage 220 V AC, autoranging, 50 Hz/60 Hz

Power

NOTE: This system is also designed to be

connected to IT power systems with a phase

to phase voltage not exceeding 230 V.

Battery 6.6 V DC, 1100 mAh, 7.26 W Lithium Ion Battery

Physical

Height 177.80 mm (7.0 inch)

Width 482.60 mm (19.0 inch) with rack latches

Depth 825.50 mm (32.5 inch) without bezel and handle

Weight (maximum configuration) 105.20 kg (232.0 lb)

Weight (empty) 19.50 kg (43.0 lb)

Environmental

NOTE: For additional information about environmental measurements for specific system configurations, see

dell.com/environmental_datasheets.

Temperature

Maximum Temperature Gradient (Operating and

Storage)

20 °C/hour (36 °F/hour)

Storage Temperature Limits -40 °C to 65 °C (-40 °F to 149 °F)

Temperature (Continuous Operation)

Temperature Ranges (for altitude less than 950

m or 3117 ft)

10 °C to 35 °C (50 °F to 95 °F) with no direct sunlight on the

equipment

NOTE: For information on supported expanded operating

temperature range and configurations, see the

Owner's

Manual

dell.com/support/manuals.

Humidity Percentage Range 10% to 80% Relative Humidity with 26 °C (78.8 °F) maximum dew

point.

Relative humidity

Storage 5% to 95% RH with 33 °C (91 °F) maximum dew point.

Atmosphere must be non-condensing at all times

Maximum vibration

Operating 0.26 Grms at 5 Hz to 350 Hz in operational orientation

Storage 1.88 Grms at 10 Hz to 500 Hz for 15 minutes (all six sides tested)

Maximum shock

Operating One shock pulse in the positive z axis (one pulse on each side

of the system) of 31 G for 2.6 m in the operational orientation.

Environmental

Storage Six consecutively executed shock pulses in the positive and

negative x, y, and z axes (one pulse on each side of the system)

of 71 G for up to 2 m.

Altitude

Operating –30.5 m to 3048 m (–50 to 10,000 ft).

NOTE: For altitudes above 2950 ft, the maximum operating

temperature is derated 1.8 ºF/1000 ft.

Storage Up to 12,000 m ( 39,370 ft).

Operating Altitude De-rating Up to 35 °C (95 °F) maximum temperature is reduced by 1 °C/300

m (1 °F/547 ft) above 950 m (3,117 ft)

35 °C to 40 °C (95 °F to 104 °F) maximum temperature is reduced

by 1 °C/175 m (1 °F/319 ft) above 950 m (3,117 ft)

40 °C to 45 °C (104 °F to 113 °F) maximum temperature is

reduced by 1 °C/125 m (1 °F/228 ft) above 950 m (3,117 ft)

Particulate Contamination

NOTE: This section defines the limits to help avoid IT equipment damage and/or failure from particulates and

gaseous contamination. If it is determined that levels of particulates or gaseous pollution are beyond the limits

specified below and are the reason for the damage and/or failures to your equipment it may be necessary for you

to remediate the environmental conditions that are causing the damage and/or failures. Remediation of

environmental conditions will be the responsibility of the customer.

Air Filtration

NOTE: Applies to data center environments

only. Air filtration requirements do not apply

to IT equipment designed to be used outside

a data center, in environments such as an

office or factory floor.

Data center air filtration as defined by ISO Class 8 per ISO

14644-1 with a 95% upper confidence limit.

NOTE: Air entering the data center must have MERV11 or

MERV13 filtration.

Conductive Dust

NOTE: Applies to data center and non-data

center environments.

Air must be free of conductive dust, zinc whiskers, or other

conductive particles.

Corrosive Dust

NOTE: Applies to data center and non-data

center environments.

• Air must be free of corrosive dust.

• Residual dust present in the air must have a

deliquescent point less than 60% relative humidity.

Gaseous Contamination

NOTE: Maximum corrosive contaminant levels measured at ≤50% relative humidity

Copper Coupon Corrosion Rate <300 Å/month per Class G1 as defined by ANSI/ISA71.04-1985.

Silver Coupon Corrosion Rate <200 Å/month as defined by AHSRAE TC9.9.
