Dell™ PowerVault™

NX1950 Systems

Getting Started With

Your System

Guide de mise en route

Primeiros passos com o sistema

Procedimientos iniciales con el sistema

Model EMU01

www.dell.com | support.dell.com

Dell™ PowerVault™

NX1950 Systems

Getting Started With

Your System

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use of your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

_________________

Information in this document is subject to change without notice.

Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, and PowerVault are trademarks of Dell Inc.; Intel and Xeon are registered trademarks

of Intel Corporation; Microsoft and Windows are registered trademarks of Microsoft Corporation.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.

Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

Model EMU01

September 2006 P/N NR698 Rev. A00

Getting Started With Your System 3

System Features

The major hardware and software features of your system include:

• Two Dual Core Intel

Xeon

processor 5000 Sequence.

• 4 GB of 667 MHz, Fully Buffered DIMMs (FBD), upgradable to a maximum of 8 GB.

The system also features redundant memory, which provides memory sparing or memory mirroring.

Either feature is available if eight identical memory modules are installed.

• 15000 rpm hard drives configured into a RAID1 array for fault tolerant operating system operations.

• A slimline DVD-ROM, or DVD-ROM/ CD-RW drive.

• Two hot-pluggable, 670-W power supplies in a 1 + 1 redundant configuration.

• Four fan modules, each comprised of two dual-rotor fans, for a total of eight cooling fans.

The system board includes the following features:

• Two riser cards (left and center risers), each providing a x8 lane width PCI-Express expansion slot.

• Dedicated PCI slot for an integrated RAID controller card with 256 MB of

cache memory and

a RAID battery.

• Four integrated Gigabit Ethernet NICs capable of supporting 10-Mbps, 100-Mbps, 1000-Mbps,

and 2-Gbps data rates.

• Two x4 SAS ports for connectivity to storage subsystem or two 4-Gbps Fibre Channel ports

for connectivity to a storage area network (SAN).

• Four USB 2.0-compliant connectors (two on the front and two on the back)

capable of external

support for

a diskette drive, a CD-ROM drive, a keyboard, a mouse, or a USB flash drive.

• Remote access controller (RAC) for remote systems management.

•

An integrated VGA-compatible video subsystem with an ATI ES1000, 33-MHz PCI video

controller. This video subsystem contains a minimum of 16MB of graphics memory with support

for 2D graphics. Maximum resolution is 1600x1200 with 65,536 colors; true-color graphics are

supported in the following resolutions: 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024. When the

optional remote access card is installed, the maximum video resolution is 1280x1024

• Systems management circuitry that monitors operation of the system fans as well as critical system

voltages and temperatures. The systems management circuitry works in conjunction with the systems

management software.

• Back-panel connectors include serial, video, two USB connectors, four NIC connectors, two SAS

(or Fibre Channel in gateway mode connectors), and one NIC connector for RAC access.

• Front-panel connectors include a video and two USB connectors.

• Front-panel 1x5 LCD for system ID and error messaging.

For more information about specific features, see Technical Specifications.

4Getting Started With Your System

Supported Operating System

Your system supports Microsoft®Windows®Unified Data Storage Server 2003 Standard and Enterprise

x64 Editions operating system.

Other Information You May Need

CAUTION: The Product Information Guide provides important safety and regulatory information.

Warranty information may be included within this document or as a separate document.

• The

Rack Installation Guide

Rack Installation Instructions

included with your rack solution

describes how to install your system into a rack.

• The

Hardware Owner’s Manual

provides information about system features and describes how

to troubleshoot the system and install or replace system components. This document may be found

on the CDs that came with your system or at

support.dell.com

• CDs included with your system provide documentation and tools for configuring and managing

your system.

• Updates are sometimes included with the system to describe changes to the system, software,

and/or documentation.

NOTE: Always check for updates on support.dell.com and read the updates first because they often

supersede information in other documents.

• Release notes or readme files may be included to provide last-minute updates to the system or

documentation or advanced technical reference material intended for experienced users or technicians.

Obtaining Technical Assistance

If you do not understand a procedure in this guide or if the system does not perform as expected,

see your Hardware Owner’s Manual.

Dell Enterprise Training and Certification is available; see www.dell.com/training for more information.

This service may not be offered in all locations.

Installation and Configuration

CAUTION: Before performing the following procedure, read and follow the safety instructions and important

regulatory information in your Product Information Guide.

This section describes the steps to set up your system for the first time.

Getting Started With Your System 5

Unpacking the System

Unpack your system and identify each item.

Keep all shipping materials in case you need them later.

Installing the Rail and System in a Rack

Install the system in the rack once you have read the "Safety Instructions" located in the rack

installation documentation for your system.

See your rack installation documentation for instructions on installing your system in a rack.

6Getting Started With Your System

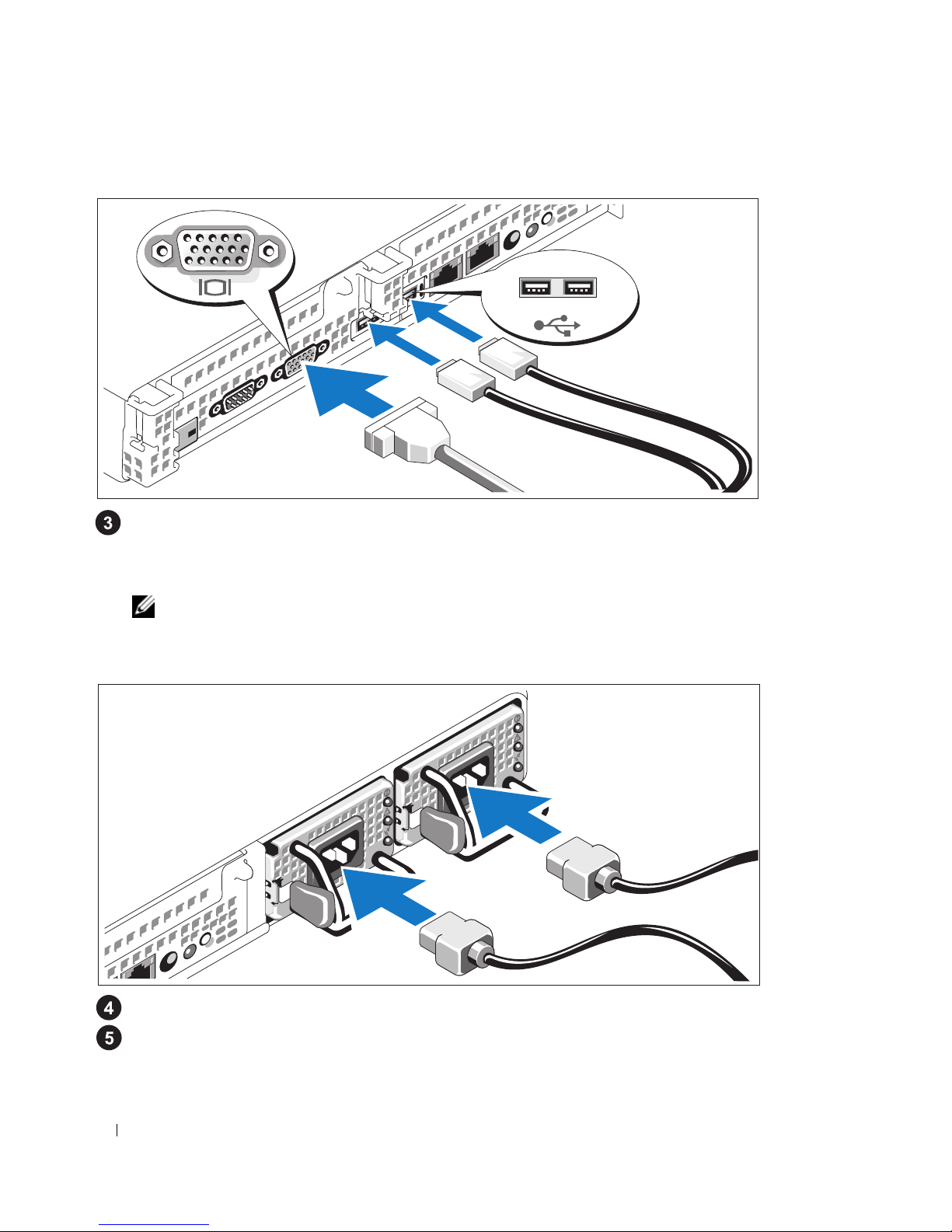

Connecting the Keyboard, Mouse, and Monitor

Connect the keyboard, mouse, and monitor (optional).

The connectors on the back of your system have icons indicating which cable to plug into each

connector. Be sure to tighten the screws (if any) on the monitor's cable connector.

NOTE: If you simultaneously connect two monitors to the system, using the front and rear video

connections, the video will default to the front since only one display can operate at a time.

Connecting the Power

Connect the system’s power cable(s) to the system.

Plug the other end of the cable into a grounded electrical outlet or a separate power source

such as an uninterrupted power supply (UPS) or a power distribution unit (PDU).

Getting Started With Your System 7

Installing the Power Cord Retention Bracket (Optional)

Attach the power cord retention bracket on the right bend of the power supply handle. Bend the

system power cable into a loop as shown in the illustration and attach to the bracket’s cable clasp.

Repeat the procedure for the second power supply.

Plug the other end of the power cables into a grounded electrical outlet or a separate power source

such as an UPS or a PDU.

Turning on the System

Turn on the system and monitor (optional).

Press the power button on the system and the monitor. The power indicators should light.

Adjust the monitor's controls until the displayed image is satisfactory.

8Getting Started With Your System

Installing the Bezel

Install the bezel (optional).

Complete the 0perating System Setup

The operating system is preinstalled on your system. To reinstall the operating system,

see the documentation that is shipped along with your system.

Technical Specifications

Processor

Processor type Two dual-core Intel Xeon processors 5100 Sequence

Expansion Bus

Bus type PCIe

PCIe Risers Two x8 lane width

Memory

Architecture PC2-5300 667 MHz fully-buffered DIMMs with ECC protection,

with two-way lockstep operation

Memory module sockets Eight 240-pin

Minimum RAM 4 GB (four 1 GB modules)

Maximum RAM 8 GB
