Dell EMC Edge 510 LTE

Setup Guide

Abstract

This document provides setup steps for the Dell EMC Edge 510 LTE networking switch.

It includes installation, activation, and specifications.

Dell Solutions

September 2020

Rev. A00

Notes, cautions, and warnings

NOTE: A NOTE indicates important information that helps you make better use of your product.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid

the problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Other trademarks may be trademarks of their respective owners.

Chapter 1: Edge 510 LTE................................................................................................................4

Installation instructions ..................................................................................................................................................... 4

Activation issues ................................................................................................................................................................. 7

Specifications....................................................................................................................................................................... 8

Contents

Contents 3

Edge 510 LTE

The Dell EMC Edge 510 LTE is a purpose-built, high-value appliance for Edge use case that supports SD-WAN with an

integrated LTE adapter.

For detailed installation information, including instructions for the wall mount and optional dual rackmount tray installation, see

the Dell EMC Edge 510 LTE Installation Guide at www.dell.com/support.

After unpacking the Edge 510 LTE, inspect the device and immediately report any damage to your Dell EMC sales

representative.

Topics:

•Installation instructions

•Activation issues

•Specifications

Installation instructions

Information icon definitions:

●The Warning icon signals information about hardware handling that could result in injury.

●The Caution icon signals information about situations that could result in equipment damage or lost of data.

●The Note icon signals important operational information.

Install the device

WARNING: To avoid electrostatic discharge (ESD) damage, wear grounding wrist straps when handling this

equipment.

Install the device in an area that meets the following safety requirements:

●Near a properly grounded AC power outlet.

●In a temperature-controlled room with a continuous temperature range from 0°C to 40°C (32°F to 104°F)

●In a dry, clean, and well-ventilated room away from heat sources such as hot air vents or direct sunlight

●Away from severe electromagnetic noise

●Away from direct view within the workplace

The numbers one through four in the following figure correspond to the setup procedure:

4 Edge 510 LTE

1. Connect the two identical antennas (included in the box) to the MAIN and AUX SMA connectors on the back of the Edge.

The GPS antenna (not included) is optional.

NOTE: An active GPS antenna recommended for an excellent performance. A passive antenna with high gain will work if

the unit/antenna is close to a window.

Figure 1. Connect antennas

2. Remove the small phillips screw on the door for SIM access. Two SIM slots are available. However, only use the lower SIM

slot and insert the SIM card with the contacts facing up until it clicks into place.

NOTE: Must insert SIM card with the contacts facing up until it clicks into place.

Figure 2. Insert SIM card

3. Connect the power adapter to the AC power outlet. Connect the DC power plug to the DC power port on the Edge unit and

turn the thread on the plug to lock it. When the Edge powers ON, the round indicator light located on the front of the Edge

will illuminate.

NOTE: Connect the device to a properly wired earth-ground AC power outlet.

Edge 510 LTE 5

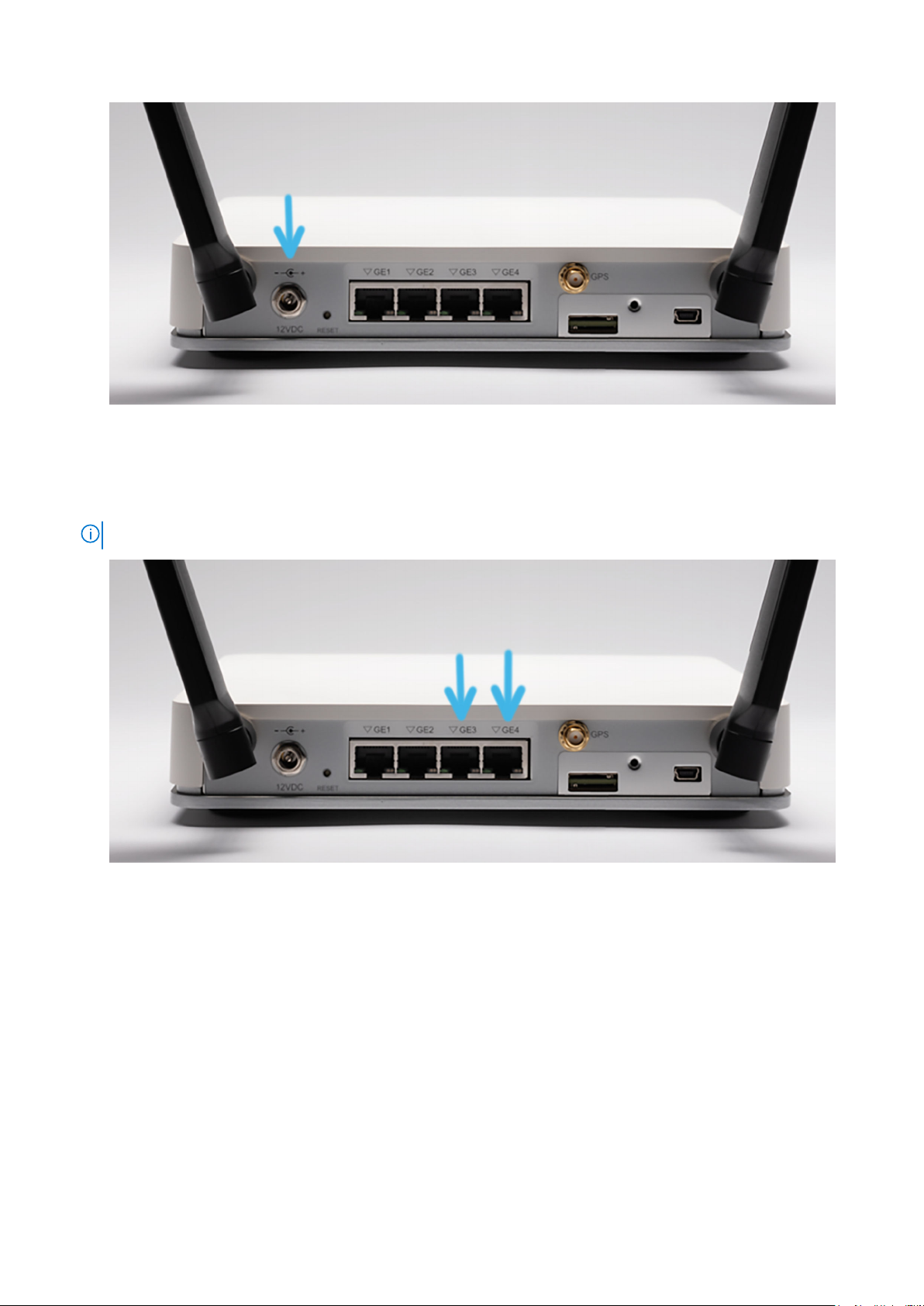

Figure 3. Connect the power adapter to the AC power outlet

4. Connect the Edge 510 LTE to an available Internet connection. For wired connections, insert the Ethernet cable in either the

GE3 or GE4 ports. For activating LTE, refer to the Configure Edge activation in the Edge 510 LTE

Installation guide. When the WAN is operational, the front indicator light will turn green.

NOTE: Use ONLY GE1 or GE2 1 Gb Ethernet ports for WAN connection to a laptop or switch.

Figure 4. Connect to Internet

●GE3 or GE4 ports

5. If you received an email from your IT administrator, follow the instructions in the email to complete the Edge activation.

6Edge 510 LTE

Figure 5. Edge activation email

6. Connect local devices such as computers and switches to either of the ports labeled GE1 or GE2, or through the Edge’s Wi-

Fi.

NOTE: Use ONLY GE1 or GE2 1 Gb Ethernet ports for WAN connection to a laptop or switch.

●GE1 or GE2 ports

Activation issues

Unable to activate the Edge 510-LTE

After following these instructions, if you are still unable to activate the Edge 510-LTE, please contact www.dell.com/support/

Edge 510 LTE 7

Specifications

Table 1. Edge 510 LTE specifications

Feature Specification

Size ●8.1 in x 7.1 in x 1.57 in (W x D x H)

●20.6 cm x 18.0 cm x 4.0 cm (W x D x H)

Weight

NOTE: Platform weight does not include power adapter

weight.

●2.0 lb

●0.91 Kg

AC power input 100 VAC–240 VAC, 50/60 Hz

AC maximum current draw per system ●100 VAC: 2.0 A

●240 VAC: 1.0 A

Typical power consumption 15W

Maximum power consumption 28W

RoHS information Go to: Restricted Material Compliance.

Table 2. Edge 510 LTE temperatures

Feature Specification

Operating temperature 0°C to 40°C (32°F to 104°F)

Storage temperature –40°C to 70°C (-40°F to 158°F)

Operating relative humidity ●5% to 85% (RH), non-condensing continuously

●5% to 90% (RH), non-condensing short term (< 1% of

operational hour per year)

Storage relative humidity 5% to 90% (RH)

Operating altitude ●Maximum: 10,000 feet (3,048 meters)

●No performance degradation up to 3,117 feet (950 meters)

8 Edge 510 LTE
