SwitchX® InfiniBand Blade Switch I/O Module

for PowerEdge M-Series User Manual

PN: M4001F, M4001T, M4001Q

Rev 1.2

Mellanox Technologies

350 Oakmead Parkway Suite 100

Sunnyvale, CA 94085

U.S.A.

www.mellanox.com

Tel: (408) 970-3400

Fax: (408) 970-3403

Mellanox Technologies, Ltd.

Beit Mellanox

PO Box 586 Yokneam 20692

Israel

Tel: +972 (0)4 909 7200 ; +972

(0)74 723 7200

Fax: +972 (0)4 959 3245

Mellanox, Mellanox logo, BridgeX, ConnectX, CORE-Direct, InfiniBridge, InfiniHost, InfiniScale, PhyX, SwitchX, Virtual Protocol

Interconnect and Voltaire are registered trademarks of Mellanox Technologies, Ltd. FabricIT, MLNX-OS, Unbreakable-Link, UFM and

Unified Fabric Manager are trademarks of Mellanox Technologies, Ltd.

All other trademarks are property of their respective owners.

InfiniBand Blade Switch I/O Module for PowerEdge M-Series

Document Number: 3513

Rev 1.2

Mellanox Technologies

NOTE:

THIS HARDWARE, SOFTWARE OR TEST SUITE PRODUCT (“PRODUCT(S)”) AND ITS RELATED DOCUMENTATION ARE PRO-

VIDED BY MELLANOX TECHNOLOGIES “AS-IS” WITH ALL FAULTS OF ANY KIND AND SOLELY FOR THE PURPOSE OF

AIDING THE CUSTOMER IN TESTING APPLICATIONS THAT USE THE PRODUCTS IN DESIGNATED SOLUTIONS. THE CUS-

TOMER'S MANUFACTURING TEST ENVIRONMENT HAS NOT MET THE STANDARDS SET BY MELLANOX TECHNOLOGIES

TO FULLY QUALIFY THE PRODUCTO(S) AND/OR THE SYSTEM USING IT. THEREFORE, MELLANOX TECHNOLOGIES CAN-

NOT AND DOES NOT GUARANTEE OR WARRANT THAT THE PRODUCTS WILL OPERATE WITH THE HIGHEST QUALITY.

ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MER-

CHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT ARE DISCLAIMED. IN NO EVENT

SHALL MELLANOX BE LIABLE TO CUSTOMER OR ANY THIRD PARTIES FOR ANY DIRECT, INDIRECT, SPECIAL, EXEM-

PLARY, OR CONSEQUENTIAL DAMAGES OF ANY KIND (INCLUDING, BUT NOT LIMITED TO, PAYMENT FOR PROCURE-

MENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)

HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT

(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY FROM THE USE OF THE PRODUCT(S) AND RELATED

DOCUMENTATION EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

InfiniBand Blade Switch I/O Module for PowerEdge M-Series Rev 1.2

Mellanox Technologies 3

Contents

Contents 3

Revision History 4

About this Manual 5

Chapter 1 Overview 7

1.1 InfiniBand Connectors 8

1.2 Switch Status Lights 9

1.3 I2C Interface RJ-45 Connector 10

Chapter 2 Installation and Basic Operation 11

2.1 Installation Safety Warnings 11

2.2 Mechanical Installation 13

2.2.1 Removing an Old Switch From the Chassis 13

2.2.2 Removing an I/O Module Blank From the Chassis 14

2.2.3 Installing the Mellanox M4001[F, T, Q] Switch Into the Dell Chassis 14

2.3 Power Connections and Initial Power On 14

2.4 InfiniBand Cable Installation 14

2.4.1 Supported Approved Cables 15

Chapter 3 Cluster Management and Firmware 16

3.1 Network Management and Clustering Software 16

3.2 Updating Firmware 16

3.2.1 Instructions for Reprogramming Over the InfiniBand Network 16

Chapter 4 Troubleshooting 17

Appendix A Specifications 18

Appendix B EMC Certification Statements 20

Appendix C QSFP Interface 22

Appendix D Avertissements de sécurité d’installation 24

Appendix E Installation - Sicherheitshinweise 26

Rev 1.2

Mellanox Technologies

Revision History

Table 1 - Revision History Table

Date Revision Description

June 2012 1.2 Added graphics to section 2.4

Added section2.4.1

May 2012 1.1 Added M4001T switch

November 2011 1.0 Initial release

InfiniBand Blade Switch I/O Module for PowerEdge M-Series Rev 1.2

Mellanox Technologies 5

About this Manual

This manual describes the installation and basic use of the SwitchX® M4001F(FDR) 56 Gb/s,

M4001T(FDR10) 40Gb/s and the M4001Q(QDR) 40 Gb/s InfiniBand blade switch I/O modules

for the PowerEdge M-Series chassis.

Intended Audience

This manual is intended for users and system administrators responsible for installing and setting

up the switch platforms listed above.

The manual assumes familiarity with the InfiniBand® Architecture Specification.

Related Documentation

The documentation set accompanying the Mellanox M4001[F, T, Q] includes the following:

Online Resources

• Mellanox Technologies Web pages: http://www.mellanox.com

• Dell Support Web pages: http://support.dell.com

Conventions

Throughout this manual, the names M4001F, M4001T, and M4001Q and the terms switch, I/O

module, and IOM are used to describe the M4001F FDR, M4001T FDR10, and the M4001Q QDR

InfiniBand blade switch I/O modules, unless explicitly indicated otherwise.

Table 2 - Reference Documents

InfiniBand Architecture Specification

Volume 1 Release 1.2.1 and Volume 2

release 1.2.1

InfiniBand architecture specification descriptions

Mellanox Firmware Tools (MFT)



User’s Manual



Document # 2329

The MFT (Mellanox Firmware Tools) package is a set of firmware tools. The

manual supplied with this package provides an overview of the firmware its

installation and replacement. The MFT can be downloaded with its documenta-

tion at: 

http://www.mellanox.com > Downloads > Firmware Tools.

Rev 1.2

Mellanox Technologies

The following pictures are used throughout this document to indicate information that is important

to the user.

This symbol makes recommendations to the user.

This symbol indicates information that is helpful to the user.

This symbol indicates a situation that can potentially cause damage to hardware or

software.

BEWARE! This symbol indicates a situation that can potentially cause personal injury

or damage to hardware or software.

InfiniBand Blade Switch I/O Module for PowerEdge M-Series Rev 1.2

Mellanox Technologies 7

1 Overview

The SwitchX® InfiniBand blade switch I/O module for the PowerEdge M-Series chassis provides

a high bandwidth, low latency fabric for Enterprise Data Centers (EDC), High-Performance Com-

puting (HPC), and Embedded environments. Based on the 5th generation InfiniBand switch device

(1st Generation SwitchX). This I/O module (IOM) delivers up to 56Gb/s at FDR speed and 

40 Gb/s at FDR10 and QDR speed full bisectional bandwidth per port. When used in conjunction

with ConnectX®-3 InfiniBand dual port Mezzanine I/O cards, clustered data bases, parallelized

applications and transactional services applications these switches will achieve significant perfor-

mance improvements resulting in reduced completion time and lower cost per operation.

The I/O module comes pre-installed with all necessary firmware, and configured for standard

operation within an InfiniBand fabric, and only requires an InfiniBand compliant Subnet Manager

running from one of the hosts. All that is required for normal operation is to follow the usual pre-

cautions for installation and connection from the switch to the HCAs or other switches. Once con-

nected, the Subnet Management software automatically configures the switch and begins utilizing

the switch.

It is recommended that Mellanox OpenFabrics software package be installed on all nodes con-

nected to the M4001[F, T, Q]. The software package provides a subnet manager and network man-

agement tools as well as connectivity software for servers and storage, and is available on the

Mellanox web site. See Chapter 3 for more information.

Basic installation, hot-swapping components and hardware maintenance is covered in “Installation

and Basic Operation” on page 11.

The M4001F, M4001T, and M4001Q switches have a Hot Swap controller and a PSOC Manage-

ment IC.

OverviewRev 1.2

Mellanox Technologies

Figure 1: Switch Front Panel and Locking Mechanism

1.1 InfiniBand Connectors

This switch has 16 QSFP connectors through the front panel. The remaining 16 interfaces are

through the Midplane Connector out of the back of the switch. Figure 1 shows the front 16 ports.

Each of the InfiniBand ports has two LEDs located between the connectors and the I2C interface.

The green LED, when lit, indicates that a valid physical connection to the other system (switch or

HCA port) exists. See Figure 2,“Physical and Logical Link Indication LEDs” for more details.

Locking Mechanism

Switch Status Lights

Port LEDs

InfiniBand Blade Switch I/O Module for PowerEdge M-Series Rev 1.2

Mellanox Technologies 9

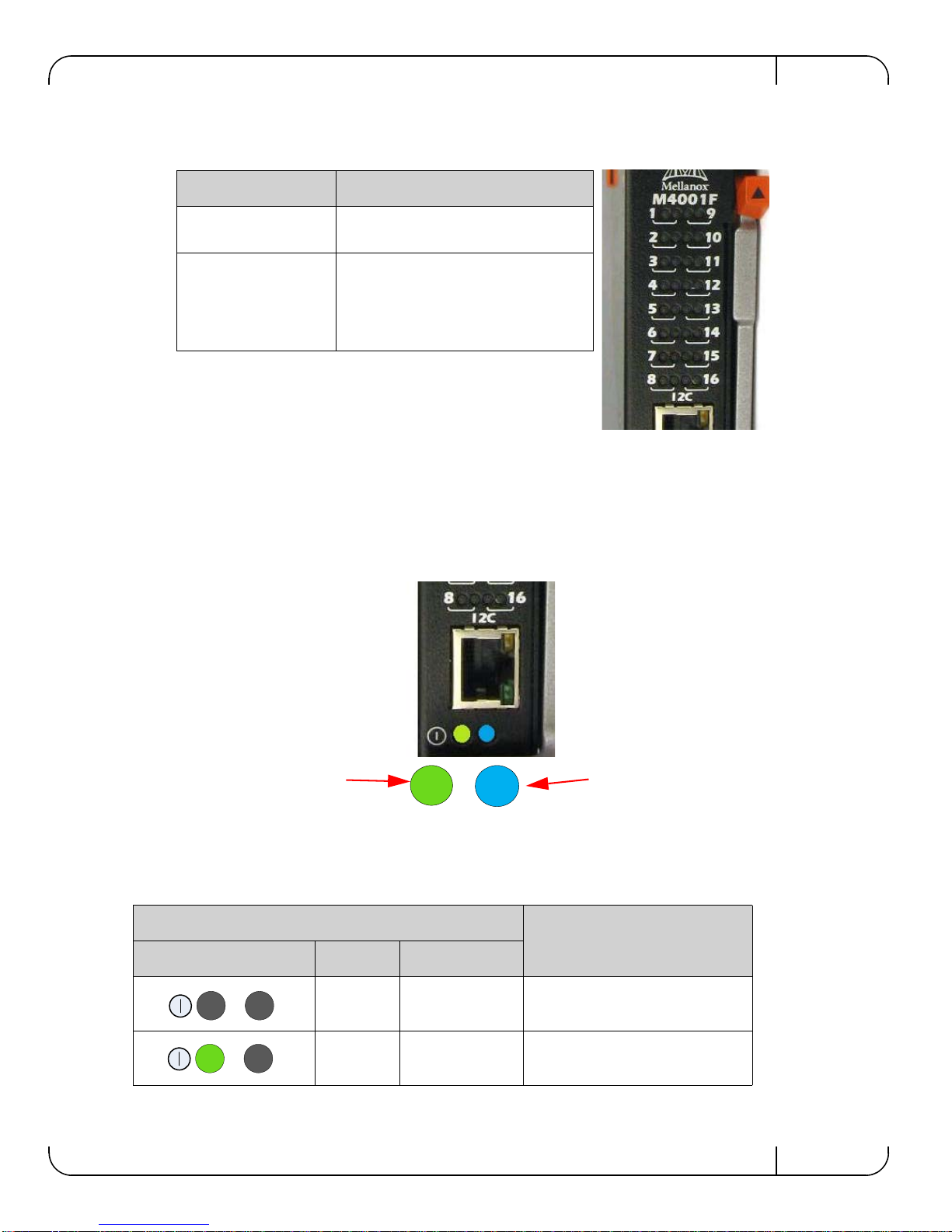

Figure 2: Physical and Logical Link Indication LEDs

1.2 Switch Status Lights

The switch Status lights indicate whether the switch is receiving power from the chassis, and the

state of the switch.

Figure 3: Indicator LEDs

Table 3 - IOM states and LED configurations:

LED Switch Status

Indication Green Status

OFF OFF OFF

ON OFF Boot in Progress

Switch not ready

LED Name Connection Status

Physical Link - Green Off – No Physical Link

ON – Physical Link

Data Activity - Yellow

Blinking – indicates Data Transfer

Constant on – indicates Link exists

with no Data Transfer taking place

Off with green LED lit – indicates that

the Subnet Manager may not be running

The IO Module is on and

ready when both the blue

and green LEDs are lit.

This LED can be blue or

amber. A fault is indicated

when the amber LED is

blinking. See Table 3.

OverviewRev 1.2

Mellanox Technologies

1.3 I2C Interface RJ-45 Connector

There is an “I2C”interface on the front panel.

Figure 4: I2C RJ-45 Interface

The I2C connection provides access to Flash and EEPROMs. The I2C connector is used to update

firmware should in-band firmware update not work. You will need to order an RJ-45 to DB9 I2C

adapter to make use of the I2C interface. You can order this adapter from Mellanox Technologies.

The Ordering Part Number is MTUSB-1.

These switches are Plug and Play and all firmware updates should be done in-band. The I2C con-

nection should only be used if the FW image was corrupted to the point that the regular FW tools

cannot successfully reburn the correct image.

Blinking Blue

ON BLINKING BLUE The CMC is identifying

the newly installed switch

ON ON BLUE Switch is on and operating Normally

ON ON or BLINKING

AMBER Fault in System

Self-diagnosed

OFF ON or BLINKING

AMBER Fault in System

CMC-detected

All firmware updates should be done in-band using Mellanox Firmware Management

Tools. This is for Advanced users and FAEs only.

LED Switch Status

Indication Green Status
