COFFEE MACHINE

MACHINE A CAFE

CAFETERA ELÉCTRICA

CAFETEIRA ELÉTRICA Owner’s instructions

Mode d’emploi

Instrucciones para el uso

Manual de Instruções

READ AND SAVE THESE INSTRUCTIONS

LISEZ ET GARDEZ CES INSTRUCTIONS

REPASE Y GUARDE ESTAS INSTRUCCIONES

LEIA E GUARDE ESTAS INSTRUÇÕES

DESCRIPTION OF THE APPLIANCE

A. Water tank

B. Cap with safety valve

C. Steam knob

D. Steam tube

E. Power cable

F. Drip tray

G. Cappuccino nozzle

H. Adaptor for cups

I. Carafe with lid

L. Filter-holder

M. Filter

N. Measuring spoon

O. Flow regulator with selection for

LIGHT, MEDIUM or STRONG

P. ON/OFF switch

,,,,,

@@@@@



ÀÀÀÀÀ

,,,

@@@





ÀÀÀ

,,,

@@@





ÀÀÀ

ÀÀ

,,,

@@@





ÀÀÀ

ÀÀ

,,,,

@@@@



ÀÀÀÀ

AO B

DESCRIPTION DE L'APPAREIL

A. Réservoir

B. Bouchon avec vanne de sécurité

C. Poignée ouverture vapeur

D. Tuyau sortie vapeur

E. Cordon électrique

F. Egouttoir

G. Buse pour "cappuccino"

H. Adaptateur pour tasses

I. Carafe avec couvercle

L. Porte-filtre

M. Filtre

N. Cuillère de dosage

O. Régulateur pour sélectionner

un café fort, moyen ou léger

P. Interrupteur ON/OFF

DESCRIÇÃO DO APARELHO

A. Reservatório de água

B. Tampa removível do reservatorio de água

com válvula de segurança

C. Botão de vapor

D. Tubo de vapor

E. Cabo de alimentação

F. Bandeja removível

G. Acessório para fazer o “cappuccino”

H. Adaptor para xícaras

I. Jarra de vidro com tampa

L. Porta filtro

M. Filtro

N. Colher dosadora

O. Regulador de fluxo

P. Interruptor general para ligar e desligar a cafeteira

DESCRIPCIÓN DEL APARATO

A. Depósito de agua

B. Tapón del depósito

C. Selector del vapor

D. Tubo del vapor con pico para capuchino

E. Cable de corriente

F. Recipiente recolector de gotas

G. Batidor de capuchinos

H. Adaptador para tazas

I. Garrafa com tampa

L. Copita portafiltro

M. Filtro

N. Medida

O. Regulador de flujo

P. Interruptor ON/OFF

,,@@ÀÀ

¢¢

,,,

QQQ

¢¢

¢¢¢

¢¢

,,,

QQQ

¢¢

¢¢¢

¢¢

,,,

QQQ

¢¢

¢¢¢

¢¢

,,,

QQQ

¢¢¢

¢¢

,,,

QQQ

¢¢¢

,,,

,,,,

,,,

QQQ

QQQQ

QQQ

¢¢¢

¢¢¢¢

¢¢¢

,,,

QQQ

¢¢

¢¢¢

¢¢

,,,

QQQ

¢¢¢

,,,

QQQ

¢¢

¢¢¢

¢¢

,,@@ÀÀ



ÀÀ



ÀÀ



ÀÀ





ÀÀ

,,@@ÀÀ

,,,,

@@@@





ÀÀ

ÀÀÀÀ

MILK

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be

followed, including the following:

• Read all instructions.

• Do not touch hot surfaces. Use handles and knobs.

• To protect against fire, electrical shock and personal injury, do not immerse

cord, plug or appliance in water or other liquid.

• Close supervision is necessary when any appliance is used by or near

children.

• Unplug from the outlet when not in use and before cleaning. Allow to cool

before putting on or taking off parts, and before cleaning the appliance.

• Donotoperatewithadamagedcordorplug,oraftertheappliancemalfunctions,

or has been damaged in any manner. Return the appliance to the nearest

authorized service facility for examination, repair or adjustment.

• The use of accessory attachments or spare parts not recommended by the

appliancemanufacturer mayresultinfire,electricalshockorpersonalinjury.

• Do not use outdoors.

• Do not let the cord hang over the edge of table or counter, or touch hot

surfaces.

• Do not place on or near a hot gas or electrical burner, or in a heated oven.

• Always attach plug to appliance first, then plug cord into the wall outlet. To

disconnect, turn any control to "off", then remove plug from wall outlet.

• Do not use the appliance for other than the intended use.

• DONOTunscreworremoveboilercapwhilethemachineisinoperation.Wait

until brewing cycle is completed and all water and steam has been used up.

• Appliances with Glass Containers:

A. The container is designed for use with this appliance. It must never be

used on a range top.

B. Do not set a hot container on a wet or cold surface.

C. Donotuseacrackedcontaineroracontainerhavingalooseorweakened

handle.

D. Donotcleancontainerwithcleansers,steelwoolpads,orotherabrasive

material.

SAVE THESE INSTRUCTIONS

SPECIAL CORD SET

INSTRUCTIONS

Regarding Your Cord Set:

A. A short power-supply cord (or detachable power-supply cord) is provided

to reduce risks resulting from becoming entangled in or tripping over a

longer cord.

B. Longer detachable power-supply cords or extension cords are available

and may be used if care is exercised in their use.

C. If a long detachable power-supply cord or extension cord is used, the

marked electrical rating of the detachable power-supply cord or extension

cord should be at least as great as the electrical rating of the appliance. If

the appliance is of the grounded type, the extension cord should be a

grounding-type3-wirecord,and thelongercordshouldbearrangedsothat

it will not drape over the counter-top or table top where it can be pulled on

by children or tripped over.

D. Your product is equipped with a polarized alternating current line plug ( a

plughavingonebladewiderthantheother).This plug will fit into the power

outlet only one way. This is a safety feature. If you are unable to insert the

plug fully into the outlet, try reversing the plug. If the plug should still fail to

fit,contactyourelectriciantoreplaceyourobsoleteoutlet.Donotdefeatthe

safety purpose of the polarized plug.

CAUTION

Thisapplianceisforhouseholduseonly.Anyservicing,otherthancleaningand

usermaintenance,shouldbeperformedbyanauthorizedservicerepresentative.

Do not immerse base in water.

To reduce the risk of fire or electric shock, do not dis-assemble the base. No

user serviceable parts inside. Repair should be done by authorized service

personnel only.

• Checkvoltageto besurethatthe voltageindicatedonthe nameplateagrees

with your voltage.

• Never use warm or hot water to fill the water container! Use cold water only!

• Keep your hands and the cord away from hot parts of the appliance during

operation.

• Never clean with scouring powders or hard implements.

• Never fill the water tank with milk or coffee.

TABLE 1

IMPORTANT SAFETY NOTICE

CAUTION ! To avoid injury it is important that you:

• never unscrew the water tank cap when unit is under pressure

• correctly attach the filter holder to the machine

• do not move or try to remove the filter holder while the machine is in use.

Therefore before unscrewing the watertank cap and filter holder check whether there is pressure

in the water tank as follows:

• Switch the machine off.

• Remove the plug from the wall socket.

• Turn the steam knob slowly counter-clockwise.

• If steam escapes from the tube, then the water tank is still under pressure.

• Place a receptacle under the steam tube.

• Open the steam knob so that the residual steam can escape.

• When all the steam has escaped from the tube, close the steam knob by turning it clockwise.

At this point, the water tank cap and the filter-holder can be removed.

Therefore to properly insert the filter-holder :

• Make sure that the brackets of the filter-holder are lined up with the relevant holes on the brew head

• Raise the filter-holder up into the brew head and turn the filter-holder firmly to the right, until it can't go

no further.

If you are uncertain as to how to insert the filter holder contact Dè Longhi America at 1-800-322-3848.

To make Coffee quantity in the

filter

Water quantity in the

carafe

ESPRESSO'S

Milk quantity in the

carafe

CAPPUCCINO'S

WATER LEVEL MUST COINCIDE WITH

BOTTOM PART OF METAL BAND.

CAPPUCCINO'S

WATER LEVEL MUST COINCIDE WITH

STEAM SYMBOL ON THE CARAFE

USE MAX 2 CARAFES

FILLED UP TO THE LEVEL

USE MAX 1 CARAFES

FILLED UP TO THE LEVEL

USE OF THE MACHINE

THIS MACHINE IS FOR HOUSEHOLD USE ONLY

A) Before making espresso/cappuccino for the first time, wash all accessories

(filter-holder, measuring spoon, filter, carafe, adaptor and cappuccino nozzle)

with detergent and warm water, then rinse thoroughly.

B) FLUSH OUT THE WATER TANK

1. Always switch the machine off and unplug before filling the water tank.

2. Use the glass carafe (I) to fill the water tank (see fig. 1)

3. Unscrew the water tank cap by turning counterclockwise (B). FILL THE

TANK WITH WATER (FIG. 2), BY USING THE CARAFFE (FIG. 1).

4. Close the water tank cap securely by turning clockwise.

5. Plug the appliance into the wall socket. (Remember safety instructions).

6. Put the filter (M) in the filter holder (L). (See fig. 3).

7. Toattachthefilterholdertothemachine,placethefilterholderunderneath

the boiler nozzle (see fig. 4), aligning the handle with the impressed

onthesideofthemachine(fig.5).Pushthefilterholder upwardsandturn

it to the right until secure. (The handle doesn't have to necessarily be

straight when it is attached to the machine).

8. Place the carafe under the filter holder. Ensure that the spout is aligned

with the hole in the carafe lid (see fig. 6).

9. Turn the lever (O) to "LIGHT" position.

10. Check that the steam knob (C) is closed by turning clockwise until

tightened.

11. Press switch (P) to on. The switch will light. (If the switch does not light,

check to see if it is plugged in).

12. In about 2 minutes hot water will begin to flow into the carafe. when the

water is done flowing turn the machine off.

C) FLUSHING THE STEAM TUBE AND CAPPUCCINO NOZZLE

1. Fill carafe to steam line - directly above the 2 cup line.

2. Pour into water tank and secure cap.

3. Turn machine on.

4. After hot water has filled to the 2 cup line in carafe, turn the flow regulator

to cappuccino (steam symbol).

5. Remove carafe (remove lid) and place under the steam tube (D).

6. Opensteamknobslowly(turncounterclockwise). When steam no longer

comes out of nozzle, close steam knob.

7. Turn switch off.

▼

Beforeunscrewing thewatertankcap,check thatthere isno

residual pressure in the boiler. To do this, turn the steam

knob slowly so that the residual pressure is allowed to

disperse (see fig. 8). Do not remove the water tank cap and

filterholderuntil the steamceases to escapefrom the steam

tube.

NOW YOU ARE READY TO MAKE ESPRESSO COFFEE……

For best results, we recommend the use of coarse-ground espresso coffee.

1. Turn off and unplug machine.

2. Fillcarafewiththe desired amount of water (see table A "Filling the water

tank"). Pour into water tank and close cap securely by turning clockwise.

3. Insert filter basket into filter holder and fill with coffee to desired level of 2

or4cups(see levelindicatorsmarkedinsidethe filter basket)(seefig.9).

4. Remove any excess coffee from the edge of the filter to secure tight seal

(see fig. 9).

5. Toattachthefilterholdertothemachine,placethefilterholderunderneath

the boiler nozzle (see fig. 4), aligning the handle with the impressed

onthesideofthemachine(fig.5).Pushthefilterholder upwardsandturn

it to the right until secure. (The handle doesn't have to necessarily be

straight when it is attached to the machine).

6. Place the carafe under the filter holder. Ensure that the spout is aligned

with the hole in the carafe lid (see fig. 6).

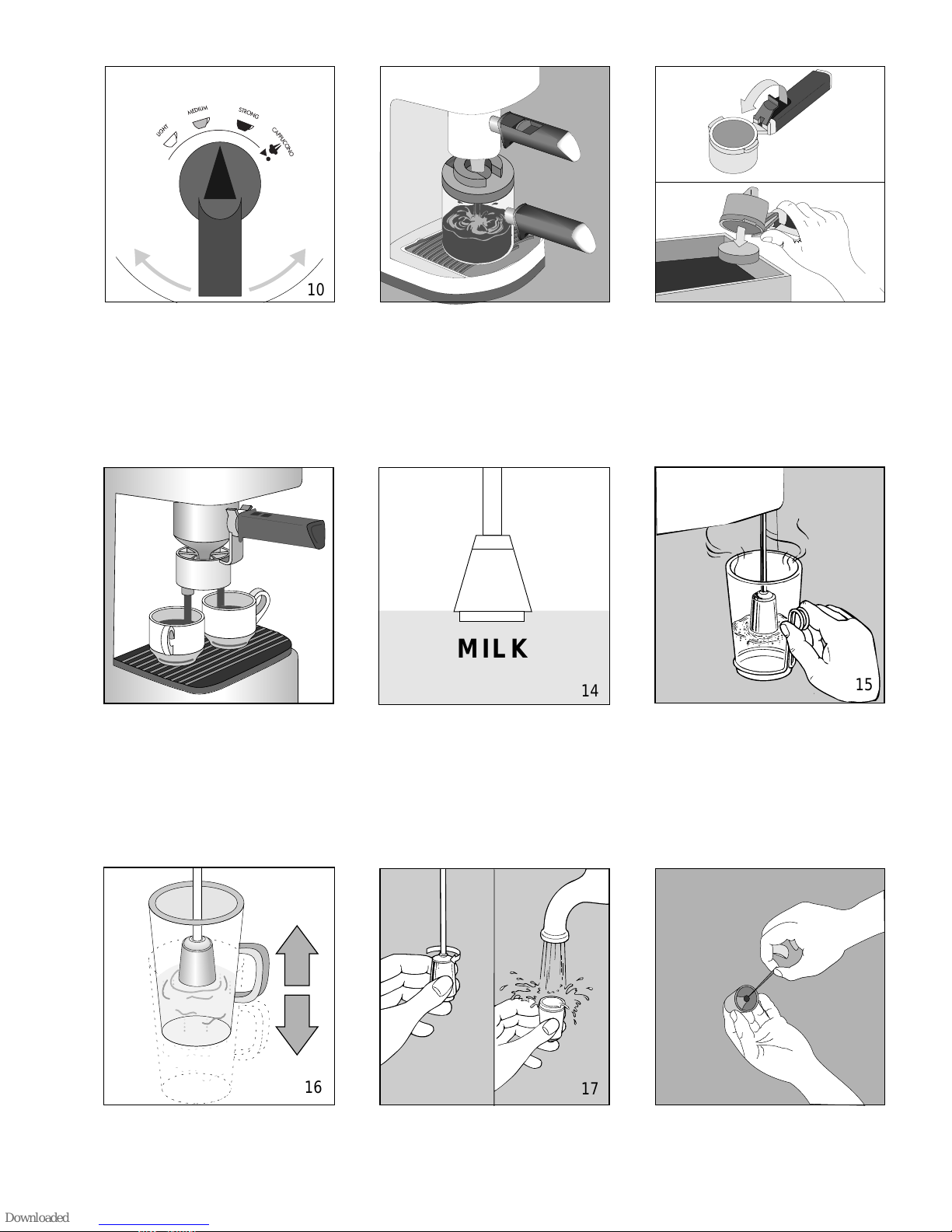

7. Position thelever withinthe desiredarea,accordingtothetypeof coffee

desired:

- LIGHT, MEDIUM or STRONG (see fig. 10).

8. Insert the plug into the power socket; press switch to on. The switch will

light.

9. After about 2 minutes, the coffee will start to flow (see fig. 11). Wait until

all the water in the tank is delivered.

10. Turn machine off.

Before removing the boiler cap or the filter-holder, check that there is no

residual pressure in the boiler.

11. To remove the used coffee grounds block the filter in position using the

special lever fitted to the handle, turn the filter-holder face-down and

knock the grounds out (see fig. 12).

Warning: Metal parts may become very hot

▼

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere DeLonghi Kaffeemaschine Handbücher

DeLonghi

DeLonghi MAGNIFICA EVO FEB292X Bedienungsanleitung

DeLonghi

DeLonghi EC820 Bedienungsanleitung

DeLonghi

DeLonghi ECAM23.450 SL Bedienungsanleitung

DeLonghi

DeLonghi Magnifica Start Bedienungsanleitung

DeLonghi

DeLonghi EC 200.CD Bedienungsanleitung

DeLonghi

DeLonghi Magnifica ESAM 3300 Bedienungsanleitung

DeLonghi

DeLonghi PrimaDonna S Evo ECAM51 55 Series Bedienungsanleitung

DeLonghi

DeLonghi DeLonghi Bedienungsanleitung

DeLonghi

DeLonghi La Specialista Bedienungsanleitung

DeLonghi

DeLonghi La Specialista ARTE EC915 Series Bedienungsanleitung

DeLonghi

DeLonghi nespresso lattissima Bedienungsanleitung

DeLonghi

DeLonghi ECAM22.110.B Bedienungsanleitung

DeLonghi

DeLonghi PRIMADONNA SOUL ECAM61 3 Series Bedienungsanleitung

DeLonghi

DeLonghi ELECTRIC MOKA COFFEE MAKER Bedienungsanleitung

DeLonghi

DeLonghi Dinamica ECAM35020W Bedienungsanleitung

DeLonghi

DeLonghi NESCAFE dolce gusto Bedienungsanleitung

DeLonghi

DeLonghi PrimaDonna Soul ECAM6 5Y Series Bedienungsanleitung

DeLonghi

DeLonghi Nespresso Inissia EN80 Bedienungsanleitung

DeLonghi

DeLonghi Ariete Espresso Barista Specialista Mini... Bedienungsanleitung

DeLonghi

DeLonghi NESPRESSO CITIZ&MILK MY MACHINE EN267.BAE Bedienungsanleitung

DeLonghi

DeLonghi ECAM 26.455.M Bedienungsanleitung

DeLonghi

DeLonghi ESAM3500.S Bedienungsanleitung

DeLonghi

DeLonghi Nespresso VERTUO LATTISSIMA Bedienungsanleitung

DeLonghi

DeLonghi ECI341 Bedienungsanleitung

Beliebte Kaffeemaschine Handbücher anderer Marken

Taurus

Taurus Livorno 6 Bedienungsanleitung

Delta-q

Delta-q QUICK Bedienungsanleitung

Bunn

Bunn LCA-1 Fehlerbehebungshandbuch

Black & Decker

Black & Decker BLACK DECKER HOME DE790 Montageanleitung

Saeco

Saeco Vienna Plus Sup 018M Bedienungsanleitung

INCAPTO

INCAPTO BXCO1470E Bedienungsanleitung

Bosch

Bosch TASSIMO finesse TAS16B Series Bedienungsanleitung

Exido

Exido 245-072 Bedienungsanleitung

Animo

Animo OptiVend Choco Bedienungsanleitung

Siemens

Siemens TQ505DF Series Bedienungsanleitung

Krups

Krups KT406511 Bedienungsanleitung

Cimbali

Cimbali M32 Classic Bedienungsanleitung

Philips

Philips HL3844N Bedienungsanleitung

Bosch

Bosch TES 515 SERIES Bedienungsanleitung

Tekmatix

Tekmatix TMFM - 65 Bedienungsanleitung

Scarlett

Scarlett SC-CM33005 Bedienungsanleitung

LAVAZZA

LAVAZZA CLASSY PLUS Bedienungsanleitung

Black & Decker

Black & Decker DLX900 Montageanleitung
