ELECTRONIC HEATING CONVECTOR

BBH200

Please retain these instructions for future reference

Thermostat Dial

These two lights indicate

the power the appliance

is operating at.

These two lights indicate

the selected power

ECC

Power selector

Foot switch

LEFT-SIDE LIGHTS

RIGHT-SIDE LIGHTS

Electronic Heating Convector BBH200

Description of Appliance

The following terms are used throughout the instruction manual

Fig.1

Thank you for choosing De’Longhi heater. To get the best results

from your new heater it is advisable to read these instructions care-

fully before use. This should ensure optimum results and maximum

safety.

HOW TO USE YOUR HEATER

General Instructions

Remove the heater from the packaging. Check that neither the

heater nor the power cable has been damaged during transport.

Do not operate the heater if damaged.

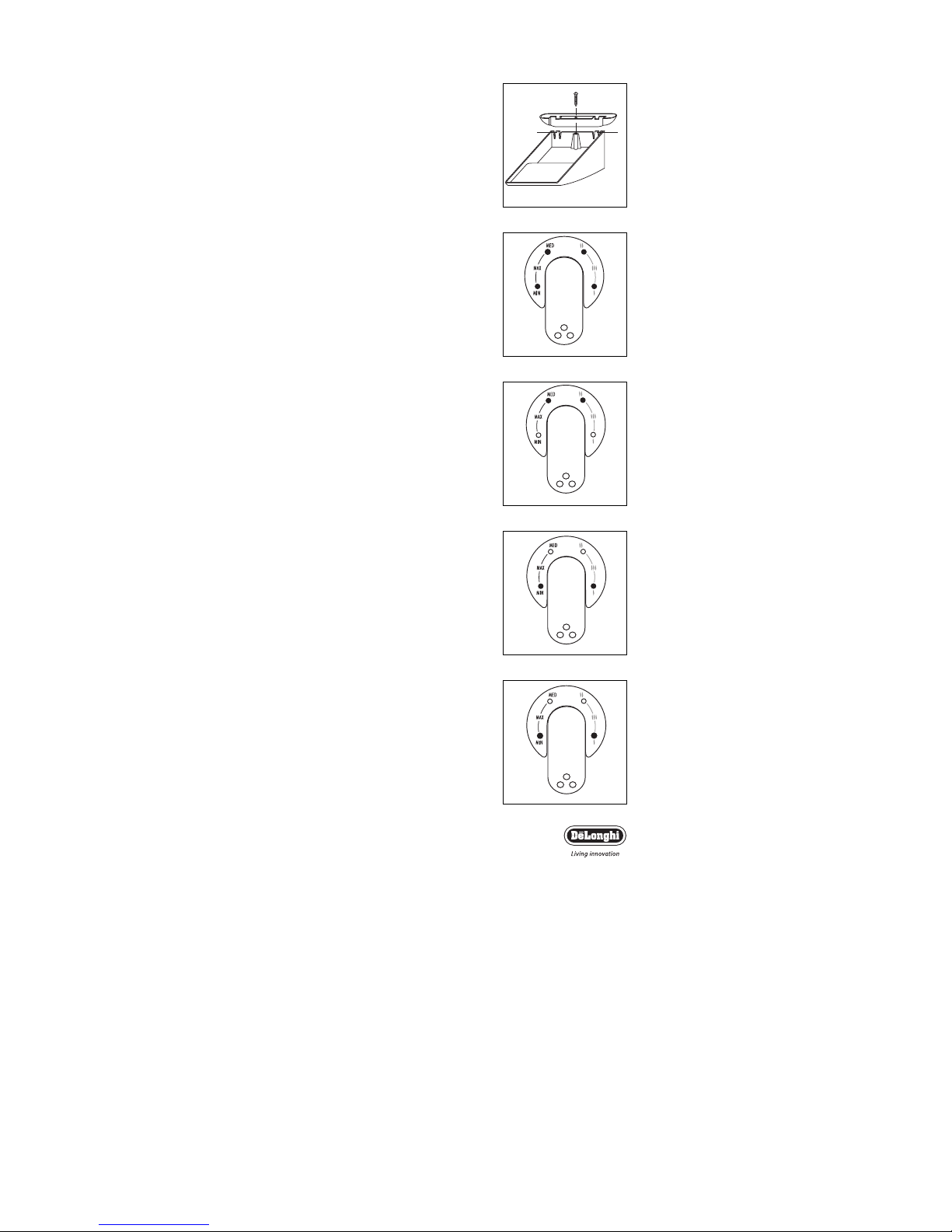

1. Fitting of Feet

Remove the feet and the fastening screws from the bag.Turn the

appliance upside-down on a soft surface, to avoid damaging the

paintwork.

Insert the feet as shown in figure 1,making sure they are inserted

completely: the teeth Aat the bottom must be coupled to the

feet. Finally, fasten the feet using the two screws.

2. Location

It is recommended that you place the heater on the floor beneath

the coldest window in the room, or any level surface taking into

consideration the safety warnings.

The heater must not be located immediately below a power socket.

3. Electrical Connection

Before plugging the heater into the mains, make sure that your

supply voltage is the same as that shown on the appliance. Also

make sure that the electrical socket and the mains supply to the

socket is rated 13amps.

It is important to ensure that the the socket is adequately earthed.

If using more than one appliance at a time, it is important to

ensure that the ring main is adequate to cope with the power

requirements.

This appliance complies with EEC Directive 89/336 relating to elec-

tromagnetic compatibility

4. Operating the heater

This heater has ECC (electronic climate control) which automati-

cally monitors and selects the ideal power to maintain a chosen

temperature.

Insert the plug into the mains socket and switch on, pressing the

ECC button (fig.2/3/4/5) one or more times, to select your operat-

ing heating power as follow:

Each time you push the ECC button a “bleep” will be heard.

Electronic Heating Convector BBH200

Press Once

(Maximum Power)

Press twice

(Medium Power)

Press three times

(Minimum Power)

Fig.2

Fig.3

Fig.4

Press four times

(Off)

Fig.5

Note: It is possible to remove the “bleep” by pressing the ECC

button for approximately 3 seconds when you plug the appliance

in. If you want to restore it do the same thing.

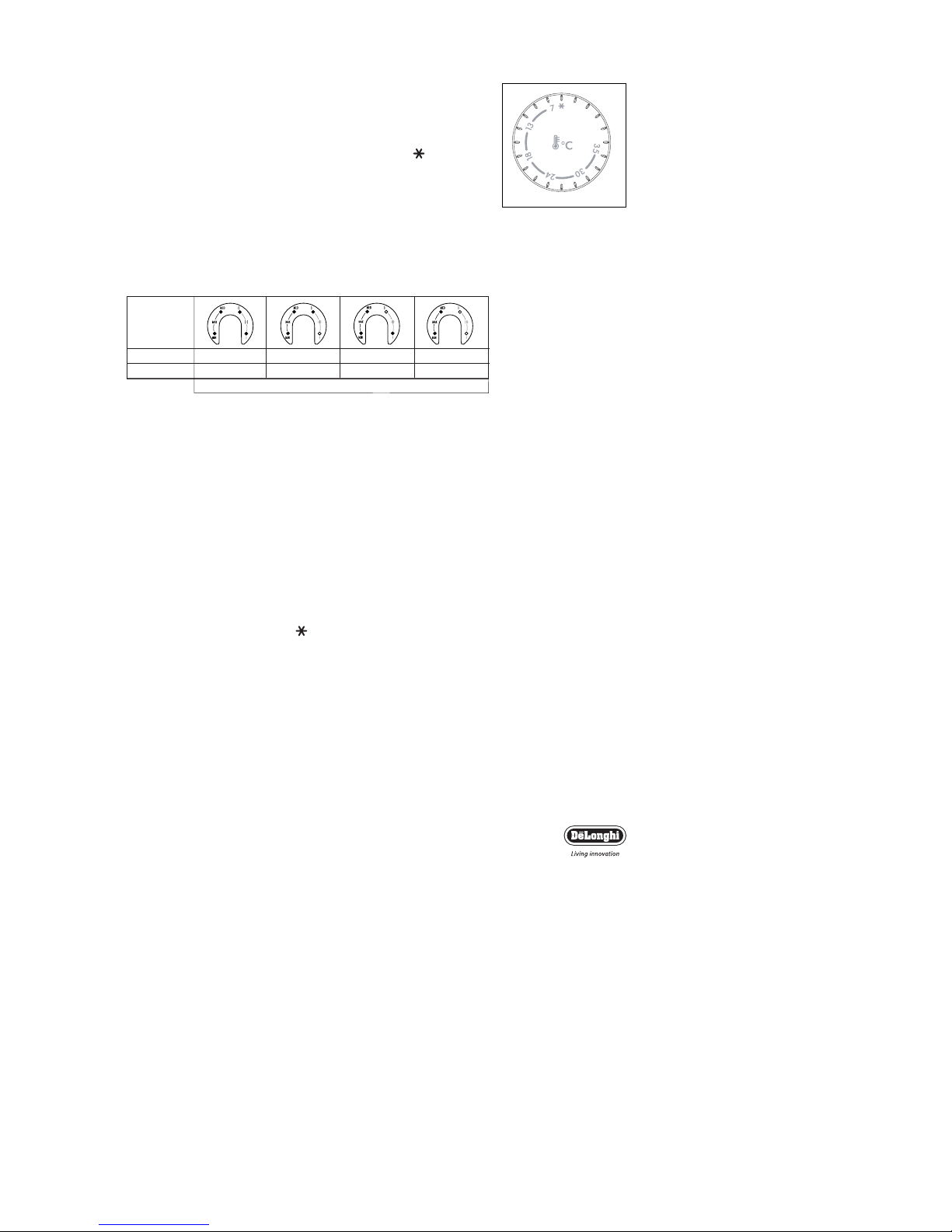

If maximum power has been selected, adjust the thermostat dial

(fig.6) to the desired comfort temperature from 5°C to 35°C.

If the selected temperature is higher than the actual room temper-

ature, the appliance will start automatically and rapidly heat the

room until it reaches the selected temperature.The unit will auto-

matically mantain the temperature at a constant level, by cycling

between “max” ,“med” and “min”, as it approaches the selected

comfort temperature (see fig.7).

Maximum power example

If the room temperature exceeds the selected temperature level,

the appliance will switch off.

The heater will switch back on automatically when the room tem-

perature falls below the selected temperature level.

If medium power level has been selected using the ECC button,

and the thermostat set, the heater will modulate between the

medium and minimum power levels.

As with the maximum power setting, if the room temperature

exceeds the selected temperature, the appliance will switch off, and

then on again when the temperature falls.

5. Frostat Function:

Press the ECC button it is recommended to select the maximum

power level.

Set the thermostat dial to the " " position.

When set in this way, the heater will maintain a minimum room

temperature of approximately 5°C thus preventing freezing with

minimum energy consumption.

This function is not guaranteed in the event of power failures, even

if lasting just a few seconds.

Electronic Heating Convector BBH200

MAX

MED

MAX

MIN

MAX

OFF

Power used

Selected Power

Cycles between

Fig.6

Electronic Heating Convector BBH200

6. MAINTENANCE

Before carrying out any maintenance, unplug the heater from the

mains and wait for it to cool.The heater requires no particular

maintenance. It is sufficient to remove the dust with a soft, dry

cloth. Never use abrasive powders or solvents. If necessary remove

concentrated areas of dirt with a vacuum cleaner.

7.WARNINGS

-As with any electrical appliance, whilst the instructions aim to

cover as many eventualities as possible, caution and common

sense should be applied when operating your appliance, particu-

larly in the vicinity of young children.

ATTENTION: surely external timer cannot be used with ECC

anyway as once it goes off, it would lose all its settings and not

come back on again.

-Do not use the heater in a bathroom or in the vicinity of bath-

tubs, washbasins, showers or swimming pools.

-Never use the heater to dry laundry.

-Never place the power cable on top of the heater while it is

hot.

-Only use the heater in an upright position.

-Do not block the hot-air outlet grilles or the intake grille locat-

ed on the bottom of the heater.

-The heater must be positioned at least 50cm from furniture or

other objects.

-If the power cable is damaged, it must be replaced by the manu-

facturer or an authorised technical service centre.

-Do not use this appliance in rooms which have an area smaller

than 4m2.

We recommend that you not place the heater in a draught,

because strong draughts of air may adversely affect the equip-

ment’s operational efficiency.

-The heater must never be placed immediately under a fixed

mains socket.

-On using the appliance for the first time, turn it on to the maxi

mum power setting for at least 2 hours.This is to eliminate the

"new odour" which is released by the appliance. During this time

ensure that the room is well ventilated.

-It is normal for the heater to make "crackling" noises when

reheating and cooling.

IMPORTANT: Never for any reason cover the

appliance during operation as this could lead to

dangerous over heating.

-Asafety device intervenes and turns off the appliance in the

event of overheating or because the appliance is positioned in a

strong draught of air.To reactivate it, remove the plug from the

electrical outlet, allow the appliance to cool (about 5 mins),

remove the cause of the overheating/draught and then recon-

nect the appliance to the mains and turn it back on.

-The use of an extension lead is not recommended, however if it

is necessary then follow carefully the extension lead’s instruc-

tions, and most importantly ensure that the extension lead is

correctly rated in accordance with the heater being used and

NEVER overloaded.

5714003500/04.02

Electrical connection (U.K. only)

A) Your appliance comes fitted with a plug, which incorporate a 13

Amp fuse. If it does not fit your socket, the plug should be cut

off from the mains lead, and on appropriate plug fitted, as below.

warning:Very carefully dispose of the cut off plug after removing

the fuse: do not insert in a 13 Amp socket elsewhere in the

house as this could cause a shock hazard.With alternative plugs

not incorporating a fuse, the circuit must be protected by a 15

Amp fuse. If the plug is a moulded-on type, the fuse cover must

be re-fitted when changing the fuse using a 13 Amp Asta

approved fuse to BS 1362. In the event of losing the fuse cover,

the plug must NOT be used until a replacement fuse cover can

be obtained from your nearest electrical dealer.The colour of

the correct replacement fuse cover is that as marked on the

base of the plug.

B) If your appliance is not fitted with a plug or if it must be

replaced, please follow the instructions provided below:

warning - this appliance must be

earthed

important

The wires in the mains lead are coloured in accordance with the

following code:

Green and yellow Earth

Blue Neutral

Brown Live

As the colours of the wires in the mains lead may not correspond

with the coloured markings identifying the terminals in your plug,

proceed as follows:

The green and yellow wire must be connected to the terminal in

the plug marked with the letter E or the earth symbol or

coloured green or green and yellow.

The blue wire must be connected to the terminal marked with the

letter N or coloured black.

The brown wire must be connected to the terminal marked with

the letter L or coloured red.

Electronic Heating Convector BBH200

N

E

L

5713003500/06.02
