DeLonghi HS Bedienungsanleitung

instructions

ELECTRIC HEATING CONVECTOR

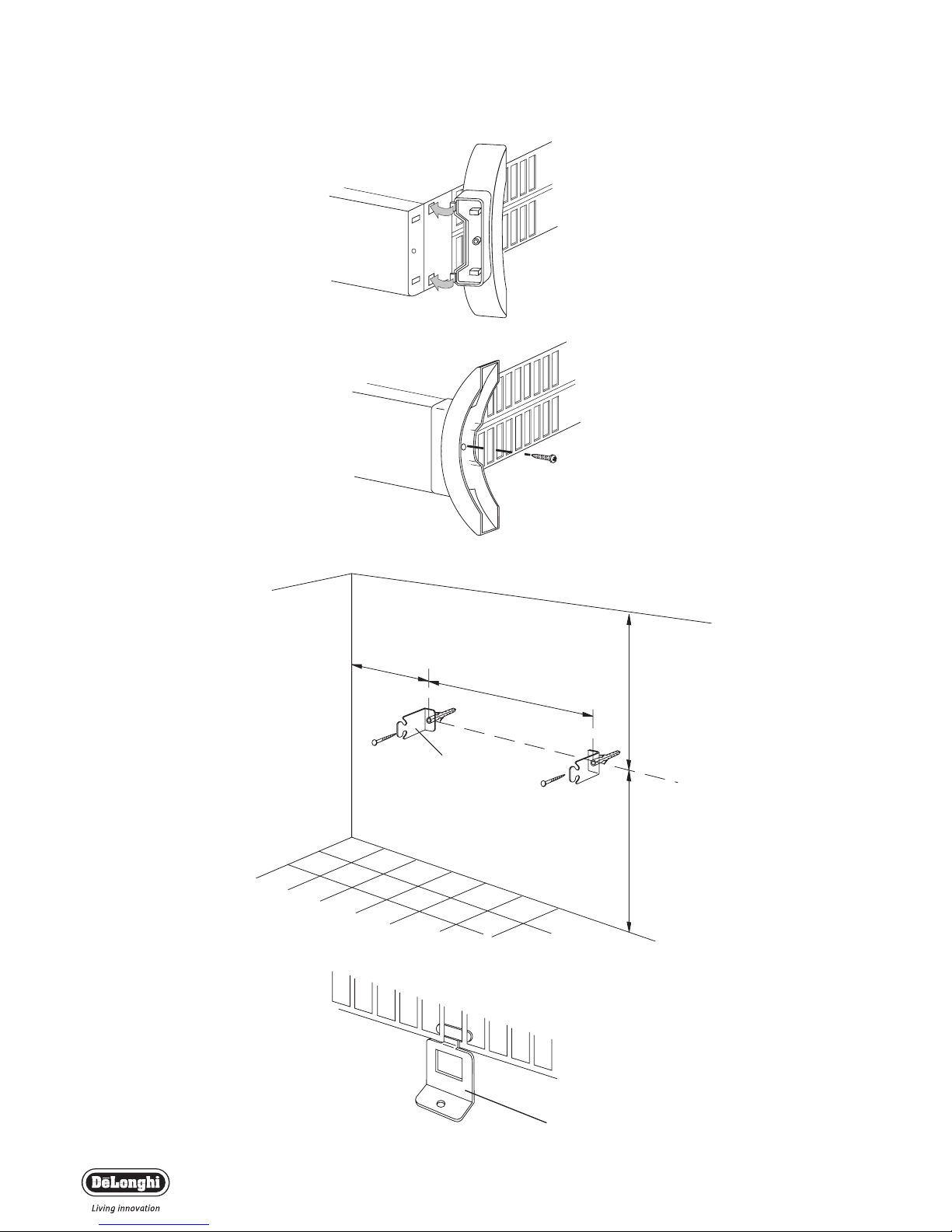

75mm(min.

)

600 mm (min.)412 mm (min.)

Fig.1

Fig.2

Fig.3

Fig.4

Thank you for choosing this De’Longhi convector. To

get the very best out of your new convector it is

advisable to read these instructions before using it.

This will ensure that you gain optimum results and

use the appliance safely.

Assembling the feet

Fit the feet to the appliance as follows:

-Insert the anchor pins into the slots and turn the foot until it

clicks into position (fig. 1)

-Fasten the feet in position using the screw (fig. 2)

Wall mounting

Before drilling into any wall ensure no electrical cables are present

in the area.

In order to wall mount your convector please proceed as follows:

1. Fix two brackets “A” following carefully the dimensions as indi-

cated in figure 3. Use a 6 mm masonry drill.

2. Hang the convector on the two brackets fixed to the wall and

insert metal brackets “B” into the bottom rear section of the

base of the convector as indicated in figure 4, one at each end.

Mark the positions for fixing these brackets to the wall.

This bracket when fixed retains the base of the convector in a

fixed position, preventing removal.

3. Remove the convector heater from the hanging brackets and

drill the wall for the dowels and insert them.

4. Fit the convector to the 2 brackets “A”. Insert Brackets “B” to

the convector base and fix brackets “B” to the pre-drilled.

Your convector is now wall mounted.

The appliances should not be installed directly under a wall

power socket.

Do not use your heater close to bath and wash basin.

Electrical connection

- Before plugging the appliance into the mains, check that your sup-

ply voltage is the same as that shown on the rating plate of the

appliance.

- If using more than one appliance at a time, it is important to

ensure that the ring main is adequate to cope with the power

requirements.

- This appliance complies with EEC directive 89/336 regarding elec-

tromagnetic compatibility.

Operation and use

Turning the appliance on

Insert the plug into the mains socket and switch on.

Models with only one switch

Press the bottom of the switch down so the red area at the top of

the switch is showing.

Models with thermostat only

Turn the appliance on by rotating the thermostat dial clockwise

until it can be turned no further.

To turn the appliance off, rotate the thermostat dial fully anti-

clockwise and remove the plug from the socket.

Models with two switches and thermostat

Turn the thermostat dial clockwise until it can be turned no fur-

ther, then press the bottom of the left switch (minimum power) or

both switches (maximum power) so the red area at the top of the

switch(es) is showing. We suggest that on days when temperatures

are not particularly cold, select minimum output to optimise sav-

ings on energy consumption.

Adjusting the thermostat (where applicable)

When the room has reached the desired temperature, turn the

thermostat dial slowly in an anti-clockwise direction until you hear

a click and the appliance turns off. The thermostat will now keep

the temperature in the room constant, turning the heater on and

off as appropriate.

Frost protection function (only on models with a

thermostat)

Turn the thermostat dial fully anti-clockwise to the position. If your

convector has one switch,press this on. If your convector has two switch-

es press one or both switches on. When set in this way, the appliance will

switch on automatically only if the room temperature falls below 5°C, to

prevent freezing at minimum energy consumption.

Cleaning and maintenance

The convector should not require any maintenance. However

before carrying out any cleaning or maintenance, unplug the heater

from the mains and wait for it to cool (this should take around 5

minutes. It is sufficient to remove external dust with a soft, dry

cloth. Never use abrasive powders or solvents. If necessary, remove

concentrated areas of dirt with a vacuum cleaner.

Warnings

-Do not use the heater in a bathroom or in the vicinity of bath-

tubs, wash basins, showers or swimming pools.

- Never use the heater to dry laundry.

- Never place the power cable on top of the heater while it is hot.

- Only use the heater in an upright position.

HS 4

- Do not block the outlet grilles at the top of the heater or the

intake grille at the bottom of the heater.

- The heater must be positioned at least 50cm from furniture or

other objects.

- If the power cable is damaged, it must be replaced by the manu-

facturer or an authorised technical service centre.

- Do not use this appliance in rooms which have a floor area small-

er than 4m2.

- We recommend that you do not place the heater in a draught as this

may adversely affect the appliance’s operational efficiency.

- The heater must never be placed immediately under a fixed mains

socket.

- IMPORTANT: Never for any reason cover the appliance during oper-

ation as this could lead to dangerous overheating.

- A safety device intervenes and turns the appliance off in the event of

overheating or because the appliance is positioned in a strong draught

of air. To reactivate the heater, remove the plug from the mains, allow

the appliance to cool (for about 5 mins),remove the cause of the over-

heating/draught and then plug the appliance back into the mains and

turn it back on.

- The use of an extension lead is not recommended, as overheating of

the extension lead may occur during the operation of the heater.

- In order to avoid any danger caused by an accidental resetting of

the safety system, this appliance must not be powered through an

external timer.

- As with any electrical appliance, whilst the instructions aim to

cover as many eventualities as possible, caution and common

sense should be applied when operating your appliance, particu-

larly in the vicinity of young children.

WARNING: In order to avoid overheating, never under

any circumstances cover the appliances during operation,as

this would lead to dangerous overheating.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE

PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.

At the end of its working life, the product must not be disposed of

as urban waste.

It must be taken to a special local authority differentiated waste col-

lection centre or to a dealer providing this service.

Disposing of a household appliance separately avoids possible nega-

tive consequences for the environment and health deriving from

inappropriate disposal and enables the constituent materials to be

recovered to obtain significant savings in energy and resources.As a

reminder of the need to dispose of household appliances separately,

the product is marked with a crossed-out wheeled dustbin.

Electrical connection (U.K. only)

A) If your appliance comes fitted with a plug, it will incorporate a

13 Amp fuse. If it does not fit your socket, the plug should be

cut off from the mains lead and an appropriate plug fitted, as

below.

WARNING:Very carefully dispose of the cut off plug after

removing the fuse: do not insert in a 13 Amp socket elsewhere

in the house as this could cause a shock hazard.

With alternative plugs not incorporating a fuse, the circuit must

be protected by a 15 Amp fuse. If the plug is a moulded-on

type, the fuse cover must be re-fitted when changing the fuse

using a 13 Amp Asta approved fuse to BS 1362. In the event of

losing the fuse cover, the plug must NOT be used until a

replacement fuse cover can be obtained from your nearest elec-

trical dealer.The colour of the correct replacement fuse cover

is that as marked on the base of the plug.

B) If your appliance is not fitted with a plug, please follow the

instructions provided below.

IMPORTANT

The wires in the mains lead are coloured in accordance with the

following code:

Blue: Neutral

Brown: Live

As the colours of the wires in the mains lead may not corre-

spond with the coloured markings identifying the terminals in

your plug, proceed as follows:

The blue wire must be connected to the terminal marked with

the letter N or coloured black.

The brown wire must be connected to the terminal marked

with the letter L or coloured red.

If you have a 3-pins plug, do not connect any wire to the "earth"

terminal.

HS 6
