RADIANT HEATER

Technical Data

Type Category Maximum Medium Low Gas pressure

Input Input Input

KW g/h KW g/h KW g/h

4.20 305 2,85 207 1,50 109 2,8 kpa

This appliance is designed to operate with LPG at nominal pressure: 2,8 kpa. For a correct

gas combustion the required air quantity is 8,4 m3/h.

WARNINGS

-ALWAYS use heater in accordance with instructions. Read the instructions book carefully

and keep it in a safe place.

-This appliance requires a rubber tube and a pressure regulator in accordance with the

law in force. If not supplied check with your gas supplier.

-Use ONLY in a well ventilated area.

-This appliance MUST NOT be used in basements, high rise flats, bathrooms or

bedrooms and in rooms having volume less than 15 m3(30 m3in living rooms).

-This appliance emits the combustion residues in the room in which is used.

-DO NOT place clothes or other materials on the heater, as apart from the danger of fire

their presence could affect the efficient working of the appliance (fig. 1).

-DO NOT move heater from room to room when it is lit (fig. 2).

-DO NOT position heater alongside a wall or near curtains or arm-chairs etc. (fig. 3 - 4).

-ALWAYS face heater towards centre of room. Special care should be taken if the heater is on

a surface where it can move or twist on its wheels or castors if knocked by a child or dog, etc.

-Minimum Clearance : 200 mm from sides,1500 mm from front.

-Be sure installation is complying to local standard.

-The heater you have purchased is fitted with safety devices which come on in the event

of malfunctioning while the appliance is in use. If the pilot light (placed opposite the

burner) accidentally goes out, or if the room is not sufficiently ventilated, the safety devi-

ce will block the gas flow, causing the heater to go off.

Gas leakages

If a leak is suspected, turn off gas at the gas bottle, open the window and air the room. DO

NOT disconnect the pressure regulator. Extinguish all naked lights. Slowly turn the gas on

and brush the connections with soapy water or liquid detergent - a gas leak will form bub-

bles. If a leak is found, turn the gas off and inform your Dealer. DO NOT use the heater

again until it has been inspected by your Dealer.

NEVER USE MATCHES TO FIND LEAKS.

see rating label

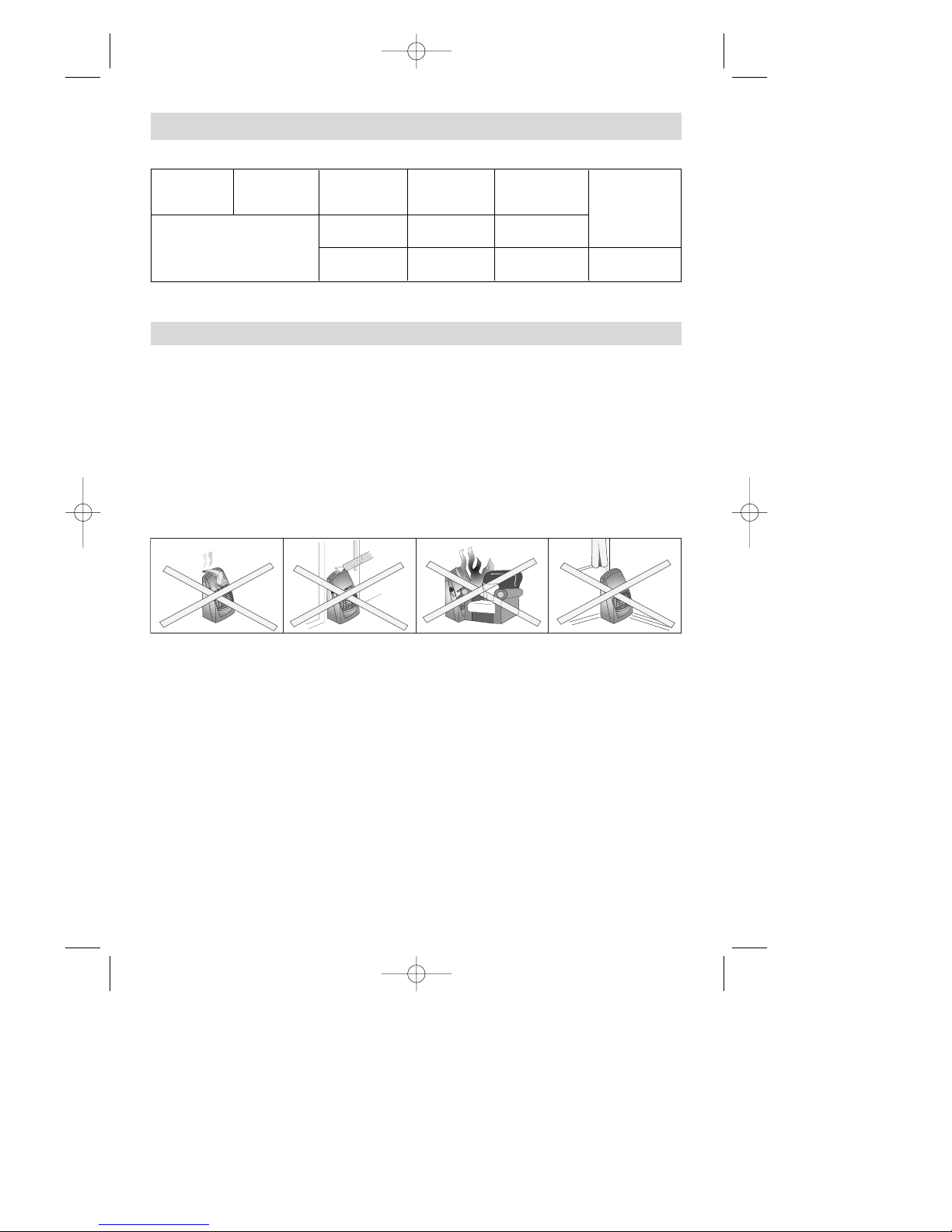

Fig.1 Fig.2 Fig.3 Fig.4

5721009100 4-12-2003 11:57 Pagina 2

ASSEMBLY

1) Place the gas cylinder in the gas cylinder compartment

and connect the regulator to the cylinder as shown on

page 3.

2) To fit the backcover, insert the two tabs located on the

left-hand side of the backcover into the corresponding

slots in the cabinet. Then insert the tab on the right hand

side into its slot.

IMPORTANT: to remove the backcover, lift the back-

cover and pull clear of the slots.

Gas cylinder

compartment

Slot

GENERAL SAFETY INSTRUCTIONS

Gas bottle

Gas Bottle with 9 kg of maximum capacity can be installed. Changing of gas bottle must not

be carried out in the presence of a naked flame. Use the gas bottle always in upright posi-

tion.MAKE SURE the black neoprene “O -Ring Seal is in place or the regulator bullnose.

Regularly examine, and if unduly compressed or damaged, replace. Support regulator with

one hand while aligning the regulator bullnose (threaded part) with the threaded gas outlet

on cylinder valve. Screw regulator handwheel ANTICLOCKWISE (LEFT HAND THREAD)

into gas outlet. Tighten regulator handwheel as ttight as possible by hand only. DO NOT

USE TOOLS OR LEVERS TO TIGHTEN. When connecting the regulator to the gas cylinder,

avoid undue twisting of the flexible hose. To place the bottle in position, remove the rear

panel; than put the bottle in position and replace the panel.

PLACE teh cylinder in the heater cabinet so that the cylinder valve is facing into the compart-

ment. Take care to ensure that is positioned in such a way that the flexible hose does not

come into contact with the metal panels of the heater, and avoid twisting of the flexible

hose. OPEN cylinder valve by turning handwheel ANTICLOCKWISE. Now refer to the ligh-

ting instruction on the heater itself. Please read carefully and follow the instructions. Do not

turn the bottle upside down to use completely its content.

5721009100 4-12-2003 11:57 Pagina 3

Pressure regulators, rubber tubes and clips

CHECK that tubing is completely over the nozzles at each end of

the tubing and that it is held firmly in place by tube clips (See

fig.9). Check the expiry date and state of the rubber tube regu-

larly. If it is past its expiry date or has been damaged, replace it

with one which complies with the current regulations. Avoid ben-

ding or constricting the rubber tube when the pressure regulator is

connected to the gas cylinder. This heater must be used with an

approved Low Pressure Regulator which complies with SAB

S1237.

The regulator is required to reduce the pressure of the gas in the cylinder from about 700

kPa to about 2,8 kpa to operate the radiant - the heating panels).

Ventilation

USE ONLY IN A WELL VENTILATED ROOM

Adequate ventilation must be provided in rooms in which the heater is used. This ensures

removal of the products of combustion and allows the entry of replacement air. The fol-

lowing table shows the smallest size of room suitable for each heat setting and the dimen-

sions of the aperture which must be provided equally divided between high and low level,

according with the maximum, medium or minimum power.

Safety guard

The guard is to prevent risk of fire and no part of it should be permanently removed.

It does not give full protection for young children or the infirm.

fig. 9

Control knob setting Room Size Room Aperture

2) Position

big flame

(maximum rate)

15 m3

105 cm 2

3) Position

medium flame

(medium rate)

28.5 m3

1) Position

small flame

(low rate)

42 m3

5721009100 4-12-2003 11:57 Pagina 4

OPERATING INSTRUCTIONS

Lighting the heater

1. Turn on the gas at the gas bottle tap.

2. FROM « ● » POSITION, fully depress the control knob for 10 seconds and turn to

(Small Flame) position. (If pilot flame does not ignite return to starting position and

repeat). Continue to fully depress the knob for a further 20 seconds to allow the thermo-

couple probe to heat up, then turn the knob to select the desired setting as follows:

(Small Flame) Low Input (Medium Flame) Medium Input,

(Big Flame) Maximum Input,

In the event of “burn back” turn off and try again. Should it happen a second time,

return the unit to the dealer.

Auxiliary ignition

Should piezoelectric starter fail to work, repeat operation on control knob and use a match

to light pilot flame.

Turning off the heater

Turn off the gas bottle tap.

The Heater will be totally “OFF” only if the tap at the gas bottle is turned off.

Important

When the operating knob is left at the end of the starting time (see rating plate), this must

move up about 5 mm and return to his starting height. If this does not happen, shut the gas

valve and contact your aftersales service centre. Do not let the item work with the operating

knob pressed downwards by force.

IMPORTANT

DO NOT cover the appliance when in operation, this could cause a dangerous risk of fire.

IMPORTANT NOTES

-Use the appliance only standing on the floor.

- The heater must always operate in upright position.

- Never direct the hater air flow towards furniture, curtains , spray cans and inflammable

material.

- Do not install the appliance in a room which might contain gas, oil or sulphur, or near

sources of heat.

- After an extended period when the heater is not in use check the “O”-Ring Seal before

lighting up the heater. Replace the “O” Ring Seal if cracked or broken.

- Do not use the appliance in the mountains at high altitudes.

- DIARISE: During March/April of each year check the “O” Ring Seal.

5721009100 4-12-2003 11:57 Pagina 5

MAINTENANCE

Wipe your appliance with a soft damp cloth and only when it is switched off, cold and

unplugged. Do not use solvents or abrasives detergents.

Check that there is no dust blocking the air inlet or outlet grids. Clean using a vacuum clea-

ner. When not in use remove plug from socket. When not in use the heater should be cove-

red and stored in a dust-free place. Refer any major maintenance to your Local Authorised

Dealer. Major servicing should be carried out every 2 - 3 years. If in doubt refer to your

nearest authorised dealer.
