INSTALLATION and SERVICE INSTRUCTIONS

USE and CARE INSTRUCTIONS

DEF905EX1

CERAMIC COOKER

distributed by

DeLonghi Australia Pty Ltd

DeLonghi New Zealand Ltd

Dear Customer,

Thank you for having purchased and given your preference

to our product.

The safety precautions and recommendations reported

below are for your own safety and that of others. They

will also provide a means by which to make full use of the

features offered by your appliance.

Please keep this booklet in a safe place. It may be useful

in future, either to yourself or to others in the event that

doubts should arise relating to its operation.

This appliance must be used only for the task it

has explicitly been designed for, that is for cooking

foodstuffs. Any other form of usage is to be considered

as inappropriate and therefore dangerous.

The manufacturer declines all responsibility in the

event of damage caused by improper, incorrect or

illogical use of the appliance or be faulty installation.

PRODUCT LABEL

This appliance has been designed and constructed in accordance with the following codes

and specications:

AS/NZS 60335.1 General Requirements for Domestic electrical appliances

AS/NZS 60335.2.6 Particular Requirements for Domestic electrical cooking appliances

AS/NZS CISPR 14.1 Electromagnetic Compatibility Requirements.

IMPORTANT SAFETY PRECAUTIONS AND RECOMMENDATIONS

IMPORTANT: This appliance is designed and manufactured

solely for the cooking of domestic (household) food and is

not suitable for any non domestic application and therefore

should not be used in a commercial environment.

The appliance guarantee will be void if the appliance is used

within a non domestic environment i.e. a semi commercial,

commercial or communal environment.

Read the instructions carefully before installing and using

the appliance.

■After having unpacked the appliance, check to ensure that it is

not damaged and that the oven door closes correctly.

In case of doubt, do not use it and consult your supplier or a

professionally qualied technician.

■Packing elements (i.e. plastic bags, polystyrene foam, nails,

packing straps, etc.) should not be left around within easy reach

of children, as these may cause serious injuries.

■ Some appliances are supplied with a protective lm on steel and

aluminium parts. This lm must be removed before using the

appliance.

■ IMPORTANT: The use of suitable protective clothing/gloves is

recommended when handling or cleaning this appliance.

■Do not attempt to modify the technical characteristics of

the appliance as this may become dangerous to use. The

manufacturer declines all responsibility for any inconvenience

resulting from the inobservance of this condition.

■Do not operate your appliance by means of an external timer or

separate remote-control system.

■Do not carry out cleaning or maintenance operations on the

appliance without having previously disconnected it from the

electric power supply.

■ WARNING: Ensure that the appliance is switched off before

replacing the oven lamp to avoid the possibility of electric shock.

■Do not use a steam cleaner because the moisture can get into

the appliance therefore making it unsafe.

■Do not touch the appliance with wet or damp hands (or feet).

■Do not use the appliance whilst in bare feet

■If you should decide not to use this appliance any longer (or

decide to substitute another model), before disposing of it, it

is recommended that it be made inoperative in an appropriate

manner in accordance to health and environmental protection

regulations, ensuring in particular that all potentially hazardous

parts be made harmless, especially in relation to children who

could play with unused appliances.

■The various components of the appliance are recyclable. Dispose

of them in accordance with the regulations in force in your country.

If the appliance is to be scrapped, remove the power cord.

■After use, ensure that the knobs are in the off position.

■Children less than 8 years of age shall be kept away unless

continuously supervised.

■This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have

been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without supervision.

■The manufacturer declines all liability for injury to persons or

damage to property caused by incorrect or improper use of the

appliance.

■ WARNING: During use the appliance and its accessible parts

become hot; they remain hot for some time after use.

– Care should be taken to avoid touching heating elements (on

the hob and inside the oven).

– The door is hot, use the handle.

– To avoid burns and scalds, young children should be kept

away.

■Make sure that electrical cables connecting other appliances in

the proximity of the cooker cannot come into contact with the hob

or become entrapped in the oven door.

■ WARNING: Unattended cooking on a hob with fat or oil can be

dangerous and may result in re. NEVER try to extinguish a re

with water, but switch off the appliance and then cover ame e.g.

with a lid or a re blanket.

■ WARNING: Danger of re: do not store items on the cooking

surfaces.

■Do not place or leave empty pans on the glass ceramic hob.

■Do not allow heavy or sharp objects to drop on the glass ceramic hob.

■Do not scratch the hob with sharp objects. Don’t use the hob as

a work surface.

■ WARNING: If the hob is cracked or otherwise damaged by falling

objects etc., disconnect the appliance from the electrical power

supply to avoid the possibility of electric shock and call Customer

Service.

■ WARNING: When correctly installed, your product meets all

safety requirements laid down for this type of product category.

However special care should be taken around the rear or the

underneath of the appliance as these areas are not designed or

intended to be touched and may contain sharp or rough edges,

that may cause injury.

■ FIRST USE OF THE OVEN - it is advised to follow these

instructions:

– Furnish the interior of the oven as described in the chapter

“CLEANING AND MAINTENANCE”.

– Switch on the empty oven on max to eliminate grease from the

heating elements.

– Disconnect the appliance from the electrical power supply, let

the oven cool down and clean the interior of the oven with a

cloth soaked in water and neutral detergent; then dry carefully.

■ CAUTION: Do not use harsh abrasive cleaners or sharp metal

scrapers to clean the oven door glass since they can scratch the

surface, which may result in shattering of the glass.

■Do not line the oven walls or base with aluminium foil. Do not place

baking trays or the drip tray on the base of the oven chamber.

■ FIRE RISK! Do not store ammable material in the oven or in the

storage compartment.

■Always use oven gloves when removing the shelves and food

trays from the oven whilst hot.

■Do not hang towels, dishcloths or other items on the appliance or

its handle – as this could be a re hazard.

■Clean the oven regularly and do not allow fat or oils to build up in

the oven base or tray. Remove spillages as soon as they occur.

■Do not stand on the cooker or on the open oven door.

■Always stand back from the appliance when opening the oven

door to allow steam and hot air to escape before removing the

food.

■ SAFE FOOD HANDLING: Leave food in the oven for as short

a time as possible before and after cooking. This is to avoid

contamination by organisms which may cause food poisoning.

Take particular care during warmer weather.

■ WARNING: Take care NOT to lift the cooker by the door handle.

INSTALLATION

CAUTION:

■This appliance must be installed in accordance with these installation instructions.

■This appliance shall only be serviced by authorised personnel.

■This appliance is to be installed only by an authorised person in compliance

with the current electrical regulations and in observation of the instructions

supplied by the manufacturer.

Failure to comply with this condition will render the guarantee invalid.

■Incorrect installation, for which the manufacturer accepts no responsibility, may

cause personal injury of damage.

■Always disconnect the appliance from mains power supply before carrying out

any maintenance operations or repairs.

LOCATION

■ The cooker can be installed in a cabinet (g. 1).

■The cooker must be installed no less than 50 mm away from any side wall which

exceed the height of the cooktop.

■The appliance must be housed in heat resistant units.

■The walls of the units must be capable of resisting temperatures of 75 °C above

room temperature.

■Do not install the appliance near inammable materials (eg. curtains).

■If you stand the cooker on a pedestal, make sure you provide safety measures

to keep it in place.

Figure 1

50 mm

500 mm

650 mm

450 mm

Cooker overall dimensions [mm]

■ height: min 900 - max 925

■ width: 900

■ depth: 600

FITTING THE ADJUSTABLE FEET

The adjustable feet must be tted to the base of the cooker before use (g. 2).

Rest the rear of the cooker on a piece of the polystyrene packaging exposing the base for

the tting of the feet.

Fit the no. 4 (four) legs by screwing them tight into the support base as shown in gure 3.

LEVELLING THE COOKER

The cooker may be levelled by screwing the lower ends of the feet IN or OUT (g. 4).

Figure 3 Figure 4Figure 2

MOVING THE COOKER

WARNING: When raising cooker to upright

position always ensure two people carry

out this manoeuvre to prevent damage to

the adjustable feet (g. 5).

WARNING - Be carefull: Do not lift the

cooker by the door handle when raising to

the upright position (g. 6).

WARNING: When moving cooker to its

nal position DO NOT DRAG (g. 7). Lift

feet clear of oor (g. 5).

Figure 5

Figure 7Figure 6

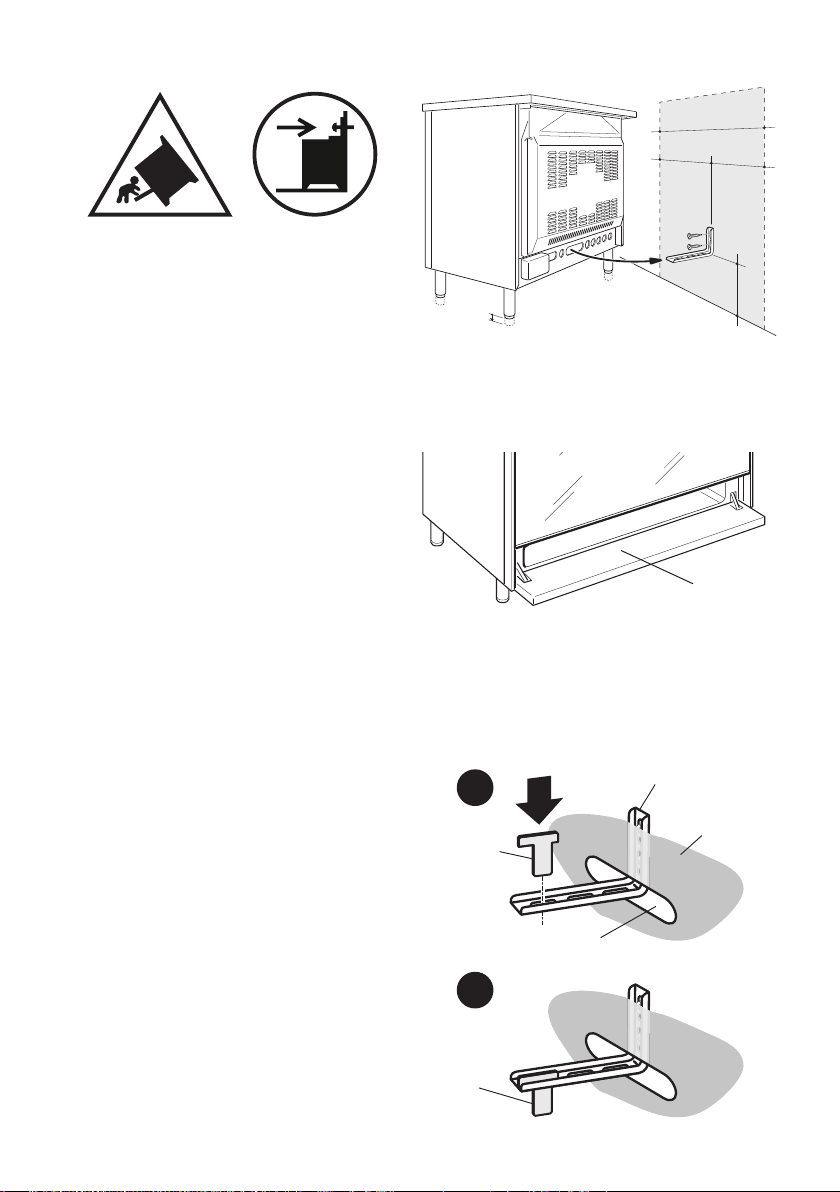

ANTI-TILT BRACKET

Important!

To restrain the appliance and prevent it

tipping accidentally, t a bracket to its

rear to x it securely to the wall. Make

sure you also t the supplied lock pin to

the anti-tilt bracket.

To t the anti-tilt bracket:

1. After you have located where the

cooker is to be positioned, mark on the

wall the place where the two screws

of the anti-tilt bracket have to be tted.

Please follow the indications given in

g. 8.

2. Drill two 8 mm diameter holes in

the wall and insert the plastic plugs

supplied.

Important!

Before drilling the holes, check that

you will not damage any pipes or

electrical wires.

3. Loosely attach the anti-tilt bracket with

the two screws supplied.

4. Move the cooker to the wall and adjust

the height of the anti-tilt bracket so

that it can engage in the slot on the

cooker’s back, as shown in g. 8.

5. Tighten the screws attaching the anti-

tilt bracket.

6. Push the cooker against the wall so

that the anti-tilt bracket is fully inserted

in the slot on the cooker’s back.

7. Access the bracket and t the lock pin:

■ Open the pivoting panel (g. 9).

■Fit the lock pin through the

bracket, as shown (g. 10).

■Close the pivoting panel.

min 220

max 245

(depending on feet adjustment)

450

+ 25

900 mm

Pivoting

panel

Lock pin

correctly

tted

Lock pin

Slot on the

cooker’s back

Cooker’s

back

Anti-tilt bracket

attached on the

rear wall

min 220

max 245

(depending on feet adjustment)

450

+ 25

900 mm

Pivoting

panel

Lock pin

correctly

tted

Lock pin

Slot on the

cooker’s back

Cooker’s

back

Anti-tilt bracket

attached on the

rear wall

min 220

max 245

(depending on feet adjustment)

450

+ 25

900 mm

Pivoting

panel

Lock pin

correctly

tted

Lock pin

Slot on the

cooker’s back

Cooker’s

back

Anti-tilt bracket

attached on the

rear wall

Figure 8

Figure 9

Figure 10

Inhaltsverzeichnis

Andere DeLonghi Küchengerät Handbücher

DeLonghi

DeLonghi DJE950 Bedienungsanleitung

DeLonghi

DeLonghi KENWOOD KVC7000 Series Handbuch

DeLonghi

DeLonghi DEFL605E Benutzerhandbuch

DeLonghi

DeLonghi DE 91 GW Installationsanleitung

DeLonghi

DeLonghi FH1163 Bedienungsanleitung

DeLonghi

DeLonghi DHB710 series Bedienungsanleitung

DeLonghi

DeLonghi MULTIFRY FH1396 Bedienungsanleitung

DeLonghi

DeLonghi KENWOOD KVC5000T Series Handbuch

DeLonghi

DeLonghi EMF2 Bedienungsanleitung

DeLonghi

DeLonghi KS3300M Bedienungsanleitung

DeLonghi

DeLonghi MultiFry FH1396/1.BK Bedienungsanleitung

DeLonghi

DeLonghi MULTIFRY FH1394 Bedienungsanleitung

DeLonghi

DeLonghi Alicia Latte EMF2.W Bedienungsanleitung

DeLonghi

DeLonghi CKM1641D Bedienungsanleitung

DeLonghi

DeLonghi DHB900 Bedienungsanleitung

DeLonghi

DeLonghi EMF2 Bedienungsanleitung

DeLonghi

DeLonghi EMF2 Bedienungsanleitung

DeLonghi

DeLonghi bg45 Bedienungsanleitung

DeLonghi

DeLonghi DHB723 Bedienungsanleitung

DeLonghi

DeLonghi DFG440 Series Bedienungsanleitung

DeLonghi

DeLonghi PAC A130HPE Bedienungsanleitung

DeLonghi

DeLonghi DFS 905 Betriebsanleitung

DeLonghi

DeLonghi EMF2.BK Bedienungsanleitung

DeLonghi

DeLonghi DSR 927 DFX Betriebsanleitung

Beliebte Küchengerät Handbücher anderer Marken

Tayama

Tayama TYG-35AF Bedienungsanleitung

AEG

AEG 43172V-MN Bedienungsanleitung

REBER

REBER Professional 40 Benutzerhandbuch

North American

North American BB12482G / TR-F-04-B-NCT-1 Bedienungsanleitung

Presto

Presto fountain popper Bedienungsanleitung

Westmark

Westmark 1035 2260 Bedienungsanleitung

Zanussi

Zanussi ZCG64396XA Bedienungsanleitung

HOFFEN

HOFFEN SM-9302M Bedienungsanleitung

Philips

Philips HD3133 Bedienungsanleitung

Ronco

Ronco Beef Jerky Bedienungsanleitung

Hendi

Hendi 470411 Bedienungsanleitung

Livoo

Livoo MEN386 Bedienungsanleitung

Vogue

Vogue D446 Bedienungsanleitung

croydon

croydon WR-10313-700 Bedienungsanleitung

ADE

ADE AUTOMATIC-L Bedienungsanleitung

Chefman

Chefman RJ43-SQ Series Bedienungsanleitung

Vacmaster

Vacmaster VP680 Bedienungsanleitung

Jetmaster

Jetmaster 900HG Bedienungsanleitung
