Table of Contents
Overview
Navigation System Overview ........................... 1-2
Getting Started ................................................. 1-4
Setting Radio Station Presets .......................... 1-5
Setting the Time .............................................. 1-5
Entering an Address, Point of Interest,
Home and Preset Destinations ........................ 1-6
Using Your Home or Preset Destinations ...... 1-10
Canceling Guidance ...................................... 1-10
Features and Controls
Using the Navigation System .......................... 2-1
Maps ................................................................ 2-6
Symbols ........................................................... 2-7
Navigation Menu ............................................. 2-8
Destination .................................................... 2-20
Colors on the Screen ..................................... 2-38
Configure Menu ............................................. 2-38
Global Positioning System (GPS) ................. 2-42
Vehicle Positioning ........................................ 2-43
Problems with Route Guidance ..................... 2-44
If the System Needs Service ......................... 2-44
Ordering Map DVDs ...................................... 2-44
Database Coverage ...................................... 2-45
Navigation Audio System
Playing the Radio ............................................. 3-1
Finding a Station ............................................. 3-2
Setting Preset Stations .................................... 3-3
Band Menu ...................................................... 3-3
Digital Signal Processing (DSP) ...................... 3-5
XM™ Satellite Radio Service .......................... 3-6
Playing a CD ................................................. 3-10
CD Messages ................................................ 3-12
Playing a CD with the CD Changer ............... 3-12
Rear Seat Entertainment System .................. 3-15
© 2006 Delphi Corp.
1-2
Overview

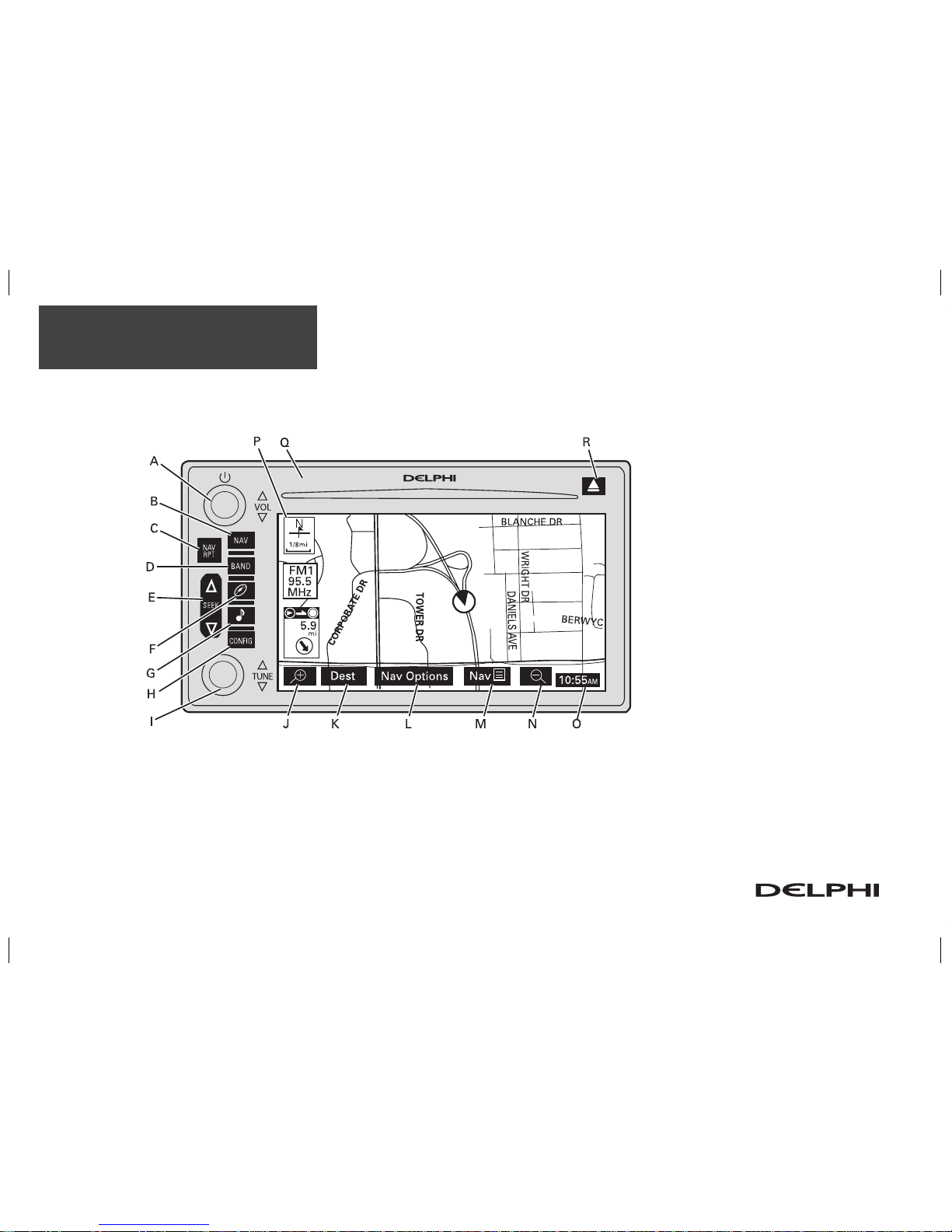

Navigation System Overview
1-3
Overview
A. Power/Volume Knob. See “Hard Keys” on page 2-1.
B. NAV (Navigation) Key. See “Hard Keys” on page 2-1.
C. NAV RPT (Navigation Repeat) Key. See “Hard Keys” on page 2-1.
D. BAND Key. See “Playing the Radio” on page 3-2.
E. SEEK Key. See “Finding a Station” on page 3-2.
F. CD Key. See “Playing a CD” on page 3-10.
G. Audio Key. See Navigation Audio System on page 3-4.
H. CONFIG (Configure) Key. See “Hard Keys” on page 2-1.
I. Tuning Knob. See “Finding a Station” on page 3-2.
J. Zoom In Screen Button. See “Touch Sensitive Screen Buttons” on page 2-5.
K. Dest (Destination) Screen Button. See “Touch Sensitive Screen Buttons” on page 2-4.
L. Nav (Navigation) Options Screen Button. See “Touch Sensitive Screen Buttons” on page 2-4.
M. Nav (Navigation Menu) Screen Button. See “Touch Sensitive Screen Buttons” on page 2-4.
N. Zoom Out Screen Button. See “Touch Sensitive Screen Buttons” on page 2-5.
O. Clock. See “Clock” under Configure Menu on page 2-40.
P. Directional Indicator. See Symbols on page 2-7.
Q. DVD/CD Loading Slot
R. DVD/CD Eject Key
1-4
Overview
Getting Started
Before you begin to operate the navigation system, read this manual thoroughly to become familiar with it and
to understand how the system works. The navigation system allows you to do the
following:
• Plan a route with provided turn-by-turn route and map guidance with voice prompts.
• Select a destination using various methods and choices.
CAUTION: The information in the system may not always be complete. Road conditions and regula-
tions such as prohibited turns, detours, and construction zones, change frequently. It is important to
consider whether you can follow the directions given by the system for the current conditions. When
getting started, you may set the navigation system to your preference using various options. You will
also need to know how to perform various functions to begin route guidance. Reference the following
topics for further information:
1-5
Overview
Setting Radio Station Presets
1. Press the power/volume knob to turn the audio and navigation system on.
2. Press the BAND hard key to access the band menu and select the desired band. You may choose
between AM, FM1, FM2, and XM1, and XM2 (if equipped).
3. Use the tuning knob or the SEEK hard key arrows to select a station.
4. Touch and hold one of the six screen buttons at the bottom of the screen until you hear a beep or see
the station displayed on the selected preset button.
Setting the Time
1. Press the power/volume knob to turn the audio and navigation system on.
2. Press the CONFIG hard key.
3. Touch the Clock screen button.
4. Touch the appropriate Time Zone screen button.
5. Touch the Daylight Savings screen button (when applicable).
The time is now set. Touch the Manual Adjust screen button if you need to further adjust the time. The radio
will use the GPS satellite to set the time. The vehicle needs to be in an open area to receive the signal.
1-6
Overview
Entering an Address, Point of Interest, Home and Preset Destinations
Before you enter an Address, Point of Interest, Home or any Preset Destination, you must select the appropri-
ate search area that contains the final destination you wish to enter. Your vehicle must be stopped to perform
this operation.
Setting the Search Area
1. Press the power/volume knob to turn the audio and navigation system on.
2. Insert the DVD map disc into the radio CD slot.
3. A notice may appear. Touch the NEXT screen button to proceed. If the radio is already on with a map
disc inserted, push the NAV hard key.
4. Touch the DEST screen button.
5. Touch the Change screen button.
6. Touch the appropriate Search Area numbered screen button that contains your final destination. You
will automatically be returned to the Destination menu.
See page 2-21 for more details.
1-7
Overview
Entering an Address
1. Press the power/volume knob to turn the audio and navigation system on.
2. Insert the DVD map disc into the radio CD slot.
3. A notice may appear. Touch the NEXT screen button to proceed. If the radio is already on with a map
disc inserted, push the NAV hard key.
4. Touch the DEST screen button located in the lower left corner of the map.
5. Verify that the selected Search Area is correct.
6. Touch the Address screen button.
7. Enter the street name using the alpha keypad on the screen. Do not enter directional information or
street type, and be sure to use the space symbol screen button ( ) between street or city names.
For example, the street name N. Royal Oak Rd. should be entered as royal oak. Use the back-
space ( ) screen button for misspellings.
8. Select the street name from the list by touching the screen button beside the correct street name.
9. Enter the address number using the numeric keypad on the screen. You may first have to select the
correct range for the address number, then enter the desired address and touch the OK screen
button.
10. Touch the screen button beside the correct city.
11. Touch the Enter Destination screen button. The address entry is now complete.
12. Once you begin driving you will hear an audio prompt to “Proceed to the highlighted route.” You are
now in route guidance mode.
See page 2-24 for more details.
1-8
Overview
Entering a Point of Interest (POI)
1. Press the power/volume knob to turn the audio and navigation system on.
2. Insert the DVD map disc into the radio CD slot.
3. A notice may appear. Touch the NEXT screen button to proceed. If the radio is already on with a map
disc inserted, push the NAV hard key.
4. Touch the DEST screen button located in the lower left corner of the map.
5. Verify that the selected Search Area is correct.
6. Touch the POI screen button.
7. Enter the specific title of the POI in the Name space (Washington Monument, Gateway Arch) using
the alpha keypad on the screen.
• If there are POIs with the same name, spell out the name and then touch the List screen button
(McDonald’s restaurant vs. McDonald corporate office).
• The system will list the locations of POIs in order of distance from your location.
• Touch the screen button next to the address of the POI desired.
8. Touch the Enter Destination screen button. The POI entry is now complete.
9. Once you begin driving you will hear an audio prompt to “Proceed to the highlighted route.” You are
now in route guidance mode.
Using the Category or City selections will aid the system in finding your POI by limiting the search options.
See page 2-26 for more details.
1-9
Overview
Setting Home Destination
1. Press the power/volume knob to turn the audio and navigation system on.
2. Insert the DVD map disc into the radio CD slot. A notice may appear. Touch the NEXT screen button
to proceed. If the radio is already on with a map disc inserted, push the NAV hard key.
3. Touch the Nav (navigation) menu screen button.
4. Touch the Memory Points screen button.
5. Touch the Register Home screen button.
6. Touch the Address screen button and then enter all address information.
7. Touch the Register Point screen button to store the home address as a memory point. See page 2-
19 for more details.
Setting Preset Destinations
1. Press the power/volume knob to turn the audio and navigation system on.
2. Insert the DVD map disc into the radio CD slot. A notice may appear. Touch the NEXT screen button
to proceed. If the radio is already on with a map disc inserted, push the NAV hard key.
3. Touch the Nav (navigation) menu screen button.
4. Touch the Memory Points screen button.
5. Touch the Register screen button located under the Preset Dest column.
6. Touch one of the five preset buttons.
7. Touch the Address screen button and then enter the address information.
8. Touch the Register Point screen button to store the memory point. See page 2-22 for more details.
