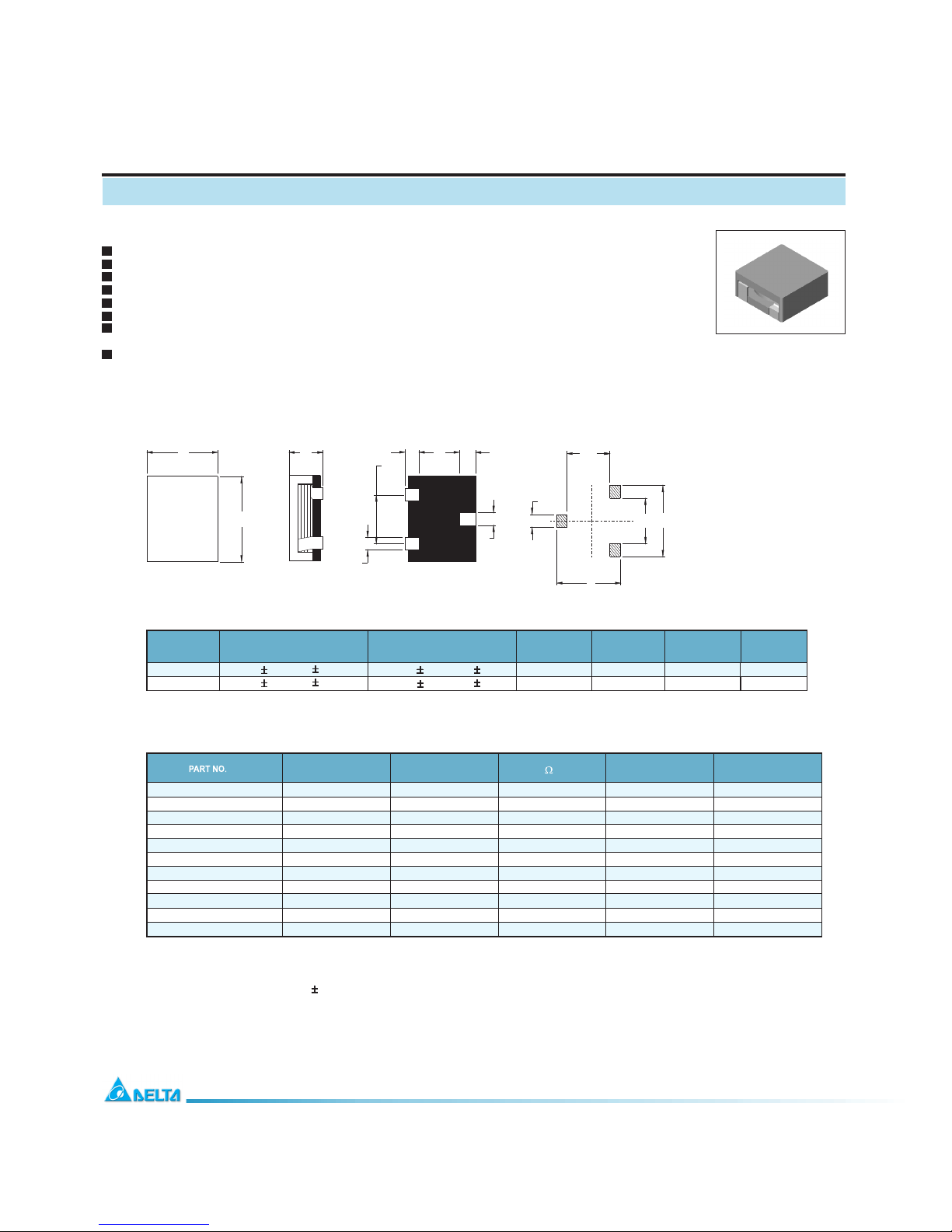

Mechanical Dimension :

Features

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG) 252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.

TEL: 886-3-3591968; FAX: 886-3-3591991

http://www.deltaww.com

SMT Power Inductor

HMP1350 Type

¡Ó

UNIT : mm/inch

D = 7.80/ 0.307

F = 2.50/ 0.098

G = 2.50/ 0.098

H = 8.00/ 0.315

J = 3.20/ 0.126

K = 7.00/ 0.276

L = 14.00/ 0.551

M = 3.70/ 0.146

121

UNIT : mm/inch

Electrical Characteristics : At 25 : 100KHz, 1V

PART NO. C (MAX) ENO

1. Tolerance of inductance is 20%.

2. Isat is the DC current which cause the inductance drop to Li.

3. Irms is the DC current which cause the surface temperature of the part increase less than 45 C.

4. Operating temperature : -20 C to 105 C ( including self-temperature rise ).

rms

(uH)

(uH) MIN

(Adc)

(m ) MAX

DCR

sat

(Adc)

HMP1350 12.70 0.5 / 0.50 0.02 13.00 0.5 / 0.512 0.02 5.00 / 0.197 2.40 / 0.094 11.20 / 0.441 4.40 / 0.173

HMP1350S 12.70 0.5 / 0.50 0.02 13.00 0.5 / 0.512 0.02 5.00 / 0.197 2.00 / 0.079 10.80 / 0.425 4.80 / 0.189

RECOMMENDED PAD PATTERNS

RoHS compliant.

Low profile, SMD type.

High current.

Magnetic shielded.

High energy storage and low DCR.

Provided with embossed carrier tape packing.

Ideal for power source circuits, DC-DC converter, DC-AC inverters

inductor applications.

In addition to the standard versions shown here, customized inductors

are available to meet your exact requirements.

HMP1350M-0R5 0.5 0.40 1.3 40.0 30.0

HMP1350-0R6 0.6 0.48 1.3 30.0 30.0

HMP1350-0R7 0.7 0.56 1.3 30.0 30.0

HMP1350-1R0 1.0 0.80 2.1 30.0 26.0

HMP1350-1R5 1.5 1.20 2.1 20.0 26.0

HMP1350-2R0 2.0 1.60 3.5 20.0 17.0

HMP1350M-2R2 2.2 1.76 4.3 18.0 15.8

HMP1350-3R3LD 3.3 2.30 4.3 14.0 15.8

HMP1350BM-4R7 4.7 3.76 6.3 13.5 12.5

HMP1350-150 15.0 12.00 26.0 5.4 7.5

HMP1350S-R85 0.85 0.68 1.3 20.0 30.0
