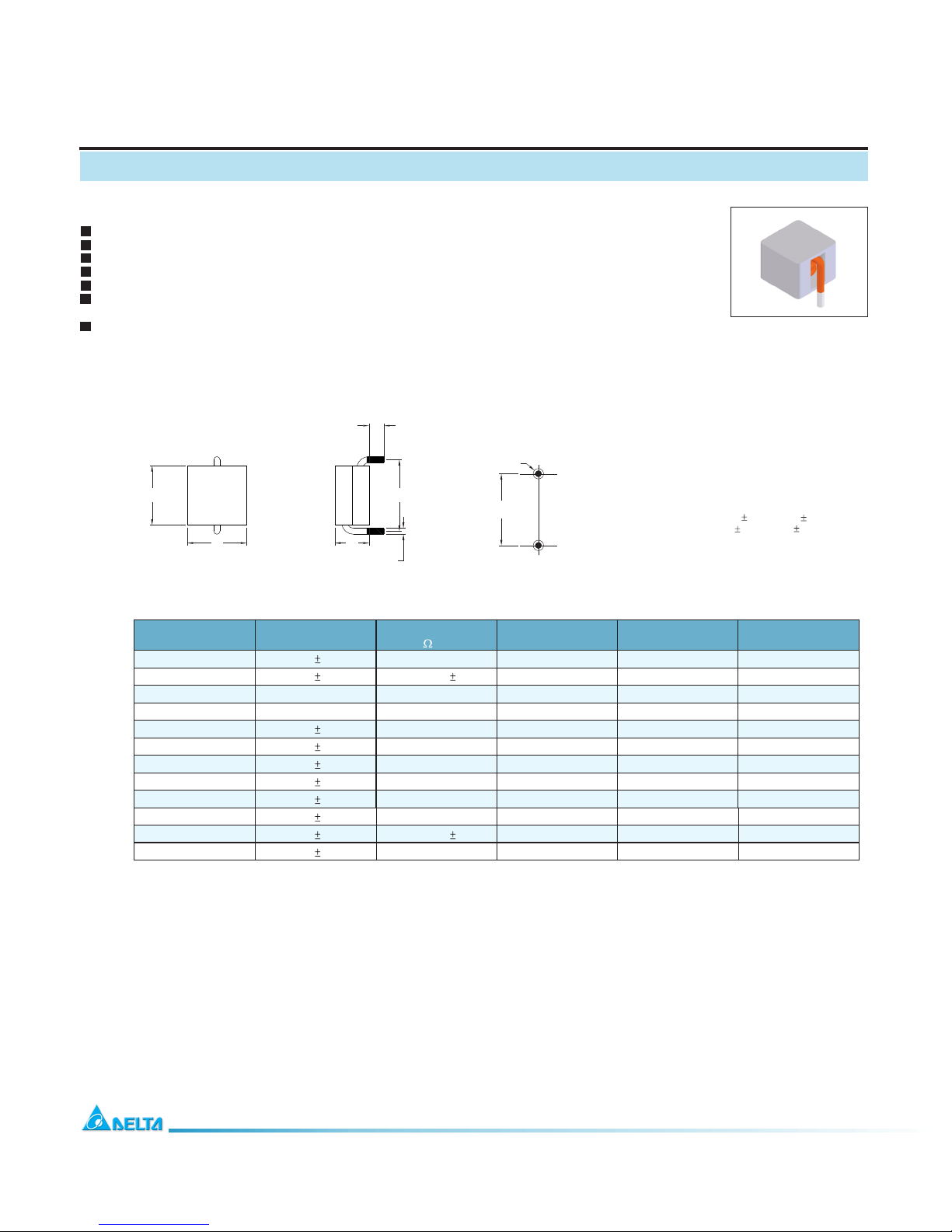

Through Hole Power Inductors

THAH1055, 1075, 1085, 1090 & 1095 Type

Mechanical Dimension:

RoHS compliant.

High current ( lsat up to 50A ) though hole type.

Magnetically shielded, suitable for hight density mounting.

High energy storage and low DCR.

Provided with embossed carrier tape packing.

Ideal for power source circuits, DC-DC converter,

DC-AC inverters inductor application.

In addition to the standard versions shown here,

customized inductors are available to meet your exact requirements.

Features

Electrical Characteristics:

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG)

At 25 : 100KHz, 1.0V

252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.

TEL: 886-3-3591968; FAX: 886-3-3591991

http://www.deltaww.com

147

UNIT :mm/inch

A =11.00 /0.433 Max.

B = 11.00 / 0.433Max.

D = 12.70 0.5 / 0.500 0.020

E = 3.30 0.5 / 0.130 0.020

F = 1.30/ 0.051

(uH)

DCR

(m ) MAX.

Irms

(Adc)

Isat

(Adc)

PART NO.

Dimension "C"

(mm / inch) MAX

THAH1055-R15 0.150 20% 0.50 45 30 5.50 / 0.217

THAH1075-R24 0.245 10% 0.72 7% 50 28 7.50 / 0.295

THAH1075-R25 0.280 ~ 0.308 0.76 40 28 7.50 / 0.295

THAH1075-0R3 0.224 ~ 0.336 0.76 40 28 7.50 / 0.295

THAH1075-R36 0.360 20% 0.76 40 28 7.50 / 0.295

THAH1075-R68 0.680 20% 1.25 35 25 7.50 / 0.295

THAH1075-0R8 0.800 20% 2.30 35 20 7.50 / 0.295

THAH1075-1R0 1.000 20% 3.00 22 16 7.50 / 0.295

THAH1085-0R9 0.900 20% 2.10 30 22 8.50 / 0.335

THAH1090-0R4 0.400 20% 1.15 40 25 9.00 / 0.354

THAH1090-0R5 0.500 20% 0.90 5% 50 40 9.00 / 0.354

THAH1095-1R2 1.200 20% 3.00 22 15 9.50 / 0.374

12.7+/-1.0

1.7(REF.)

RECOMMENDED PAD PATTERNS

1. Lo is the initial inductance.

2. Isat is the DC current which cause the inductance drop less than 20% of its nominal inductance without current.

3. Irms is the DC current which cause the surface temperature of the part increase less than 40 C.

4. Operating temperature : -40 C to 125 C ( including self-temperature rise ).
