Delta Electronics CliQ Bedienungsanleitung

CliQ Power Supplies for

DIN Rail Applications

Content About us

Delta Group is the world‘s largest provider

of switching power supplies and a major

source for power management solutions,

components, visual displays, industrial auto-

mation, networking products and renewable

energy solutions. Established in 1971, Delta

Group has sales ofces worldwide and man-

ufacturing plants in Taiwan, Thailand, China,

Mexico and Europe.

As a global leader in power electronics, Delta

is committed to environment protection and

has implemented green, lead-free produc-

tion and recycling and waste management

programs for many years. Delta‘s mission

continues to be: „To provide innovative en-

ergy saving products for a better quality of

life.“

With vigorous business growth of 18% per

year since 1994, Delta achieved annual sales

of 5.2 billion USD in 2007. Currently, Delta

Electronics Group has more than 50,000

employees worldwide working in sales, R&D

and manufacturing facilities.

About us 2

60 W 1 Phase Plastic CliQ Power Supply 3

60 W 1 Phase Metal CliQ Power Supply 5

120 W 1 Phase CliQ Power Supply 7

240 W 1 Phase CliQ Power Supply 9

480W 1 Phase CliQ Power Supply 11

60 W 3 Phase CliQ Power Supply 13

120 W 3 Phase CliQ Power Supply 15

240 W 3 Phase CliQ Power Supply 17

480 W 3 Phase CliQ Power Supply 19

Product Overview 21

Features:

● Ease of wire connection to terminals

● Compact design for easy handling

● Overload protection

● Overvoltage protection

● Thermal protection

● Power boost 150% for 3 seconds

● Expected life time: 10 years

●

Redundancy: Yes (with external oring

diode)

● RoHS compliant

MECHANICAL DESIGN

Case cover Plastic (PC)

Dimensions (L x W x H) 126 mm x 32 mm x 113 mm

Unit weight / box 0.325 kg

MTBF > 800,000 hrs

Noise Sound pressure level (SPL) < 40 dBA

Cooling Convection

Input terminal M4 x 3

Output terminal M4 x 2

Mounting rail Standard TS35 mounting rail

Shock proof IEC 60068-2-27

Vibration IEC 60068-2-6

Protection structure EN 60950 meet IPX0

SAFETY

EMC / Emissions Class B / EN55022, CISPR22, Class B; FCC Tilte 47;

EN 61204-3 (Class B on AC & Class A on DC side)

Immunity EN 61000-4-2, 1995; EN 61000-4-3, 1998; EN 61000-4-4,

1995; IEC 61000-4-5, 1995; EN 61000-4-6, 1996;

EN 61000-4-8 or IEC 61000-4-12 or IEEE C62.41;

EN 61000-3-2, 1994

Approvals UL508, EN 60950, cULus 60950, EN 50178, EN 60204,

GS, CCSAus to CSA C22.2 No. 60950-1: 03

Voltage dips Conform to EN 61000-4-11

Galvanic isolation Input to output: 4 KVac

Input to ground: 1.5 KVac

Output to ground: 1.5 KVac

60 W 1 Phase Plastic CliQ Power

Supply

DRP024V060W1AZ Mechanical drawings

DC O K

Ad ju s t

24 V 2.5 A

10 0-2 40 V~ 1. 5A

50 -6 0 H z

INPUT SPECIFICATIONS

Input voltage range 85 - 264 Vac (DC input range 120 - 375 Vdc)

Input frequency 47 Hz - 63 Hz

Nominal current 1.1 A @ 115 Vac, 0.7 A @ 230 Vac

Inrush current limitation l²t

(+25°C) typ.

30 A @ 115 Vac, 60 A @ 230 Vac typ.

Power factor Conform to EN 61000-3-2 STD

Efciency > 85% typ.

Leakage current < 1 mA

OUTPUT SPECIFICATIONS

Output power 60 W

Output voltage range 22 V - 28 V

Output current 2.5 A

Residual ripple / peak

switching (20 MHz)

(at nominal values)

< 50 mV / < 240 mVpp

Mains buffering at nominal

load (typ.)

> 20 ms @ 115 Vac, > 125 ms @ 230 Vac

Line regulation < 0.5% typ. (@ 85 - 264 Vac input,

100% load)

Load regulation < 1% typ. (with rated input, 0 - 100% load)

1 Phase 60 W CliQ DIN Rail Power Supply

The new CliQ DRP024V060W1AZ is the latest offering from

one of the world‘s largest power supply manufacturers -

Delta.

The product offers a nominal output voltage of 24 V, a wide

temperature range from -20°C to +75°C and a minimum hold-

up time of 20 ms.

The state-of-the-art design is made to withstand harsh indus-

trial environments. The rugged, ultra-compact plastic case is

shock and vibration resistant according to IEC 60068-2.

The 60 watts CliQ DIN Rail power supply provides overvolt-

age, overload and thermal protection.

Due to the wide input voltage range from 85 to 264 Vac, the

Delta’s CliQ power supply is worldwide usable.

Multiple output terminals for fast wiring and easy installation.

ENVIRONMENTAL

Operating ambient temperature -20°C ... +75°C *

Storage temperature -25°C ... +85°C

Humidity operation < 95%

Note (*) * Operating amb. < 0°C to -20°C derate power by 1% / °C

Operating amb. > 50°C derate power by 2.5% / °C

Operating amb. > 70°C derate power by 4% / °C

60 W 1 Phase Plastic CliQ Power

Supply

geprufte

innova

Features:

● Ease of wire connection to terminals

● Compact design for easy handling

● Overload protection

● Overvoltage protection

● Thermal protection

● Power boost 150% for 3 seconds

● Expected life time: 10 years

●

Redundancy: Yes (with external oring

diode)

● RoHS compliant

DRP024V060W1AA

60 W 1 Phase Metal CliQ Power Supply

INPUT SPECIFICATIONS

Input voltage range 85 - 264 Vac (DC input range 120 - 375 Vdc)

Input frequency 47 Hz - 63 Hz

Nominal current 1.1 A @ 115 Vac, 0.7 A @ 230 Vac

Inrush current limitation l²t

(+25°C) typ.

30 A @ 115 Vac, 60 A @ 230 Vac typ.

Power factor Conform to EN 61000-3-2 STD

Efciency > 85% typ.

Leakage current < 1 mA

OUTPUT SPECIFICATIONS

Output power 60 W

Output voltage range 22 V - 28 V

Output current 2.5 A

Residual ripple / peak

switching (20 MHz)

(at nominal values)

< 50 mV / < 240 mVpp

Mains buffering at nominal

load (typ.)

> 20 ms @ 115 Vac, > 125 ms @ 230 Vac

Line regulation < 0.5% typ. (@ 85 - 264 Vac input,

100% load)

Load regulation < 1% typ. (with rated input, 0 - 100% load)

1 Phase 60 W CliQ DIN Rail Power Supply

The new CliQ DRP024V060W1AA is the latest offering from

one of the world‘s largest power supply manufacturers -

Delta.

The product offers a nominal output voltage of 24 V, a wide

temperature range from -20°C to +75°C and a minimum hold-

up time of 20 ms.

The state-of-the-art design is made to withstand harsh indus-

trial environments. The rugged, ultra-compact metal case is

shock and vibration resistant according to IEC 60068-2.

The 60 watts CliQ DIN Rail power supply provides overvolt-

age, overload and thermal protection.

Due to the wide input voltage range from 85 to 264 Vac, the

Delta’s CliQ power supply is worldwide usable.

Multiple output terminals for fast wiring and easy installation.

MECHANICAL DESIGN

Case cover Aluminium (Al5052)

Dimensions (L x W x H) 121 mm x 32 mm x 120 mm

Unit weight / box 0.370 kg

MTBF > 800,000 hrs

Noise Sound pressure level (SPL) < 40 dBA

Cooling Convection

Input terminal M4 x 3

Output terminal M4 x 2

Mounting rail Standard TS35 mounting rail

Shock proof IEC 60068-2-27

Vibration IEC 60068-2-6

Protection structure EN 60950 meet IPX0

SAFETY

EMC / Emissions Class B / EN55022, CISPR22, Class B; FCC Tilte 47;

EN 61204-3 (Class B on AC & Class A on DC side)

Immunity EN 61000-4-2, 1995; EN 61000-4-3, 1998; EN 61000-4-4,

1995; IEC 61000-4-5, 1995; EN 61000-4-6, 1996;

EN 61000-4-8 or IEC 61000-4-12 or IEEE C62.41;

EN 61000-3-2, 1994

Approvals UL508, EN 60950, cULus 60950, EN 50178, EN 60204,

Voltage dips Conform to EN 61000-4-11

Galvanic isolation Input to output: 4 KVac

Input to ground: 1.5 KVac

Output to ground: 1.5 KVac

60 W 1 Phase Metal CliQ Power Supply

Mechanical drawings

Ad ju s t

DC O K

24 V 2.5 A

10 0- 2 4 0V ~ 1 .5 A

50 -6 0 H z

ENVIRONMENTAL

Operating ambient temperature -20°C ... +75°C *

Storage temperature -25°C ... +85°C

Humidity operation < 95%

Note (*) * Operating amb. < 0°C to -20°C derate power by 1% / °C

Operating amb. > 50°C derate power by 2.5% / °C

Features:

● Ease of wire connection to terminals

● Compact design for easy handling

● Overload protection

● Overvoltage protection

● Thermal protection

● Power boost 150% for 3 seconds

● Expected life time: 10 years

●

Redundancy: Yes (with external oring

diode)

● RoHS compliant

DRP024V120W1AA

1 Phase CliQ DIN Rail Power Supply

MECHANICAL DESIGN

Case cover Aluminium (Al5052)

Dimensions (L x W x H) 121 mm x 50 mm x 115 mm

Unit weight / box 0.540 kg

MTBF > 800,000 hrs

Noise Sound pressure level (SPL) < 40 dBA

Cooling Convection

Input terminal M4 x 3

Output terminal M4 x 2 (2 pcs.)

Mounting rail Standard TS35 mounting rail

Shock proof IEC 60068-2-27

Vibration IEC 60068-2-6

Protection structure EN 60950 meet IPX0

SAFETY

EMC / Emissions Class B / EN55022, CISPR22, Class B; FCC Tilte 47;

EN 61204-3 (Class B on AC & Class A on DC side)

Immunity EN 61000-4-2, 1995; EN 61000-4-3, 1998; EN 61000-4-4,

1995; IEC 61000-4-5, 1995; EN 61000-4-6, 1996;

EN 61000-4-8 or IEC 61000-4-12 or IEEE C62.41;

EN 61000-3-2, 1994

Approvals UL508, EN 60950, cULus 60950, EN 50178, EN 60204,

Voltage dips Conform to EN 61000-4-11

Galvanic isolation Input to output: 4 KVac

Input to ground: 1.5 KVac

Output to ground: 1.5 KVac

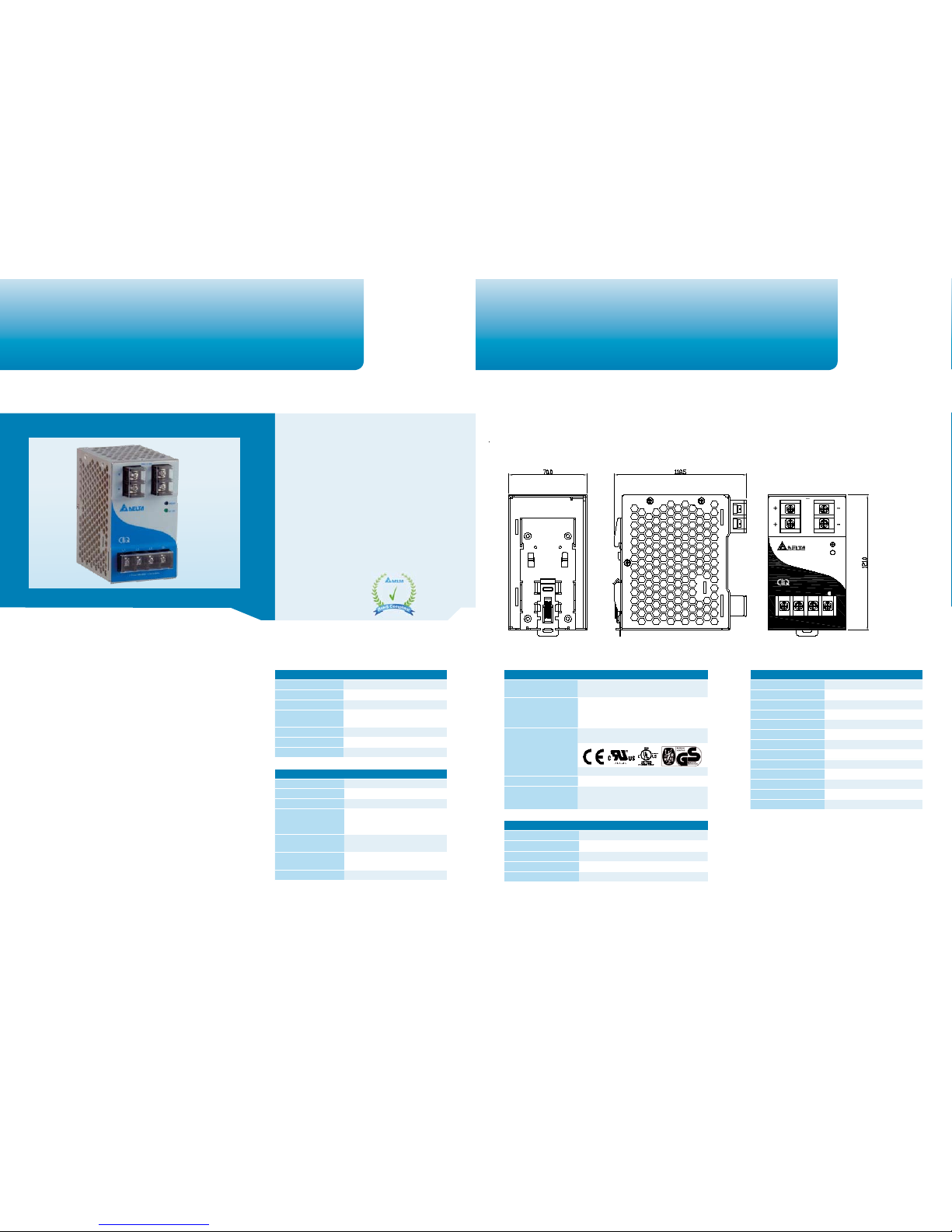

120 W 1 Phase CliQ Power Supply

Mechanical drawings

ENVIRONMENTAL

Operating ambient temperature -20°C ... +75°C *

Storage temperature -25°C ... +85°C

Humidity operation < 95%

Note (*) * Operating amb. > 50°C derate power by 2.5% / °C

INPUT SPECIFICATIONS

Input voltage range 85 - 264 Vac (DC input range 120 - 375 Vdc)

Input frequency 47 Hz - 63 Hz

Nominal current 1.4 A @ 115 Vac, 0.8 A @ 230 Vac

Inrush current limitation l²t

(+25°C) typ.

< 80 A @ 115 Vac

Power factor Conform to EN 61000-3-2 STD

Efciency > 84% typ.

Leakage current < 1 mA

OUTPUT SPECIFICATIONS

Output power 120 W

Output voltage range 22 V - 28 V

Output current 5 A

Residual ripple / peak

switching (20 MHz)

(at nominal values)

< 50 mV / < 240 mVpp

Mains buffering at nominal

load (typ.)

> 35 ms @ 115 Vac, > 70 ms @ 230 Vac

Line regulation < 0.5% typ. (@ 85 - 264 Vac input,

100% load)

Load regulation < 1% typ. (with rated input, 0 - 100% load)

1 Phase 120 W CliQ DIN Rail Power Supply

The new CliQ DRP024V120W1AA is the latest offering from

one of the world‘s largest power supply manufacturers -

Delta.

The product offers a nominal output voltage of 24 V, a wide

temperature range from -20°C to +75°C and a minimum hold-

up time of 20 ms.

The state-of-the-art design is made to withstand harsh indus-

trial environments. The rugged, ultra-compact metal case is

shock and vibration resistant according to IEC 60068-2.

The 120 watts CliQ DIN Rail power supply provides overvolt-

age, overload and thermal protection.

Due to the wide input voltage range from 85 to 264 Vac, the

Delta’s CliQ power supply is worldwide usable.

Multiple output terminals for fast wiring and easy installation.

120 W 1 Phase CliQ Power Supply

24 V 5A

Ad ju s t

DC O K

L N

10 0 -2 4 0 V ~ 2A 5 0 - 60 H z

Features:

● Ease of wire connection to terminals

● Compact design for easy handling

● Overload protection

● Overvoltage protection

● Thermal protection

● Power boost 150% for 3 seconds

● Expected life time: 10 years

●

Redundancy: Yes (with external oring

diode)

● RoHS compliant

DRP024V240W1AA

240 W 1 Phase CliQ Power Supply

MECHANICAL DESIGN

Case cover Aluminium (Al5052)

Dimensions (L x W x H) 121 mm x 85 mm x 118.5 mm

Unit weight / box 1.040 kg

MTBF > 300,000 hrs

Noise Sound pressure level (SPL) < 40 dBA

Cooling Convection

Input terminal M4 x 3

Output terminal M4 x 2 (2 pcs.)

Mounting rail Standard TS35 mounting rail

Shock proof IEC 60068-2-27

Vibration IEC 60068-2-6

Protection structure EN 60950 meet IPX0

SAFETY

EMC / Emissions Class B / EN55022, CISPR22, Class B; FCC Tilte 47;

EN 61204-3 (Class B on AC & Class A on DC side)

Immunity EN 61000-4-2, 1995; EN 61000-4-3, 1998; EN 61000-4-4,

1995; IEC 61000-4-5, 1995; EN 61000-4-6, 1996;

EN 61000-4-8 or IEC 61000-4-12 or IEEE C62.41;

EN 61000-3-2, 1994

Approvals UL508, EN 60950, cULus 60950, EN 50178, EN 60204,

Voltage dips Conform to EN 61000-4-11

Galvanic isolation Input to output: 4 KVac

Input to ground: 1.5 KVac

Output to ground: 1.5 KVac

240 W 1 Phase CliQ Power Supply

Mechanical drawings

Ad ju s t

DC O K

24 V 10A

10 0- 2 4 0V ~ 5A 5 0- 6 0H z

L N

ENVIRONMENTAL

Operating ambient temperature -20°C ... +75°C *

Storage temperature -25°C ... +85°C

Humidity operation < 95%

Note (*) * Operating amb. > 50°C derate power by 2.5% / °C

Operating amb. > 70°C derate power by 4% / °C

INPUT SPECIFICATIONS

Input voltage range 85 - 264 Vac (DC input range 120 - 375 Vdc)

Input frequency 47 Hz - 63 Hz

Nominal current 2.9 A @ 115 Vac, 1.5 A @ 230 Vac

Inrush current limitation l²t

(+25°C) typ.

No damage at I²t ratings for all I/P devices

shall not exceed their rating

Power factor Conform to EN 61000-3-2 STD

Efciency > 84% typ.

Leakage current < 3.5 mA

OUTPUT SPECIFICATIONS

Output power 240 W

Output voltage range 22 V - 28 V

Output current 10 A

Residual ripple / peak

switching (20 MHz)

(at nominal values)

< 50 mV / < 240 mVpp

Mains buffering at nominal

load (typ.)

> 20 ms @ 115 Vac & 230 Vac

Line regulation < 0.5% typ. (@ 85 - 264 Vac input,

100% load)

Load regulation < 1% typ. (with rated input, 0 - 100% load)

1 Phase 240 W CliQ DIN Rail Power Supply

The new CliQ DRP024V240W1AA is the latest offering from

one of the world‘s largest power supply manufacturers -

Delta.

The product offers a nominal output voltage of 24 V, a wide

temperature range from -20°C to +75°C and a minimum hold-

up time of 20 ms.

The state-of-the-art design is made to withstand harsh indus-

trial environments. The rugged, ultra-compact metal case is

shock and vibration resistant according to IEC 60068-2.

The 240 watts CliQ DIN Rail power supply provides overvolt-

age, overload and thermal protection.

Due to the wide input voltage range from 85 to 264 Vac, the

Delta’s CliQ power supply is worldwide usable.

Multiple output terminals for fast wiring and easy installation.

109

Features:

● Ease of wire connection to terminals

● Compact design for easy handling

● Overload protection

● Overvoltage protection

● Thermal protection

● Power boost 150% for 3 seconds

● Expected life time: 10 years

●

Redundancy: Yes (with external oring

diode)

● RoHS compliant

DRP024V480W1AA

480W 1 Phase CliQ Power Supply

MECHANICAL DESIGN

Case cover Aluminium (Al5052)

Dimensions (L x W x H) 121 mm x 160 mm x 115 mm

Unit weight / box 1.800 kg

MTBF > 300,000 hrs

Noise Sound pressure level (SPL) < 40 dBA

Cooling Convection

Input terminal M4 x 3

Output terminal M4 x 2 (2 pcs.)

Mounting rail Standard TS35 mounting rail

Shock proof IEC 60068-2-27

Vibration IEC 60068-2-6

Protection structure EN 60950 meet IPX0

SAFETY

EMC / Emissions Class B / EN55022, CISPR22, Class B; FCC Tilte 47;

EN 61204-3 (Class B on AC & Class A on DC side)

Immunity EN 61000-4-2, 1995; EN 61000-4-3, 1998; EN 61000-4-4,

1995; IEC 61000-4-5, 1995; EN 61000-4-6, 1996;

EN 61000-4-8 or IEC 61000-4-12 or IEEE C62.41;

EN 61000-3-2, 1994

Approvals UL508, EN 60950, cULus 60950, EN 50178, EN 60204,

Voltage dips Conform to EN 61000-4-11

Galvanic isolation Input to output: 4 KVac

Input to ground: 1.5 KVac

Output to ground: 1.5 KVac

480 W 1 Phase CliQ Power Supply

Mechanical drawings

10 0 0 -2 4 0 V ~ 8A 50 -6 0 H z 24V 2 0A

N L A d j us t

DC OK

ENVIRONMENTAL

Operating ambient temperature -20°C ... +75°C *

Storage temperature -25°C ... +85°C

Humidity operation < 95%

Note (*) * Operating amb. > 50°C derate power by 2.5% / °C

INPUT SPECIFICATIONS

Input voltage range 85 - 264 Vac (DC input range 120 - 375 Vdc)

Input frequency 47 Hz - 63 Hz

Nominal current 5.7 A @ 115 Vac, 2.8 A @ 230 Vac

Inrush current limitation l²t

(+25°C) typ.

No damage at I²t ratings for all I/P devices

shall not exceed their rating

Power factor Conform to EN 61000-3-2 STD

Efciency > 86% typ.

Leakage current < 1 mA

OUTPUT SPECIFICATIONS

Output power 480 W

Output voltage range 22 V - 28 V

Output current 20 A

Residual ripple / peak

switching (20 MHz)

(at nominal values)

< 50 mV / < 240 mVpp

Mains buffering at nominal

load (typ.)

> 20 ms @ 115 Vac & 230 Vac

Line regulation < 0.5% typ. (@ 85 - 264 Vac input,

100% load)

Load regulation < 1% typ. (with rated input, 0 - 100% load)

1 Phase 480 W CliQ DIN Rail Power Supply

The new CliQ DRP024V480W1AA is the latest offering from

one of the world‘s largest power supply manufacturers -

Delta.

The product offers a nominal output voltage of 24 V, a wide

temperature range from -20°C to +75°C and a minimum hold-

up time of 20 ms.

The state-of-the-art design is made to withstand harsh indus-

trial environments. The rugged, ultra-compact metal case is

shock and vibration resistant according to IEC 60068-2.

The 480 watts CliQ DIN Rail power supply provides overvolt-

age, overload and thermal protection.

Due to the wide input voltage range from 85 to 264 Vac, the

Delta’s CliQ power supply is worldwide usable.

Multiple output terminals for fast wiring and easy installation.

1211

Features:

● Ease of wire connection to terminals

● Compact design for easy handling

● Overload protection

● Overvoltage protection

● Thermal protection

● Power boost 150% for 3 seconds

● Expected life time: 10 years

●

Redundancy: Yes (with external oring

diode)

● RoHS compliant

60 W 3 Phase CliQ Power Supply

DRP024V060W3AA

MECHANICAL DESIGN

Case cover Aluminium (Al5052)

Dimensions (L x W x H) 121 mm x 70 mm x 118.5 mm

Unit weight / box 0.560 kg

MTBF > 500,000 hrs

Noise Sound pressure level (SPL) < 40 dBA

Cooling Convection

Input terminal M4 x 4; 600 V rating

Output terminal M4 x 2 (2 pcs.); 600 V rating

Mounting rail Standard TS35 mounting rail

Shock proof IEC 60068-2-27

Vibration IEC 60068-2-6

Protection structure EN 60950 meet IPX0

SAFETY

EMC / Emissions Class B / EN55022, CISPR22, Class B; FCC Tilte 47;

EN 61204-3 (Class B on AC & Class A on DC side)

Immunity EN 61000-4-2, 1995; EN 61000-4-3, 1998; EN 61000-4-4,

1995; IEC 61000-4-5, 1995; EN 61000-4-6, 1996;

EN 61000-4-8 or IEC 61000-4-12 or IEEE C62.41;

EN 61000-3-2, 1994

Approvals UL508, EN 60950, cULus 60950, EN 50178, EN 60204,

Voltage dips Conform to EN 61000-4-11

Galvanic isolation Input to output: 4 KVac

Input to ground: 1.5 KVac

Output to ground: 1.5 KVac

60 W 3 Phase CliQ Power Supply

Mechanical drawings

L1 L 3L2

24 V 2. 5A

Ad ju s t

DC O K

3 Ph as e 4 0 0- 5 0 0V ~ 0 .3 A 5 0- 6 0H z

ENVIRONMENTAL

Operating ambient temperature -20°C ... +75°C *

Storage temperature -25°C ... +85°C

Humidity operation < 95%

Note (*) * Operating amb. > 50°C derate power by 2.5% / °C

INPUT SPECIFICATIONS

Input voltage range 320 - 575 Vac (DC input range 450 - 800 Vdc)

Input frequency 47 Hz - 63 Hz

Nominal current 0.3 A @ 400 Vac approx.

Inrush current limitation l²t

(+25°C) typ.

< 30 A @ 400 Vac

Power factor Conform to EN 61000-3-2 STD

Efciency > 86% @ 3 x 400 Vac, > 85% @ 3 x 500 Vac

Leakage current < 3.5 mA

OUTPUT SPECIFICATIONS

Output power 60 W

Output voltage range 22 V - 28 V

Output current 2.5 A

Residual ripple / peak

switching (20 MHz)

(at nominal values)

< 50 mV / < 240 mVpp

Mains buffering at nominal

load (typ.)

> 30 ms @ 3 x 400 Vac,

> 60 ms @ 3 x 500 Vac

Line regulation < 0.5% typ. (@ 320 - 575 Vac input,

100% load)

Load regulation < 1% typ. (with rated input, 0 - 100% load)

3 Phase 60 W CliQ DIN Rail Power Supply

The new CliQ DRP024V060W3AA is the latest offering from

one of the world‘s largest power supply manufacturers -

Delta.

The product offers a nominal output voltage of 24 V, a wide

temperature range from -20°C to +75°C and a minimum hold-

up time of 20 ms.

The state-of-the-art design is made to withstand harsh indus-

trial environments. The rugged, ultra-compact metal case is

shock and vibration resistant according to IEC 60068-2.

The 60 watts CliQ DIN Rail power supply provides overvolt-

age, overload and thermal protection.

Due to the wide input voltage range from 320 to 575 Vac and

450 to 800 Vdc, the Delta’s CliQ power supply is worldwide

usable.

Multiple output terminals for fast wiring and easy installation.

1413

Features:

● Ease of wire connection to terminals

● Compact design for easy handling

● Overload protection

● Overvoltage protection

● Thermal protection

● Power boost 150% for 3 seconds

● Expected life time: 10 years

●

Redundancy: Yes (with external oring

diode)

● RoHS compliant

DRP024V120W3AA

120 W 3 Phase CliQ Power Supply

MECHANICAL DESIGN

Case cover Aluminium (Al5052)

Dimensions (L x W x H) 121 mm x 70 mm x 118.5 mm

Unit weight / box 0.720 kg

MTBF > 500,000 hrs

Noise Sound pressure level (SPL) < 40 dBA

Cooling Convection

Input terminal M4 x 4; 600 V rating

Output terminal M4 x 2 (2 pcs.); 600 V rating

Mounting rail Standard TS35 mounting rail

Shock proof IEC 60068-2-27

Vibration IEC 60068-2-6

Protection structure EN 60950 meet IPX0

SAFETY

EMC / Emissions Class B / EN55022, CISPR22, Class B; FCC Tilte 47;

EN 61204-3 (Class B on AC & Class A on DC side)

Immunity EN 61000-4-2, 1995; EN 61000-4-3, 1998; EN 61000-4-4,

1995; IEC 61000-4-5, 1995; EN 61000-4-6, 1996;

EN 61000-4-8 or IEC 61000-4-12 or IEEE C62.41;

EN 61000-3-2, 1994

Approvals UL508, EN 60950, cULus 60950, EN 50178, EN 60204,

Voltage dips Conform to EN 61000-4-11

Galvanic isolation Input to output: 4 KVac

Input to ground: 1.5 KVac

Output to ground: 1.5 KVac

120 W 3 Phase CliQ Power Supply

Mechanical drawings

ENVIRONMENTAL

Operating ambient temperature -20°C ... +75°C *

Storage temperature -25°C ... +85°C

Humidity operation < 95%

Note (*) * Operating amb. > 50°C derate power by 2.5% / °C

INPUT SPECIFICATIONS

Input voltage range 320 - 575 Vac (DC input range 450 - 800 Vdc)

Input frequency 47 Hz - 63 Hz

Nominal current 0.5 A @ 400 Vac approx.

Inrush current limitation l²t

(+25°C) typ.

< 30 A @ 400 Vac

Power factor Conform to EN 61000-3-2 STD

Efciency > 86% @ 3 x 400 Vac, > 85% @ 3 x 500 Vac

Leakage current < 3.5 mA

OUTPUT SPECIFICATIONS

Output power 120 W

Output voltage range 22 V - 28 V

Output current 5 A

Residual ripple / peak

switching (20 MHz)

(at nominal values)

< 50 mV / < 240 mVpp

Mains buffering at nominal

load (typ.)

> 35 ms @ 3 x 400 Vac,

> 70 ms @ 3 x 500 Vac

Line regulation < 0.5% typ. (@ 320 - 575 Vac input,

100% load)

Load regulation < 1% typ. (with rated input, 0 - 100% load)

3 Phase 120 W CliQ DIN Rail Power Supply

The new CliQ DRP024V120W3AA is the latest offering from

one of the world‘s largest power supply manufacturers -

Delta.

The product offers a nominal output voltage of 24 V, a wide

temperature range from -20°C to +75°C and a minimum hold-

up time of 20 ms.

The state-of-the-art design is made to withstand harsh indus-

trial environments. The rugged, ultra-compact metal case is

shock and vibration resistant according to IEC 60068-2.

The 120 watts CliQ DIN Rail power supply provides overvolt-

age, overload and thermal protection.

Due to the wide input voltage range from 320 to 575 Vac and

450 to 800 Vdc, the Delta’s CliQ power supply is worldwide

usable.

Multiple output terminals for fast wiring and easy installation.

24 V 5A

L1 L 3L 2

Ad ju s t

DC O K

3 Ph ase 40 0-50 0V~ 0 .5A 5 0-60 Hz

1615

Features:

● Ease of wire connection to terminals

● Compact design for easy handling

● Overload protection

● Overvoltage protection

● Thermal protection

● Power boost 150% for 3 seconds

● Expected life time: 10 years

●

Redundancy: Yes (with external oring

diode)

● RoHS compliant

DRP024V240W3AA

240 W 3 Phase CliQ Power Supply

MECHANICAL DESIGN

Case cover Aluminium (Al5052)

Dimensions (L x W x H) 121 mm x 85 mm x 120.5 mm

Unit weight / box 0.990 kg

MTBF > 300,000 hrs

Noise Sound pressure level (SPL) < 40 dBA

Cooling Convection

Input terminal M4 x 4; 600 V rating

Output terminal M4 x 2 (2 pcs.); 600 V rating

Mounting rail Standard TS35 mounting rail

Shock proof IEC 60068-2-27

Vibration IEC 60068-2-6

Protection structure EN 60950 meet IPX0

SAFETY

EMC / Emissions Class B / EN55022, CISPR22, Class B; FCC Tilte 47;

EN 61204-3 (Class B on AC & Class A on DC side)

Immunity EN 61000-4-2, 1995; EN 61000-4-3, 1998; EN 61000-4-4,

1995; IEC 61000-4-5, 1995; EN 61000-4-6, 1996;

EN 61000-4-8 or IEC 61000-4-12 or IEEE C62.41;

EN 61000-3-2, 1994

Approvals UL508, EN 60950, cULus 60950, EN 50178, EN 60204,

Voltage dips Conform to EN 61000-4-11

Galvanic isolation Input to output: 4 KVac

Input to ground: 1.5 KVac

Output to ground: 1.5 KVac

240 W 3 Phase CliQ Power Supply

Mechanical drawings

ENVIRONMENTAL

Operating ambient temperature -20°C ... +75°C *

Storage temperature -25°C ... +85°C

Humidity operation < 95%

Note (*) * Operating amb. > 50°C derate power by 2.5% / °C

Operating amb. > 70°C derate power by 4% / °C

INPUT SPECIFICATIONS

Input voltage range 320 - 575 Vac (DC input range 450 - 800 Vdc)

Input frequency 47 Hz - 63 Hz

Nominal current 0.8 A @ 400 Vac approx.

Inrush current limitation l²t

(+25°C) typ.

< 40 A @ 400 Vac

Power factor Conform to EN 61000-3-2 STD

Efciency > 87% @ 3 x 400 Vac, > 86% @ 3 x 500 Vac

Leakage current < 3.5 mA

OUTPUT SPECIFICATIONS

Output power 240 W

Output voltage range 22 V - 28 V

Output current 10 A

Residual ripple / peak

switching (20 MHz)

(at nominal values)

< 50 mV / < 240 mVpp

Mains buffering at nominal

load (typ.)

> 35 ms @ 3 x 400 Vac,

> 60 ms @ 3 x 500 Vac

Line regulation < 0.5% typ. (@ 320 - 575 Vac input,

100% load)

Load regulation < 1% typ. (with rated input, 0 - 100% load)

3 Phase 240 W CliQ DIN Rail Power Supply

The new CliQ DRP024V240W3AA is the latest offering from

one of the world‘s largest power supply manufacturers -

Delta.

The product offers a nominal output voltage of 24 V, a wide

temperature range from -20°C to +75°C and a minimum hold-

up time of 20 ms.

The state-of-the-art design is made to withstand harsh indus-

trial environments. The rugged, ultra-compact metal case is

shock and vibration resistant according to IEC 60068-2.

The 240 watts CliQ DIN Rail power supply provides overvolt-

age, overload and thermal protection.

Due to the wide input voltage range from 320 to 575 Vac and

450 to 800 Vdc, the Delta’s CliQ power supply is worldwide

usable.

Multiple output terminals for fast wiring and easy installation.

Ad ju s t

DC O K

24 V 10A

3 P h a s e 40 0 -5 0 0 V ~ 0.8 A 50 -6 0 H z

L3L2L 1

3 P h a s e 40 0 -5 0 0 V ~ 0.8 A 50 -6 0 H z

L3L2L 1

1817

Inhaltsverzeichnis

Andere Delta Electronics Stromversorgung Handbücher

Delta Electronics

Delta Electronics Delphi MCM12S03L A Bedienungsanleitung

Delta Electronics

Delta Electronics GPS-450AA-100 Bedienungsanleitung

Delta Electronics

Delta Electronics Delphi H48SV Bedienungsanleitung

Delta Electronics

Delta Electronics GPS-650LB A A22 Bedienungsanleitung

Delta Electronics

Delta Electronics Delphi S48SR Series Bedienungsanleitung

Delta Electronics

Delta Electronics DPS-300AB-5 Bedienungsanleitung

Delta Electronics

Delta Electronics Delphi NE Series Bedienungsanleitung

Delta Electronics

Delta Electronics GPS-230GB-1 Bedienungsanleitung

Delta Electronics

Delta Electronics TAP-CP01 Bedienungsanleitung

Delta Electronics

Delta Electronics SM3300 Series Bedienungsanleitung

Delta Electronics

Delta Electronics Delphi Q48DR Bedienungsanleitung

Delta Electronics

Delta Electronics Delphi IPM24S0B0 Bedienungsanleitung

Delta Electronics

Delta Electronics PMC-24V050W1AA Bedienungsanleitung

Delta Electronics

Delta Electronics PMC-12V150W1BA Bedienungsanleitung

Delta Electronics

Delta Electronics DPS-300PB-2 Bedienungsanleitung

Delta Electronics

Delta Electronics Delphi E48SC Bedienungsanleitung

Delta Electronics

Delta Electronics E36SR Bedienungsanleitung

Delta Electronics

Delta Electronics Delphi E48SR12007 Bedienungsanleitung

Delta Electronics

Delta Electronics DPS-350QB Bedienungsanleitung

Delta Electronics

Delta Electronics Delphi Q48DC Bedienungsanleitung

Delta Electronics

Delta Electronics PMC-24V050W1AA Bedienungsanleitung

Delta Electronics

Delta Electronics SMT Power Inductor MPO13X Montageanleitung

Delta Electronics

Delta Electronics Delphi S48SS Series Merkblatt

Delta Electronics

Delta Electronics DPS-300PB-1 Bedienungsanleitung

Beliebte Stromversorgung Handbücher anderer Marken

Monacor

Monacor PS-12CCD Bedienungsanleitung

VOLTIMA

VOLTIMA MagicBox 15 Bedienungsanleitung

Agilent Technologies

Agilent Technologies 6032A Bedienungsanleitung

Miller

Miller Auto Deltaweld 452 Bedienungsanleitung

BCP

BCP PUOUBK Merkblatt

HC 2210 Bedienungsanleitung

Puls

Puls CT5.241 Bedienungsanleitung

OCZ

OCZ ZX1250W Bedienungsanleitung

iseg

iseg ECH 238 Bedienungsanleitung

Power

Power XXL A Series Bedienungsanleitung

Agilent Technologies

Agilent Technologies 6631B Bedienungsanleitung

Renogy

Renogy PHOENIX 300 Bedienungsanleitung

HP 6200B Service-Handbuch

Epson

Epson Stylus Scan 2500 Betriebsanleitung

Pulsar

Pulsar GREEN POWER CCTV PoE POE044816 Bedienungsanleitung

Puls

Puls MiniLine ML50.100 Bedienungsanleitung

Puls

Puls AS-Interface SLA4.100 Bedienungsanleitung

Kenwood

Kenwood PS-60 Bedienungsanleitung
