Installation instruction LOGIC S2 A

Conforms to ANSI/UL Std. 2108

Cert. to CAN/CSA Std. 22.2 No. 250.0

Last Update ALLU 03/01/2019

Application

Floor recessed

For indoor & outdoor use

Color Finish

ANO - Alu anodized

Light source

1 x POWERLED WHITE 7,1W

Product description

Anodised aluminum housing with hardened glass cover

For 350mA-DC current controlled, class 2 power limited circuits only.

Do not interconnect in parallel.

Anti-wicking cable 2x20 AWG included

Suitable for dry, damp or wet locations, floor recessed

Dust-tight - Protected against the effects of temporary immersion IP67

Weight: 1,3lbs 0,6kg

Accessories not supplied (required)

6 213 19 08 GENIE BOX 80 S / 90 S

Options (not supplied)

6 216 12 00 JUNCTION BOX

6 216 12 02 IP67 CONNECTOR 3P

LOGIC S2 93011

6 213 492 811 931

= ANO

LOGIC S2 93030

6 213 492 811 932

= ANO

LOGIC S2 93055

6 213 492 811 933

= ANO

LOGIC S2 93530

6 213 492 811 952

= ANO

LOGIC S2 93555

6 213 492 811 953

= ANO

4mm

3/16”

85mm

3”-3/8

110mm

4”-5/16

110mm

4”-5/16

Installation instruction LOGIC S2 A

NORTH AMERICAN EDITION

HEADQUARTERS - www.deltalight.com - USA - www.deltalight.us - CANADA - www.deltalight.ca

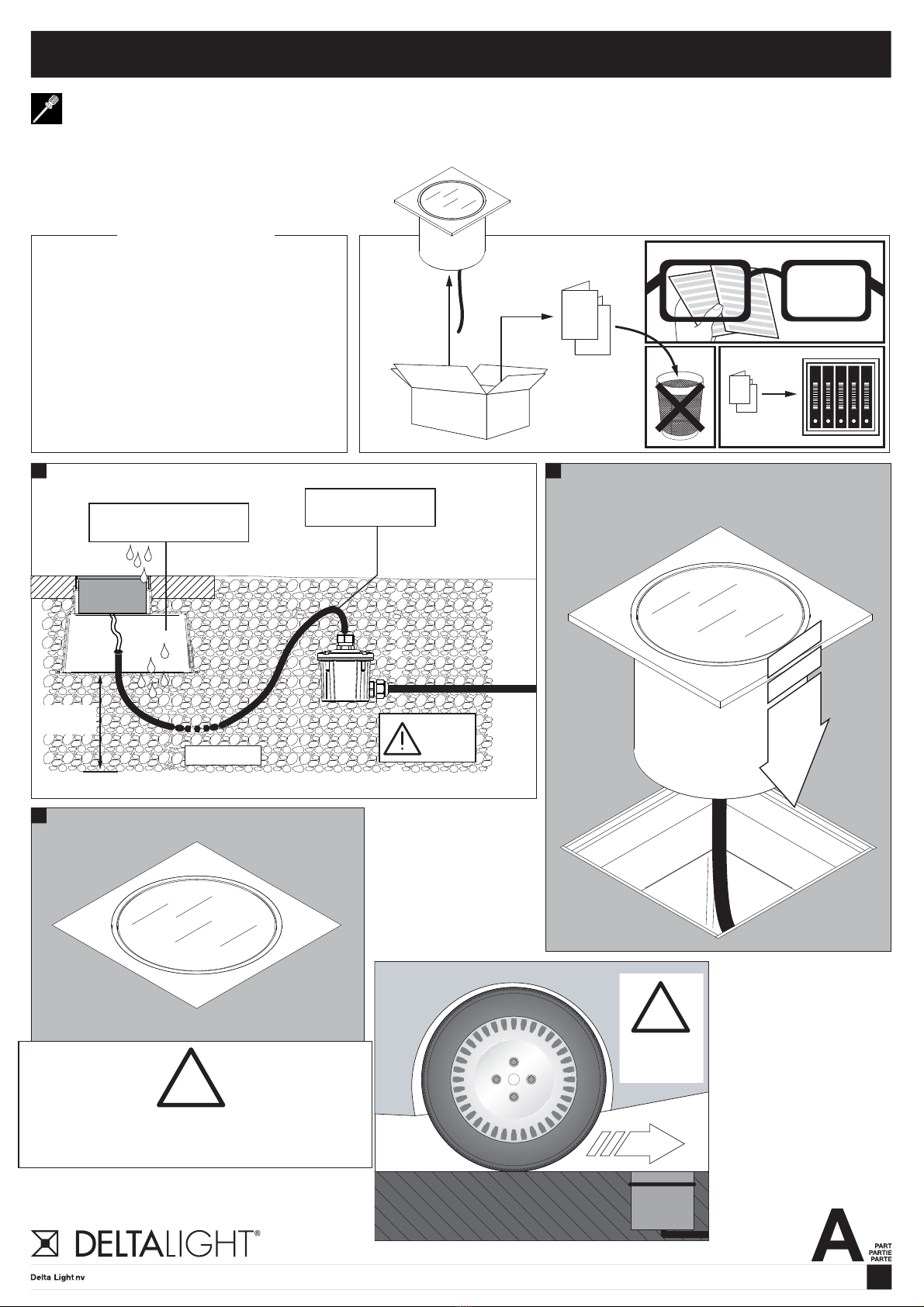

INSTALLATION METHOD

±50 mm

1”-15/16

GENIE BOX 80S /90S

6 213 19 08

GRAVEL

JUNCTION BOX

6 216 12 00

SAVE!

Accessories

INSTALLATION LUMINAIRE

20km/h

12miles/h

LUMINAIRES MUST BE INSTALLED BY A QUALIFIED ELECTRICIAN.

CHECK WITH LOCAL AND NATIONAL CODES FOR PROPER INSTALLATION.

TO PREVENT ELECTRICAL SHOCK, DISCONNECT ELECTRICAL SUPPLY

BEFORE INSTALLATION OR SERVICING

drainage

layer

required
